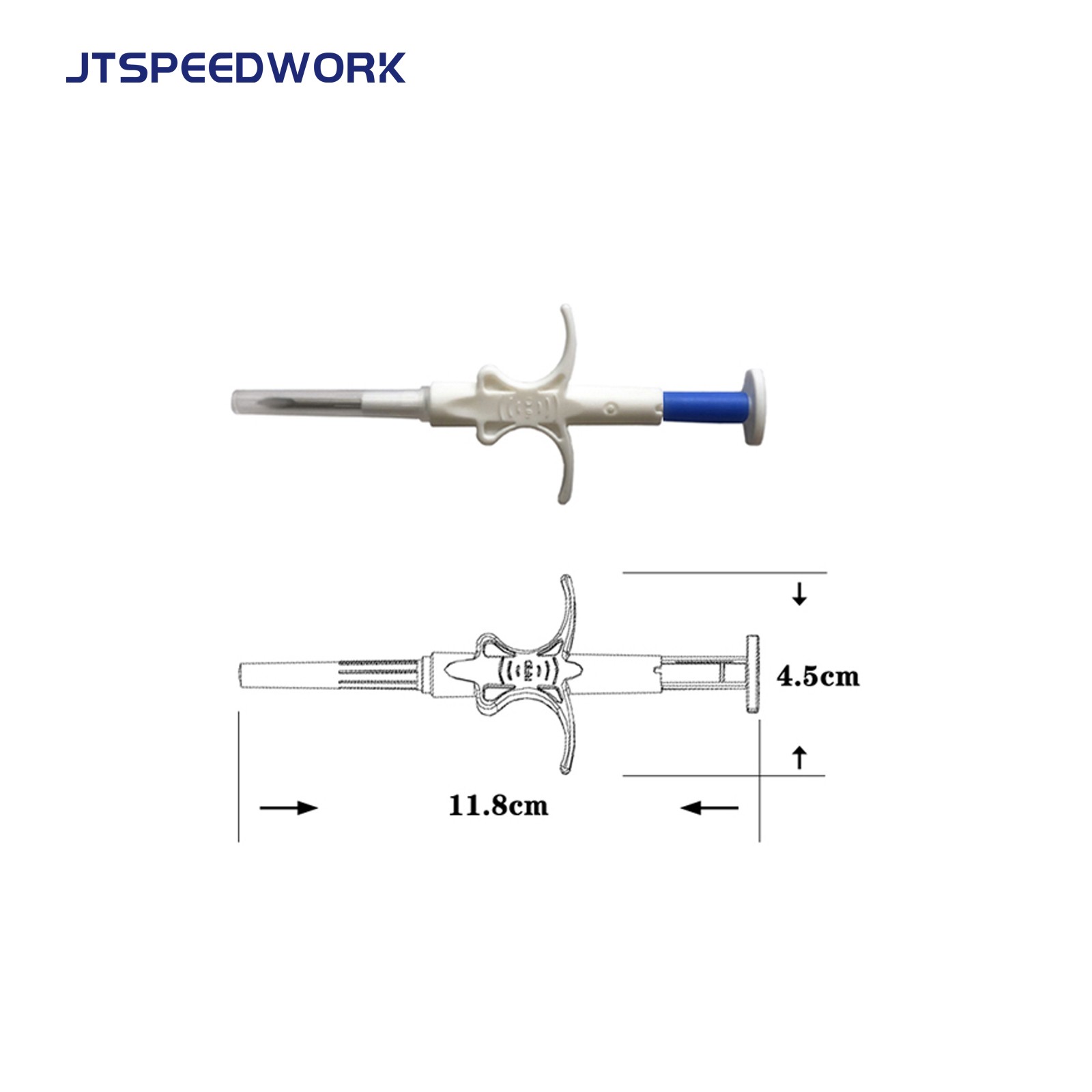

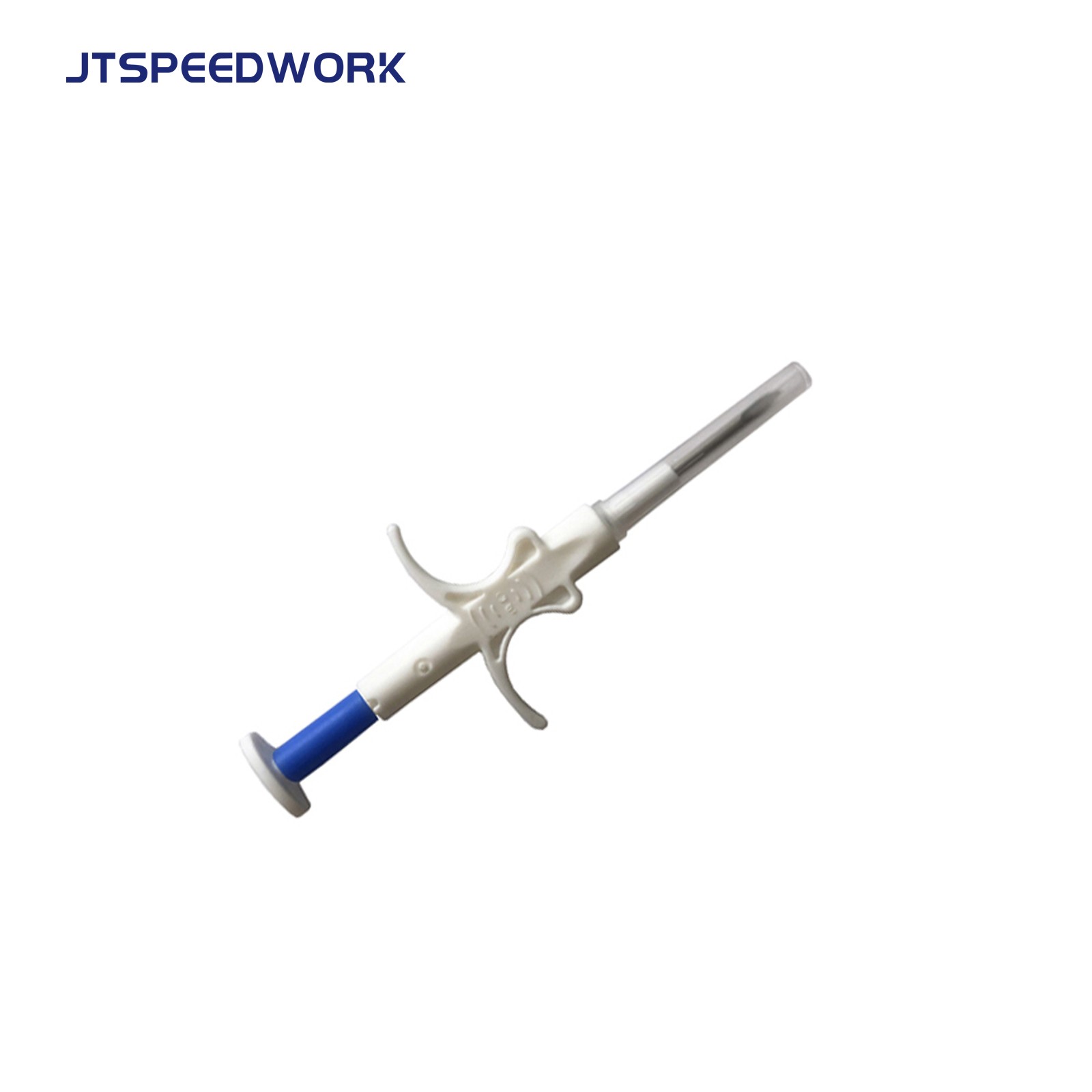

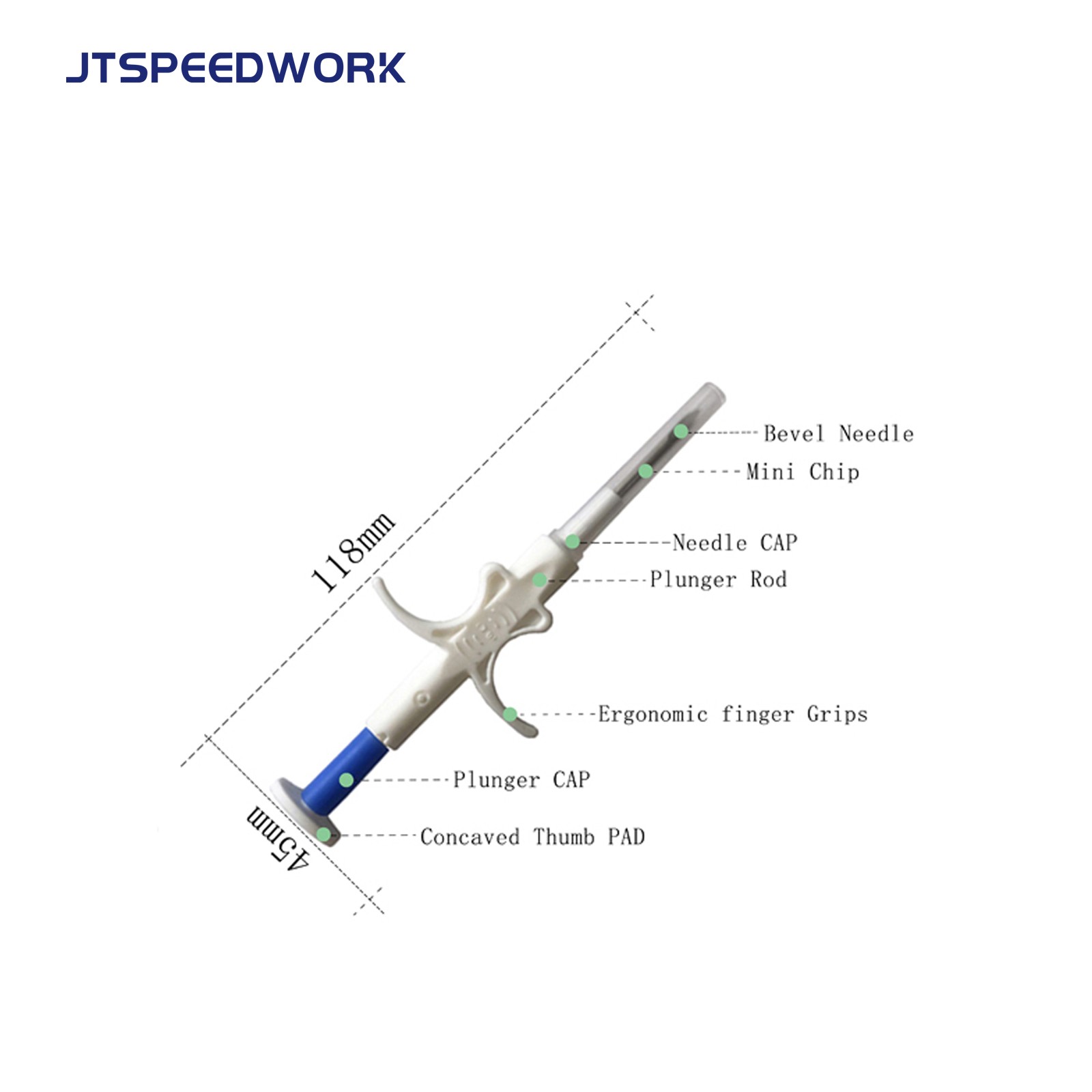

JT-A002 RFID Tag Chip Pet ID Animal Microchip Tracking Tags Injectable 134.2khz Animals Implanted With Disposable Needle
The JT-A002 Integrated Passive Transponder (PIT) is an ISO11784/85 compliant Radio Frequency Identification (RFID) tag and is used with an ISO11784/85 compliant reading device. Often called implantable biochips.
Item No :
JT-A002Protocol :
FDX-BWorking frequency :
134.2KHz
|
Coding standard ISO 11784
|
|
Size: 1.4*8mm , 2*12mm
|
|
Communication protocol ISO 11785
|
|
Weight 100 mg (±35mg)
|
|
Duplex mode FDX-B
|
|
Encapsulation material glass
|
|
Excitation frequency 134.2 kHz ±1.5 kHz
|
|
Protection grade IP68 50 meters water immersion
|
|
Reader frequency band 129.0-133.2 kHz /135.2-139.4 kHz
|
|
Operating temperature -20 ºC + 80 ºC
|
|
Modulation type AM/PSK
|
|
Storage temperature - 10 ºC + 80 ºC
|
|
Humidity 0 to 100% (condensation)
|
||
|
Altitude 100 to 3000 meters
|
|
Read Properties
|
|
Mechanical shock IEC 68-2-29
|
|
Reading distance 50-500 mm (determined by reader power and antenna size)
|
|
Mechanical vibration IEC 68-2-6
|
|
Reading speed 18 reads/second (different speed) / 32 reads/second (continuous)
|
|
Chemical resistance to all petroleum-based solvents, aqueous solutions, organic substances, acid/alkaline substances, corrosive salts
|
|
Reading direction 0±60º on-axis with optimal adjustment of antenna
Reading speed depends on antenna, reading system and tag orientation |
|
Biocompatible bioinert glass Anti-static 5kV/2 times
|
|
RF signals that power reading and writing devices
|
|
Electromagnetic compatibility FCC Part 15, IC RSS-210, EN55022
|
|
|
|
Reliability mean time between failures of 100,000 hours
|
|
|
|
Life expectancy 10 years (keep package intact)
|
|
|
|
The production process includes inverted packaging/glue potting glass tube/sintering/fully automatic assembly/sterilization
|
|
|
