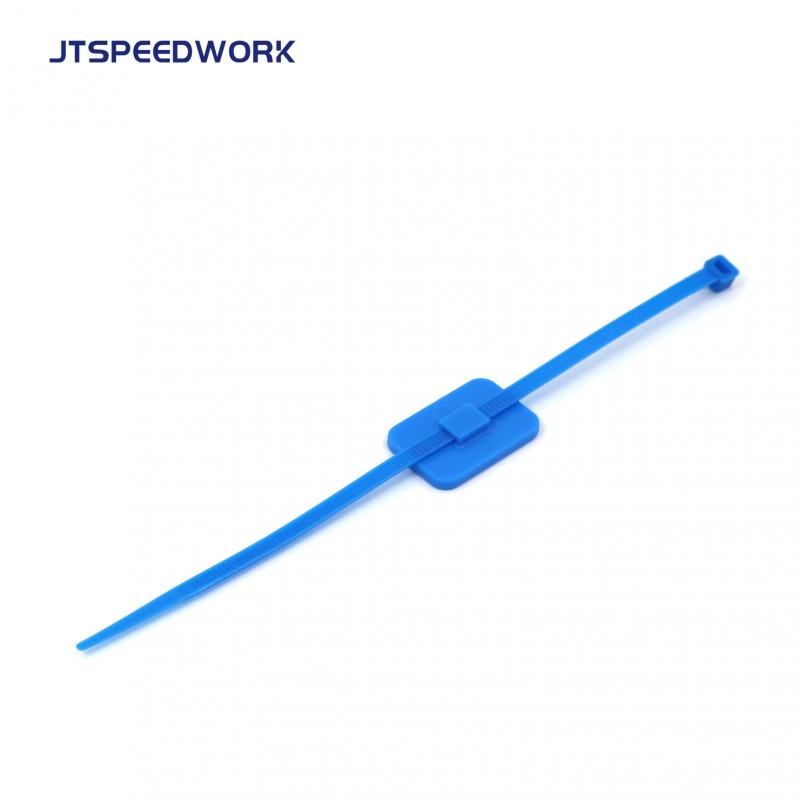

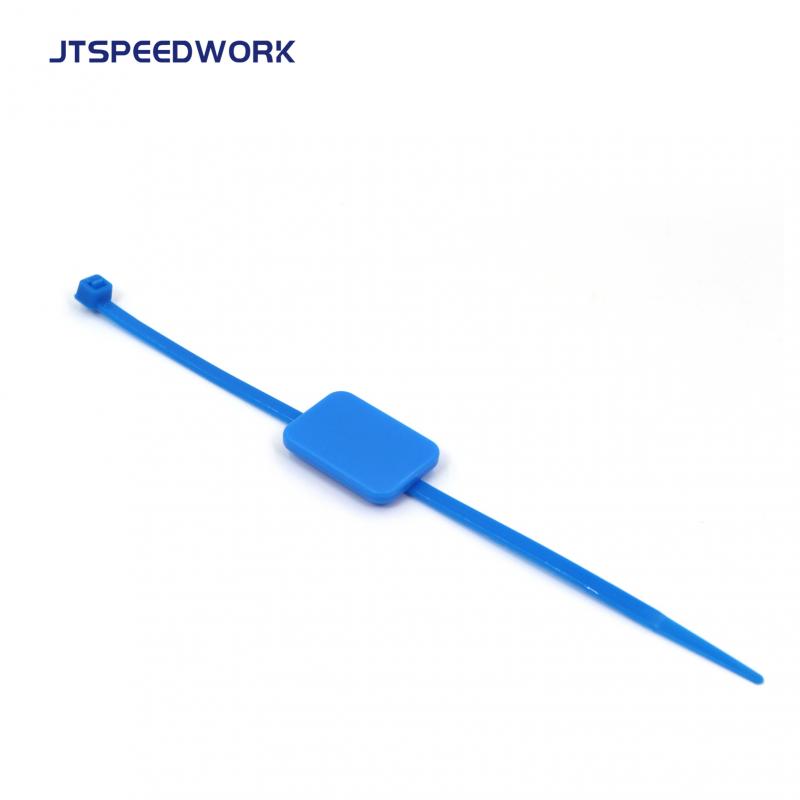

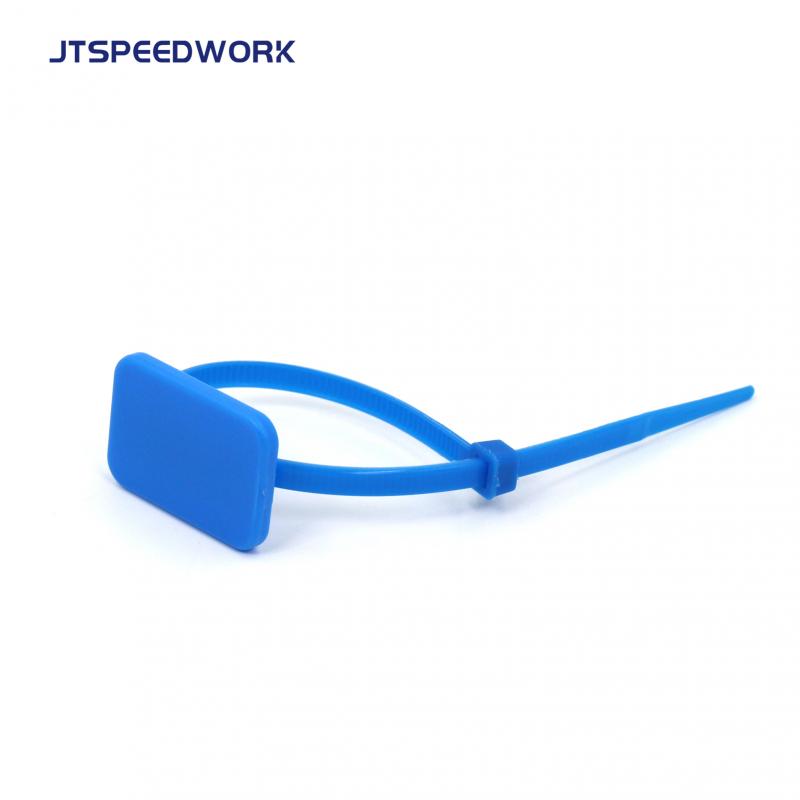

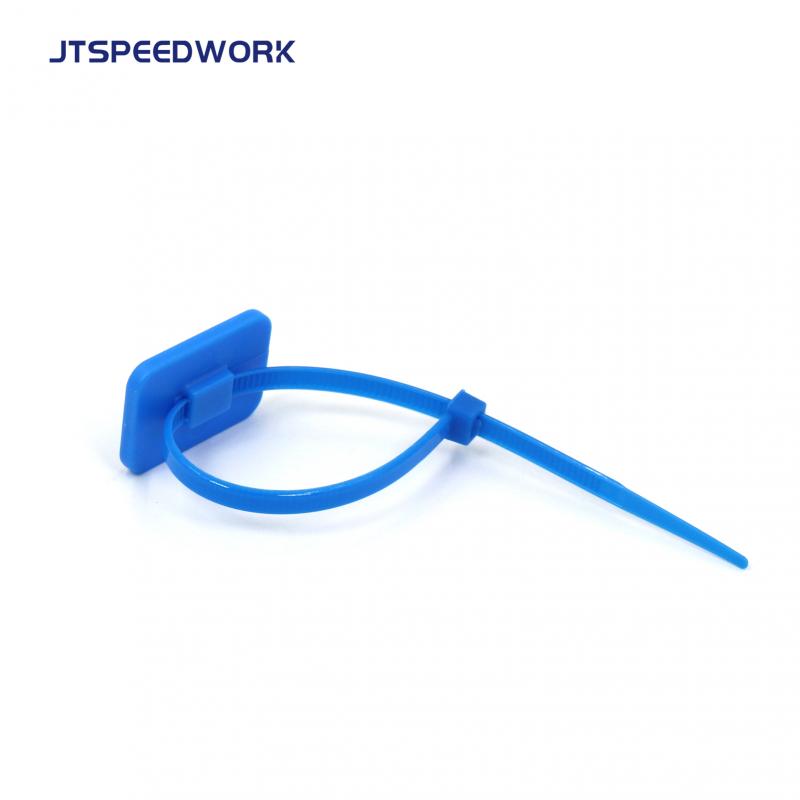

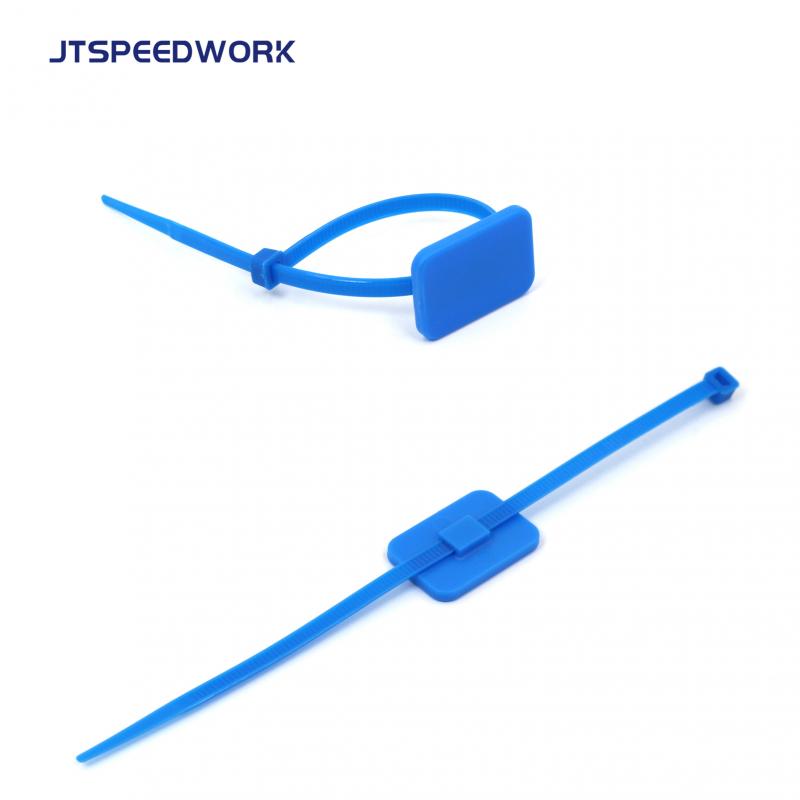

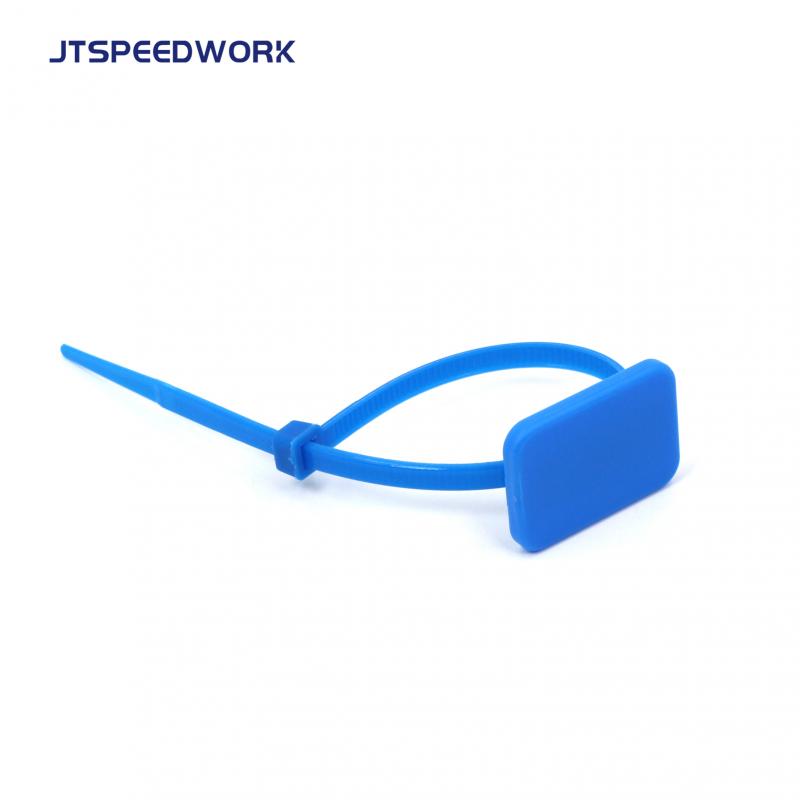

Application：     Widely used in cargo signs, logistics and transportation industry facilities,security inspections, petrochemical facilities, rail transit facilities, mobile communication facilities, sign anti-counterfeiting, biological identification,security inspection facilities, power asset equipment management, etc., using polystyrene High-temperature injection molding of thioether material is a new type of high-performance thermoplastic resin with the advantages of high mechanical strength, good temperature resistance, chemical resistance,good insulation, strong endurance, and excellent chips. Effectively protects the chip; high-frequency passive non-contact information storage and reading data management, strong anti-interference and large information storage capacity, convenient for daily maintenance work and information collection and management. Material ABS+nylon Dimensions Signage size 28*28*3mm Chip Alien/TK4100/ICODESLIX/NTAG213/F0814443A/15693/FDX-B (customizable chip) Working frequency 860-960MHz / 125KHz / 13.56MHz Working temperature -10～65℃ Reading distance UHF: 0.1-3 meters; LF/HF: 1-12cm Additional processes laser coding/silk screen pattern/UV spray pattern Color red/blue/yellow/green/black/white Protection level IP67

Equipped with a dedicated positioning RFID antenna,reading range 0-80cm.

It is compliant with EPC C1G2 (ISO18000-6C), mainly applied to warehouse logistics management, IT asset management, inventory management, assets management, automotive component tracking, industrial manufacturing, etc

RFID automatic calibration The RFID automatic calibration function can automatically drive the power of the antenna according to tags of different specifications and chips, easily set the reading and writing conditions of RFID tags, and greatly reduce the time of manual debugging of printer parameters. (Press the "Power On" button twice to automatically calibrate the RFID power) Automatic labeling function for waste labels The automatic marking function of discarded labels means that when a defective or damaged label is found during the label reading and writing process, the printer can automatically detect and print the word "obsolete" on the surface of the label, which facilitates customers to sort out defective labels as soon as possible and avoid the mixing of defective labels. Reliable tag data writing The workflow of printing first and then reading and writing the label IC can support the printing, reading and writing of large batches of labels at one time, while ensuring a 100% defective label detection rate and ensuring the accuracy of subsequent business operations. Labels are widely applicable It can support printing and reading and writing verification of ordinary anti-metal labels and flexible anti-metal labels (≦1.25mm) at the same time. The labels are widely applicable. The three-position penetrating sensor structure design can meet the label positioning needs of different positioning methods, meet the use of different labels, and the label has a wider application range. Humanized parameter settings Provides an intelligent assistant setting function that can manually adjust the printer's RFID power and antenna position, providing the most suitable application settings for RFID. Item No. JT-DL630 Print parameters Physical properties Printing method Thermal/thermal transfer printer Dimensions 230(width) ×290(Deep) ×176(high)mm Printing width (loading paper width) 106mm Color Black Printing speed 102mm/s(300dpi) Weight About 3kg Thermal head Point spacing 0.084mm Working environment Temperature: 5~40℃ Resolution 300DPIx300DPI Humidity: 20%~95%RH (no condensation) Storage environment Temperature: -20~60℃ Humidity: ≤95%RH (40℃, no condensation) Barcode RFID 1D code ZPL:Code11; Interleaved 2 of 5; Code 39; Code 49; Planet Code;EAN-8; EAN-13; UPC-E;UPC-A; Code 93;  Code 128;Industrial2 of 5; Standard 2 of 5;Codabar;  MSI; Plessey RFID tag writing method Print first and then write, which can support printing and writing to EPC at the same time, only reading and writing EPC, printing only, and reading label TID, etc. QR code PDF417; CODABLOCK; Maxicode; Aztec; QR Code ; Data Matrix Support RFID standards 920.5-924.5MHz; support ISO18000-6C, EPC Gen2 Supported label types Supports ordinary self-adhesive RFID and flexible anti-metal tags below 1.25mm *Special tags depend on the specific chip Character Ribbon specifications Character set Chinese character GB18030 Chinese character  library 24*24Bit map,commonly used single-byte fonts(ZPL):FontA,FontB,FontD,FontE,FontF,FontG, FontH,FontV0,FontGS,FontP,FontQ,FontR,FontS, FontT,FontU,FontV Inner diameter 25.4mm Custom fonts can be downloaded to FLASH, SDRAM Outer diameter 68mm Code page PC850;PC1250;PC1252;PC1253;PC1254;PC1255 Length 300 meters Zoom/Rotate It can be enlarged in steps of 1 to 8 times both  horizontally and vertically; rotation printing (0° ,90°, 180°,270° ) Width 33~110mm Paper handling Interface Paper specifications Paper thickness: 0.06~0.254mm Standard configuration USB interface (2.0 full speed) Paper width: 25~118mm Optional RS-232 serial port (DB25) Paper length: 8.9~400mm Parallel Centronics(IEEE-1284) Outer diameter: 127mm(MAX) Ethernet port:10M/100M Inner diameter: 25.4/38.1mm Wi-Fi interface (802.11b/g/n) Paper type Roll type, folding type (continuous paper,  non-continuous paper, continuous tag,  wristband, ordinary paper or various bills) Bluetooth interface: SPP Paper separation method Manual tearing, automatic cutting, and peeling  methods Power parameters Detection function Input 100~240VAC;Frequency range: 50~60Hz Standard sensor Black mark detection, label detection, mechanism detection, ribbon detection Output 24VDC; 2.15A Optional sensor Label peel detection Memory Safety SDRAM 16MB Safety standard GB4943.1-2011 FLASH 8MB Radio Interference (EMC) Class B Certification 3C, UL, FCC, CE, Energy Star Software Reliability and warranty Driver (Windows32bit/64bit, Linux), Barcode Pass BarEasy,SDK system Thermal head Lifespan 150KM(Calculated based on the use of designated thermal paper and a printing rate of 12.5%) Graphics Emulation language Graphics processing Graphics processing monochrome PCX BMP Image  data can be downloaded to SDRAM Simulated zebra,Simulate EPSON ZPL,EPL,TSPL Options Control Panel Cutter, stripper Button One key (paper feed) Indicator light Three lights (power, fault, status (no paper/ribbon))

Size: 50*15*1.26mm; NXP Ucode 8 chip; Flexible UHF RFID On-metal Tag.

This product is widely used in indoor asset management, inspection management, and tool management. 10M Long Range Passive RFID On metal Sticker Tag For Warehouse Management System( depend on the reader you order)
