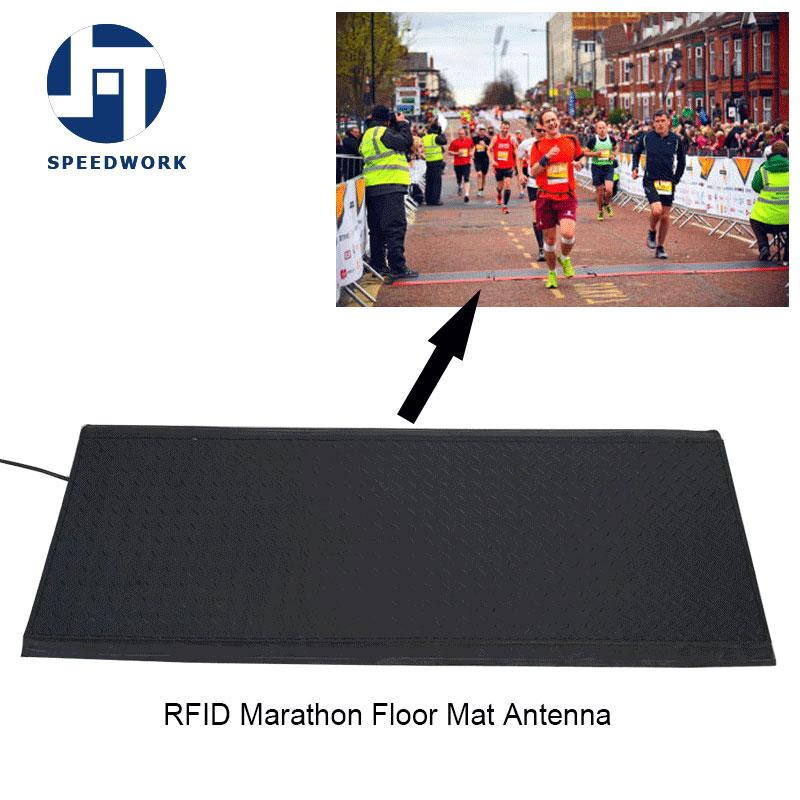

JT-T12665 Mat antenna can connect with the UHF fixed reader,can be used at different kinds sports timing system, such as running race,bicycle race etc.

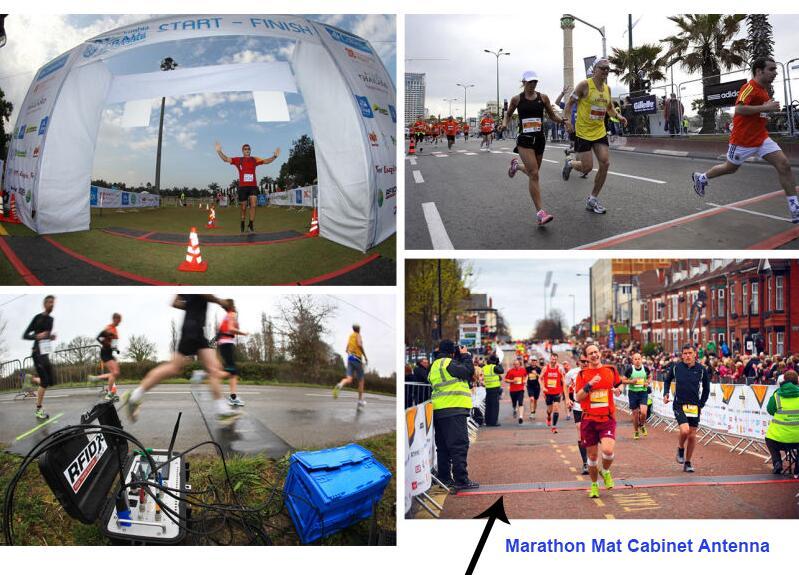

For sports management: runway identification system, marathon start - end and so on.
For access control intelligent management: personnel customs clearance management, items such as access.
Outdoor all-weather work, anti-interference ability.
High gain, read and write speed, read and write distance, high data security, easy to use and so on.
Brand:
JTSPEEDWORKItem NO.:
JT-T12660Product Origin:
shenzhen ChinaLead Time:
5-7days
Antenna Name |
Marathon Floor Mat Antenna |
Model |
JT-T12665 |
Working Frequency |
902~928 MHz 865-868 MHz |
Antenna Gain |
12 dBi |
Protocol |
ISO 18000-6C, EPC global C1Gen 2 |
Horizontal Beam width |
Hor: 70,Vert: 60 |
VSWR |
Less than 1.3 |
Impedance |
50 |
Polarization |
Circular |
Connector |
TNC-male (Customizable) |
Lightning Protection |
GND |

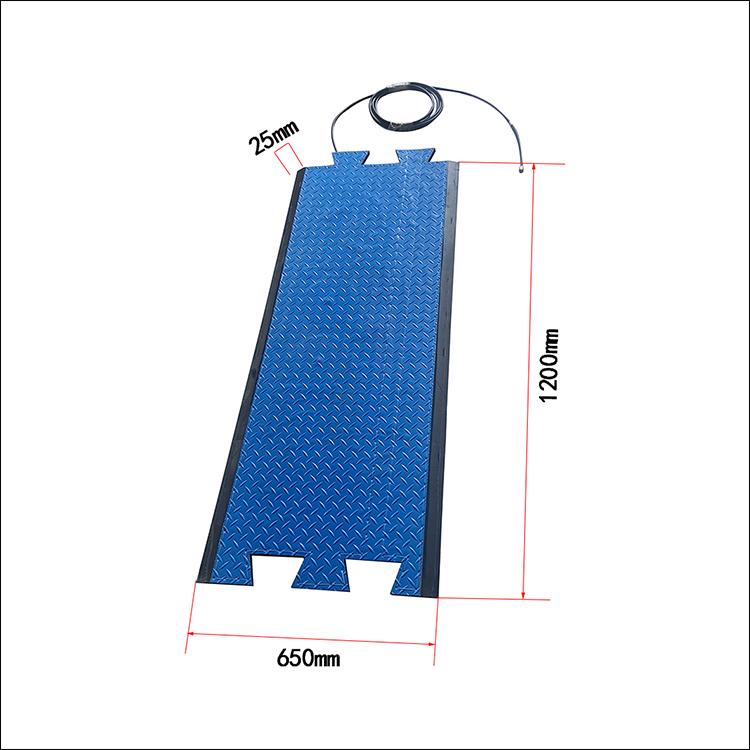

Dimension |
1260*650 mm |
Weight(kg) |
7.8 kg |
Reflector Material |
Aluminum alloy |
Radome Material |
ABS |
Operating Temperature |
-40~80℃ |
Cable Length |
3 m |
Cable Type |
50-7 |
Waterproof rating |
IP67 |
>>The Schematic Diagram
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
