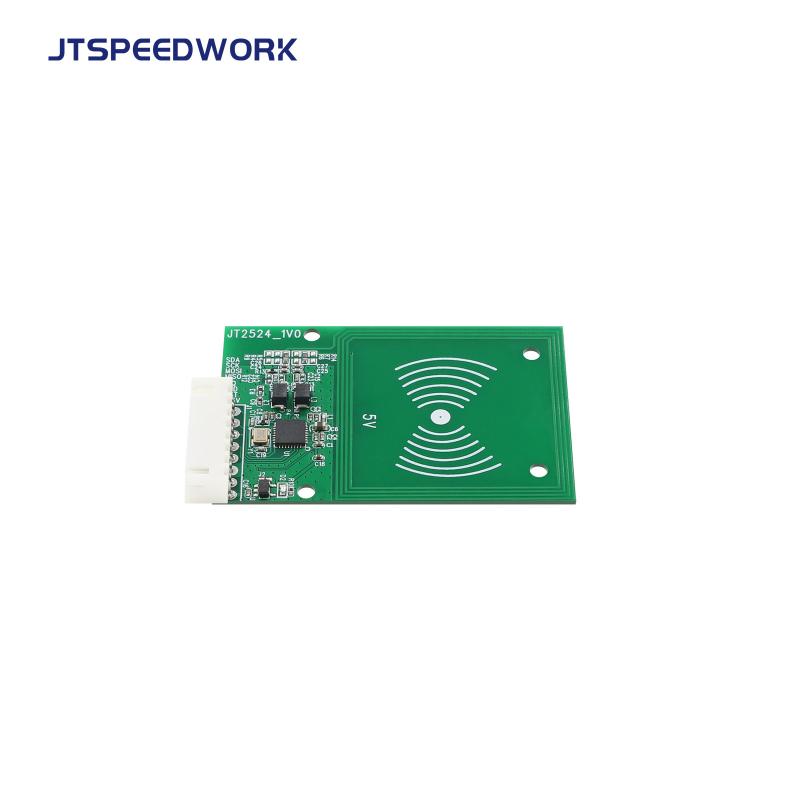

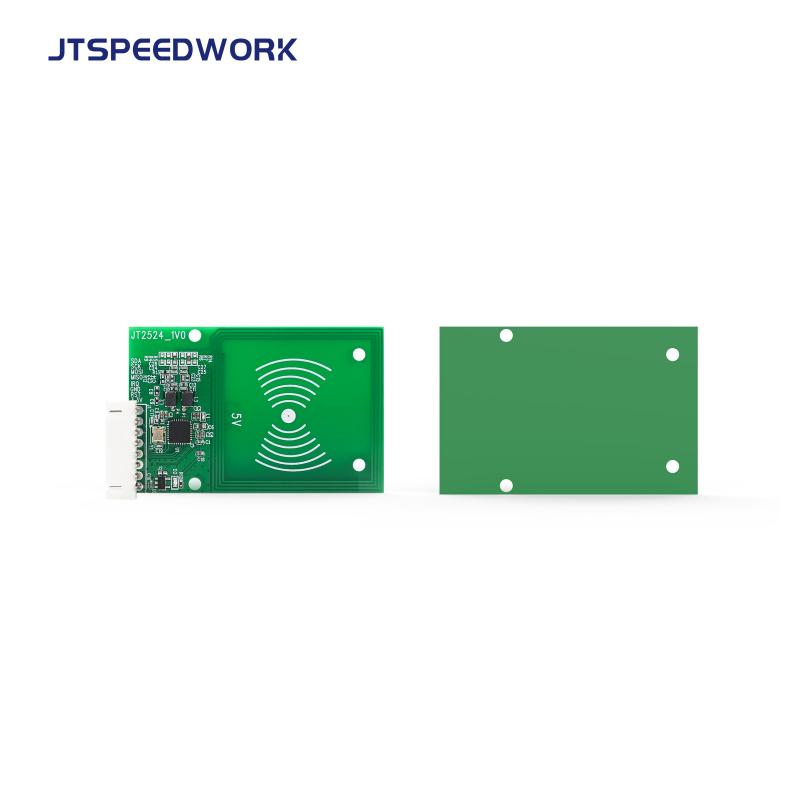

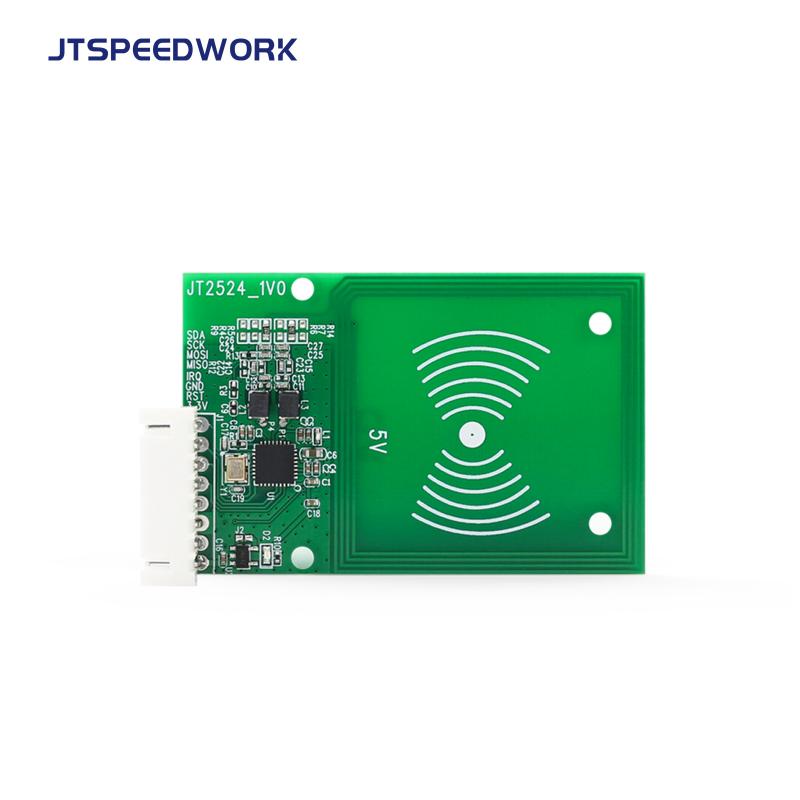

JT-2524 13.56MHz HF RFID Module with SPI Interface

Brand:
JTSPEEDWORK
Item NO.:
JT-2524

Communication Interface
SPI
Working frequency:
13.56MHz
Protocol:
ISO14443A ISO15693

product details

JT-2524

HF RFID Module

JT-2524 the high-frequency module is a highly integrated low -power contactless reader chip that supports ISO/IEC14443 Type A and MIFARE contactless communication protocol , and also provides low-power card detection function.
Compatible with CV520,MFRC522,M RC523,PN512,etc.

Item No.	JT-2524
RFID parameters		User Environment
Frequency		Operating Temp.	-30 ℃ to 80 ℃
13.56MHz		Storage Temp.	-40 ℃ to 90℃
Protocol		Humidity	5-90% non-condensing (+25° C )
ISO 14443A
Reading distance		Physical parameters
0-10cm (relate to tag and enviroment)		Dimensions	60(L)*39(W)mm
Communication interface		Net weight	Around 10g
SPI
Power Supply		SPI Interface
Operate voltage	DC 5V	1	SDA\CSN	SPI-SDA\NSS
		2	SCK	SPI-SCK
		3	MOSI	SPI-MOSI
		4	MISO	SPI-MISO
		5	IRQ	Interrupt request
		6	GND	Modular ground
		7	RST	Reset
		8	DC-IN	5V power input
