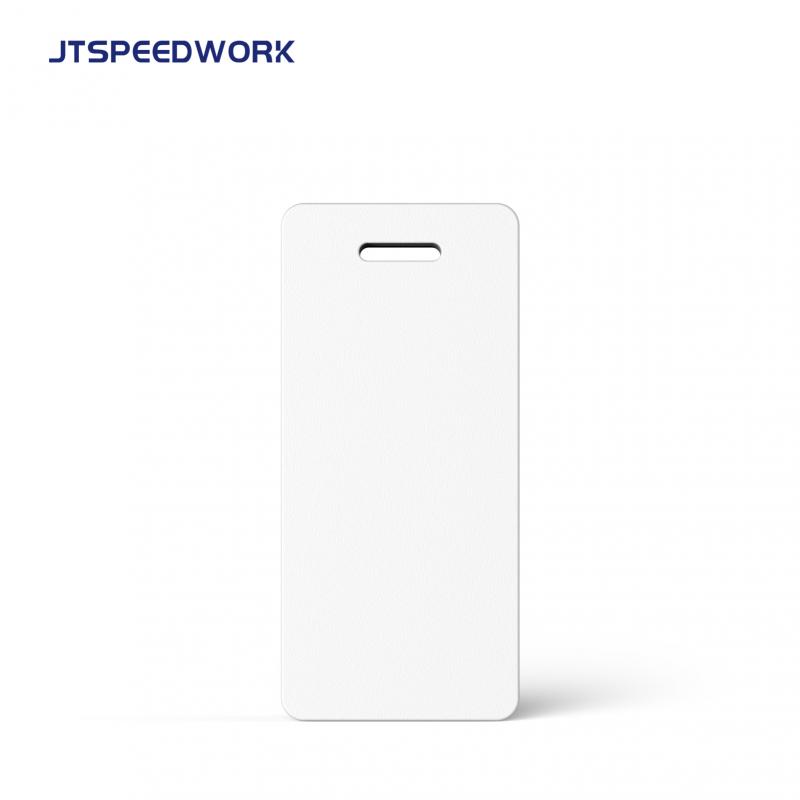

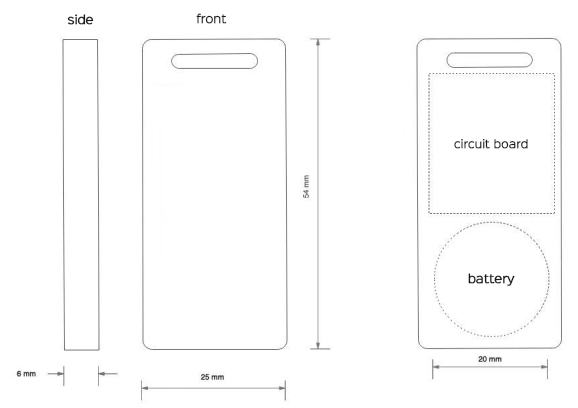

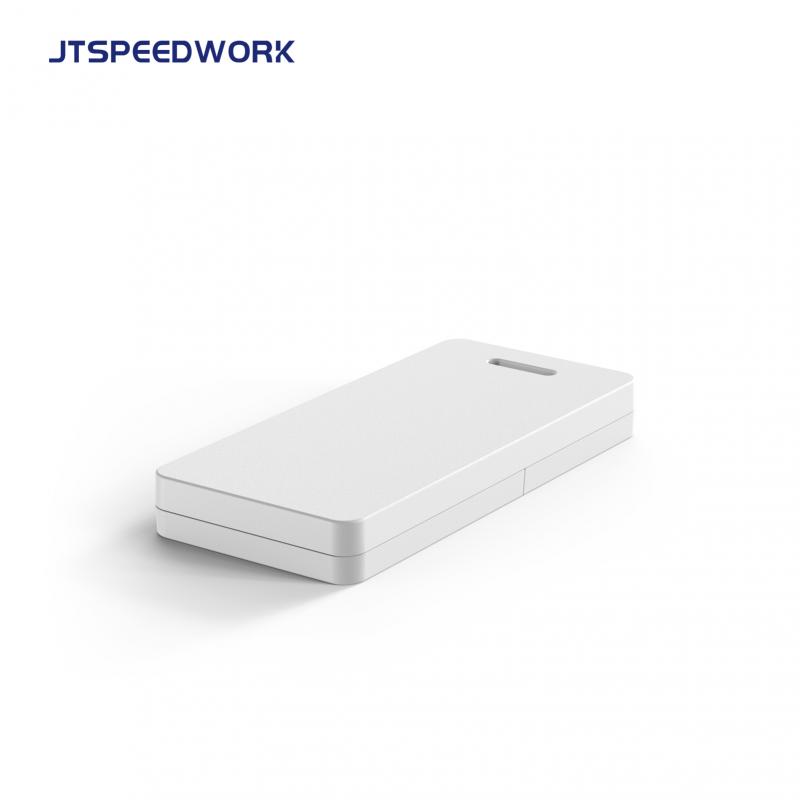

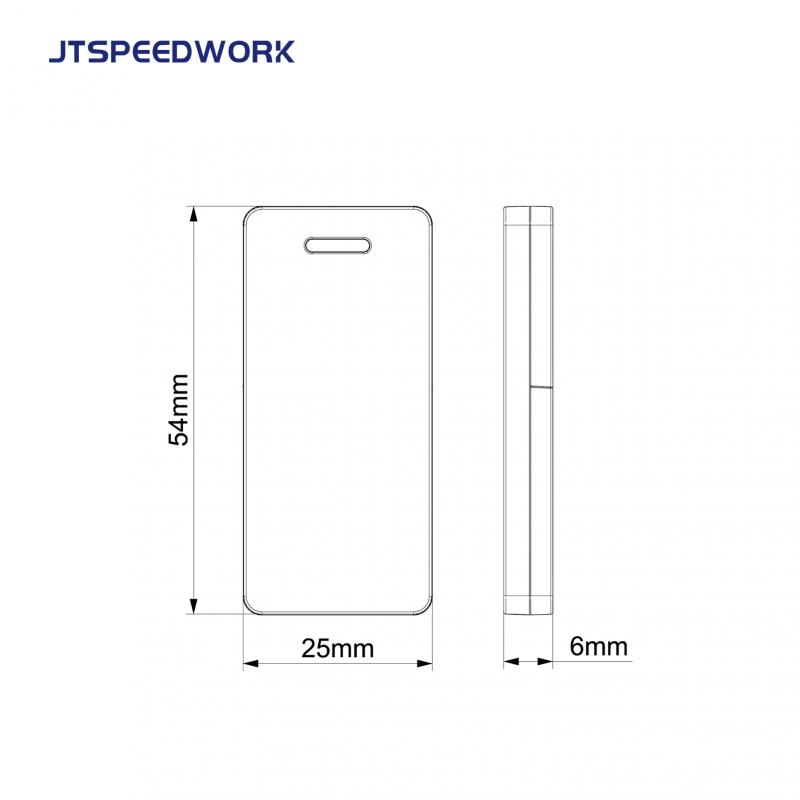

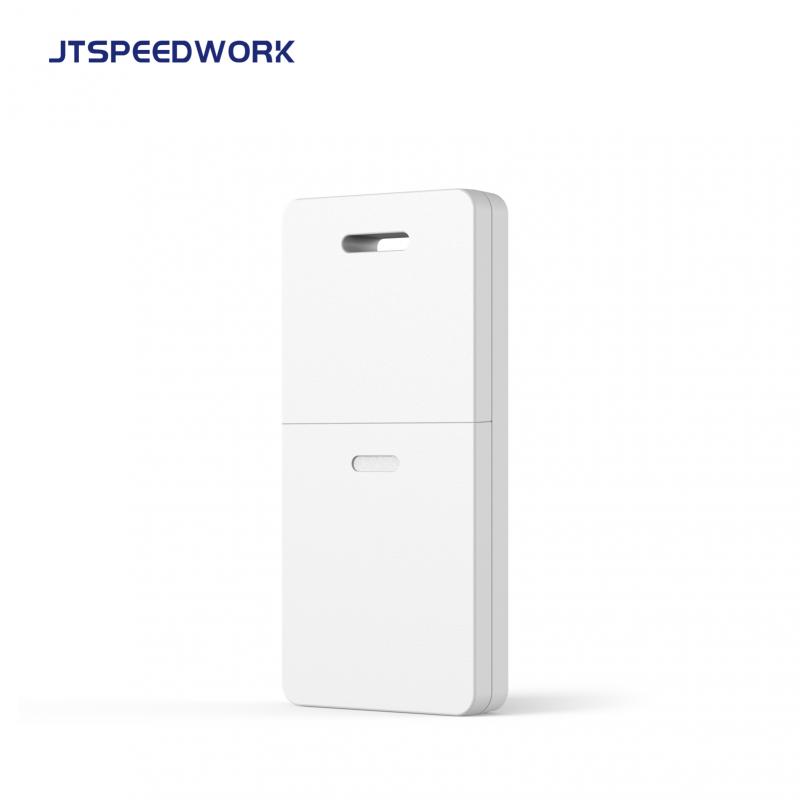

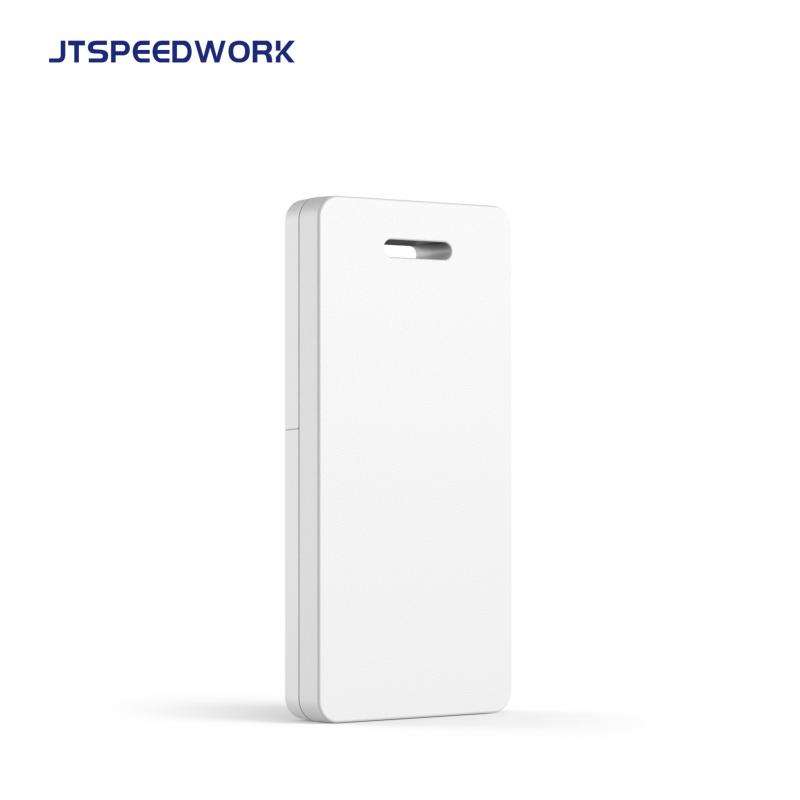

JT-T2470 2.4G active tag, with complete independent intellectual property rights, adopts advanced RFID ultra-low power consumption technology, average working power consumption is microwatts, tag support, tamper-proof alarm, low-power alarm.

2.4Ghz Active RFID Tag for Assets Control 1.Suitable to adopt fixed frequency working mode, with powerful anti-inteference ability. 2.Effective reading range up to 200m (depend on reader and antenna software configurable). 3.Ultra-low power consumption average working current< 10UA 4.Active tag, very important part of a RFID system, especially for people tracking and assets management etc

2.4GHz RFID active tag; Reading range 0-180m.

Reading distance: 0-30 meters (adjustable);

2.4GHz RFID reader. Data transmission module with integrity structure and full-function. It includes RF Module,central control unit, input/output ports, Ethernet module, serial communication interface, non-volatile memory modules and working status indication module and built-in antenna etc.

Antenna cable

    Rugged tablet PC, tough appearance, is with 10.1"industrial-grade, 1000 cd/m2 full-view display, toughened glass TP, and also aero-grade titanium alloy material frame. ltmeets MlL-STD-810G/Method516.6/ProcedurelVand military standard. And it canwithstand up to a 1.2m drop and 2 ton shock pressure test. While, it also comes with a suiteof integrated features, which is high-integration, high-performance, high-reliability, high-flexibility. Also it goes with a long-life 14600mAh battery, sunlight-readable, andoperating under extreme low temperature. Item NO. JT-P983 Hardware Communications & Networking CPU ARM Cortex A73 octa-core (2.0GHz ) Phone Call GSM /WCDMA/CDMA 1X/VoLTE GPU ARM Mali-G72 MP3 2G GSM/CDMA 1X/EDGE/GPRS/WAP RAM 8G 2G Band GSM (B2/3/5/8) Internal Memory 128G 3G WCDMA 3.75G (HSDPA+42.2Mbps, HSUPA+11.5Mbps), EVDO External Memory Micro SD card (T-FLASH card), max 256GB 3G Band WCDMA (B1/2/5/8), Evdo: BC0/BC1 CDMA: BCO/BC1 Main Camera 13.0MP(AF)with flash led 4G FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink Sub Camera 5.0MP 4G Band TD-LTE(B38/39/40/41); FDD LTE(B1/2/3/4/5/7/8/12/17/20/28) Battery 14600mAh WI-FI Dual-band WIFI(2 .4GHz/5Ghz)single stream 802.11 a/b/g/n/ac Display 10.1 inch IPS/AFFS 1920* 1200 FHD industrial 1000nit Sunlight Readable BT 4.2 Low Energy(LE) Touch Panel Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen IO/Sensor/Navigation Industrial & Reliability Design SIM Card Nano sim card*2 Shake- -proof 1-19Hz/1.0mm; 19-200Hz/1.0g TF Card Micro SD card (T-FLASH card); max 256GB Dropproof /lK MIL-STD-810G/Method516.6/Procedure lV & Touch Panel lk05 Charging interface Type-C & 8pin pogo pin Waterproof Class 5 (IEC 60529) Data interface USB Type-A(Host)*2, Type-C(OTG)*1 Dustproof Class 6 (IEC 60529) RS232 (optinal ) RS232 serial port, using 5pin micro one GPIO port Relibility MTBF>5000h; MTTR<0.5h Gravity sensor support Operating temperature -20°C to 55°C Motion sensor support Storage Temperature -40°C to 80°C Direction Sensor support RH 5% to 95% Magnetic Field Sensor support Operating Altitude Max: 4, 500m(15 ,000 feet) Gyro sensor support Rotation Vector support Package/Warranty terms/OEM Light- sensor support Warranty 24 months Acceleration sensor support OEM/ODM Support Charger 5.0V 2A-10W Package USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box(Can be customized logo) /Aircrat box/oolkit (ptional)/SiM Card Ejector x 1 Navigation GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) Appearance Certification/OS/Software Size 320*228*12mm (LxWxH) Certification 3C/FCC/CE/ROHS/IP65 (IEC 60529) Weight Color & Material 1360g Gray (Titanium alloy+ABS+PC+TPU) Language English, Spanish, Portuguese(Brazil), Portuguese(Portugal), Italian, German, Dutch, French, Polish,Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional,etc Color & Material Gray (Titanium alloy+ABS+PC+TPU) OS Android 10.0/11.0 JTSPEEDWORK Maintenance Plans. /* 全局样式 */ body { font-family: 'Arial', sans-serif; margin: 0; padding: 0; background-color: #f8f9fa; color: #444f5a; } /* 主容器 */ .dna-container { max-width: 1000px; margin: 40px auto; padding: 30px; background-color: #F4FFF8; border-radius: 8px; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.1); text-align: center; } /* 标题样式 */ .dna-title { color: #4D4847; font-size: 28px; font-weight: bold; margin-bottom: 20px; text-align: center; position: relative; padding-bottom: 15px; } .dna-title:after { content: ""; position: absolute; bottom: 0; left: 50%; transform: translateX(-50%); width: 80px; height: 3px; background-color: #4D4847; } /* 正文段落，仅影响 p 标签 */ p.dna-content { font-size: 16px; line-height: 1.6; margin: 0 auto 30px; color: #4D4847; max-width: 800px; text-align: center; } /* 表格内文字颜色不受 .dna-content 段落控制 */ .dna-content table, .dna-content th, .dna-content td { color: initial; } /* 按钮样式 */ .learn-more-btn { display: inline-block; padding: 12px 30px; background-color: #52616b; color: white; text-decoration: none; font-weight: bold; border-radius: 4px; transition: all 0.3s ease; text-transform: uppercase; letter-spacing: 1px; font-size: 14px; border: 2px solid #ffffff; cursor: pointer; } .learn-more-btn:hover { background-color: transparent; color: #0066cc; border-color: #52616b; } /* 响应式设计 */ @media (max-width: 768px) { .dna-container { margin: 20px; padding: 20px; } .dna-title { font-size: 24px; } p.dna-content { font-size: 15px; max-width: 100%; } } JTSPEEDWORK Maintenance Plans. Protect your JTSPEEDWORK devices for constant peak performance with these recommended maintenance plans. Device uptime, confidence, and savings — that's what you get with JTSPEEDWORK maintenance plans. You protect business-critical devices and eliminate disruptions and unplanned repair expenses. LEARN MORE
