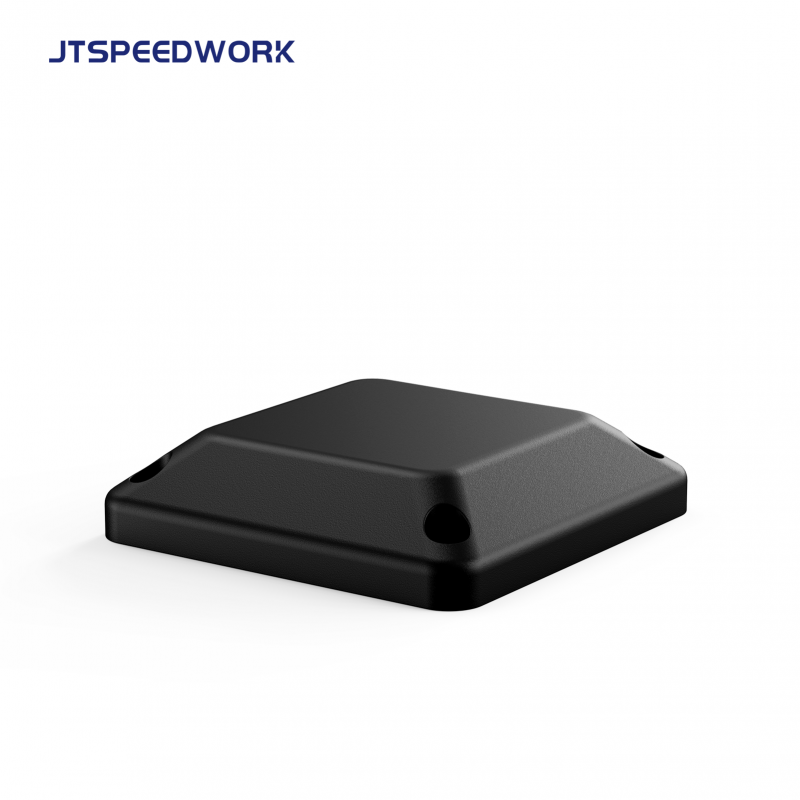

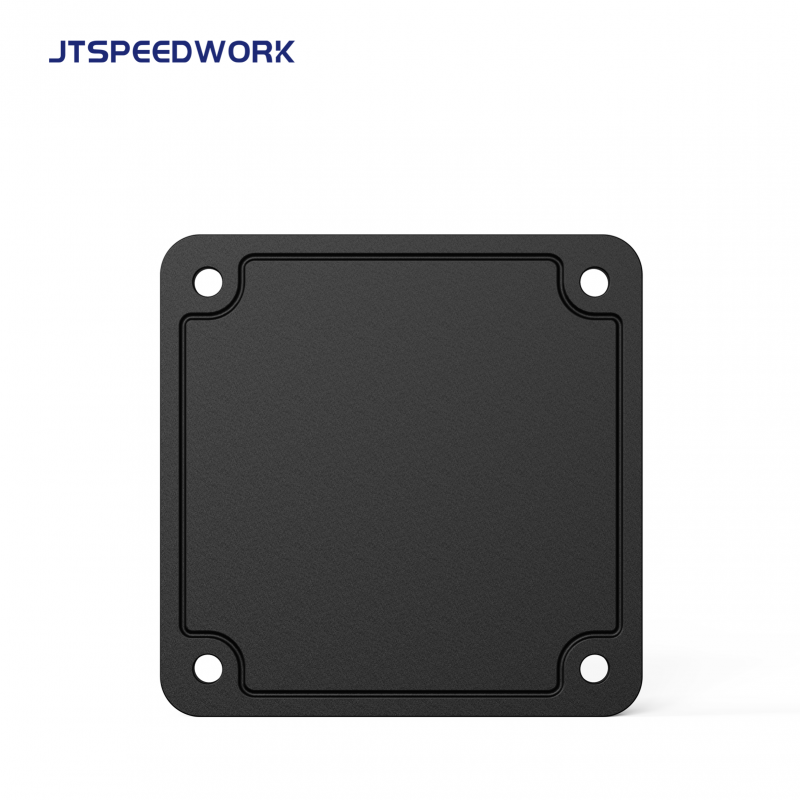

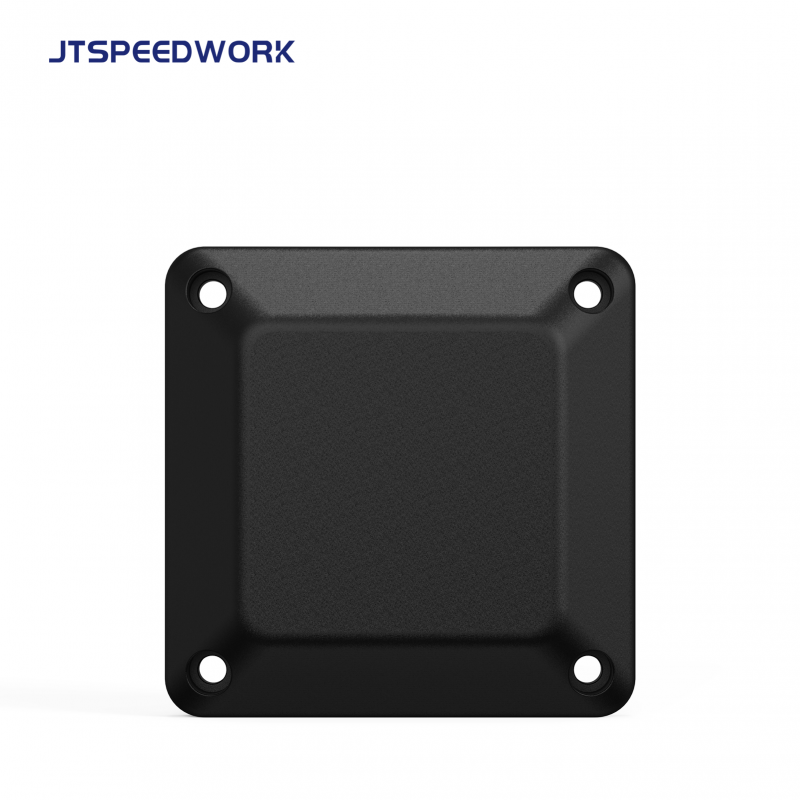

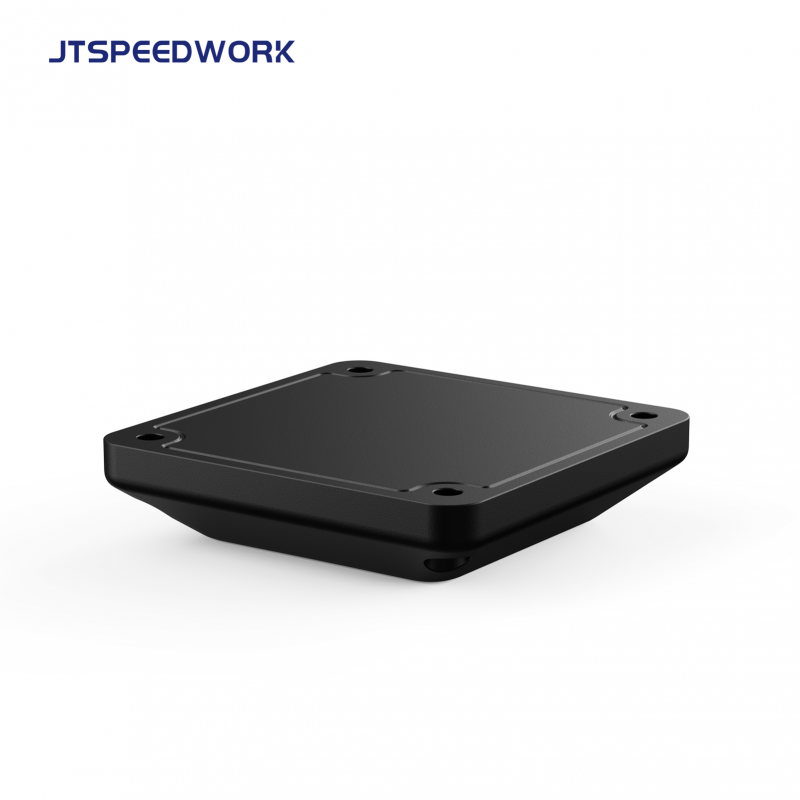

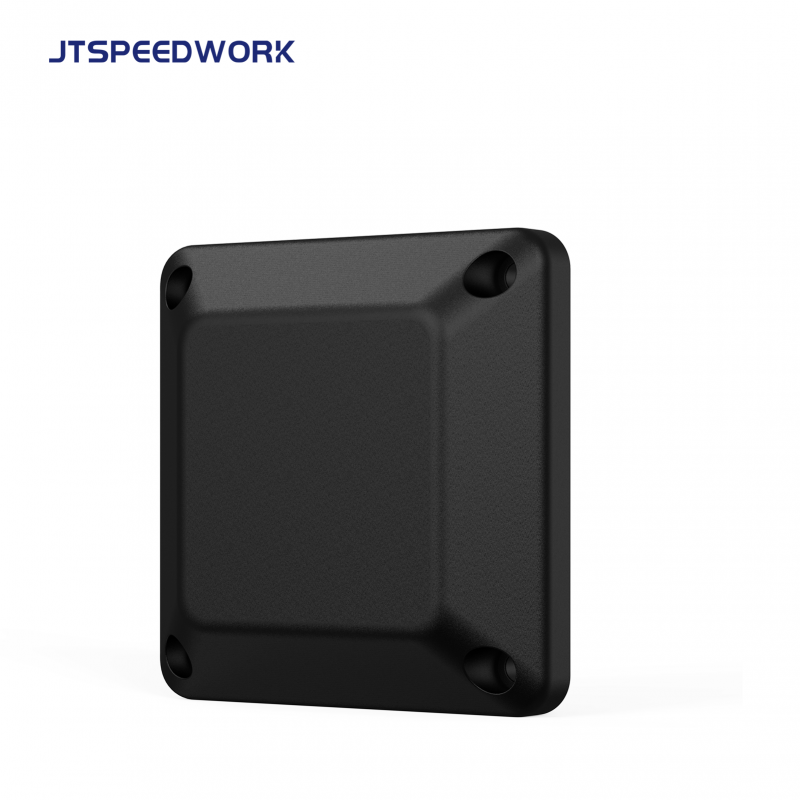

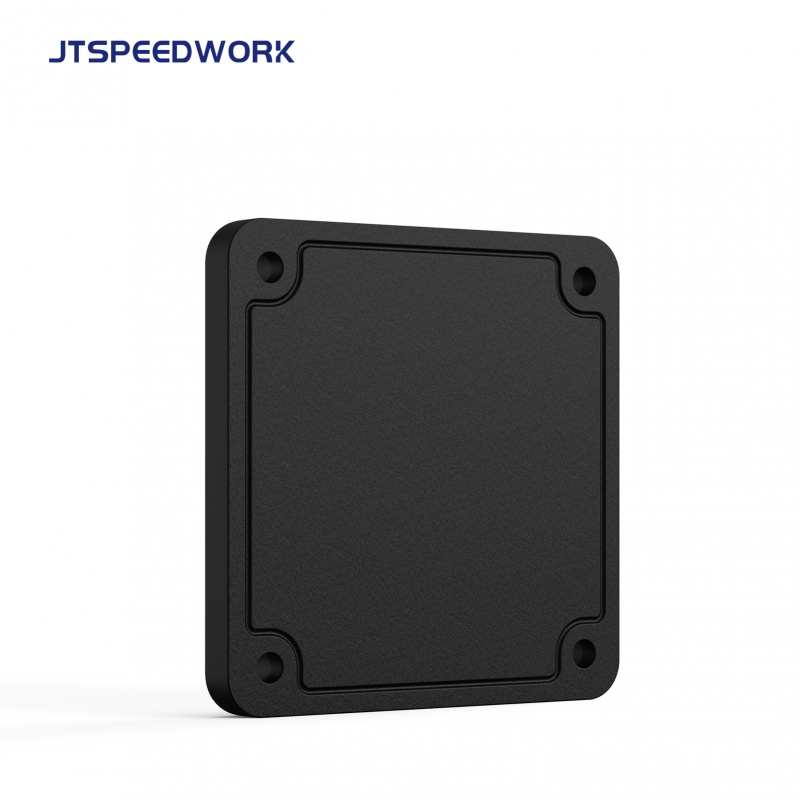

2.4GHz RFID active tag; Reading range 0-180m.
Brand:
JTSPEEDWORKItem NO.:
JT-T2466Payment:
100% TT in advanceProduct Origin:
ChinaShipping Port:
ShenzhenLead Time：
3-5 working days
2.4G asset management tags can be identified from a long distance and are more secure to use. Mini-shaped appearance, generous and beautiful, small and exquisite, easy to wear, can help customers formulate LOGO, two-dimensional code and one-dimensional code, etc.; suitable for residential parking lots, employee attendance, personnel positioning, vehicle management, one-card and other applications The convenience and advantages of one card with multiple uses.
|
Working frequency |
2.4 GHZ ～ 2.4835 GHZ |
|
Receiving distance |
0~180 meters (related to reader configuration) |
|
Receiving sensitivity |
-90dbm |
|
Reading rate |
200KM/hour |
|
Recognition mode |
Omnidirectional 360 reading |
|
High security and anti-jamming technology |
Two-way communication technology, encrypted calculation and authentication, ensure data security, prevent link eavesdropping and data cracking |
|
Battery |
CR2450 button battery (non-replaceable), capacity 600MAH |
|
Working voltage |
3V |
|
Working current |
≤18MA |
|
Standby working current |
≤5UA |
|
Operating temperature |
-20℃～60℃ |
|
Storage temperature |
-30℃～70℃ |
|
Anti-electromagnetic interference |
10V/m 0.1～1000MHz AM AM electromagnetic wave |
|

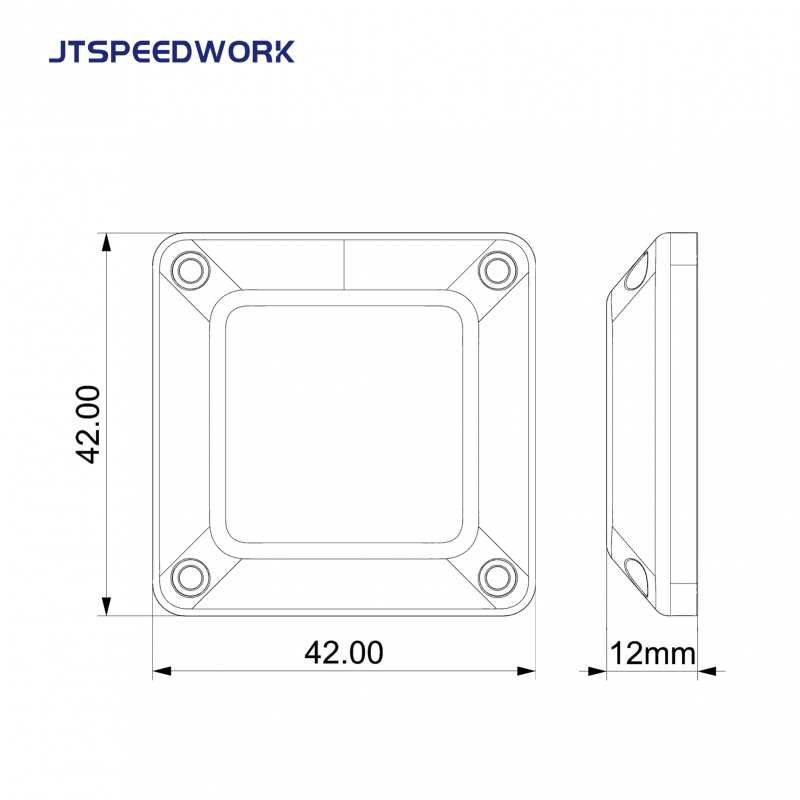

Structural dimension |
42×42×13mm |
|
Product weight |
20g |
|
Shell material |
ABS |
|
Product color |
Black |
|
Installation method |
Back glue or screw fixing |
Previous:
JT-T2450A 2.4GHz Long Range Active Card For School Attendance SystemNext:
JT-T2470 2.4Ghz Active RFID Asset Tag For Assets ControlIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
