Item NO.:
JT-T2483Working frequency:
2.45GHzProtocol:
Private protocol

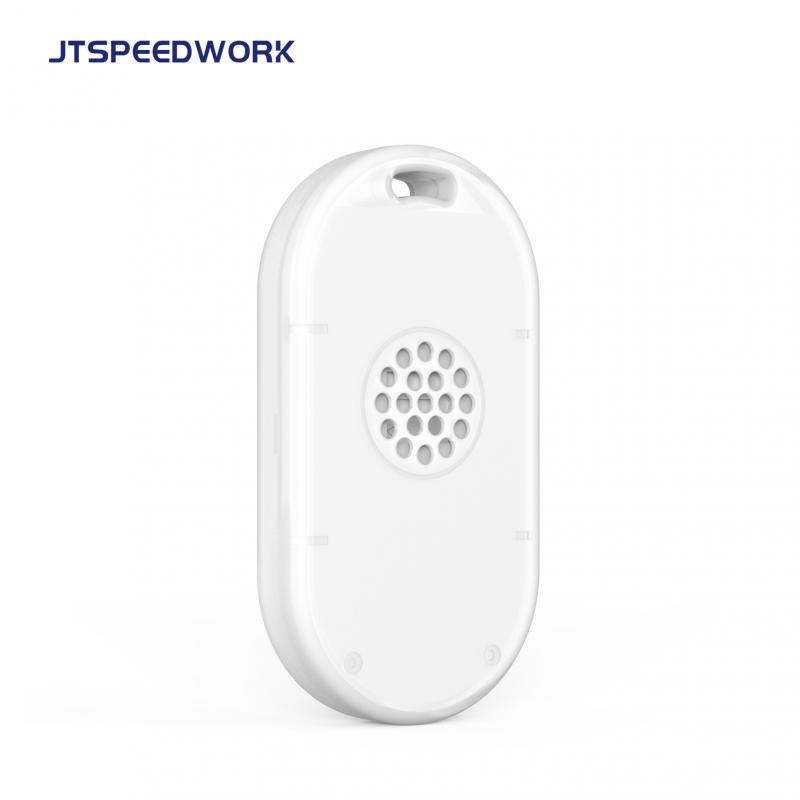

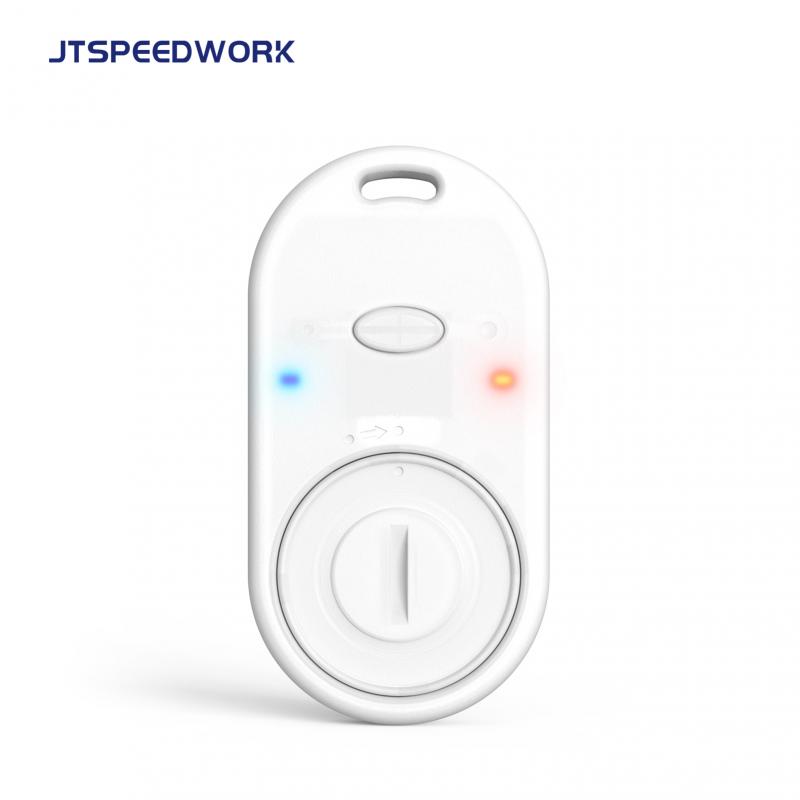

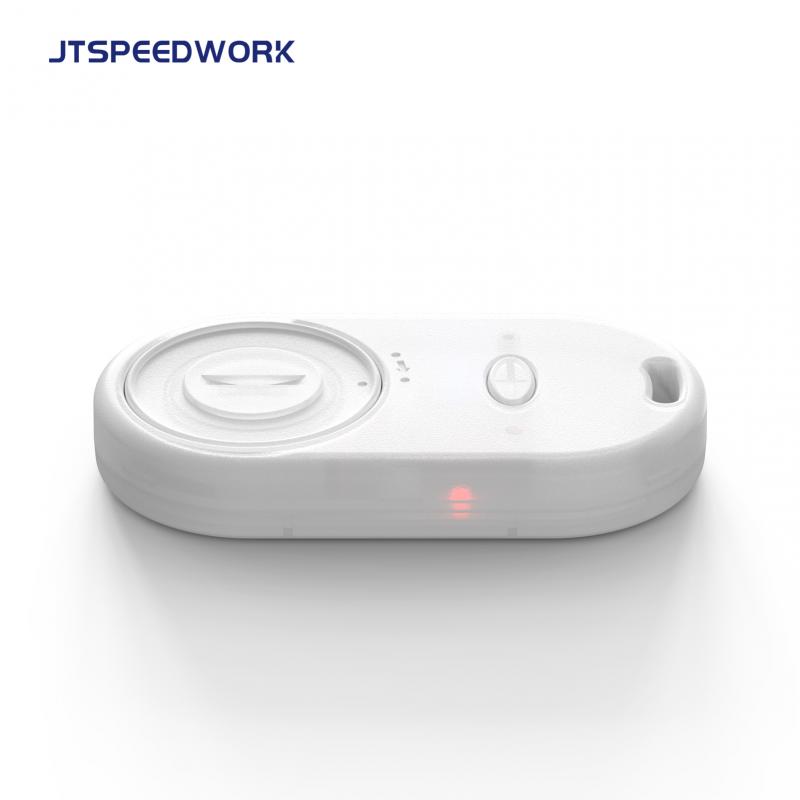

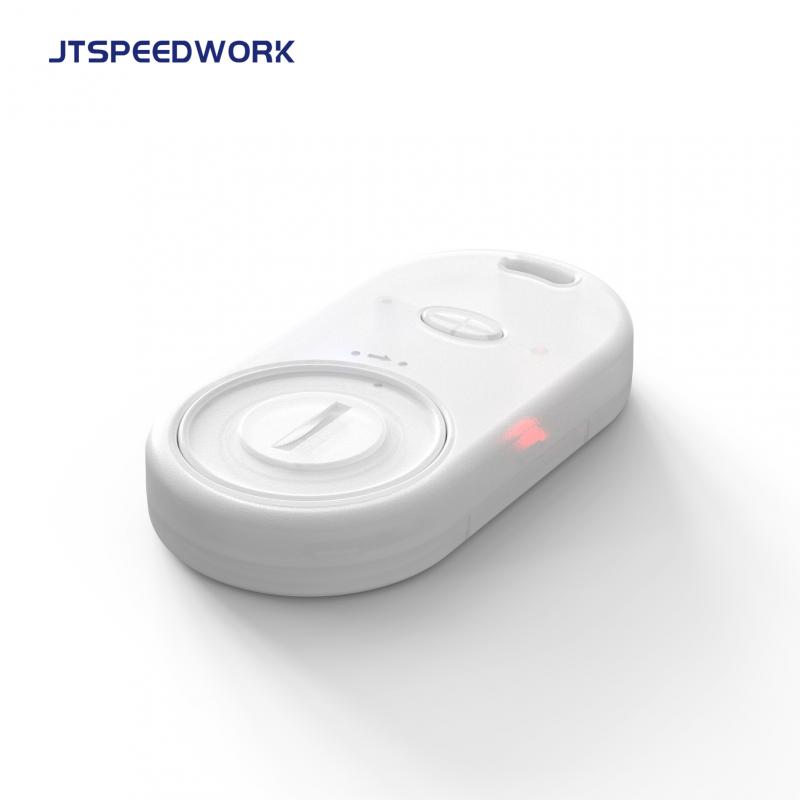

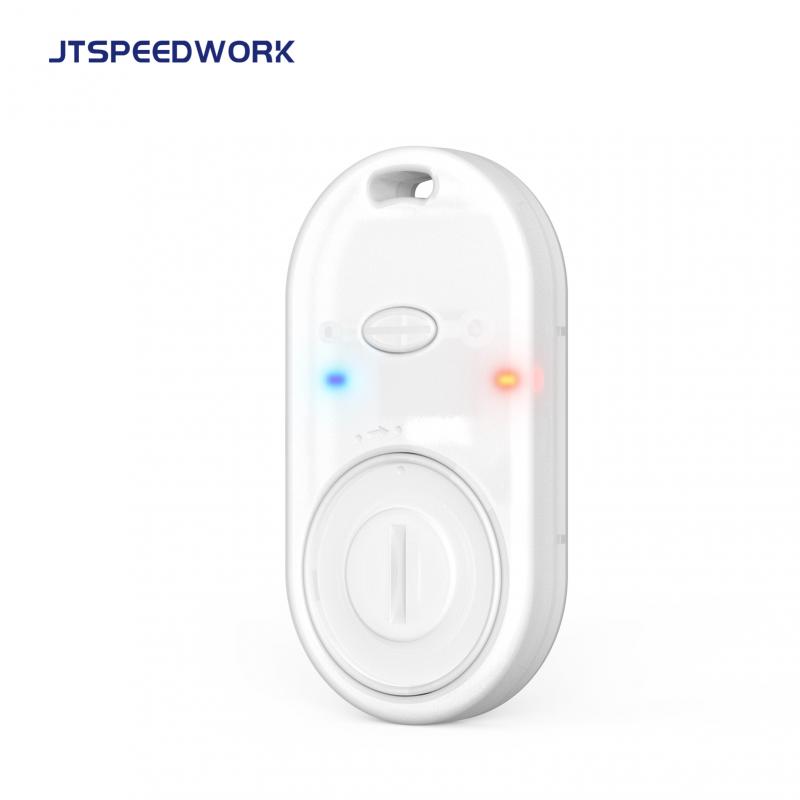

JT-T2483 2.4G active acousto-optic tag, with complete independent intellectual property rights. Different from ordinary active tags, acousto-optic tags can respond to the control commands of the reader to realize functions such as tag reading, sound, and light prompts. A specific transceiver control mechanism is adopted to keep the tag in a low power consumption state. The tag can be recognized at a long distance, in a good visual environment, the recognition distance can stably reach 50 meters. When the tag communicates with the reader, the data is encrypted, and the relevant protocol must be in place to correctly analyze it, ensuring communication security. It is suitable for various applications such as equipment management, asset identification, object finding, inventory, vehicle management, etc.
Features:
☆ Support sound prompts
☆ Support light prompt, red, green, blue three colors
☆ Replaceable battery
☆ Low power consumption, average working current 10μA
☆ Security: encryption algorithm and authentication to ensure data security and durability
☆ Reading distance: 0-50 meters
☆ High security anti-interference technology
Working frequency
2.4 GHz～2.45 GHz
Protocol
Private
Receive sensitivity
-87dbm
Data rate
1Mbps
Modulation
GFSK
RF power
7dBm
Identification method
Active launch\360°omnidirectional
Reading rate
120 km/h
High security anti-interference
Two-way communication technology, encrypted computing and authentication
Reading range
0~50m（relate to reader and enviroment）
Indicator color
Red,green,blue
Sound level
87dB@10cm
Battery
CR2450(550mAh)/CR2477(1000mAh) replaceable
Working Voltage
DC 3V
2.4G emission current
25mA@4dbm
Stand by current
≤45μA
Working Temp.
-10℃~+50℃
Storage Temp.
-20℃~+60℃
Storage humidity
5%～95%RH no condensation
Shell material
ABS
Dimension
65.5*35*10.5mm
Weight
About 17g
Installation
Hang buckle
Protect your JTSPEEDWORK devices for constant peak performance with these recommended maintenance plans. Device uptime, confidence, and savings — that's what you get with JTSPEEDWORK maintenance plans. You protect business-critical devices and eliminate disruptions and unplanned repair expenses.
