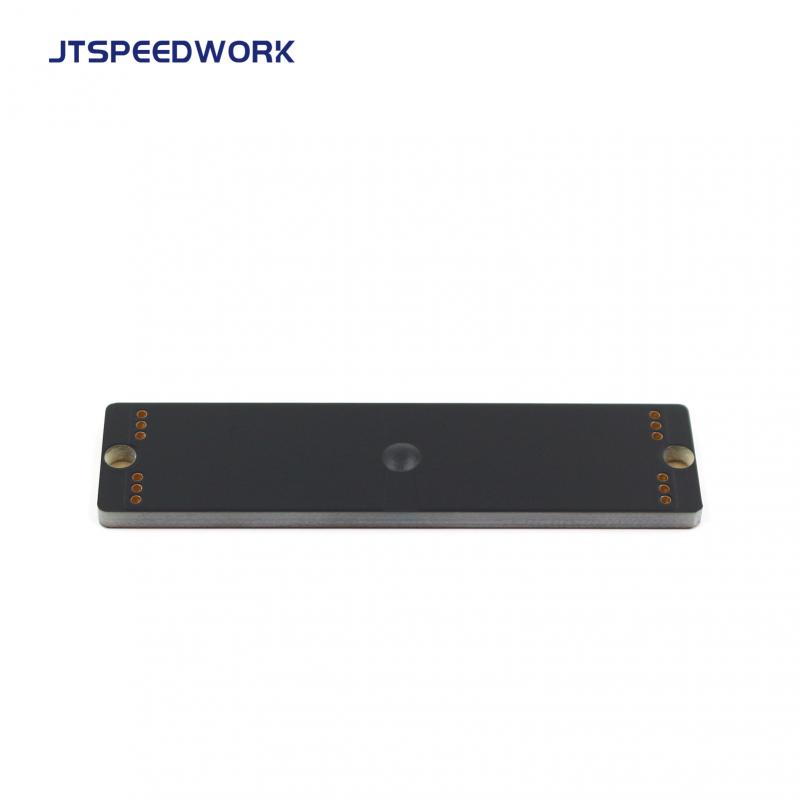

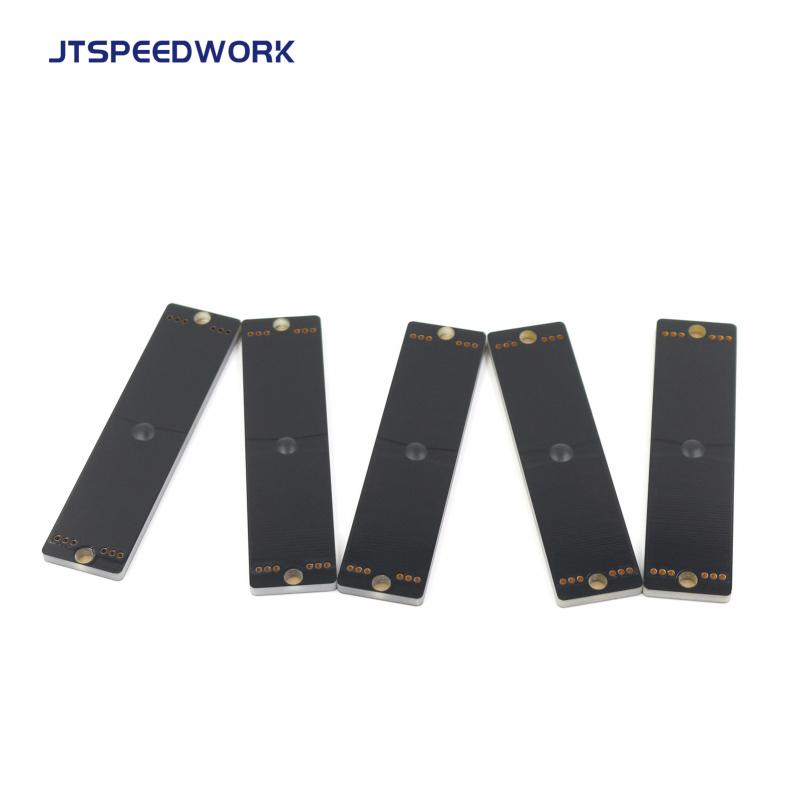

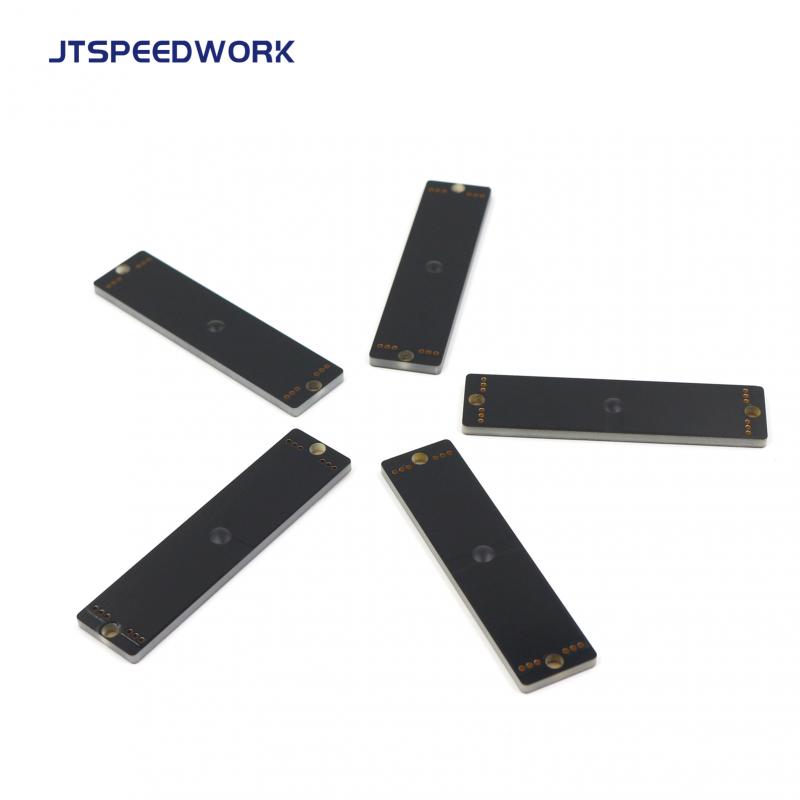

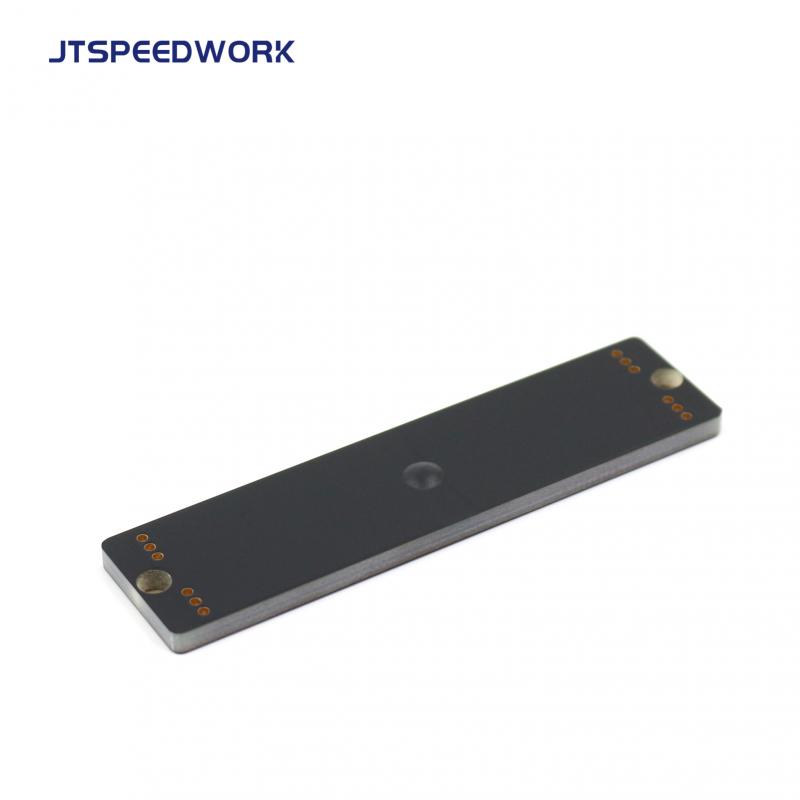

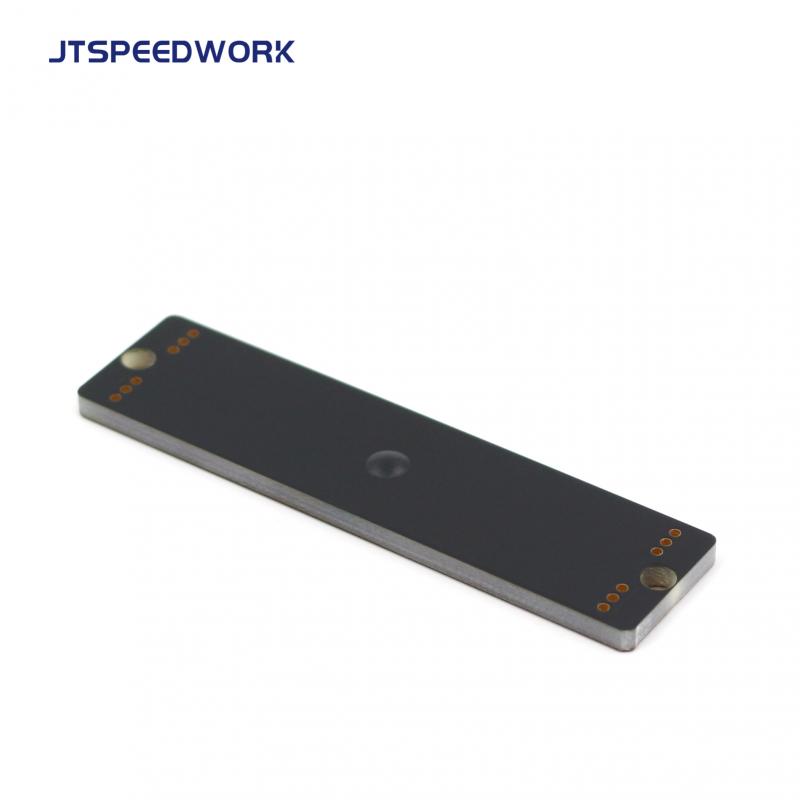

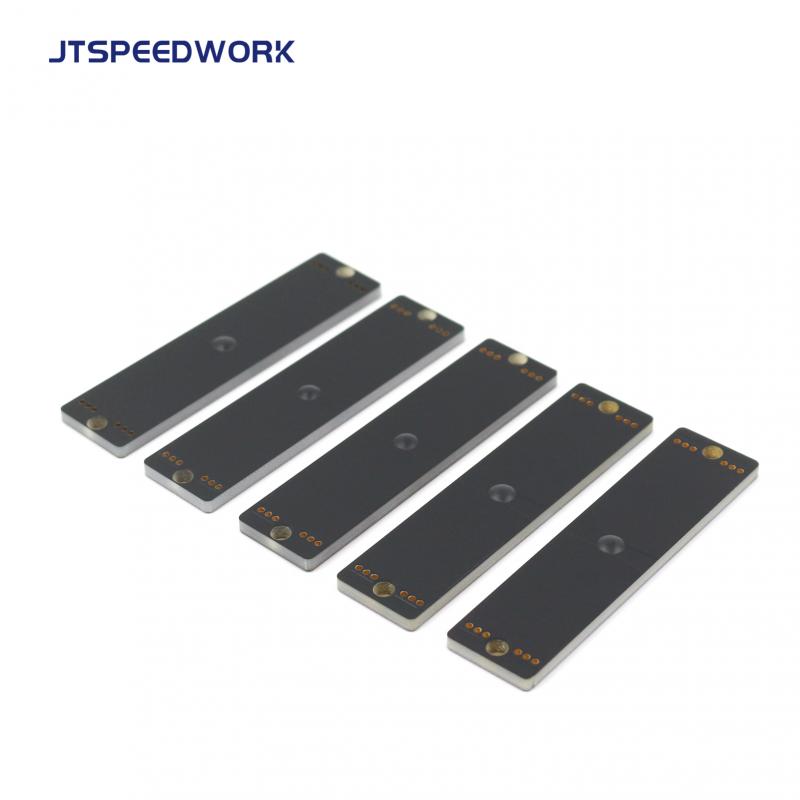

UHF RFID metal tag JT-K8020, it is disgined for metal object.It is widely used in livestock management; origin traceability management, etc.,
◆Working frequency 860~960MHz
◆ Good performance using for metal surface
Brand:
JTSPEEDWORKItem NO.:
JT-K8020Order(MOQ):
1Payment:
100% TT in advanceProduct Origin:
ChinaShipping Port:
ShenzhenLead Time：
5 working daysCommunication Interface
Operating system
Working frequency:
Protocol:
RF chip:
Antenna gain:
| PERFORMANCE PARAMETERS: | |
| Working Frequency： | 902~928MHz(US) or 865~868MHz(EU) |
| Dimension： | 80mm*20mm*3mm |
| Protocol： | (EPC C1 Gen2)ISO 18000-6C or ISO 18000-6B |
| Chip： |
Impinj M4QT(Other chips available in the same size) |
| Storage Capacity： |
EPC 128bits, USER 512bits |
| Working temperature： |
-40℃～+95℃100 high and low |
| Material： | PCB |
|
Data saving: |
50 years |
| Protection class： | IP68 |
| Logo print： | Customized |
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
New Products
JT-6210 0-1m UHF RFID Desktop USB Reader Writer ISO18000-6C Read More
JT-7100 0-3m 860-960MHz UHF RFID Industrial Grade RFID Reader Read More
JT-8380 0-6m UHF RFID 860-960MHz Middle Range Integrated Reader Read More
JT-P983 Industrial Tablet Pad RFID Handheld Reader Grade Long Range Android UHF Terminal Bluetooth RFID Reader For Warehouse Read More
JT-1550 Small Mini HF RFID 13.56MHz Module ISO14443A ISO 15693 Protocol Read More
The Traceable tags can be widely used in logistics tracking management, food traceability and animal traceability, tracking products from processing to the market the whole process of information.
It is compliant with EPC C1G2 (ISO18000-6C), mainly applied to warehouse logistics management, IT asset management, inventory management, assets management, automotive component tracking, industrial manufacturing, etc
The tag is a high performance radio frequency identification (RFID) tag designed specially for mount on metal or applications where environmental extremes or exposures are required
1, Reusable, reduce costs 2, It's can be used for metal surface 3, FR-4 material, wear-resistant 4, Long distance
The real anti-metal tags outstanding performance is: attached to the metal read distance than the metal does not read farther, this is the whole Design of the outstanding achievements.The use of recyclable concept, providing metal adsorption with a magnet function; high stability, cost-effective, personalized printing and bar code printing. It is widely used in precious metals management, e.g.bank asset management, data center asset management, IT asset management.
Logistics RFID Tag,UHF RFID metal tag JT-8020, it is disgined for metal object.
Anti-metal tag is a special anti-magnetic absorbing material encapsulated into the electronic label, from the technical solution to the electronic tag can not be attached to the metal surface of the problem. Products can be waterproof, anti-acid, anti-alkali, anti-collision, can be used outdoors. Attaching a metal-resistant label to a metal gives good read performance, even farther than reading it in the air. The use of special circuit design, the electronic tag can effectively prevent metal interference on the RF signal, the real anti-metal tags outstanding performance is: attached to the metal read distance than the metal does not read farther, this is the whole Design of the outstanding achievements. The use of recyclable concept, providing metal adsorption with a magnet function; high stability, cost-effective, personalized printing and bar code printing.
Multiple tags reading; Antenna gain 12dBi; Reading range: 0-30m Difference between JT-8290 and JT-9292: Model Main Chip Reading Performance JT-8290 Discrete Reading 1-2 rfid tags JT-9292 TM series chip Reading multiple tags
