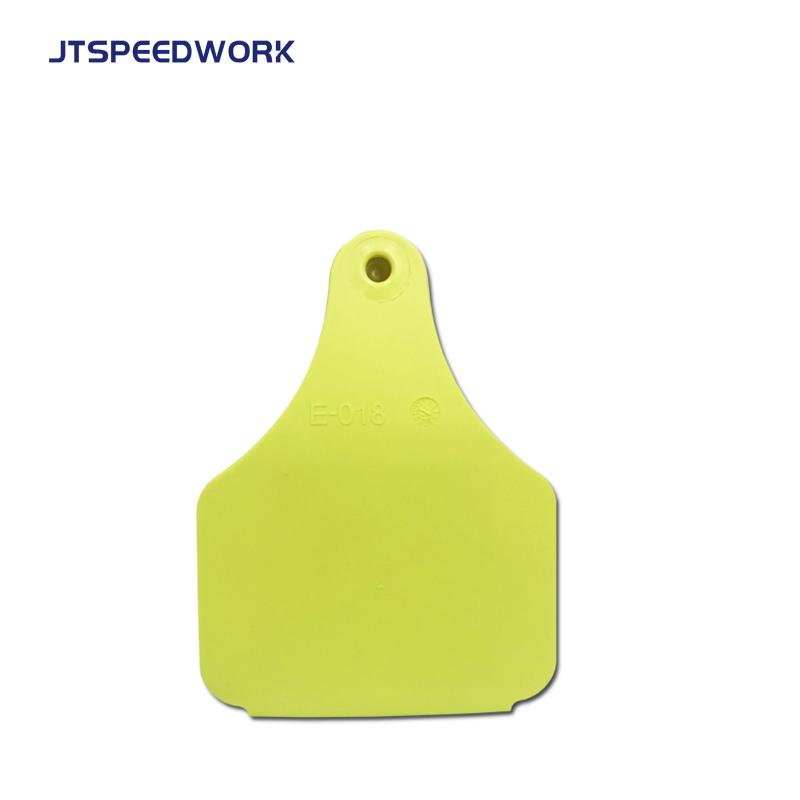

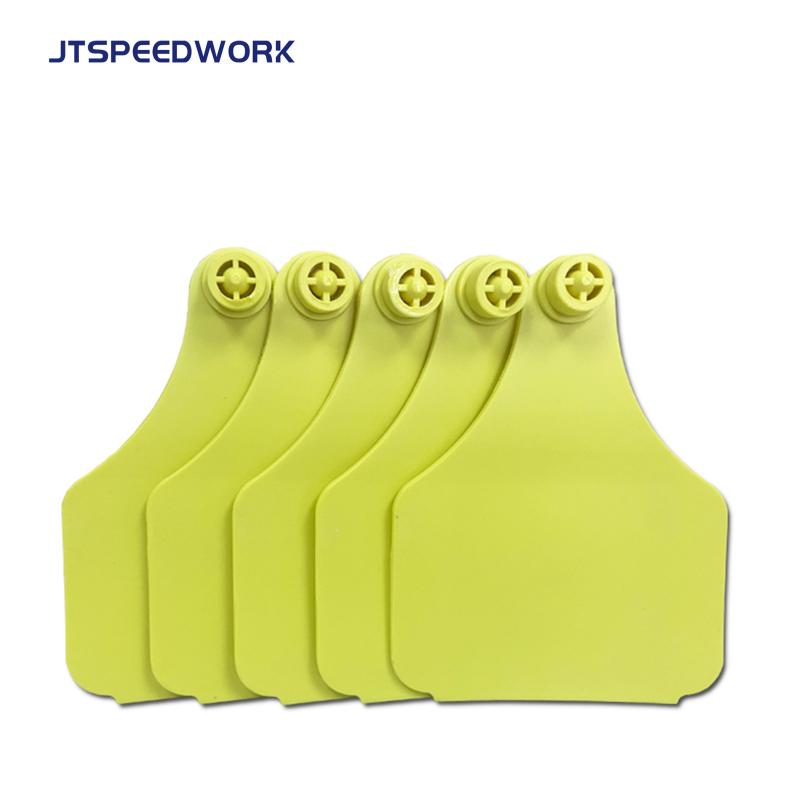

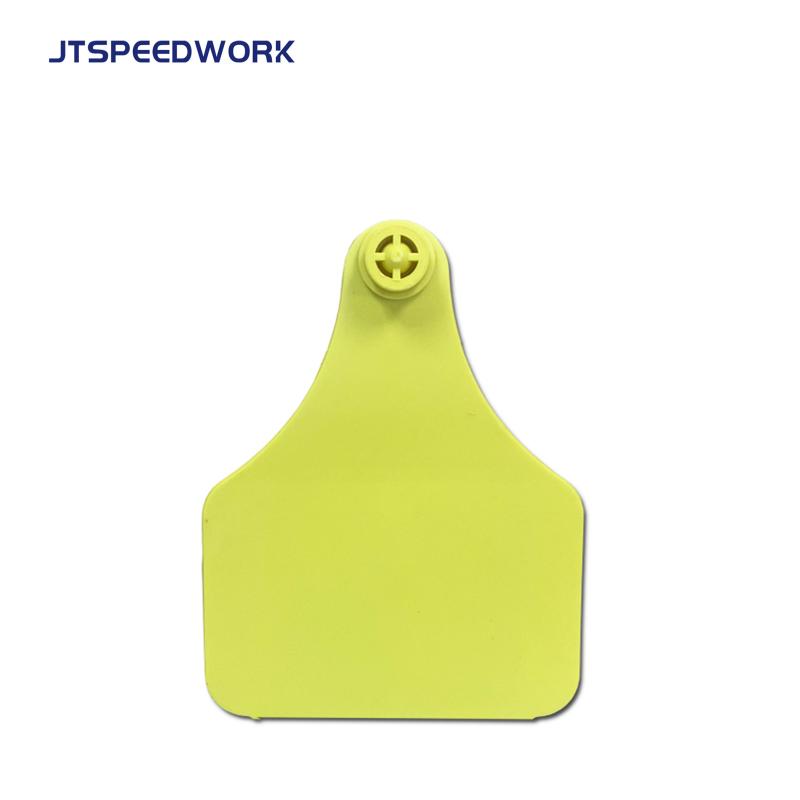

JT-E10080 100*75mm UHF RFID Animal Cattle Ear Tag For Livestock Management

JT-E10080 100*75mm UHF RFID Animal Cattle Ear Tag For Livestock Management

Each rfid animal ear tag is equipped with an RFID (radio frequency identification) chip, that transmits a signal. Antennas mounted on the feeding troughs will pick up that signal when the cow comes to feed, with a computer keeping track of the amount of time that elapses until the signal is lost when the cow leaves. In this way, the system can keep track of which cows are eating regularly, and that they're getting enough to eat when they do.

  • Brand:

    JTSPEEDWORK
  • Item NO.:

    JT-E10080
  • Working frequency:

    860-960MHz
  • Protocol:

    ISO18000-6C
product details

    JT-E10018 cattle ear tags, tailor-made products for livestock breeding, are mainly used for animal tracking and identification management in the livestock breeding industry; electronic ear tags can associate the ear number of each animal with its species, source, production performance, immune status, and health Information such as the status and owner of the livestock are recorded together. Once problems such as the epidemic situation and the quality of livestock products occur, the source can be traced (tracing), responsibilities can be separated, and loopholes can be plugged. The main body is made of non-toxic, non-odor, non-irritating, soft and durable TPU (polyether type) material to ensure that the product is suitable for use in different environments.


High-quality UHF RFID Animal Ear Tags

Parameters

Model

JT-E10080

Type

UHF passive RFID tag

Frequency

860~960MHz

Standards/Protocols

EPC CLASS1 GEN2, ISO 18000-6C

Physical

Size

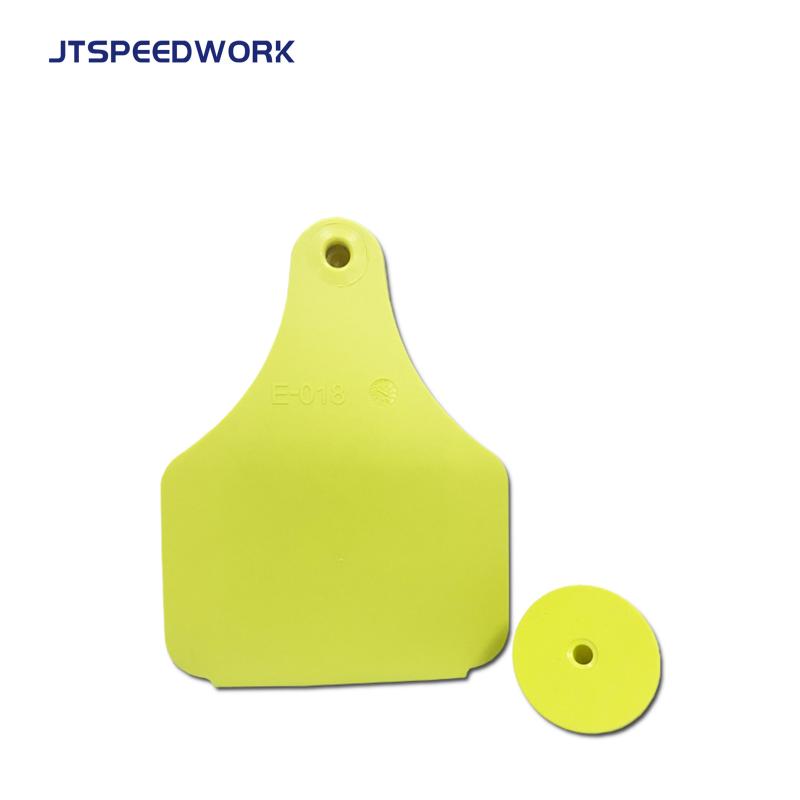

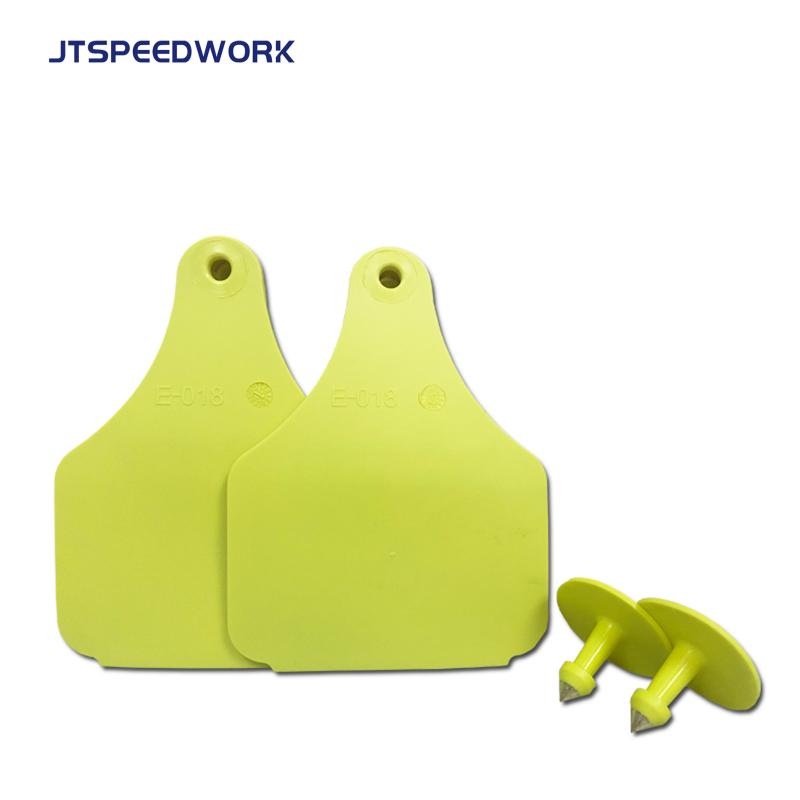

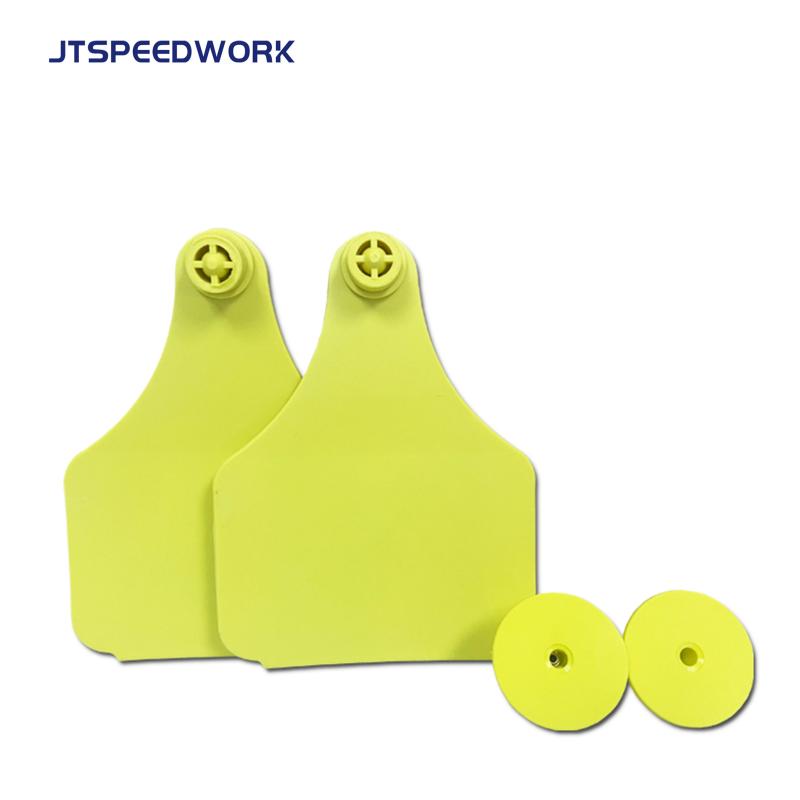

Female standard 100mm*75mm*13mm; male standard φ29mm*23mm

Inlay Material

PET+AL

Outer Material

TPU

Performance

Memory Size

Up to 512bit

Chip

Ucode 8/M4QT

Operating Mode

R/W

Reading Distance

1-8m(Related to reader performance and working environment)

Operating Temp

-20℃~+50℃

Storage Temp

-40℃~+100℃

Applications

The management of pig, cattle, sheep, etc.


JTSPEEDWORK Maintenance Plans.

JTSPEEDWORK Maintenance Plans.

Protect your JTSPEEDWORK devices for constant peak performance with these recommended maintenance plans. Device uptime, confidence, and savings — that's what you get with JTSPEEDWORK maintenance plans. You protect business-critical devices and eliminate disruptions and unplanned repair expenses.
