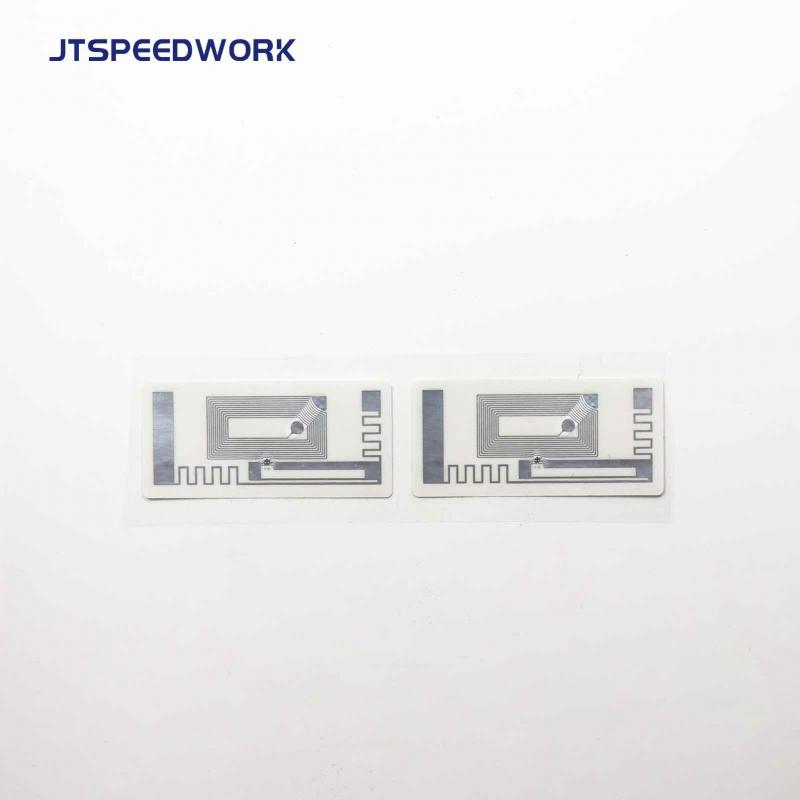

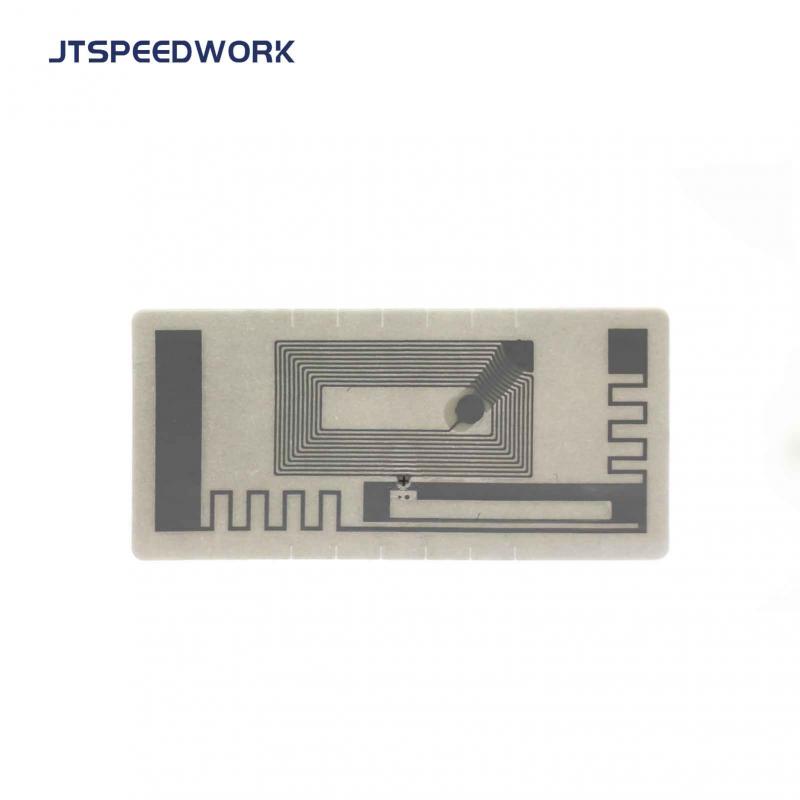

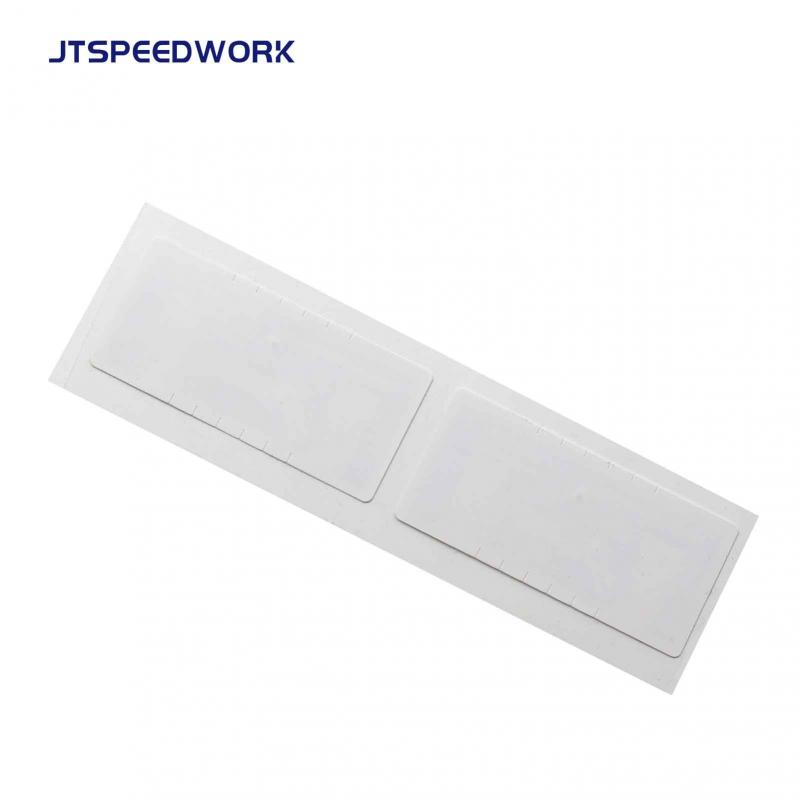

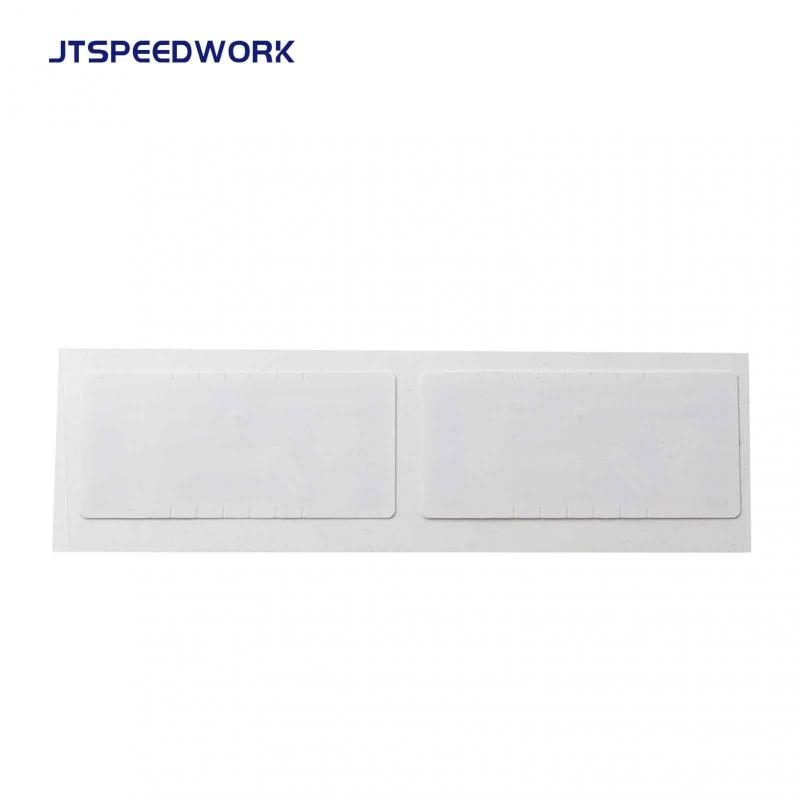

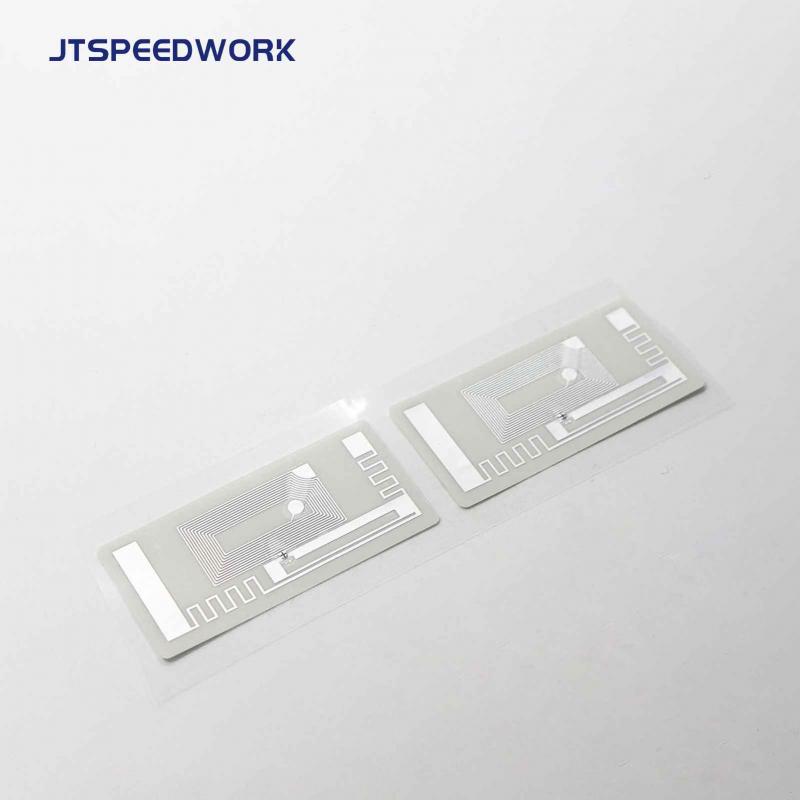

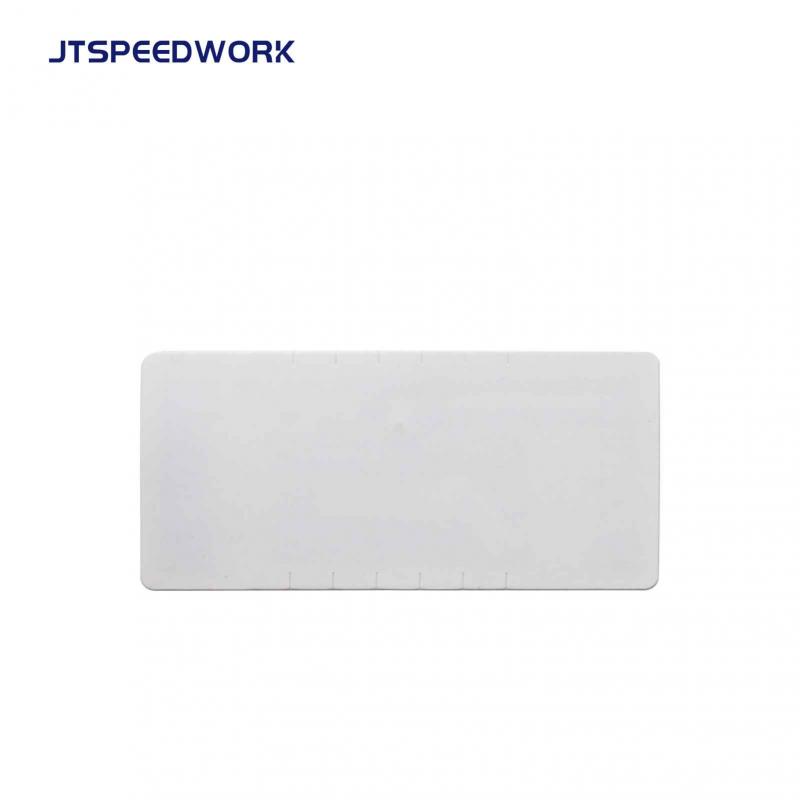

JT-D6028 HF+UHF Dual-band RFID Sticker General Printable Hybric

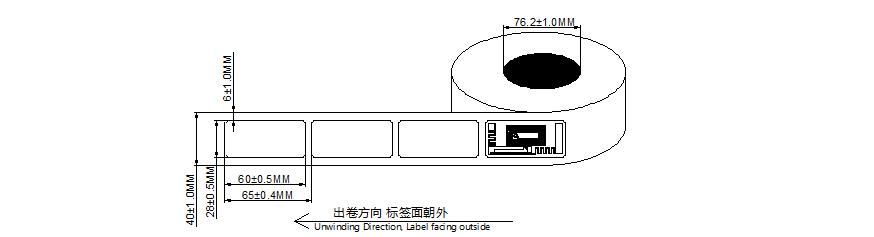

Basic Parameters Size（L/OD x W/ID x H) 75*50*0.2mm(ID/OD:inner/outer diameter of round tags) FaceStock or Housing Printable White PET Installation Adhesive Antenna Type Aluminum Antenna Technology Microstrip Flat Style Backing Liner PET/Single Silicon & Transparent PET Liner Characters General Product Feature Chip Model EM4423 Protocol NFC_ISO18000-6C GEN2 Operating Frequency     13.0-14.5Mhz & 860-960Mhz Memory TID/UID 96bits+ EPC/Block 128/224 bit+ User 64/160 bit+ Reserve 64 bit Reading Range 400cm (depends on reader) Applicable Surface Air-free Option Custom color printing(Embossing or laser-engraving) with barcode or text & personalization encoding Environmental Parameter Data EEPROM Retention 10years ESD Limited Voltage 2KV Operating Temperature -35℃ - 85℃ Storage Temperature 0℃ - 25℃ Relative Humidity 10%-95%(Variant Performance) Compatible Printers SATO CL4NX PLUS Zebra ZT411RFID POSTEK TX Series TOSHIBA SX-4T SX-5T Application Universal rfid/nfc tag, clothing retail garment/apparel tag mainly concerns in economic and cost-effective, widely used for apparel factory, shoe cap factory,fashion factory, suite luggage factory, mainly purpose is to identify product, production count, digital warehousing and inventory, reducing shrinkage and out-of-stocks, logistic supply chain, unman retail, business promoption and traceability managment. Partially used for anti-counterfeiting and anti-theft security monitor with durable & reusable property.

JT-9282 adopts the clip of Impinj R2000, which could achieve high speed and rapid date processing operation. Full support ISO-18000-6C(EPC C1 GEN2) protocol.  JT-9282 is easier to install for small size and light weight.  There will be flashing and buzzer when read tag.  It could be used in variation area, such as vehicle management, customer management, logistic management and production automatic management, etc.

  Application：     Widely used in cargo signs, logistics and transportation industry facilities,security inspections, petrochemical facilities, rail transit facilities, mobile communication facilities, sign anti-counterfeiting, biological identification,security inspection facilities, power asset equipment management, etc., using polystyrene High-temperature injection molding of thioether material is a new type of high-performance thermoplastic resin with the advantages of high mechanical strength, good temperature resistance, chemical resistance,good insulation, strong endurance, and excellent chips. Effectively protects the chip; high-frequency passive non-contact information storage and reading data management, strong anti-interference and large information storage capacity, convenient for daily maintenance work and information collection and management. Material ABS+nylon Dimensions Signage size 28*28*3mm Chip Alien/TK4100/ICODESLIX/NTAG213/F0814443A/15693/FDX-B (customizable chip) Working frequency 860-960MHz / 125KHz / 13.56MHz Working temperature -10～65℃ Reading distance UHF: 0.1-3 meters; LF/HF: 1-12cm Additional processes laser coding/silk screen pattern/UV spray pattern Color red/blue/yellow/green/black/white Protection level IP67

JT-5815 flexible washing label, especially suitable for clothing and fabric washing, install it in the linen, can withstand 180 degrees high temperature resistant ironing, industrial washing more than 200 times.

TM200 UHF RFID reader module , as a high efficiency and low cost,reading/writing module, has independent intellectual property rights.It works under the frequency from 860MHz-868MHz or 902MHz-928MHz. With 8dBi antenna,reading range can be reached 10m or longer. It is easy and fast to build an RFID system with simple power supply and interface.

    The JT-A002 Integrated Passive Transponder (PIT) is an ISO11784/85 compliant Radio Frequency Identification (RFID) tag and is used with an ISO11784/85 compliant reading device. Often called implantable biochips.

UHF RFID disc tag is specially designed for the management of disc anti-counterfeiting, inventory and location. Suitable for the management of press, library, database and confidential documents.

4-port antenna TNC female interface, Impinj E710 serial chip , group reading
