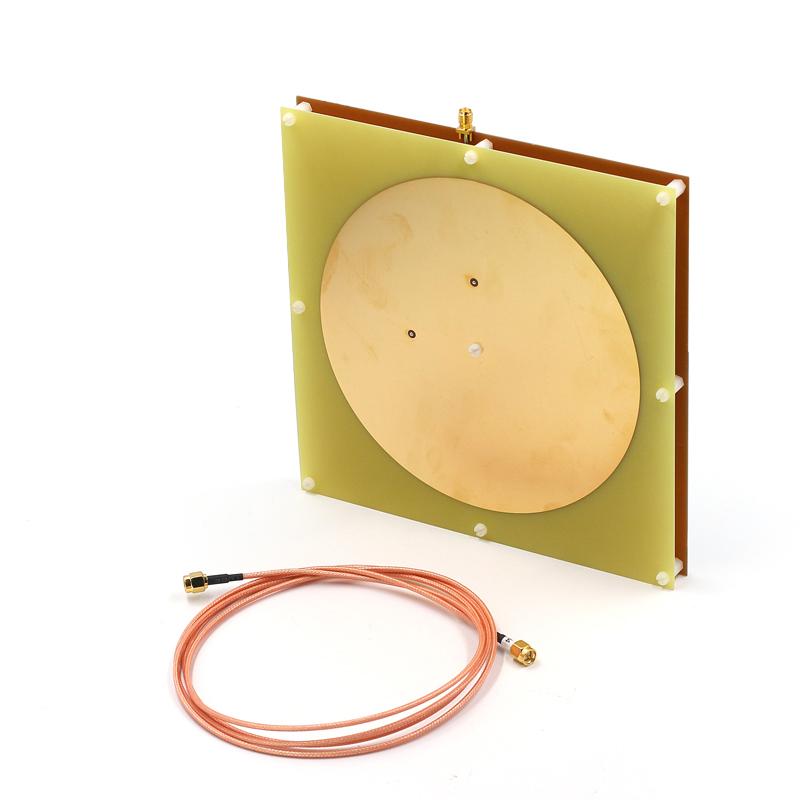

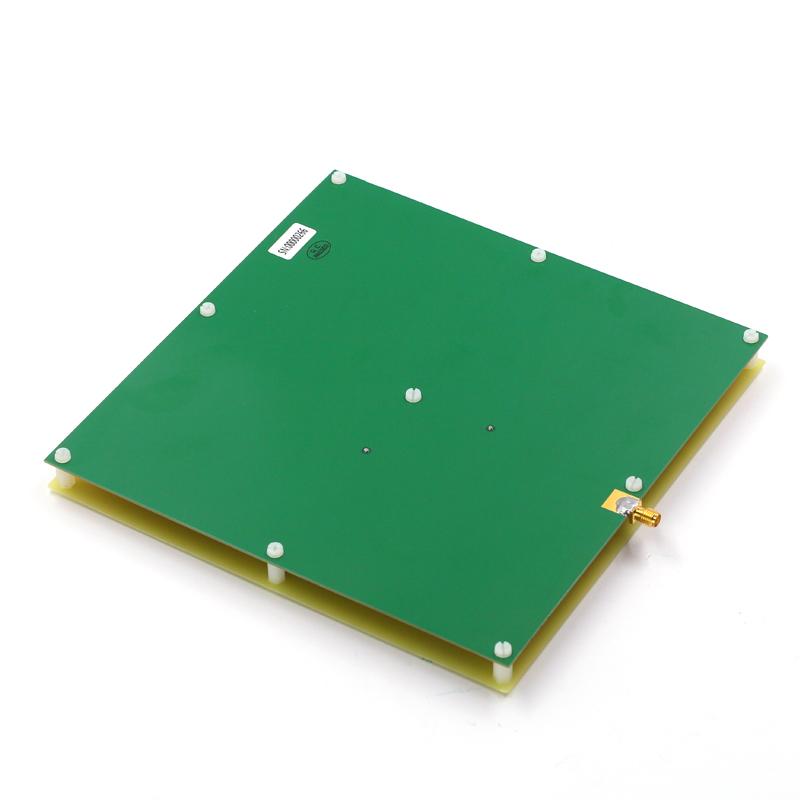

High gain RFID antenna JT-P190 is a PCB antenna: mainly for smart library,smart supermart ,or document management，Logistic & supply chain asset management etc.
Do you need help choosing the right RFID antenna for your project? We are happy to assist! Please contact us.
Brand:
JTSPEEDWORKItem NO.:
JT-P190Product Origin:
Shenzhen ChinaLead Time：
Within 3-7 Days
|
Electrical Specifications |
|
|
Frequency |
860-960MHz |
|
Gain |
8dBi |
|
Beam width |
Hor:75° Ver:75° |
|
Polarization |
Circular |
|
VSWR |
≤1.4 |
|
F/B Ratio |
≥20 |
|
Impedance |
50Ω |
|
Maximum power |
50W |
|
Lightning protection |
DC Ground |
|
Connector |
SMA-Female |
|
Mechanical Specifications |
|
|

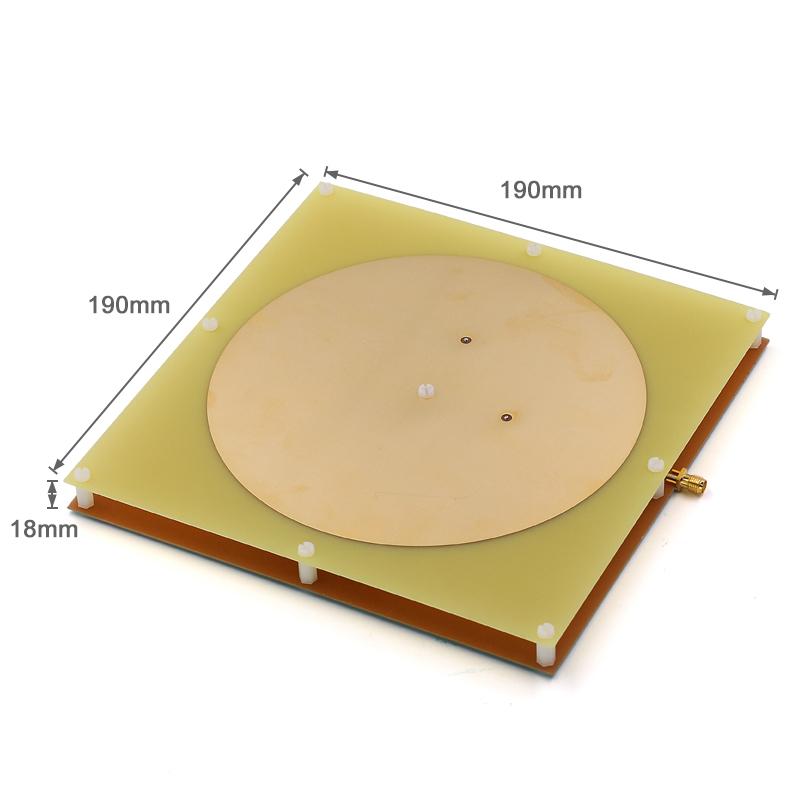

Dimension |
190*190*20mm |
|
Net weight |
0.15kg |
|
Packing size |
21*4*21cm |
|
Gross weight |
0.22kg |
|
Radome material |
PVC |
|
Radome colour |
Yellow |
|
Operating temperature |
-40-70℃ |
Previous:
5.5dBi RFID Antenna For Asset ManagementNext:
8dBi 860-960Mhz Circular UHF RFID Smart Cabinet Antenna JT-T0220 220*220mmIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
