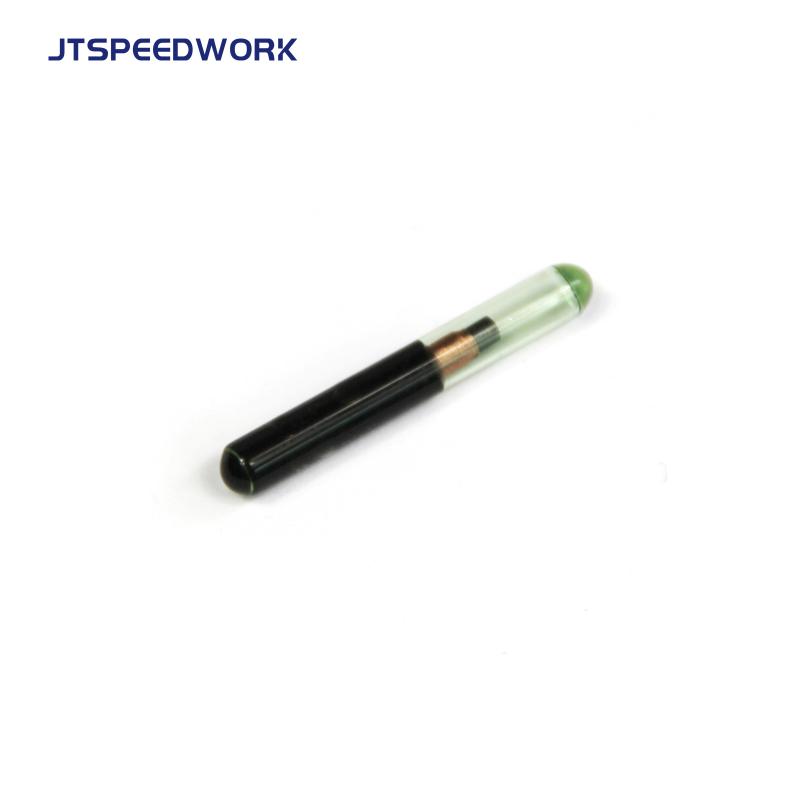

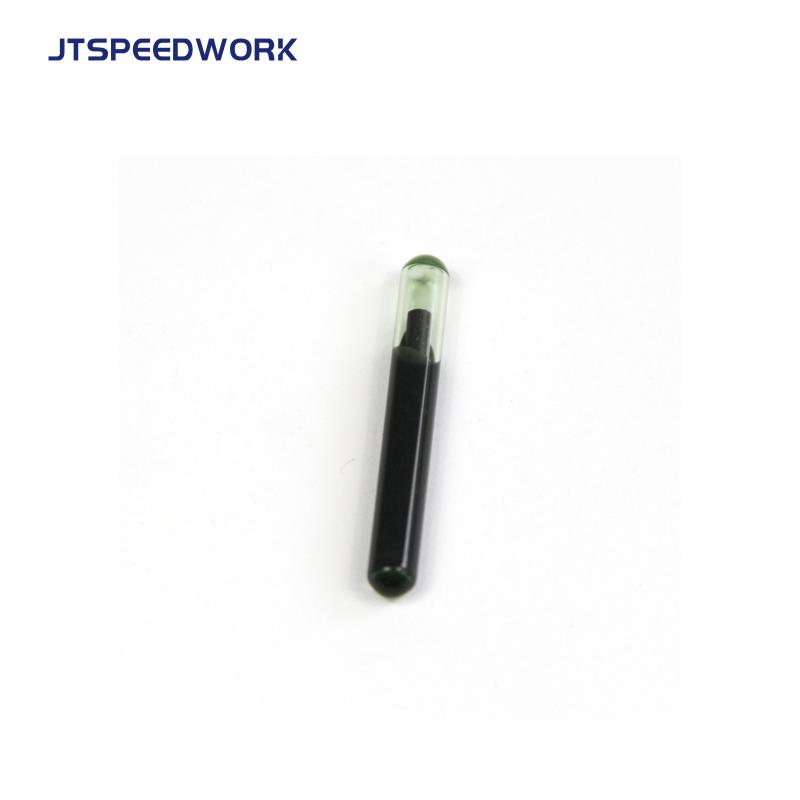

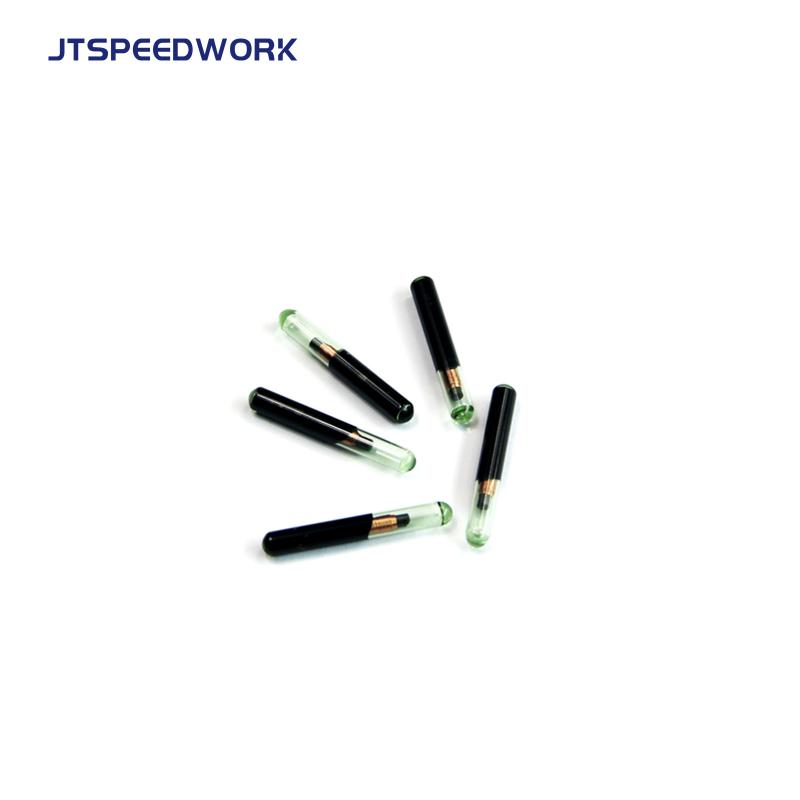

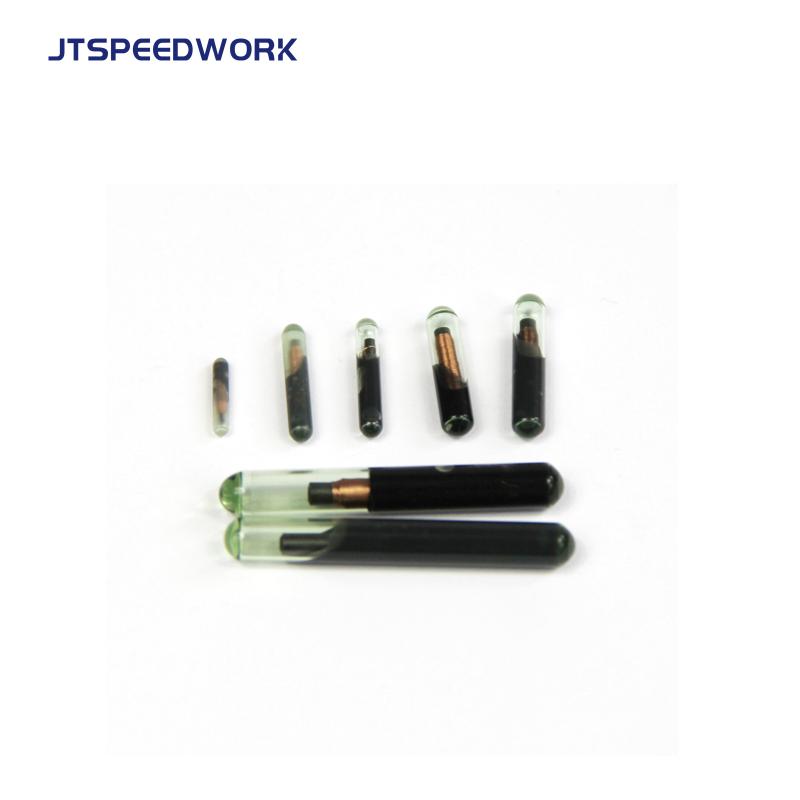

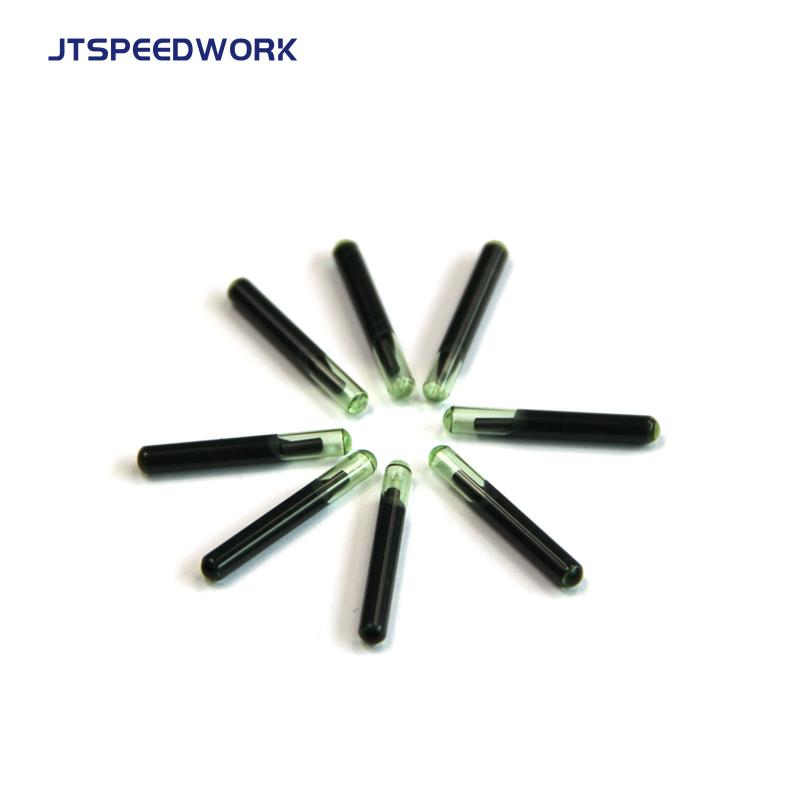

JT-A001 LF RFID Animal Chip Tag 134.2KHz FDX

>> Product Parameters Basic model JT-E001- FDX Chip type EM4305 (EM Marin) Function readable and writable Memory Capacity EEPROM 512bit USER DATA 288 bit ID number 1 5 -digit ID code Working frequency 134.2KHZ ± 1KHZ _ Protocol ISO 11784/85 (FDX-B) Data retention time > 10 years at 55°C (131°F) Number of data rewrites >100,000 times at 25°C (77°F) Power supply passive (no battery) Recognition distance 1 to 55 cm (centimeters) EEPROM storage structure: 512 bit EEPROM is made up of 16 32bit . EEPROM Words are numbered from 0 to 15. Word 0 : Assigned to the factory pre-written information. Word 1 : It is a 32-bit unique identification code (UID) written by the factory. Word 2 : Contains a 32-bit password. The password value can only be changed after a successful login command. Word 3 : User data storage area, which can store user-specific information. Word 4 : Used to define configuration words - operating modes and options. Word 4 – Word13 : User data storage area, which can store user-specific information, a total of 2 88 bits space Word 14 – Word 15 for word protection 0 to 13 use the Write Word command to modify JTSPEEDWORK Maintenance Plans. /* 全局样式 */ body { font-family: 'Arial', sans-serif; margin: 0; padding: 0; background-color: #f8f9fa; color: #444f5a; } /* 主容器 */ .dna-container { max-width: 1000px; margin: 40px auto; padding: 30px; background-color: #F4FFF8; border-radius: 8px; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.1); text-align: center; } /* 标题样式 */ .dna-title { color: #4D4847; font-size: 28px; font-weight: bold; margin-bottom: 20px; text-align: center; position: relative; padding-bottom: 15px; } .dna-title:after { content: ""; position: absolute; bottom: 0; left: 50%; transform: translateX(-50%); width: 80px; height: 3px; background-color: #4D4847; } /* 正文段落，仅影响 p 标签 */ p.dna-content { font-size: 16px; line-height: 1.6; margin: 0 auto 30px; color: #4D4847; max-width: 800px; text-align: center; } /* 表格内文字颜色不受 .dna-content 段落控制 */ .dna-content table, .dna-content th, .dna-content td { color: initial; } /* 按钮样式 */ .learn-more-btn { display: inline-block; padding: 12px 30px; background-color: #52616b; color: white; text-decoration: none; font-weight: bold; border-radius: 4px; transition: all 0.3s ease; text-transform: uppercase; letter-spacing: 1px; font-size: 14px; border: 2px solid #ffffff; cursor: pointer; } .learn-more-btn:hover { background-color: transparent; color: #0066cc; border-color: #52616b; } /* 响应式设计 */ @media (max-width: 768px) { .dna-container { margin: 20px; padding: 20px; } .dna-title { font-size: 24px; } p.dna-content { font-size: 15px; max-width: 100%; } } JTSPEEDWORK Maintenance Plans. Protect your JTSPEEDWORK devices for constant peak performance with these recommended maintenance plans. Device uptime, confidence, and savings — that's what you get with JTSPEEDWORK maintenance plans. You protect business-critical devices and eliminate disruptions and unplanned repair expenses. LEARN MORE

    The JT-A002 Integrated Passive Transponder (PIT) is an ISO11784/85 compliant Radio Frequency Identification (RFID) tag and is used with an ISO11784/85 compliant reading device. Often called implantable biochips.

RFID writer module JT-2880 is a UHF RFID module with low power, small size. Could support EPC C1 G2、ISO18000-6C Gen 2 protocol. The reading range could reach 3m with white card.

JT-T2470 2.4G active tag, with complete independent intellectual property rights, adopts advanced RFID ultra-low power consumption technology, average working power consumption is microwatts, tag support, tamper-proof alarm, low-power alarm.

RFID automatic calibration The RFID automatic calibration function can automatically drive the power of the antenna according to tags of different specifications and chips, easily set the reading and writing conditions of RFID tags, and greatly reduce the time of manual debugging of printer parameters. (Press the "Power On" button twice to automatically calibrate the RFID power) Automatic labeling function for waste labels The automatic marking function of discarded labels means that when a defective or damaged label is found during the label reading and writing process, the printer can automatically detect and print the word "obsolete" on the surface of the label, which facilitates customers to sort out defective labels as soon as possible and avoid the mixing of defective labels. Reliable tag data writing The workflow of printing first and then reading and writing the label IC can support the printing, reading and writing of large batches of labels at one time, while ensuring a 100% defective label detection rate and ensuring the accuracy of subsequent business operations. Labels are widely applicable It can support printing and reading and writing verification of ordinary anti-metal labels and flexible anti-metal labels (≦1.25mm) at the same time. The labels are widely applicable. The three-position penetrating sensor structure design can meet the label positioning needs of different positioning methods, meet the use of different labels, and the label has a wider application range. Humanized parameter settings Provides an intelligent assistant setting function that can manually adjust the printer's RFID power and antenna position, providing the most suitable application settings for RFID. Item No. JT-DL218 Print parameters Interface Printing method Thermal/thermal transfer printer Standard USB interface (2.0 full speed) Printing width (loading paper width) 118mm Optional RS-232 serial port (DB25) Effective printing width 108mm Parallel Centronics(IEEE-1284) Printing speed 150mm/s(203dpi) Ethernet port:10M/100M Thermal head Point spacing 0.125mm Wi-Fi interface (802.11b/g/n) Resolution 203DPIx203DPI Bluetooth interface: SPP Barcode RFID 1D code Code 39,UPC-A,UPC-E,Matrix 25, Industrial 2 of 5, Interleaved 2 of 5, Post 2 of 5(China),Code 128, EAN-13, EAN-8, HBIC(Code 39),codabar, UPC2,UPC5, Code93,UCC/EAN Code RFID tag writing method Print first and then write, which can support printing and writing to EPC at the same time, only reading and writing EPC, printing only, and reading label TID, etc. QR code PDF417,MaxiCode,QR Code,Data Matrix Support RFID standards 920.5-924.5MHz; support ISO18000-6C, EPC Gen2 Supported label types Supports ordinary self-adhesive RFID and flexible anti-metal tags below 1.25mm *Special tags depend on the specific chip Physical properties Ribbon specifications Dimensions 230(width) ×290(Deep) ×176(high)mm Inner diameter 25.4mm Color Black White Outer diameter 68mm Weight About 3kg Length 300 meters Working environment Temperature: 5~40℃ Width 33~110mm Humidity: 20%~95%RH (no condensation) Storage environment Temperature: -20~60℃ Humidity: ≤95%RH (40℃, no condensation) Control Panel Detection function Button One key (paper feed) Standard sensor Black mark detection, label detection, mechanism detection, ribbon detection Indicator light Three lights (power, fault, status (no paper/ribbon)) Optional sensor Label peel detection Paper handling Character Paper specifications Paper thickness: 0.06~0.18mm Character set Chinese characterGB18030 Chinese character large font library 24*24 lattice；Commonly used single-byte fonts(ZPL):FontAarriveFontV Paper width: 25~118mm Custom fonts can be downloaded to FLASH, SDRAM Paper length: 8.9~400mm Code page PC437; PC850; PC860; PC863; PC865; PC858; PC852; PC866;PC720. Outer diameter: 127mm(MAX) Zoom/Rotate It can be enlarged in steps of 1 to 8 times both horizontally and vertically; rotation printing (0° ,90° ,180° ,270°) Inner diameter: 25.4/38.1mm Comes with paper tearing knife Supports top tear-off and bottom tear-off Safety Function Safety standard GB4943.1-2011 With double dial transmission technology, with thermal head positioning structure technology and with paper tearing structure technology;The above technologies need to provide relevant supporting documents or certificates from national technical appraisal institutions; Radio Interference (EMC) Class B Certification 3C certification Memory Power parameters SDRAM 8MB Input 100~240VAC;Frequency range: 50~60Hz FLASH 8MB Output 24VDC; 2.15A Software Cutter life Driver (Windows32bit/64bit, Linux), Barcode Pass BarEasy,SDK system Options 0.2mm 300,000 times, 0.15mm 500,000 times,0.06mm 1 million times Emulation language Graphics Simulated zebra, simulated EPSON ZPL, EPL, ESC/POS Graphics processing Monochrome PCX, BMP and other image data can be downloaded to FLASH, SDRAM Options The cutter (stripper) and paper are almost empty. Reliability and warranty Lifespan 150KM(Calculated based on the...

High performance, flexible, low loss RFID Antenna Cables.

JT-2890 is a UHF Bluetooth portable reader. Small size, long distance, ultra-low power reading and writing module.

Industry Application: The tunnel is mainly used for SKU identification, such as warehouse management of fashion,leather goods and luggage, alcohol, electric power, the comparison of SKU tag and box label, product inventory, etc.
