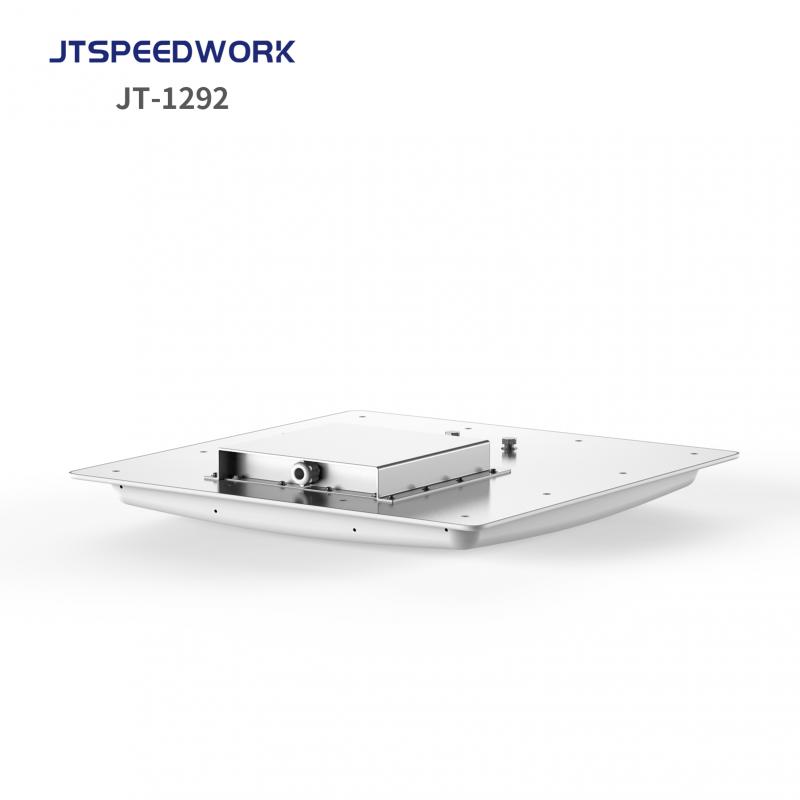

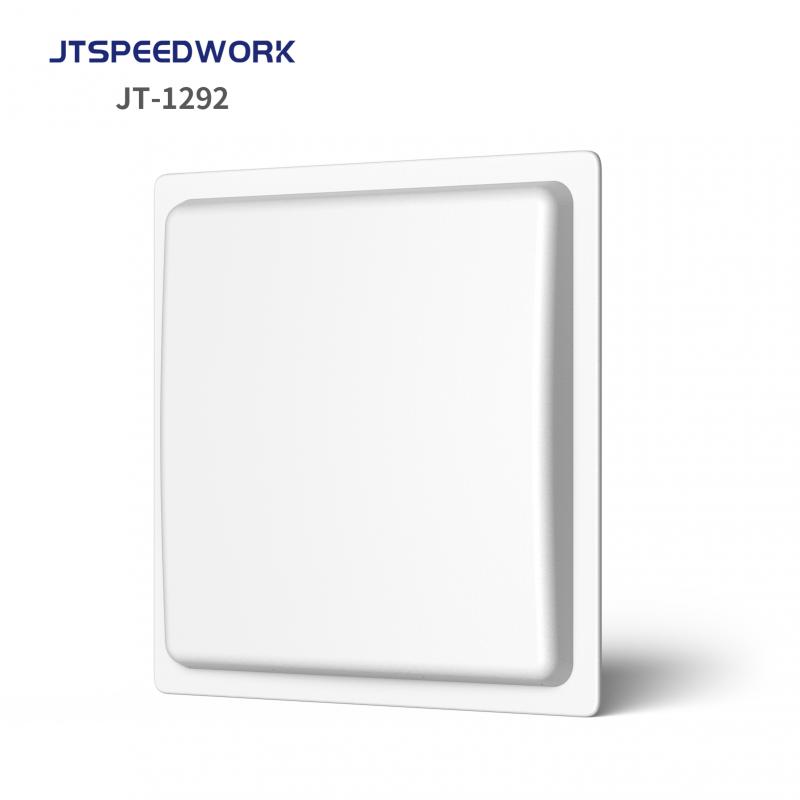

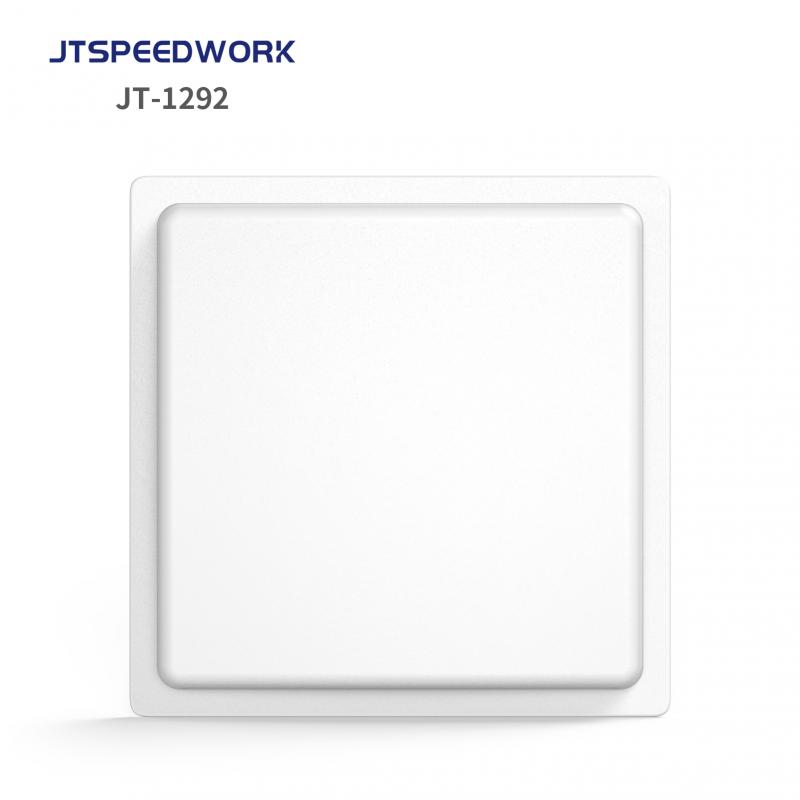

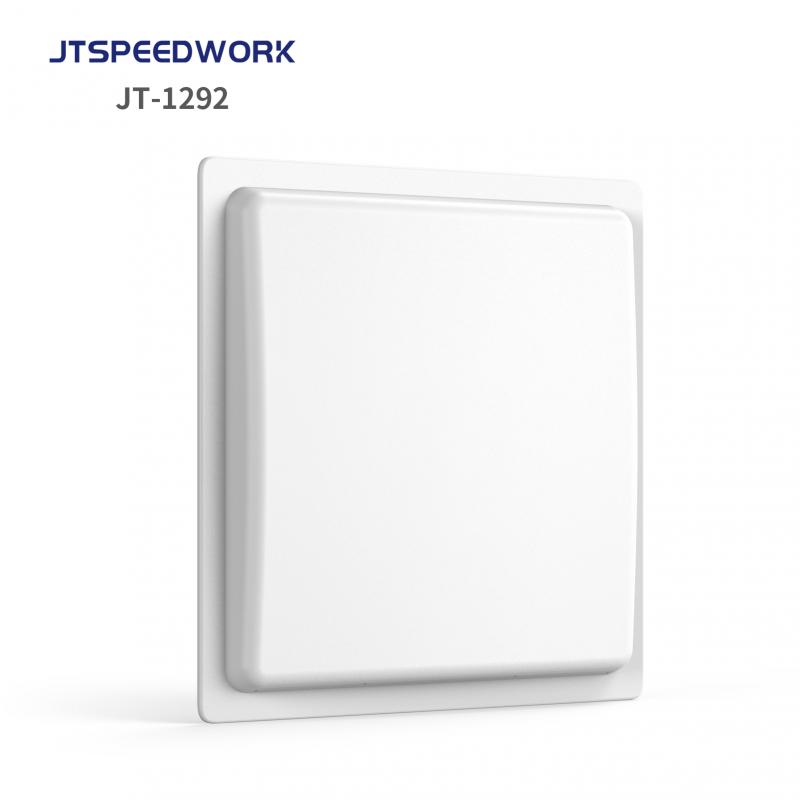

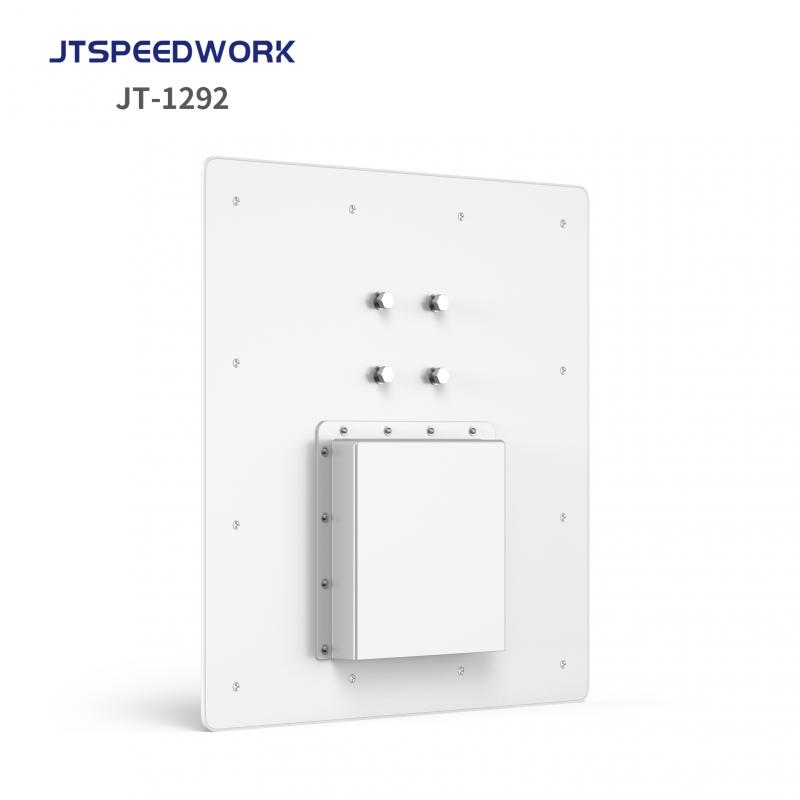

JT-1292 0-30m UHF RFID Reader Impinj E710 OEM Warehouse Programmable RFID Tag Reader With SDK For Industry Intergrated

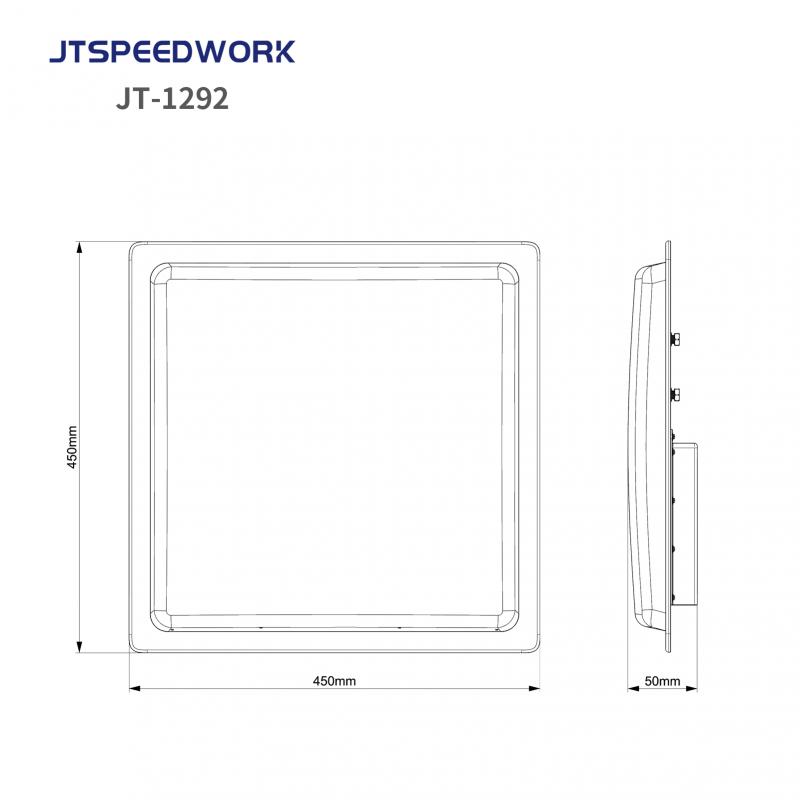

Feature:     JT-1288 is a high-performance single-channel integrated RFID reader. Using self-developed high-perfor-mance RFID modules based on Impinj E710 chips, and working together with integrated awesome 10dBilinear polarized antenna. The reader supports RS232, RJ45 ,WiFi,4 GPRS communication interfaces. Thewhole series of products have a unified protocol and SDK. You only need to develop our products onceto connect with all our RFID readers.JT-1288 is applicable widely in warehousing, archives management,library management, banking, production line management and other fields. Support RS232,RJ45,WiFi,4G remote online firmware upgrade Support MQTT protocol Specification: Item No. JT-1288 Physical parameters Antenna Dimensions 420(L)*240(W)*50(H)mm 10dBi linear polarized antenna Net weight 1.3Kg Material ABS & aluminum alloy Power Supply Input Voltage DC 12-24V /3A RFID Parameters Peak current 500mA Air Protocol EPC global Gen2(ISO18000-6C) User Environment Working frequency Operating Temp -40 ℃ to 75 ℃ 865-868 / 920-925 / 902-928 MHz ( custom-design for frequency band ) Storage Temp -40 ℃ to 85 ℃ RF power Humidity 5-90% non-condensing (+25° C ) 13~33dBm(adjustable) Chip Reading Performance Impinj E710 Reading distance I/O Up to 15m(relate to tag and environment) 1 trigger input or 2 relay outputs (customized) Model Type Notification JT-1288B RS232,TCP/IP(PoE optional) LED indicator,buzzer JT-1288W RS232,TCP/IP,WiFi RSSI JT-1288G RS232,TCP/IP, 4 GPRS Supported Consumption Datasheet Average power consumption<10W Baud rate SDK 115200 bps (default) Demo&C++,C#,JAVA,Android SDK

Item No. JT-1380 Physical Parameters Antenna Dimensions 208(L) *208(W) * 46(H)mm 8dBi circularly polarized antenna (built-in) Net weight 660g Material ABS & aluminum alloy Power Supply Input Voltage DC 9-36V /3A RFID Parameters Air Protocol EPC global Gen2(ISO18000-6C) User Environment Working frequency Operating Temp. -40 ℃ to 75 ℃ 865-868 / 920-925 / 902-928 MHz ( custom-design for frequency band ) Storage Temp. -40 ℃ to 85 ℃ RF power Humidity 5-90% non-condensing (+25° C ) 13~33dBm Work mode Reading Performance Master-slave, timing,trigger mode Reading distance I/O Up to 3m(relate to tag and environment) 1 trigger input or 2 relay outputs (customized) Model Type Notification JT-1380B RS232, TCP /IP(PoE optional) LED indicator,buzzer JT-1380W RS232, TCP /IP,Wi-Fi RF chip JT-1380G RS232,TCP /IP,4 GPRS Impinj E710 Datasheet Reading rate >900 times/sec SDK C# , Java , C++

4-port antenna TNC female interface, Impinj E710 serial chip , group reading

This PCB tag is supplied with an Alien Higgs 3 chip, which makes it quite durable even in environments where exposure to high temperature is involved. The tag is versatile in nature and is designed to work well in a variety of environmental conditions. This tag can be affixed onto the metal asset using a high-performance permanent adhesive tape provided with the tag as an option or mounted using a screw. It is widely used in precious metals management, e.g.bank asset management, data center asset management, IT asset management.

1, Reusable, reduce costs 2, It's can be used for metal surface 3, FR-4 material, wear-resistant 4, Long distance

0-30CM Short range RFID reader JT-6230 support protocol EPC C1 G2 /ISO 18000-6C. Communication interface include RS485 and RS232  Mainly used in production line management.

JT-T075R is a 4dBi four-arm spiral circularly polarized antenna (75) is a universal far-field antenna suitable for UHF band RFID applications. It has the characteristics of small volume, high gain, low standing wave, good symmetry of the direction, and low axial ratio. Can be easily applied to terminal occasions such as UHF band RFID hand sets.

Item No. JT-A001 RFID  Parameter Physical Parameter Chip EM4305 Type Implanted animal tags Working frequency 134.2KHz Material Glass(Lead-free and non-toxic materials inside, plus glass and bio-coating.) Protocol ISO11785/85(FDX-B) Color Transparent Weight About 0.1g Different dimensions and reading range Environment Parameter φ1.25mm*7mm 1-12cm Working temp. -20℃~+70℃(no freezing) φ1.4mm*8mm 1-15cm Storage temp. -40℃~+85℃ (no freezing) φ2.12mm*12mm 1-20cm φ3mm*13mm 1-25cm φ3mm*15mm 1-28cm φ4mm*32mm 1-30cm Features Flexible solution, unique ID number, advanced security features (data integrity check, encrypted identity authentication), easy to use, small size, long service life and surface with anti-slip material. Application Animal tracking and identification management, animal data statistics, automatic animal breeding, animal behavior management, pet management, rare animal tracking.
