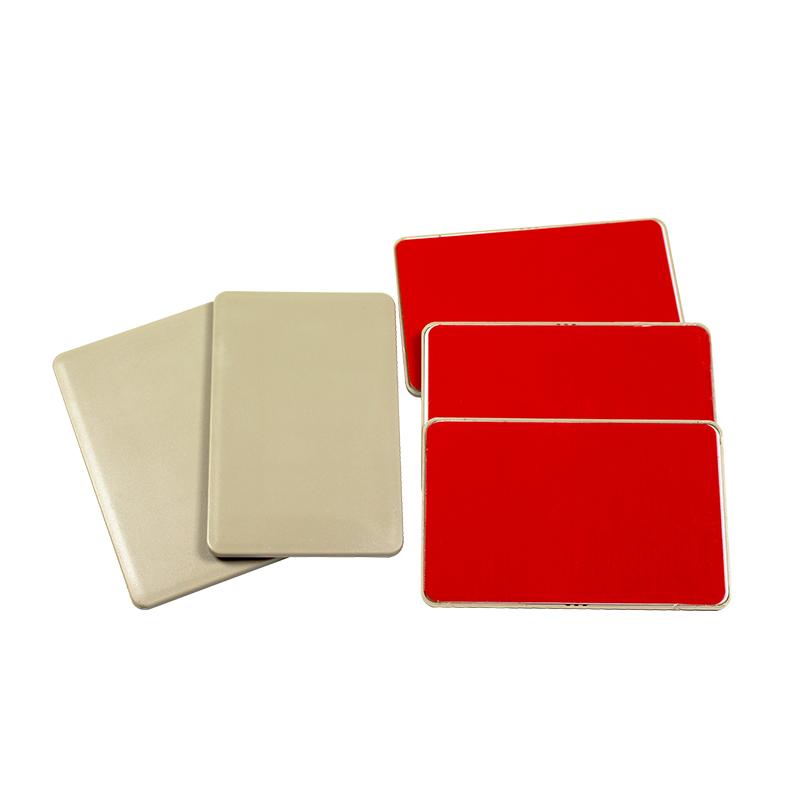

JT-316 UHF RFID Card is made of Ceramic material. It is ISO-1800 6C EPC GEN1 CLASS 1 Protocol. It is widely used to Car parking management.
Brand:
JTSPEEDWORKItem NO.:
JT-316Order(MOQ):
1Payment:
100% TT In AdvanceProduct Origin:
China, ShenzhenColor:
WhiteShipping Port:
ShenzhenLead Time：
Within 3-7 DaysCeramic UHF RFID WINDSHIED Tag
|
erformance Characteristics |
|
|
Operating Frequency: |
860 - 960 MHz |
|
Reading distance |
10m with ImpinjR420 and BRA- 01CR |
|
Chip |
Alien H3 |
|
Supported Protocol: |
ISO 18000-6C, EPC global C1Gen2 |
|
Functionality: |
Read/Write |
|
Chip Characteristics |
|
|
EPC |
96bits |
|
User Memory |
512 User Bits |
|
TID: |
64bits |
|
Access password: |
32bits |
|
Kill password: |
32bits |
|
EEPROM data retention: |
10 years |
|
EEPROM write endurance: |
10,000 cycles |
|
Physical Characteristics |
|
|
Dimensions (W x L x H): |
86mm x 54mm x 3.3mm |
|
Material |
Ceremics and Silver , PC package |
|
Color |
White |
|
Weight |
5g |
|
Mounting Way |
3M Adhensive |
|
User Environment |
|
|
IP Classification |
IP65 |
|
Operating temperature: |
-20ºC to +85ºC |
|
Applications: |
License Plate, Vehicle Parking, Vehicle Management, |
Previous:
UHF RFID Windshield Card 860~960MHzIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
