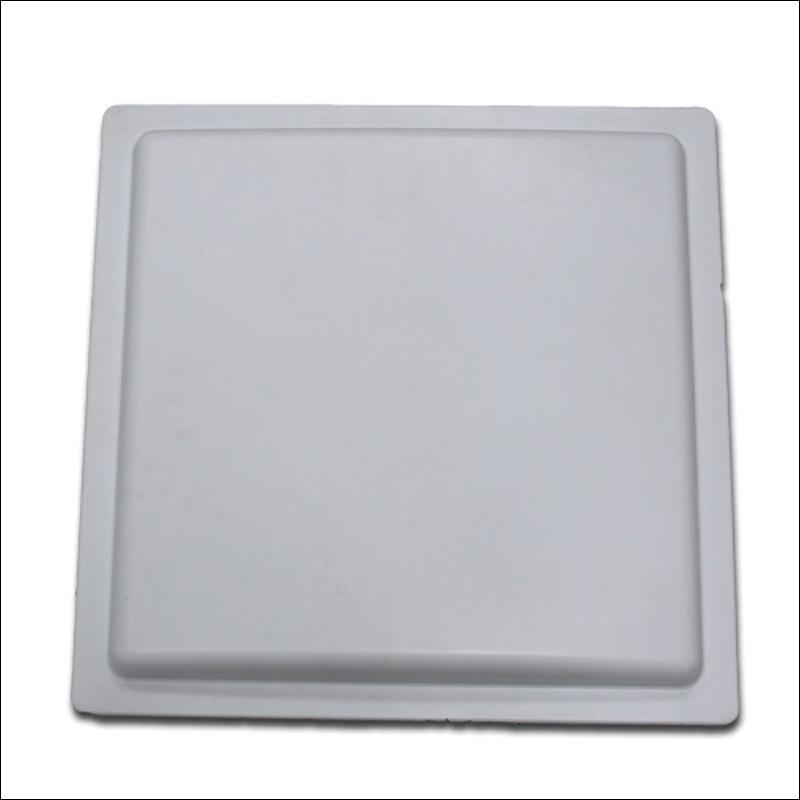

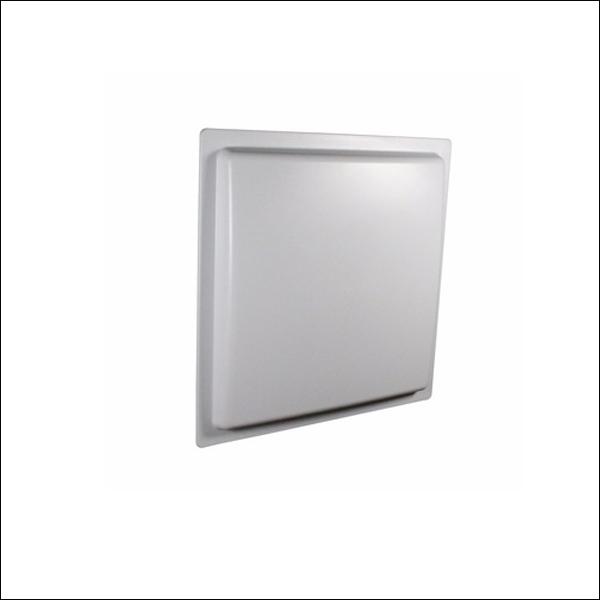

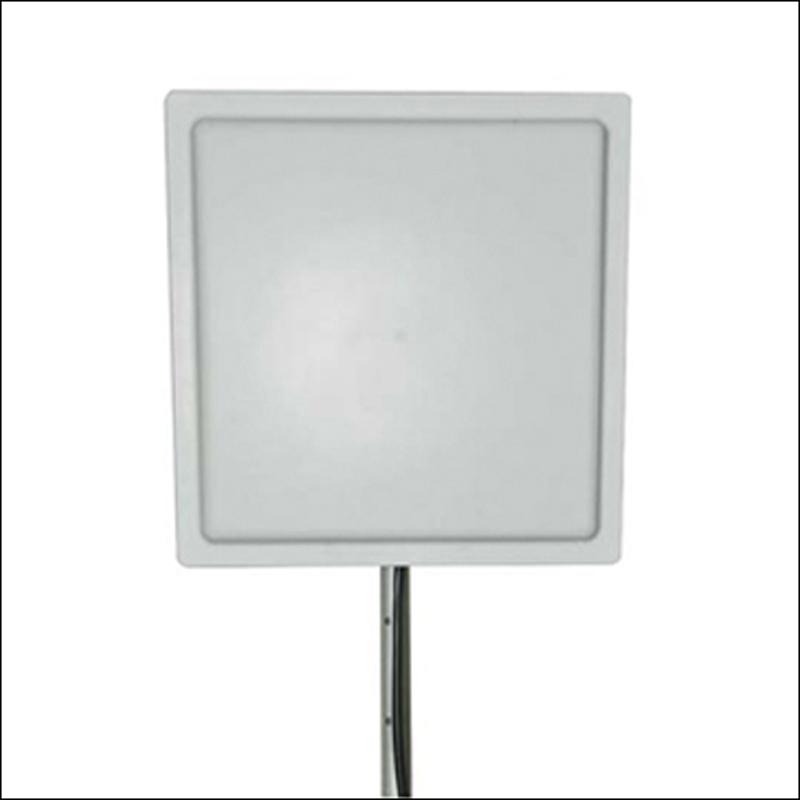

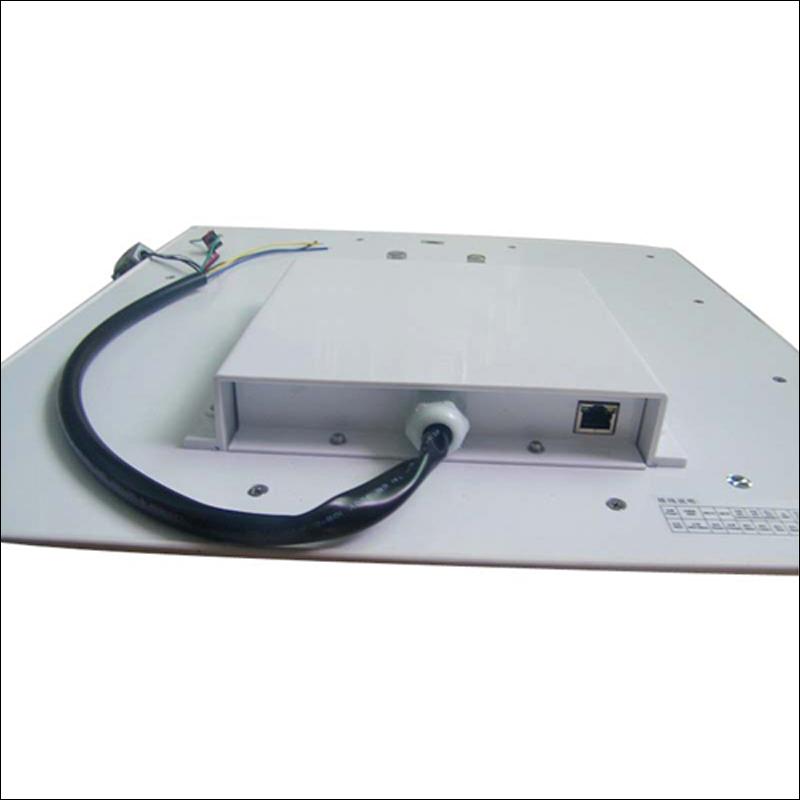

UHF RFID Long Range Reader JT-9292 adopts the clip of Impinj R2000, which achieve high speed and rapid date processing operations. Full support of ISO-18000-6C /6Bprotocol, and has high sensitivity to tag.
Brand:
JTSPEEDWORKItem NO.:
JT-9292A/B/W/GProduct Origin:
ChinaShipping Port:
ShenzhenLead Time:
3 working daysFeature:
◆Built in the RFID module of R2000
◆The stable reading distance could be reach 30M
◆Multiple tagss reading ability
◆High sensitivity to tag
◆Support RSSI indication
◆Waterproof and sunscreen
Application:
JT-9292 could be used in variation area, such as vehicle management, customs management, logistics management and production automatic management, etc.
| Item No | |
| JT-9292A | RS232 |
| JT-9292B | RS232,TCP/IP |
| JT-9292W | RS232,WIFI, |
| JT-9292G | RS232,GPRS |
| Performance parameters | |
| Working Frequency | 902~928 MHz or 865~868MHz |
| Protocol | ISO18000-6C(EPC C1 GEN2) |
| Chip | Impinj R2000 |
| RF power | 0~30dBm(Adjustable) |
| Software & SDK | DEMO and C#, VC, Java |
| Industrial lightning protection | 6000V |
| Low temperature protection | Northeast, Northwest extremely cold region, low temperature protection |
| Reading range | stable reading range 25 M(Depends on tag & environment) |
| Tag handling volume | 0-200 tags |
| Storage space | 1M or 8M Flash save without power supply(customized) |
| Real-time clock | without power supply, real-time clock save and working(customized) |
| Frequency modulation | hopping or fixed frequency |
| Input/output port | Two-way relay output(customized), two-way I/O input(customized) |
| RSSI | RSSI numerical test |
| Antenna gain | 12dBi polarization |
| Working way | Buzzer |
| Power | 12V/3A Adaptor |
| Ethernet power supply | POE(customized) |
| Physical parameters: |
						 |
| Item size | 450x450x50mm |
| Package size | 600x480x110mm |
| Net weight | 5KG |
| Shell material | ABS |
| Working temperature | -20℃~+65℃ |
| Storage temperature | -45℃~+95℃ |
Protect your JTSPEEDWORK devices for constant peak performance with these recommended maintenance plans. Device uptime, confidence, and savings — that's what you get with JTSPEEDWORK maintenance plans. You protect business-critical devices and eliminate disruptions and unplanned repair expenses.
