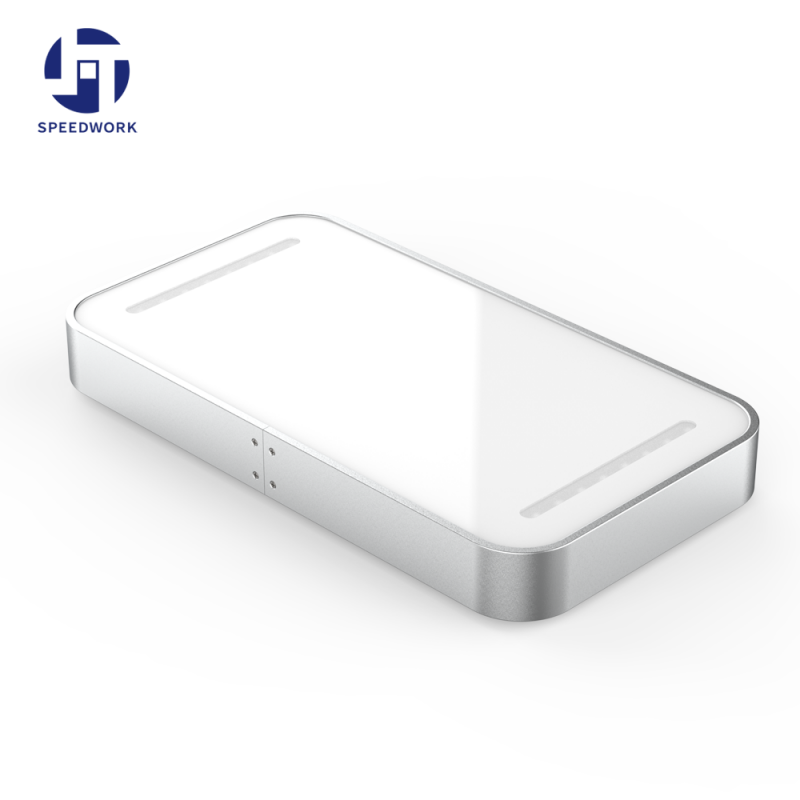

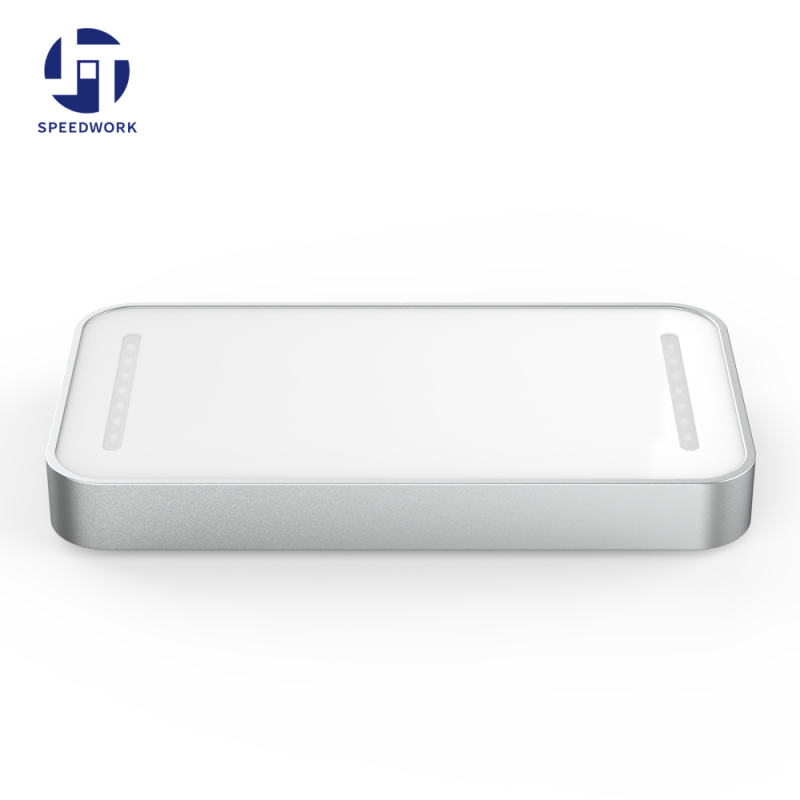

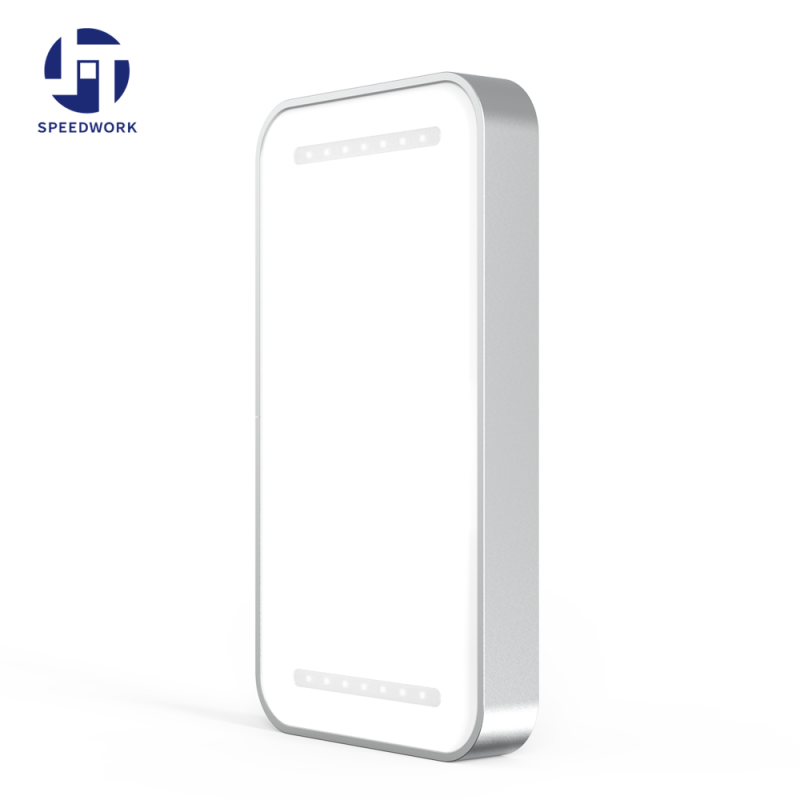

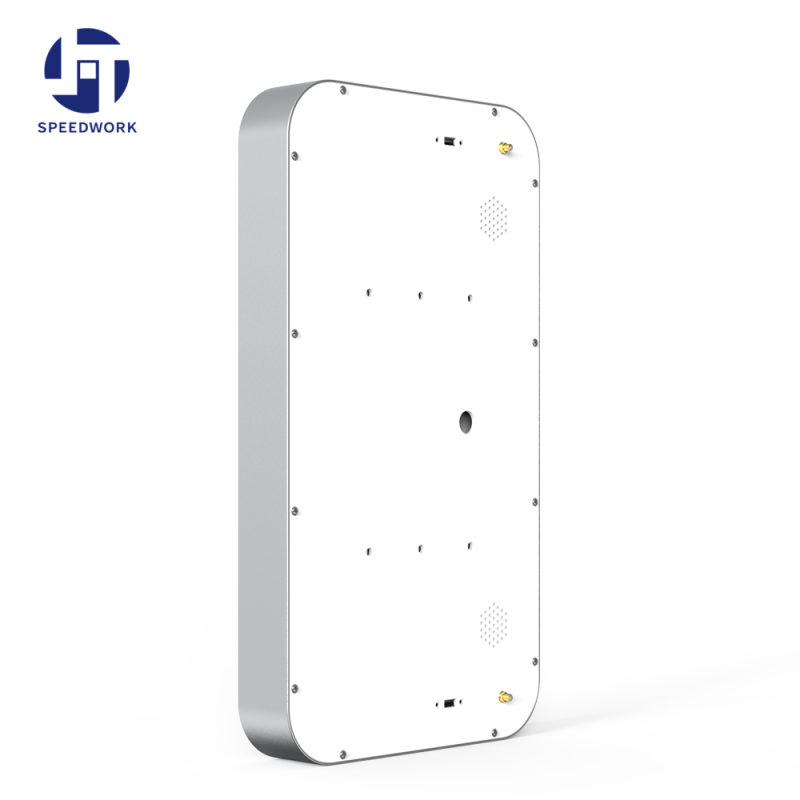

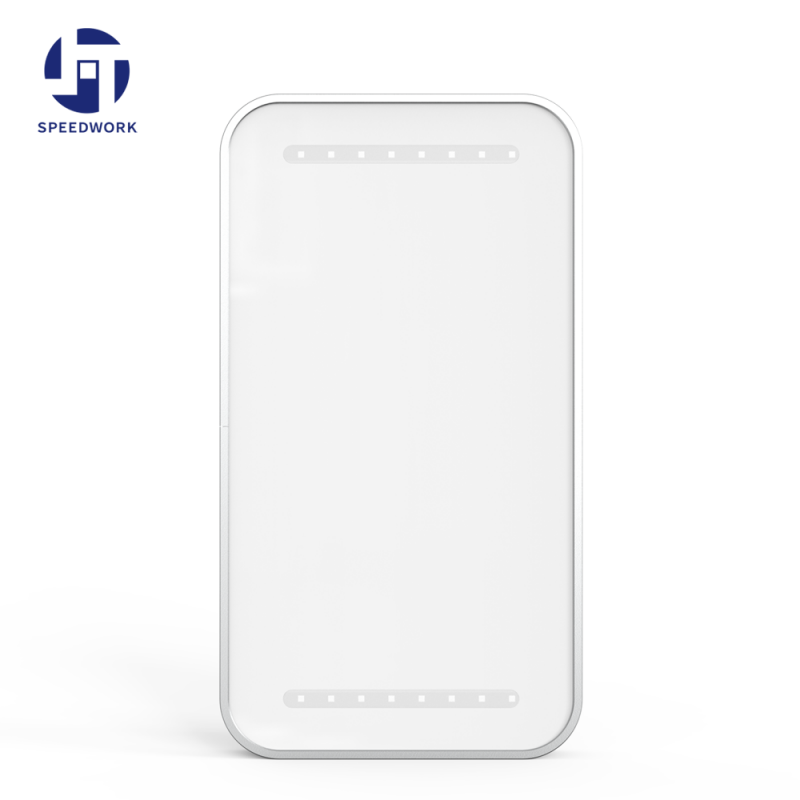

UHF RFID Integrated Reader with Radar For Access Control JT-5010

UHF RFID Integrated Reader with Radar For Access Control JT-5010

0-10m reading distance

  • Brand:

    SPEEDWORK
  • Item NO.:

    JT-5010B/W/G
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen,China
  • Lead Time:

    Within 3-7 Days
product details



UHF RFID integrated reader JT-5010 is a professional-grade, high-performance UHF electronic tag integrated reader developed based on the TM series chip platform, with an innovative built-in millimeter-wave radar for entry and exit judgment. Relying on extremely high detection sensitivity and data processing algorithms, rad­ar can handle scenes where the target is still or weakly moving,achieving extremely low false positives and fa­lse negatives, and can accurately depict the trajectory of personnel. At the same time, there is no privacy pro­blem, the transmission power is extremely low,and there is no harm to the human body and the environment. It meets the application scenarios that need to judge the entry and exit, and is easy to install. With complete independent intellectual property rights, the default working frequency band of the reader is 902-928 MHz, supports 1SO18000-6C (EPC Cl GEN2) protocol, has strong multi-tag recognition ability, long card readi­ng distance, high protection performance and convenient installation and configuration, etc. Features, the reader integrates multiple communication methods such as RJ45, RS485, RS232, WiFi and 4G, and is suitable for warehouse logistics, material control, identity identification, access control and other fields. The reader is designed with ABS engineering plastic shell, which has strong waterproof, dustproof, anti-interference ability and lightning protection design on the circuit, making it meet the design requirements of outdoor all-weather industrial products.

Item No. JT-5010
Physical parameters Antenna

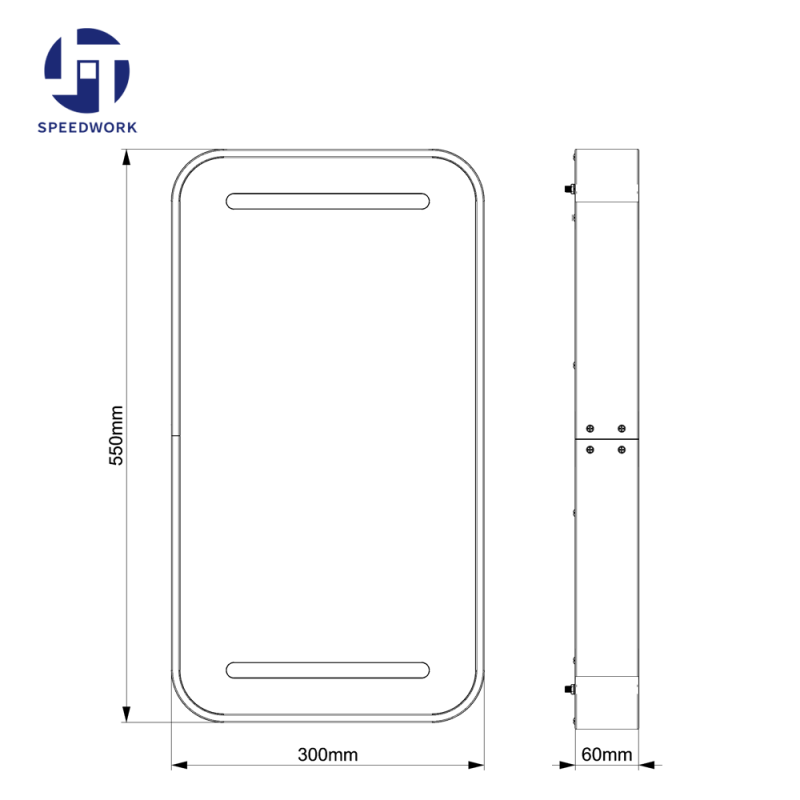

Dimensions 550(L) *300(W)*60(H)m m 8dBi circularly polarized antenna (built-in)
Net weight 3kg
Material ABS & aluminum alloy Power Supply
Power supply 12V DC / 3A
RFID Parameters Peak current 1.5A
Air Protocol
EPC global Gen2(ISO18000-6C) User Environment
Working frequency Operating Temp. -40  to 75
865-868 / 920-925 / 902-928 MHz ( custom-design for frequency band ) Storage Temp. -45  to 80
RFID chip Humidity 5-90% non-condensing (+25° C )
JT-2540 module based on TM serial chip
RF power Reading Performance
13~32 dBm(±1dBm) (adjustable) Reading distance
Reading rate Up to 10m(relate to tag and environment)
>700 times/sec Tag move direction judgment
RSSI Radar Tech
Support Model Type
Work mode JT-5010B TCP/IP, RS485, RS232
Master-slave, timing,trigger mode JT-5010W RS232,RS485,WiFi
Baud rate JT-5010G RS232,RS485,4 GPRS
115200 bps (default) Datasheet
I/O
1 trigger input or 2 relay outputs (customized) SDK(download link)
C# , Java , C++


Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products
UHF RFID multiple tags reading reader
JT-9292 0-30m Long Range TCP/IP UHF RFID Integrated Reader with Multi-tags Reading

Multiple tags reading; Antenna gain 12dBi; Reading range: 0-30m Difference between JT-8290 and JT-9292: Model Main Chip Reading Performance JT-8290 Discrete Reading 1-2 rfid tags JT-9292 TM series chip Reading multiple tags

RFID long range reader
JT-8290 0-30m UHF RFID Long Range Reader for Vehicle Management

Reading single tag; Antenna gain: 12dBi; Reading range: 0-30m Difference between JT-8290 and JT-9292: Model Main Chip Reading Performance JT-8290 Discrete Reading 1-2 rfid tags JT-9292 TM series chip Reading multiple tags

UHF RFID 12meter reading range reader
10dBi UHF RFID Long Range Integrated Reader 0-15m JT-8288 Single Tag Reading

Reading single tag; Antenna gain: 10dBi; Reading range: 0-15m Difference between JT-9288 and JT-8288: Model Main Chip Reading Performance JT-8288 Discrete Reading 1-2 rfid tags JT-9288 TM200/Impinj R2000 chip Reading multiple tags DATASHEET

UHF RFID middle range reader
UHF Middle Range Reader 5-8M

RFID middle range reader JT-8280A could be applied in various harsh working environment for multiple protocol compatible and reading fast. Full support the tag of ISO-18000-6C or ISO-18000-6B. Its stable reading distance is 5m(related to the tag and environment). JT-8280A is easier to install for its small size and light weight.

UHF RFID 15meters reading range reader

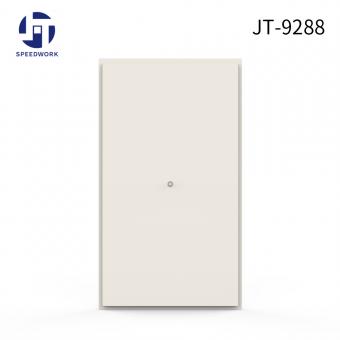

0-15m UHF RFID Reader Multi-tags Reading with TM serial Chip JT-9288

Antenna gain: 10dBi ; Reading range : 0-15meters; Support group reading. Difference between JT-9288 and JT-8288: Model Main Chip Reading Performance JT-8288 Discrete Reading 1-2 rfid tags JT-9288 TM200/Impinj R2000 chip Reading multiple tags DATASHEET

UHF RFID middle range reader

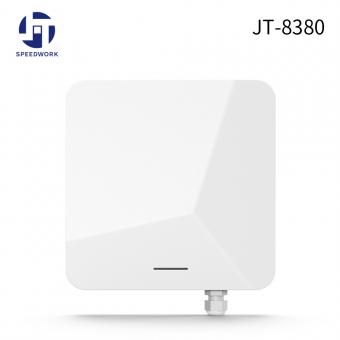

UHF RFID 860-960MHz 0-8 Meters Middle Range Integrated Reader JT-8380

0-8m reading distance,single tag reading,RS232/RS485/Weigand/RJ45 communication interface.

UHF RFID middle range reader
860-960MHz 0-9m Middle Range UHF RFID Integrated Reader Multiple Tags Reading JT-9380

0-9m reading distance,multiple tag reading,RS232/RJ45/WiFi/4G communication interface.

Impinj R2000 fixed channel reader

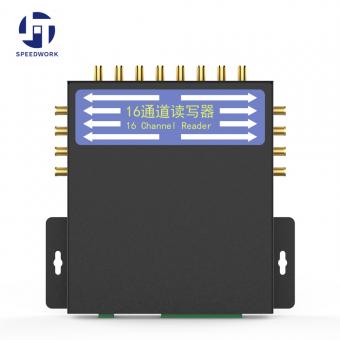

8/16-ports UHF RFID Fixed Reader 860-960MHz for Warehouse Management JT-916
