Item NO.:
JT-5010Product Origin:
ChinaShipping Port:
Shenzhen,ChinaLead Time：
Within 3-7 Days
UHF RFID integrated reader JT-5010 is a professional-grade, high-performance UHF electronic tag integrated reader developed based on the TM series chip platform, with an innovative built-in millimeter-wave radar for entry and exit judgment. Relying on extremely high detection sensitivity and data processing algorithms, radar can handle scenes where the target is still or weakly moving,achieving extremely low false positives and false negatives, and can accurately depict the trajectory of personnel. At the same time, there is no privacy problem, the transmission power is extremely low,and there is no harm to the human body and the environment. It meets the application scenarios that need to judge the entry and exit, and is easy to install. With complete independent intellectual property rights, the default working frequency band of the reader is 902-928 MHz, supports 1SO18000-6C (EPC Cl GEN2) protocol, has strong multi-tag recognition ability, long card reading distance, high protection performance and convenient installation and configuration, etc. Features, the reader integrates multiple communication methods such as RJ45, RS485, RS232, WiFi and 4G, and is suitable for warehouse logistics, material control, identity identification, access control and other fields. The reader is designed with ABS engineering plastic shell, which has strong waterproof, dustproof, anti-interference ability and lightning protection design on the circuit, making it meet the design requirements of outdoor all-weather industrial products.
Item No.
JT-5010
Physical parameters
Antenna
Dimensions

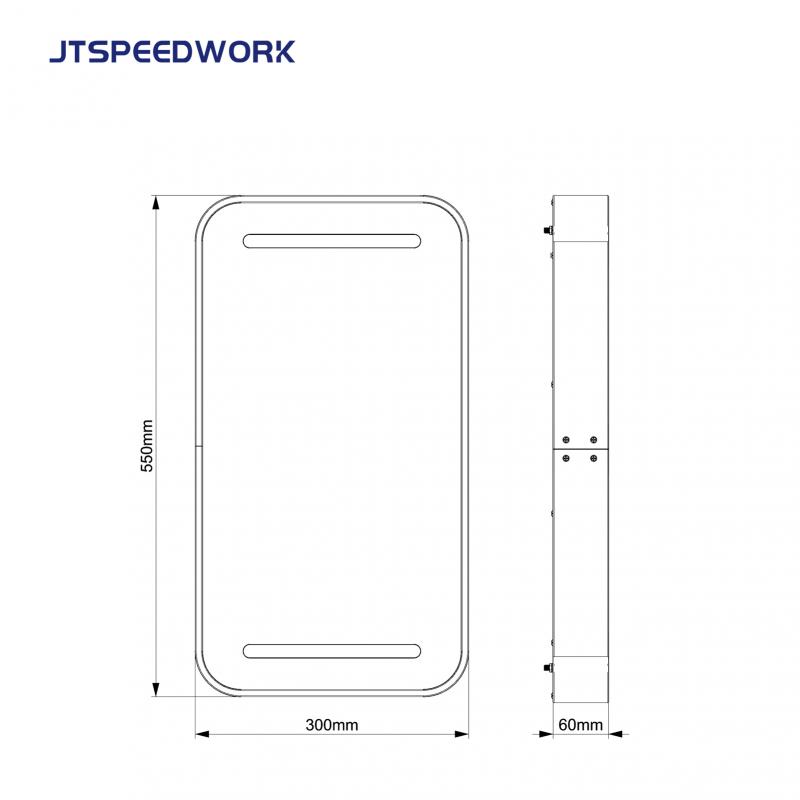

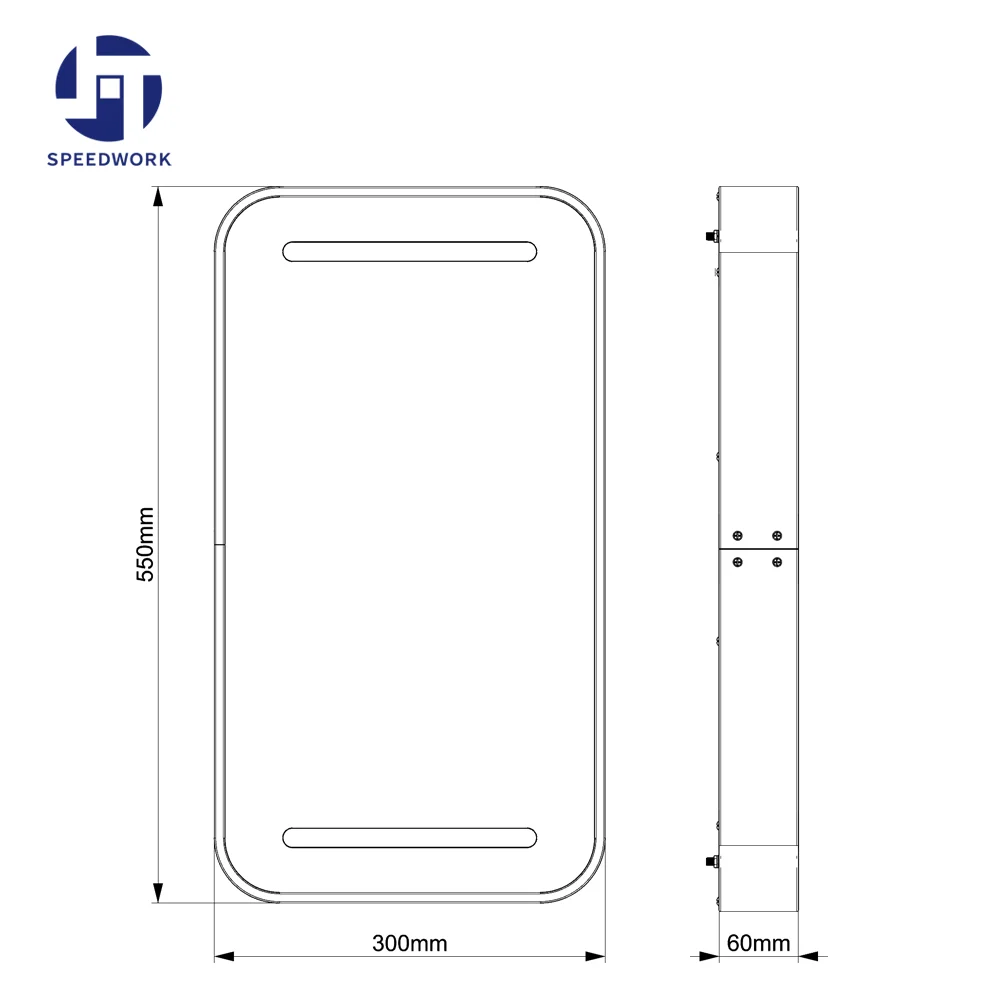

550(L) *300(W)*60(H)m m
8dBi circularly polarized antenna (built-in)
Net weight
3kg
Material
ABS & aluminum alloy
Power Supply
Power supply
12V DC / 3A
RFID Parameters
Peak current
1.5A
Air Protocol
EPC global Gen2(ISO18000-6C)
User Environment
Working frequency
Operating Temp.
-40 ℃ to 75 ℃
865-868 / 920-925 / 902-928 MHz ( custom-design for frequency band )
Storage Temp.
-45 ℃ to 80℃
RFID chip
Humidity
5-90% non-condensing (+25° C )
JT-2540 module based on TM serial chip
RF power
Reading Performance
13~32 dBm(±1dBm) (adjustable)
Reading distance
Reading rate
Up to 10m(relate to tag and environment)
>700 times/sec
Tag move direction judgment
RSSI
Radar Tech
Support
Model Type
Work mode
JT-5010B
TCP/IP, RS485, RS232
Master-slave, timing,trigger mode
JT-5010W
RS232,RS485,WiFi
Baud rate
JT-5010G
RS232,RS485,4 GPRS
115200 bps (default)
Datasheet
I/O
1 trigger input or 2 relay outputs (customized)
SDK(download link)
C# , Java , C++
