2.45GHz Active Tag

Name: JT-T2460 High Security 2.4GHz Active RFID Tag with Long Battery Life
Availability: InStock

Home Active RFID 2.45GHz 2.45GHz Active Tag

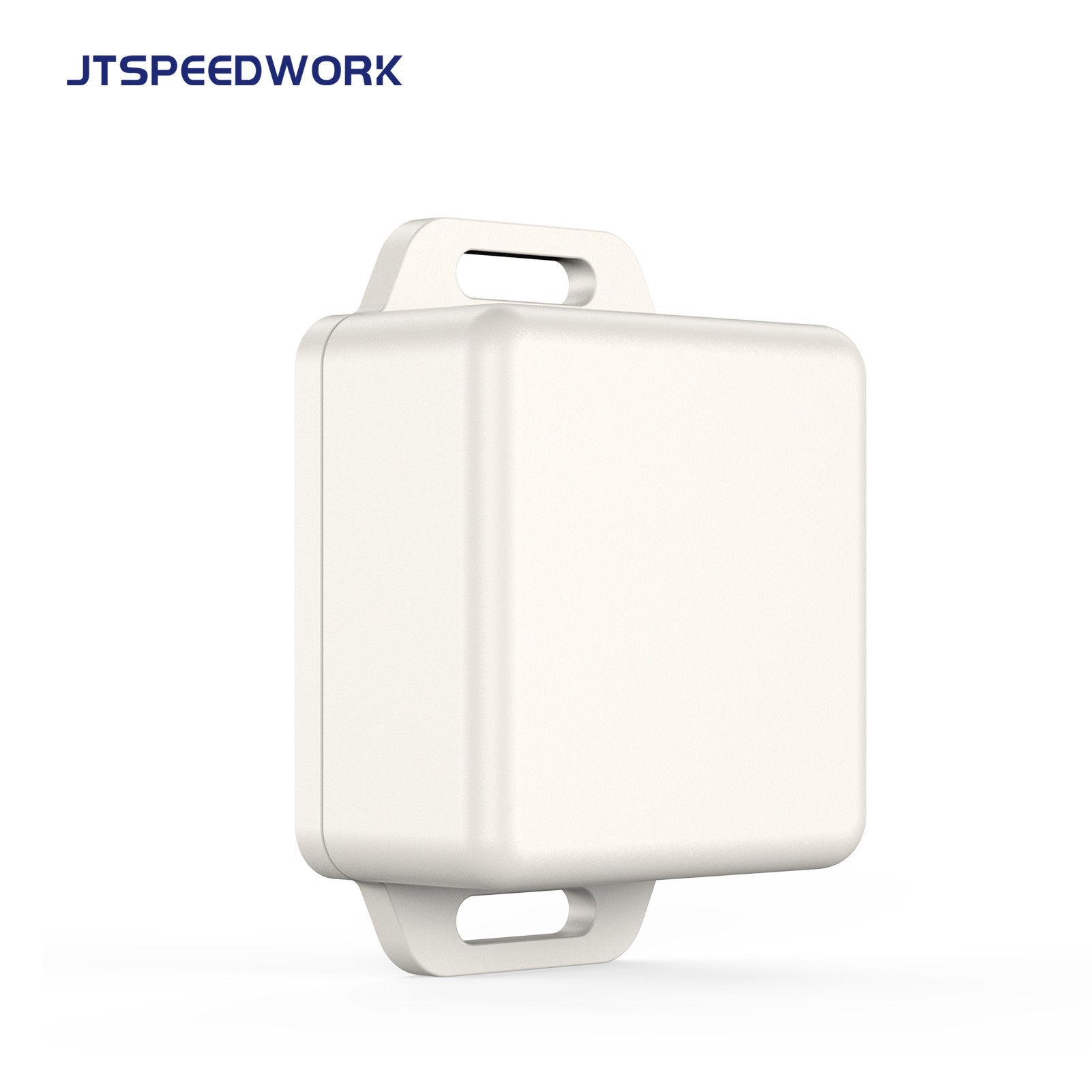

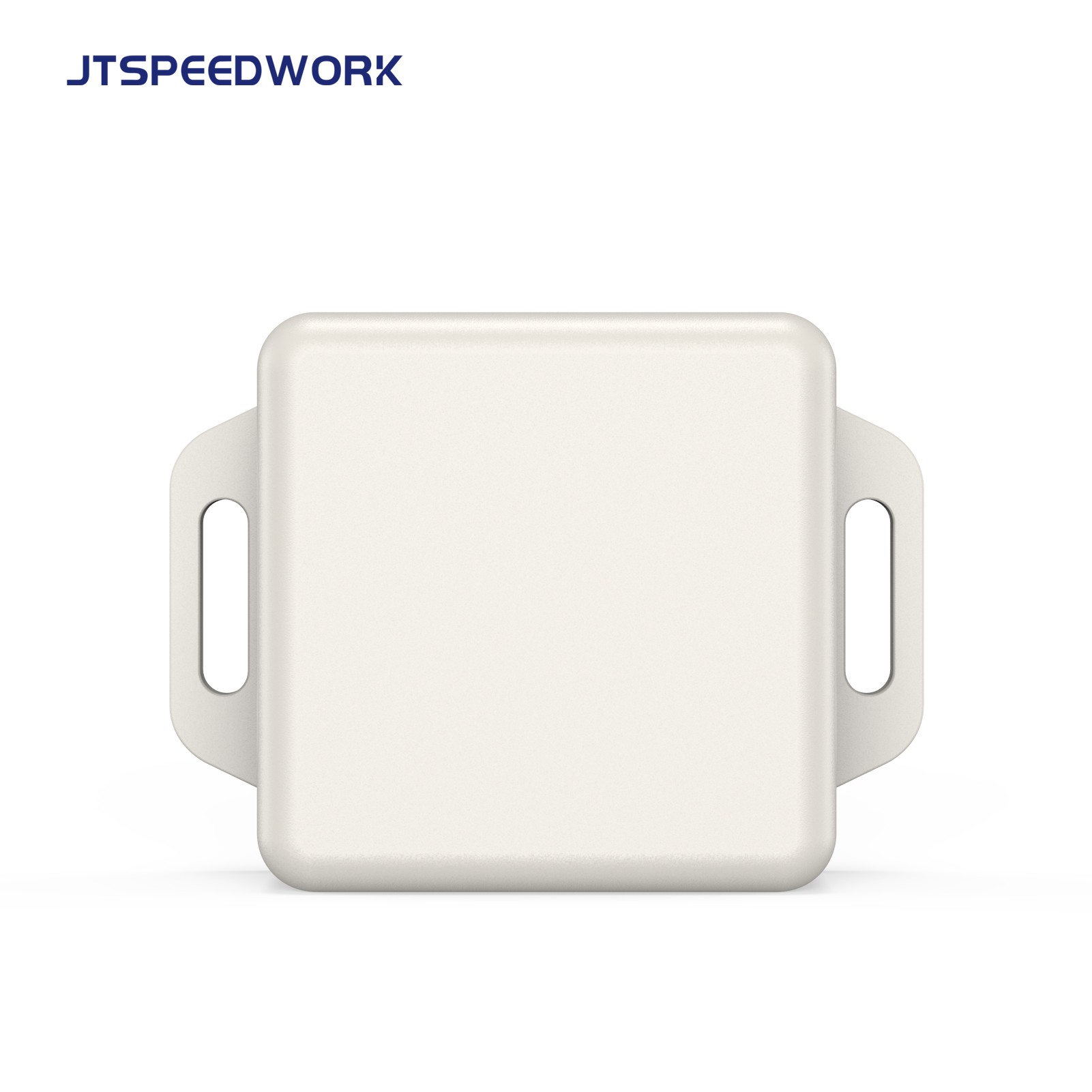

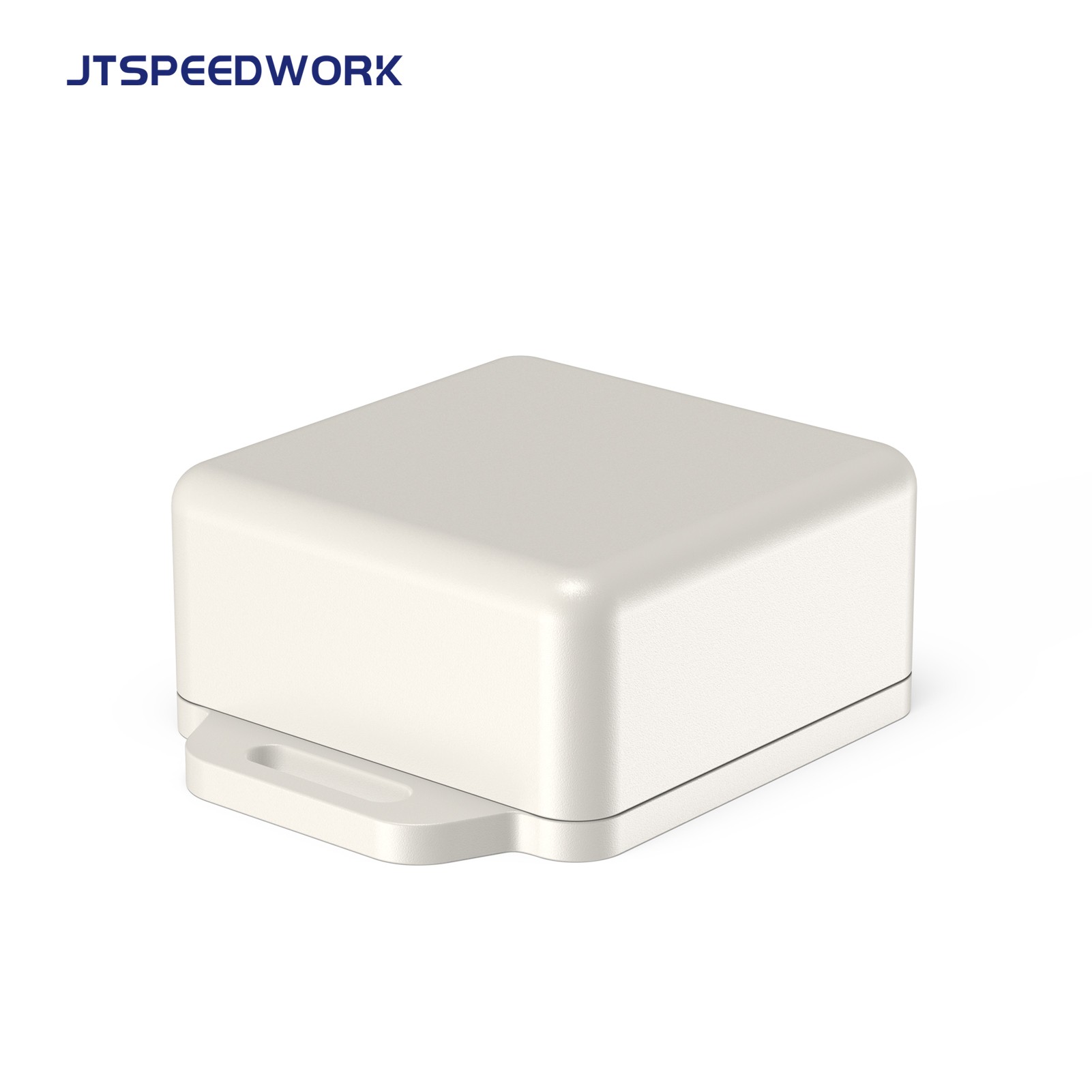

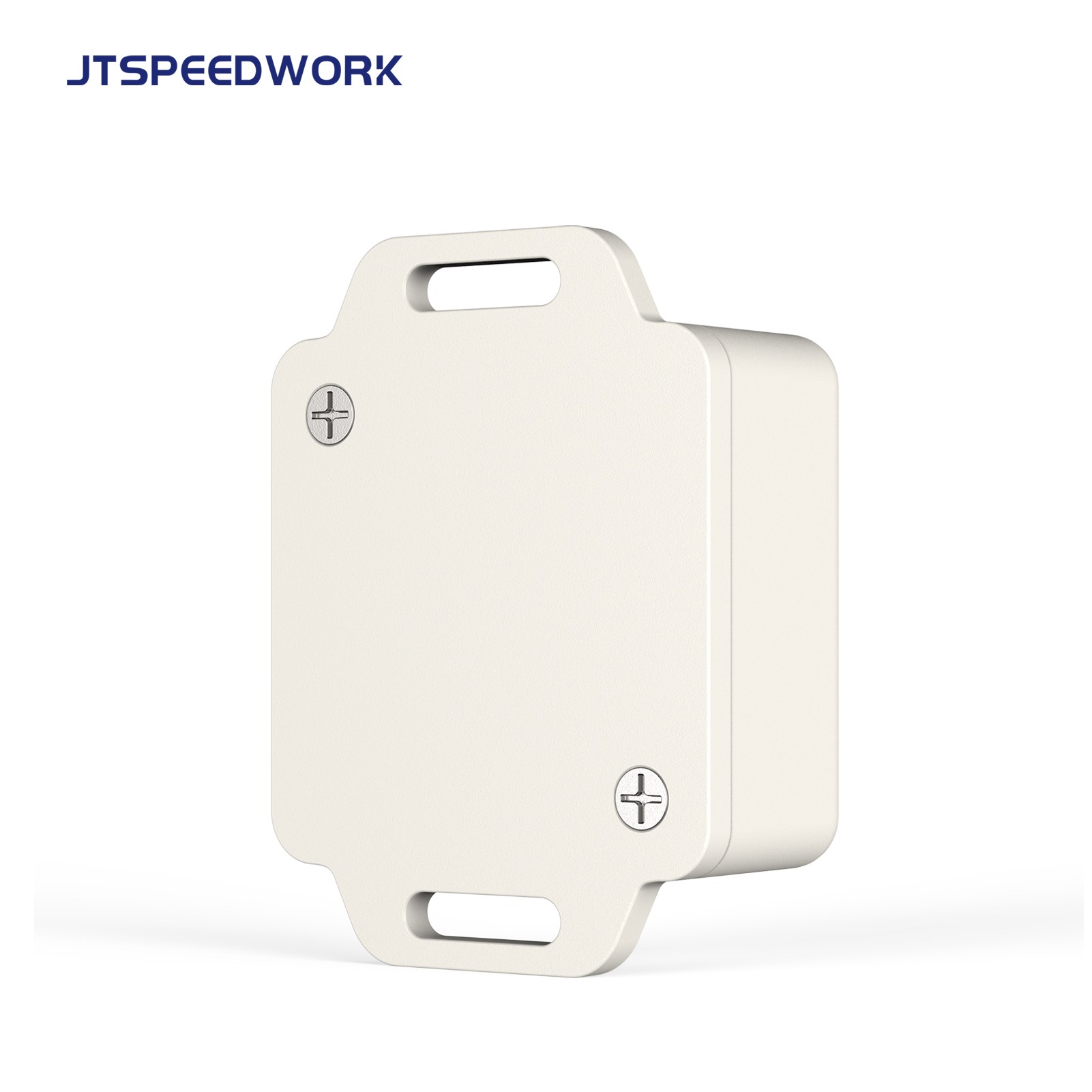

JT-T2460 High Security 2.4GHz Active RFID Tag with Long Battery Life

JT-T2460 is a compact 2.4GHz active RFID tag dedicated to asset management. With 360° omnidirectional reading and 200 km/h high-speed recognition, it offers adjustable reading distance up to 50 meters when matched with the corresponding reader. Equipped with professional encryption and anti-jamming technology, it fully secures data transmission.

Crafted from ABS material, this IP54 waterproof and dustproof tag has small size and light weight. It adopts ultra-low power design, powered by a built-in CR2450 battery that lasts more than 3 years. Supporting customizable transmission power, data rate and transmission interval, it adapts to diverse application demands. With wide temperature tolerance, it is a reliable solution for asset tracking, vehicle monitoring and personnel management.

Item No :
JT-T2460
Color :
White
Size :

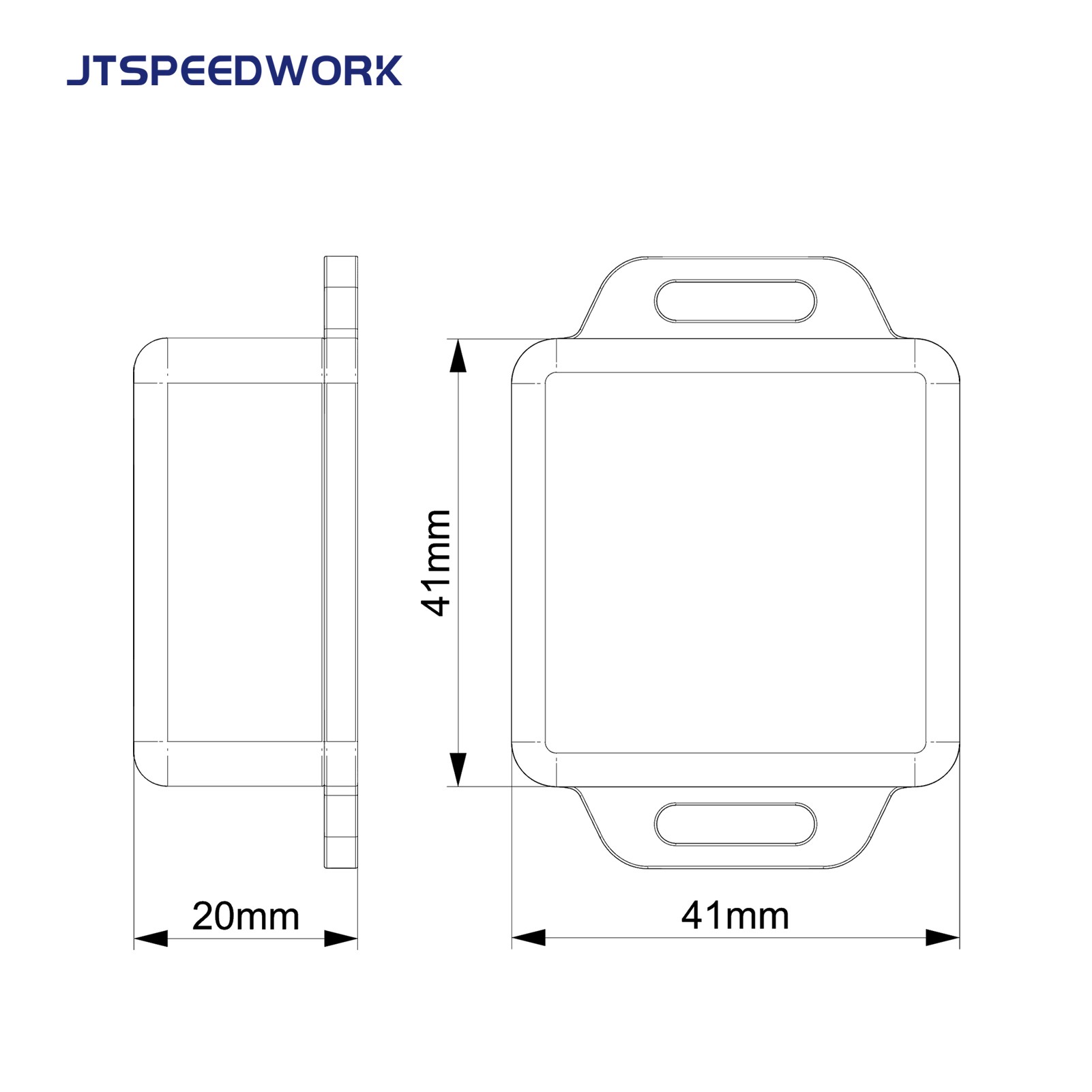

41x41x20mm
Working frequency :
2.45GHz

Inquire Now

Download

Physical Parameters		Performance
Item No.	JT-T2460	Mobile read rate	200 km/h
Item size	41x41x20mm	Reading tag recognition direction	Omnidirectional 360 degree reading
Net weight	13.9g	High security anti-jamming	Jietong encryption algorithm and authentication, Jietong 2.4G channel anti- interference technology to ensure data security and prevent link eavesdropping and data cracking
Material	ABS	Operating Voltage	3V/600mAh. CR2450 button battery (not replaceable)
Performance Parameters		Working current	≤18µA (The actual working life is limited to the customized transmission power and tag transmission time period)
Working frequency	2.4G ISM (2.4 GHz ~ 2.4835 GHz)	Sleep current	≤1uA (The actual working life is limited to the customized transmission power and tag transmission time period)
Operating mode	Single shot	Battery life	More than 3 years (the actual working life is limited to the customized transmission power size and tag transmission time period)
RF modulation mode	GFSK	IP protection level	IP54 (waterproof, dustproof) not immersed in water
Transmit power	Default 0dBm. -20dBm ~ +12dBm (customizable)	Operating temperature	-40℃~+85℃
Data communication rate	1Mbps (default); 250Kbps/1Mbps/2Mbps configurable	Storage temperature	-40℃～+125℃
Tag data protocol	Jietong standard 2.4G active label protocol
Data encryption mode	Jietong standard 2.4G active tag encryption algorithm
Transmission time interval	The default is 3 seconds/time. Can be customized within 20ms-20s/time
Reading distance	0~50 meters adjustable (with JT-R2420A)
