2.45GHz Active Tag

Name: JT-T2450A 2.45GHz Long Range Active Card For School Attendance System
Availability: InStock

Home Active RFID 2.45GHz 2.45GHz Active Tag

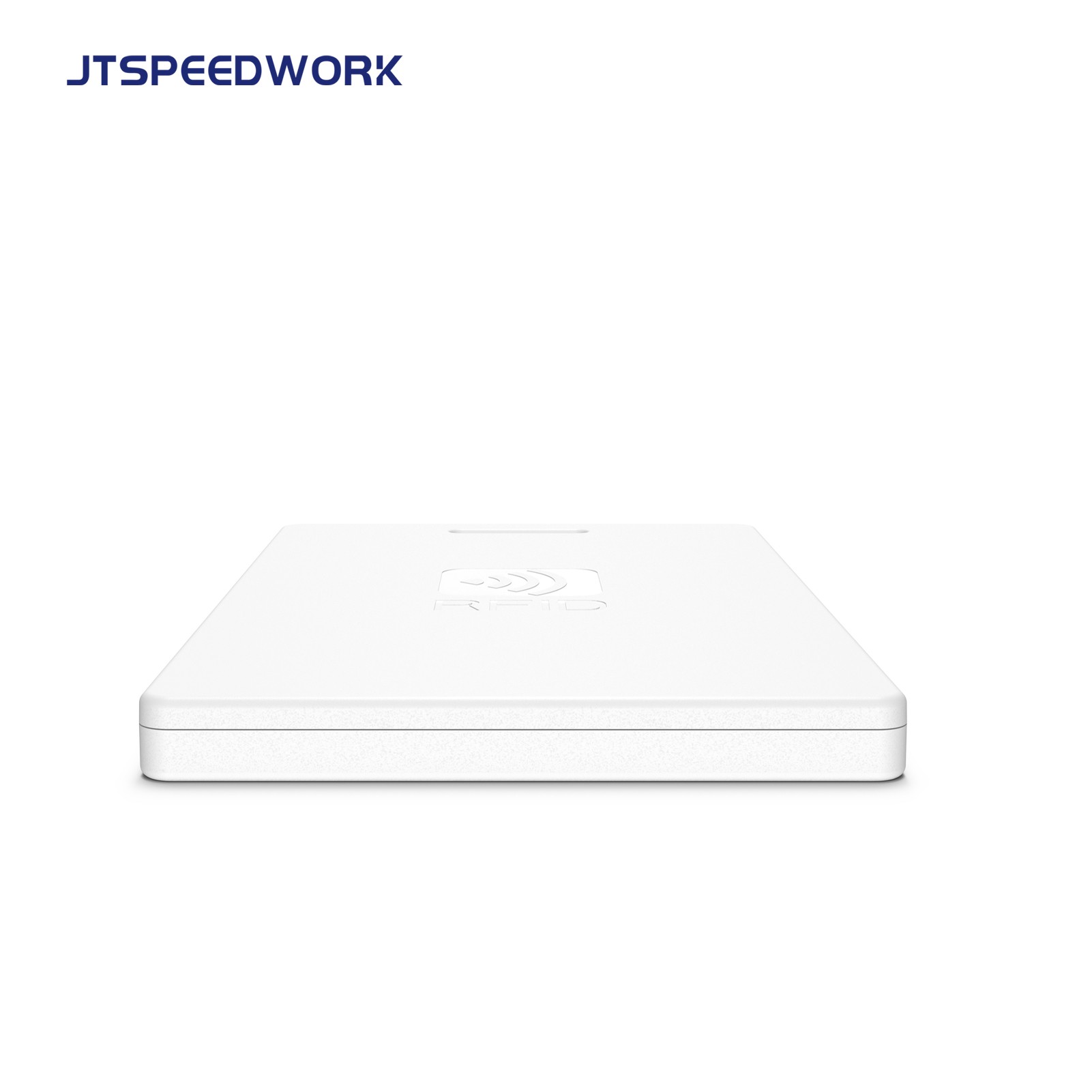

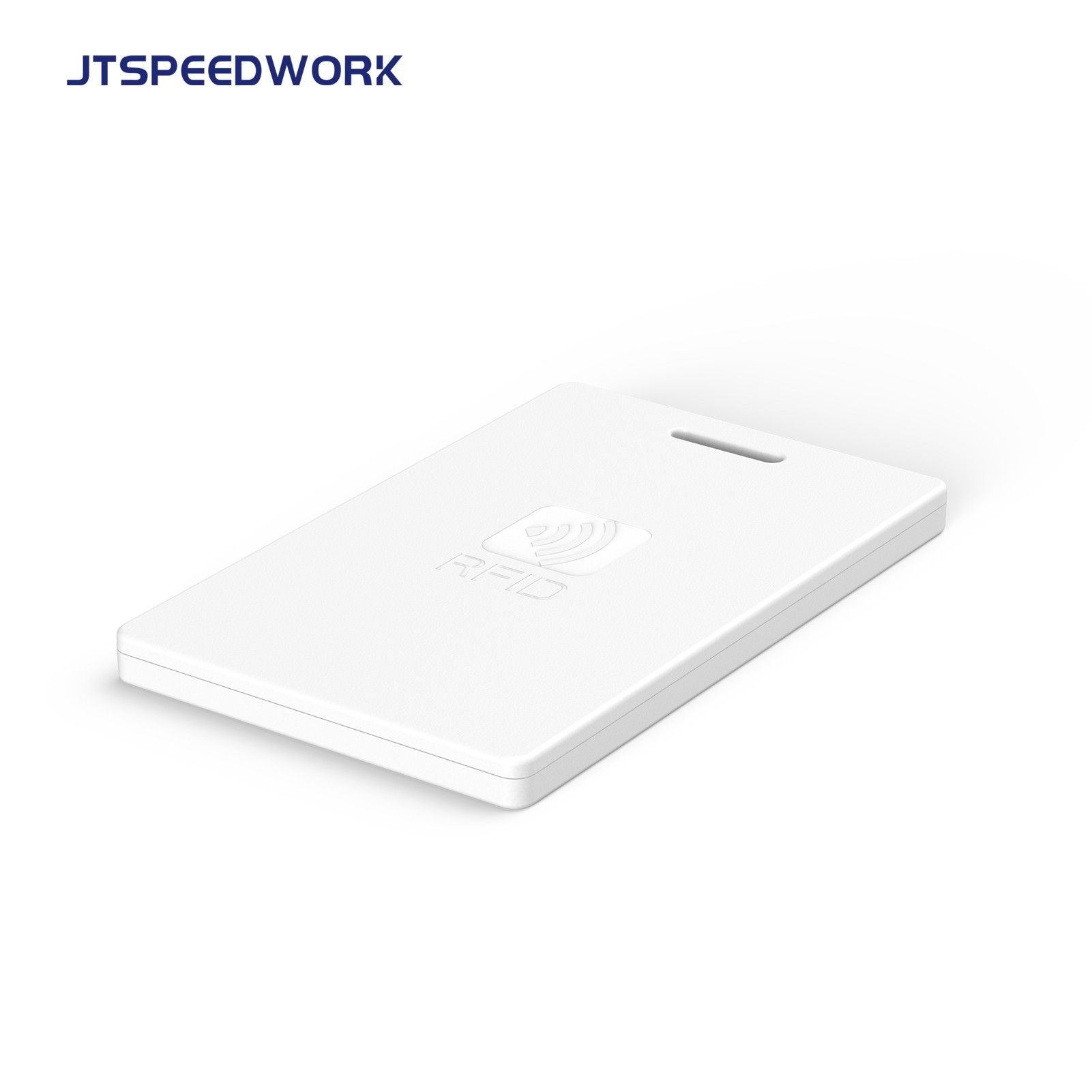

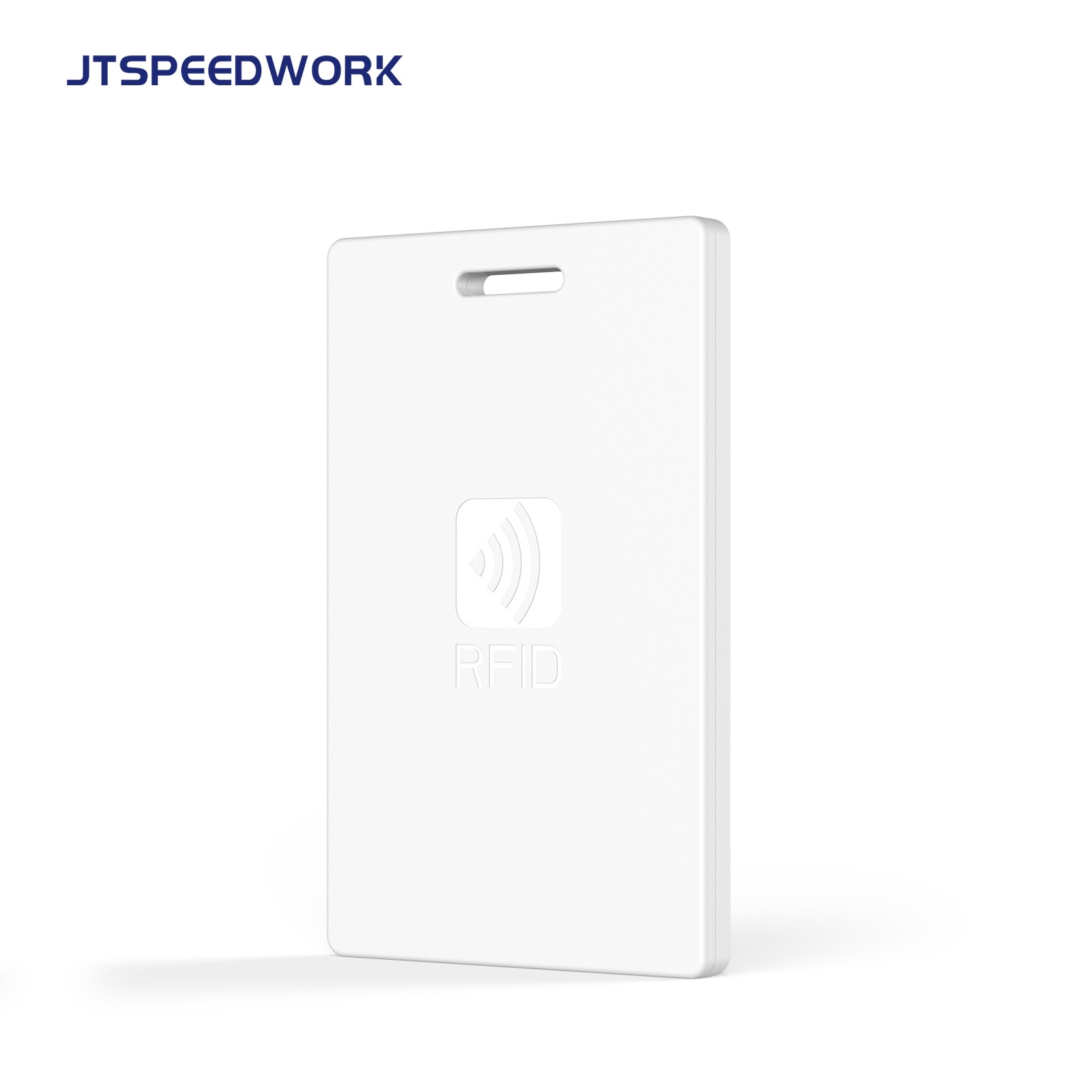

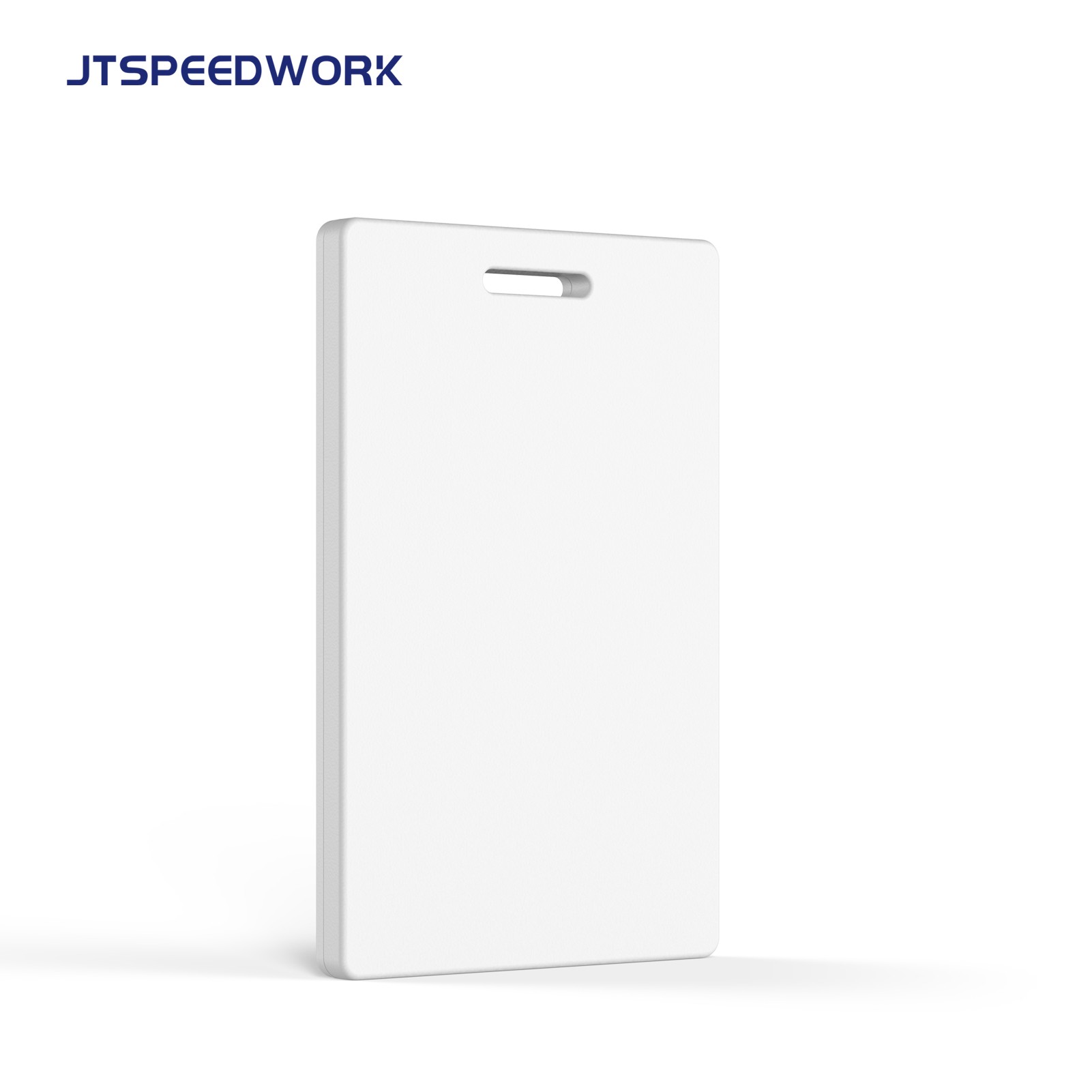

JT-T2450A 2.45GHz Long Range Active Card For School Attendance System

2.4GHz Active RFID Tag for Assets Control
1.Suitable to adopt fixed frequency working mode, with powerful anti-inteference ability.
2.Effective reading range up to 200m (depend on reader and antenna software configurable).
3.Ultra-low power consumption average working current< 10UA
4.Active tag, very important part of a RFID system, especially for people tracking and assets management etc.

Item No :
JT-T2450A
Color :
White
Size :
86x54x7.5 mm
Working frequency :
2.45GHz

Inquire Now

Download

Applications:

Access control, attendance control, identification, logistic, industrial automation,skating, tickets, casino token, membership, public transportation, e-payment, animal tracking,multi-purpose-card system, catering, swimming pool, laundry, massage center, recreation center.

Working frequency	2.45 GHz	Communication mechanism	Time division multiple access and synchronous communication mechanism
Size	86x54x7.5 mm	Anti-interference	Channel isolation technology, multiple devices do not interfere with each other
Weight	25g	Safety	Encrypted computing and security certification to prevent link detection
Material	ABS	Low battery alarm	Low battery information will be uploaded when the battery is low, so that the battery can be replaced in time
Color	White	Power consumption standard	Working power is microwatt level, standby power consumption is 0.9uA
Reading distance	0~150m	Battery configuration	4 CR2032 coin cell battery capacity 550mAh
Receive sensitivity	-93dBm	Service life	Can be used for 2 ~ 5 years
Read rate	200 km/h	Package characteristics	ABS engineering plastics, environmental protection, hygiene, beauty, resistance to high-strength drop and vibration
Transmit power	-20dBm~+7dBm	Operating temperature	-30℃~70℃
Communication rate	250Kbps
