UHF RFID middle range reader
Middle Range Reader 6M ISO-18000 6C
  • Product Origin:

    China
  • Brand:

    SPEEDWORK
  • Item No.:

    JT-8280C
  • Shipping Port:

    Shenzhen
  • Lead Time:

    2 working days
  • Payment:

    100% TT in advance
Inquiry
  • Product Details


Description

RFID middle range reader JT-8280C could be applied in various harsh working environment for multiple protocol compatible and reading fast. Full support the tag of ISO-18000-6C or ISO-18000-6B. Its stable reading distance is 6m(related to the tag and environment). JT-8280C is easier to install for its small size and light weight.

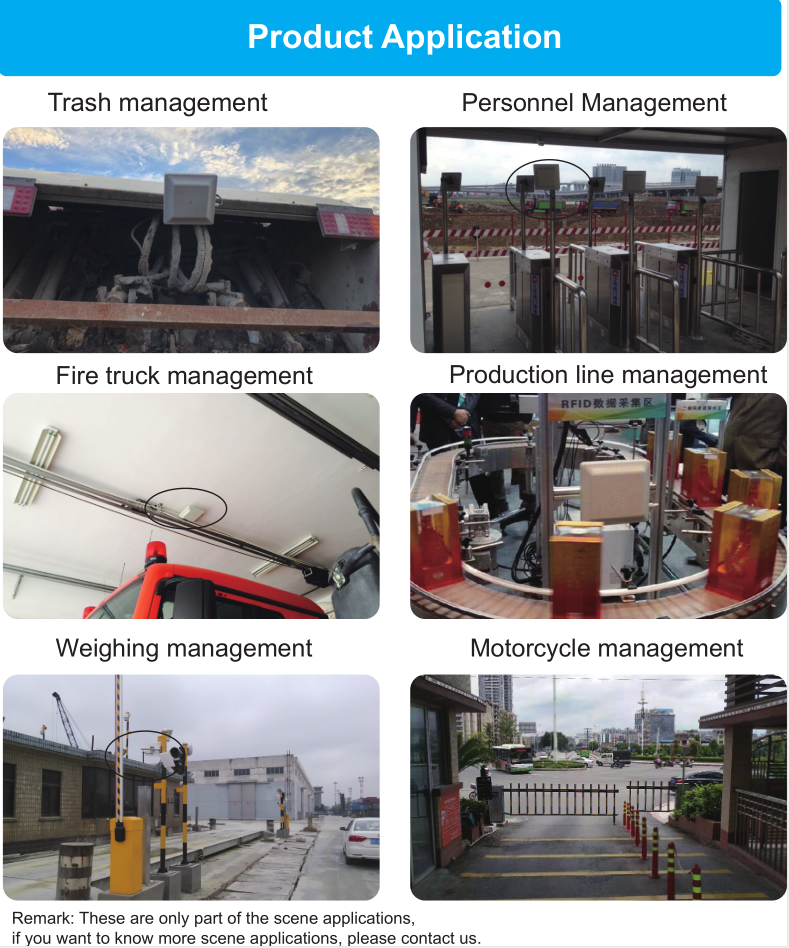

Application

1.Intelligent traffic such as ETC;

2. Customs border-crossing;

3. Parking lot ;

4. Automatic weighting;

5. Container management,pallet management ;

6. Asset management ;

7. Ticketing& access control;

8. Pharmaceuticals such as medical waste management.


Specification

Item No


JT-8280C

RS232,RS485,Wiegand

Performance parameters


Working Frequency

902~928 MHz or 865~868MHz

Protocol

ISO18000-6C(EPC C1 GEN2)

Radio frequency power

0dBm~30dBm(Adjustable)

Software & SDK

DEMO and C#,VC,VB,Java,DELPHI, etc.,

Encryption

Can be directly encrypted, copy prevention.

Reading range

stable reading range 6M(Depends on tag&environment)

Industrial lightning protection

6000V industrial lightning protection

Low temperature protection

Northeast,Northwest extremely cold region,low temperature protection

Frequency modulation way

Broad spectrum frequency hopping or fixed frequency

Input/output port

Two-way relay output(customized), one-way trigger input

Antenna gain

8dBi circular polarization

Working way

Buzzer

Power

12V/3A Adaptor

Physical parameters:


Item size

220x220x50mm

Package size

430x320x140mm

Net weight

3KG

Shell material

ABS

Working temperature

-20℃~+65℃

Storage temperature

-45℃~+95℃
