Protocol

EPC Class1 Gen2; ISO18000-6C

Frequency

860-960MHz

Chip

NXP Ucode 7M

Memory

EPC 96bits  User 32bits

Capability

Readable and writable (customers can write content to the chip repeatedly)

Storage

20 years

Warranty

2 years or 200 times of industrial washing (whichever comes first)

Material

Textile

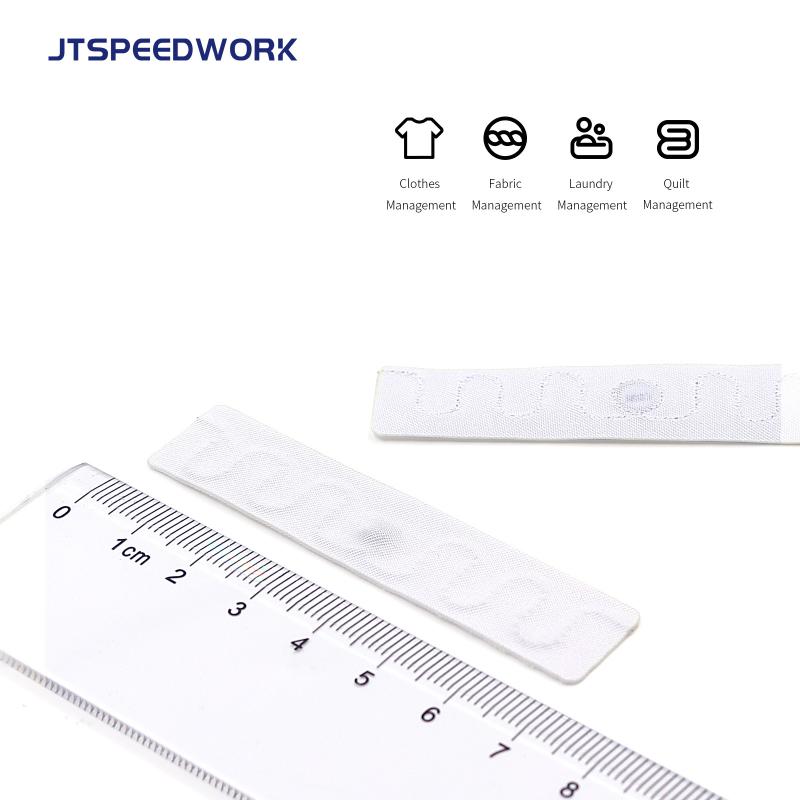

Size

70mm x 15mm x 1.5mm

Work temp.

-25℃~ +110℃

Storage temp.

-40℃~ +85℃

Short-term temperature resistance

1) Washing: 90 degrees, 15 minutes, 200 times

2) Pre-drying in the converter: 180 degrees, 30 minutes, 200 times

3) Ironing: 180 degrees, 10 seconds, 200 times

4) High temperature sterilization: 135 degrees, 20 minutes

Storage humidity

5%～95%

Weight

~ 0.7g/pcs

Color

White

Under pressure

60 bars

Chemical properties

Can withstand all chemicals in the normal industrial washing process

RoHS

Pass

Reading distance *

Fixed reader: more than 5.5 meters (ERP=2W)

Handheld reader: more than 2 meters (using JT-973 handheld reader)

Polarization mode

Linear
