Each rfid animal ear tag is equipped with an RFID (radio frequency identification) chip, that transmits a signal. Antennas mounted on the feeding troughs will pick up that signal when the cow comes to feed, with a computer keeping track of the amount of time that elapses until the signal is lost when the cow leaves. In this way, the system can keep track of which cows are eating regularly, and that they're getting enough to eat when they do.
Item NO.:
JT308Order(MOQ):
1Payment:
TTProduct Origin:
chinaColor:
yellowShipping Port:
shenzhenLead Time：
5Compliant with ISO18000-6C EPC G2 protocol, support Dense Reader Mode,can identify and track the animals.

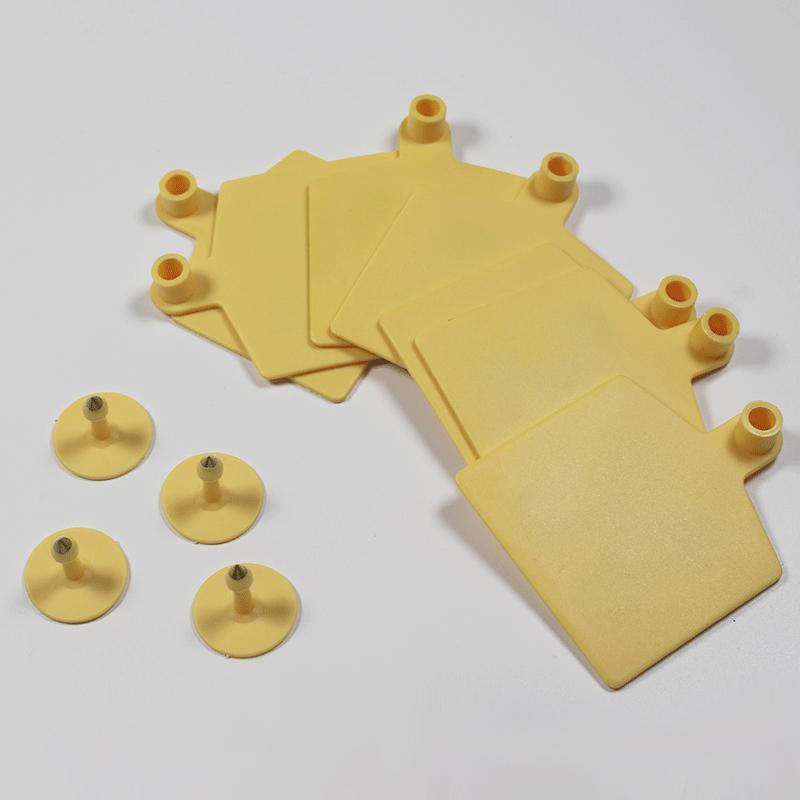

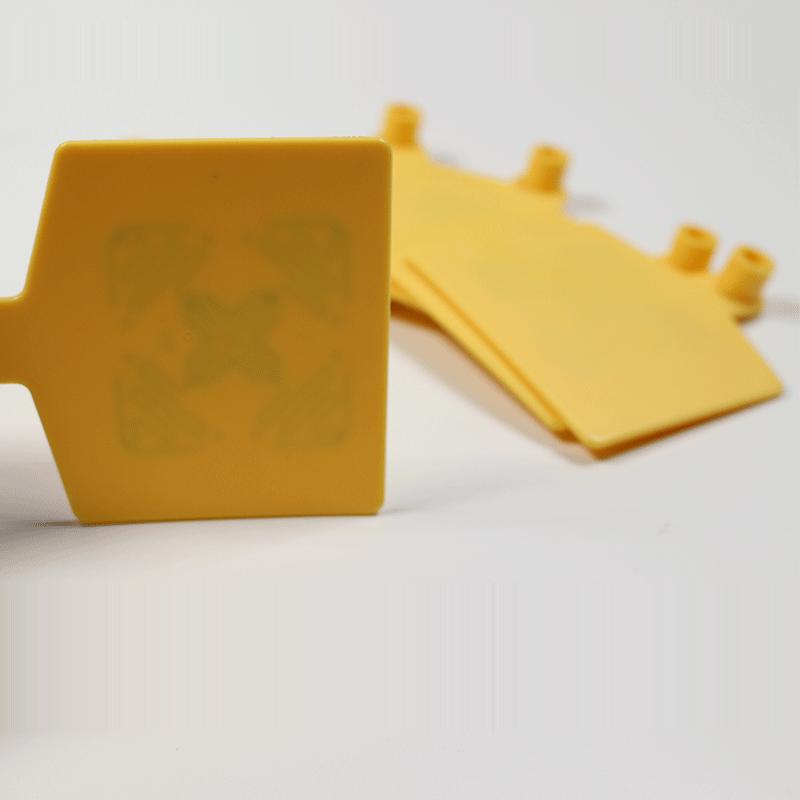

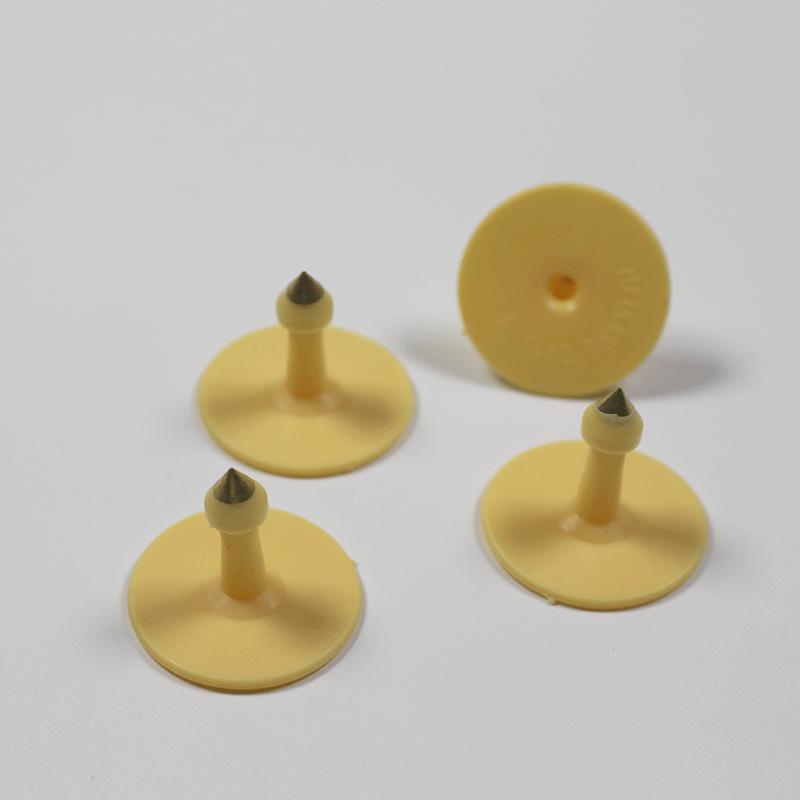

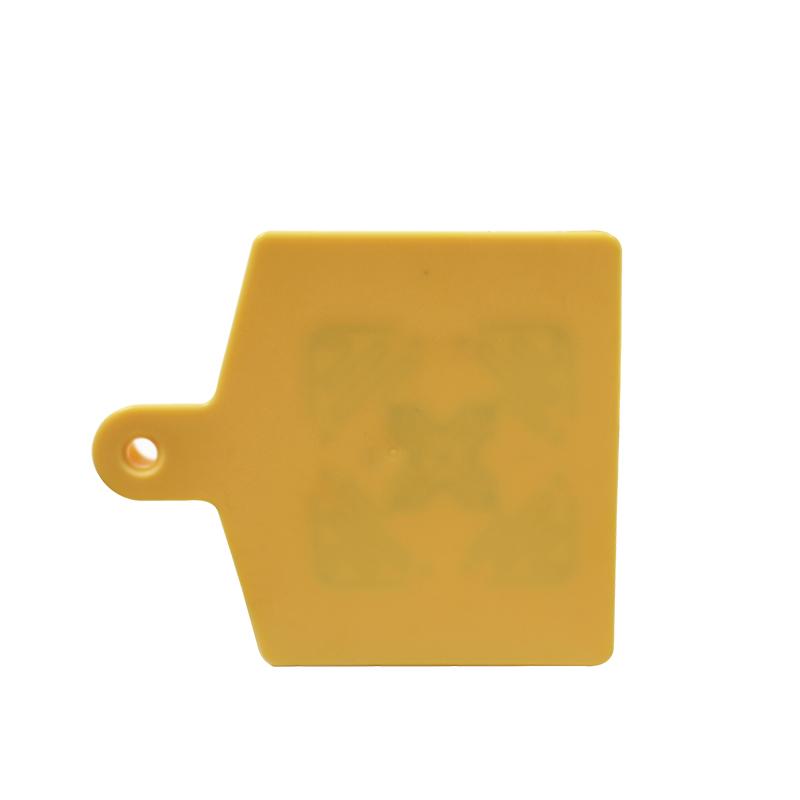

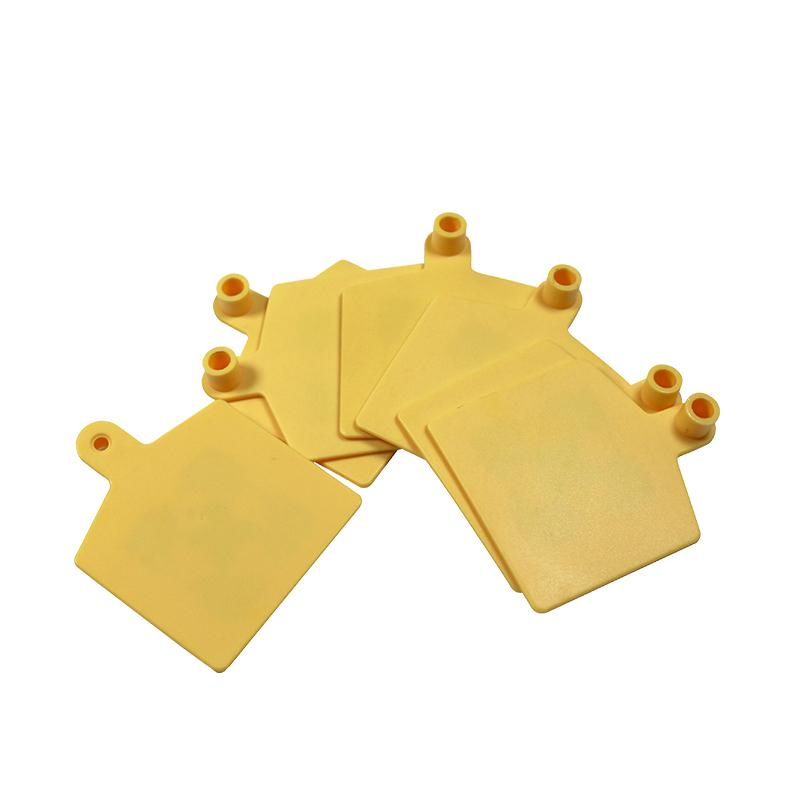

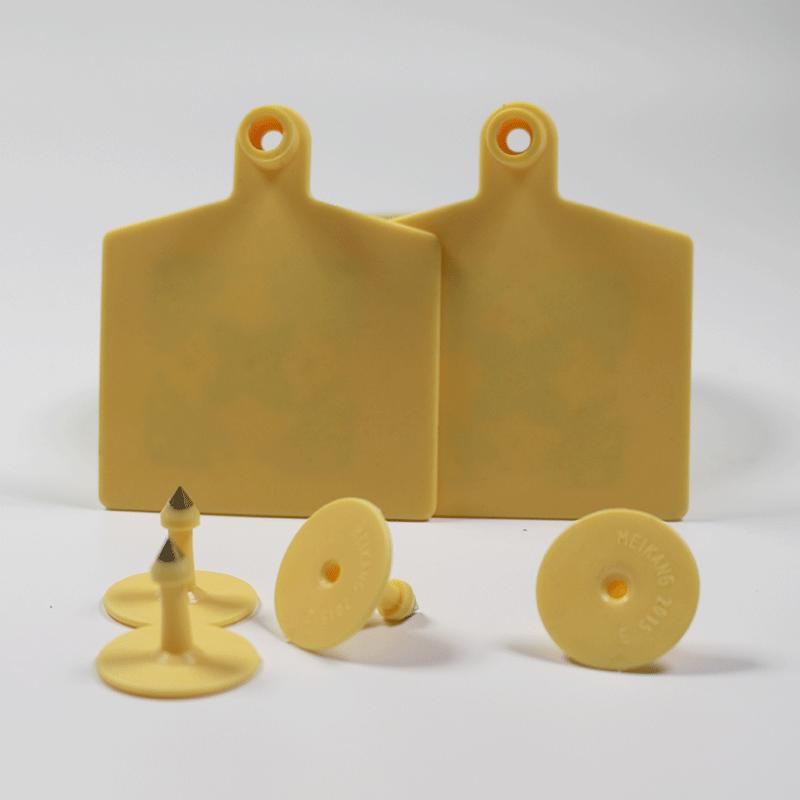

High-quality UHF RFID Animal Ear Tags
>> Product Parameters
|
Basic Parameters |
|
|
Model |
JT-308 |
|
Type |
UHF passive RFID tag |
|
Frequency |
860~960MHz |
|
Standards/Protocols |
EPC CLASS1 GEN2, ISO 18000-6C |
|
Physical Parameters |
|
|
Size |
87*73*2.5mm (Customized design) |
|
Inlay Material |
PET+AL |
|
Outer Material |
TPU |
|
Performance Parameters |
|
|
Memory Size |
Up to 512bit |
|
Chip |
Monza 4E,4D,4QT |
|
Operating Mode |
R/W |
|
Reading Distance |
5M(Related to reader performance and working environment) |
|
Environmental Parameters |
|
|
Operating Temp |
-20℃~+50℃ |
|
Storage Temp |
-40℃~+100℃ |
|
Specific Applications |
|
|
Applications |
The management of pig, cattle, sheep, etc. |
|
Packaging & Delivery |
|
|
Package |
200 pcs/pack |
>> The Schematic Digram

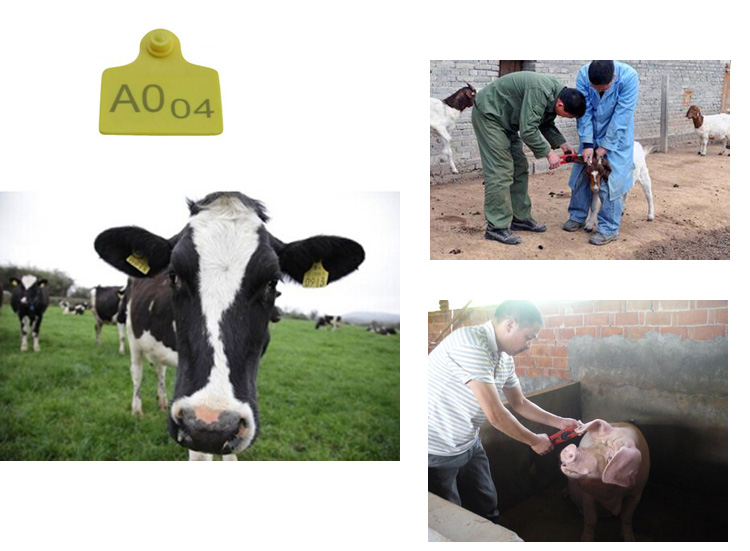

This tags is environmental protection materials,use for animal management.

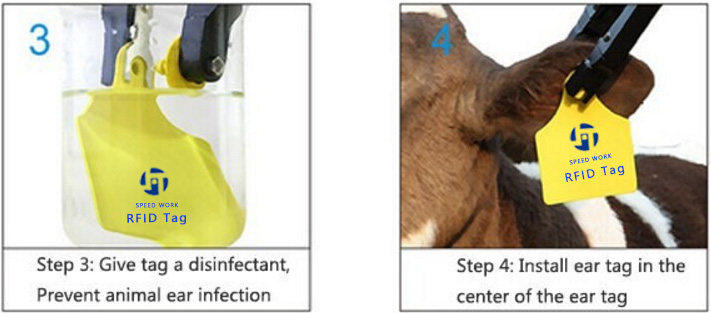

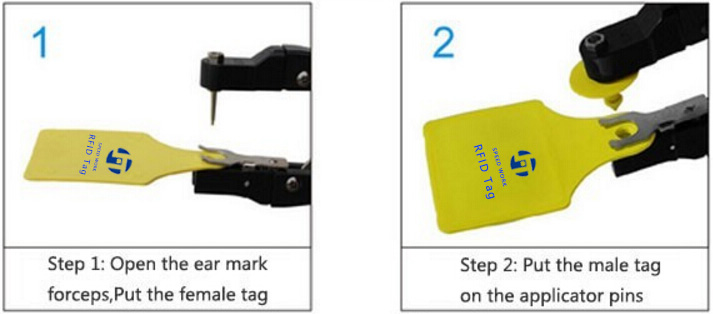

>> How to use the animal tags of Jietong products?
