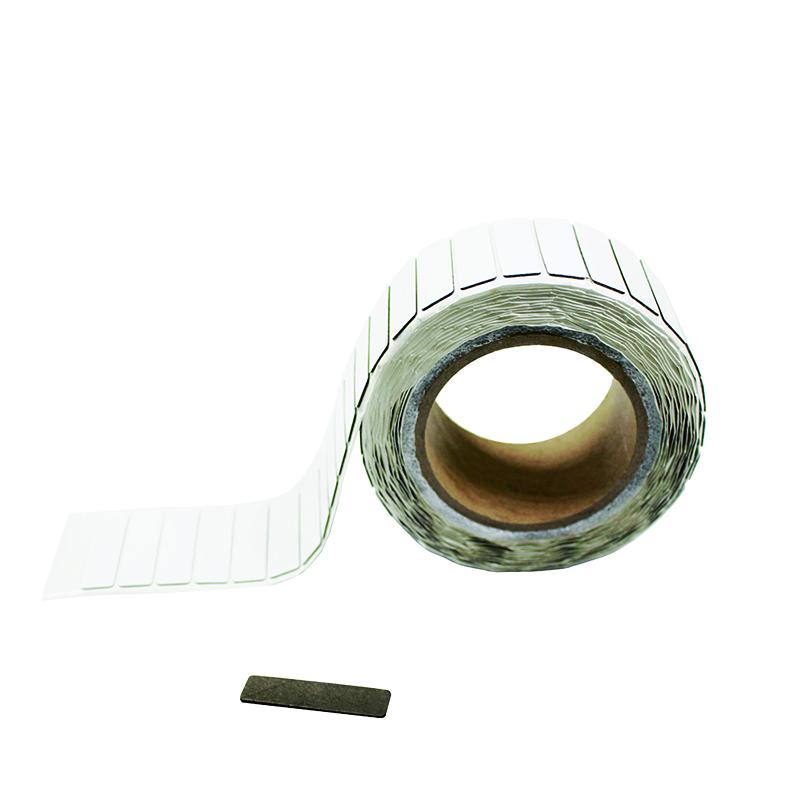

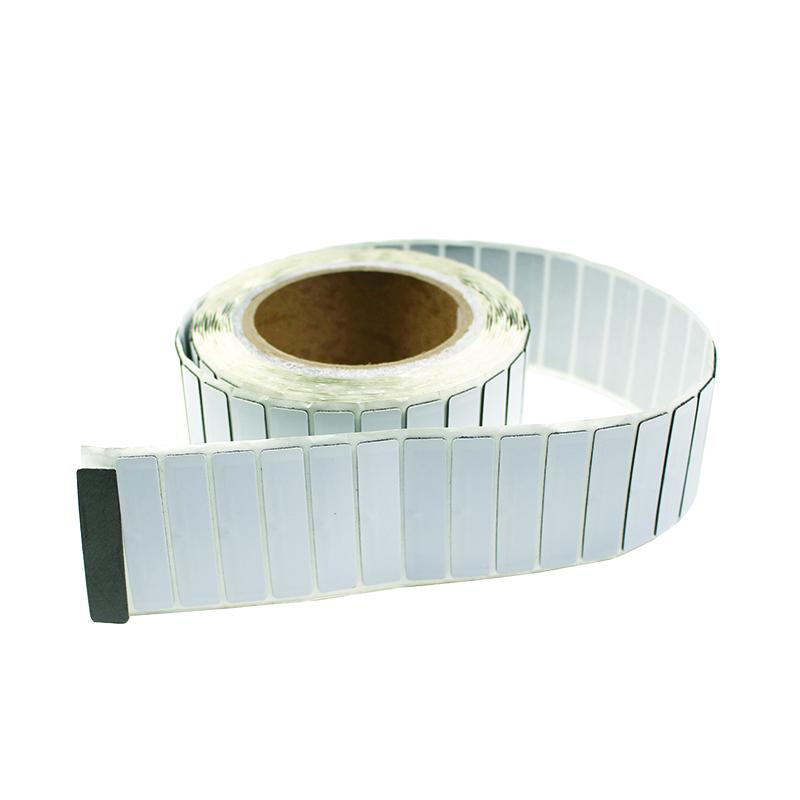

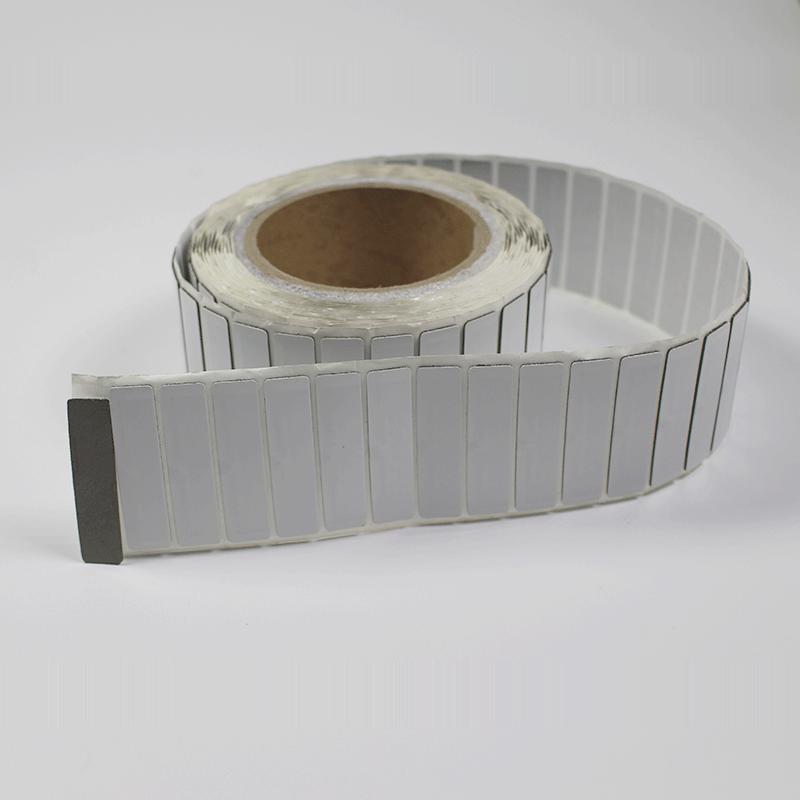

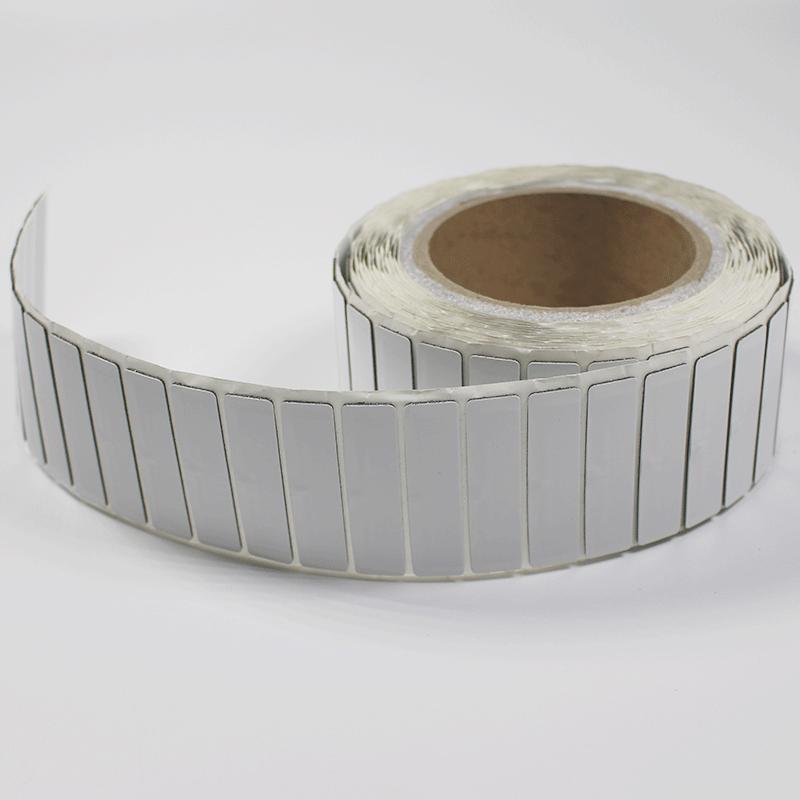

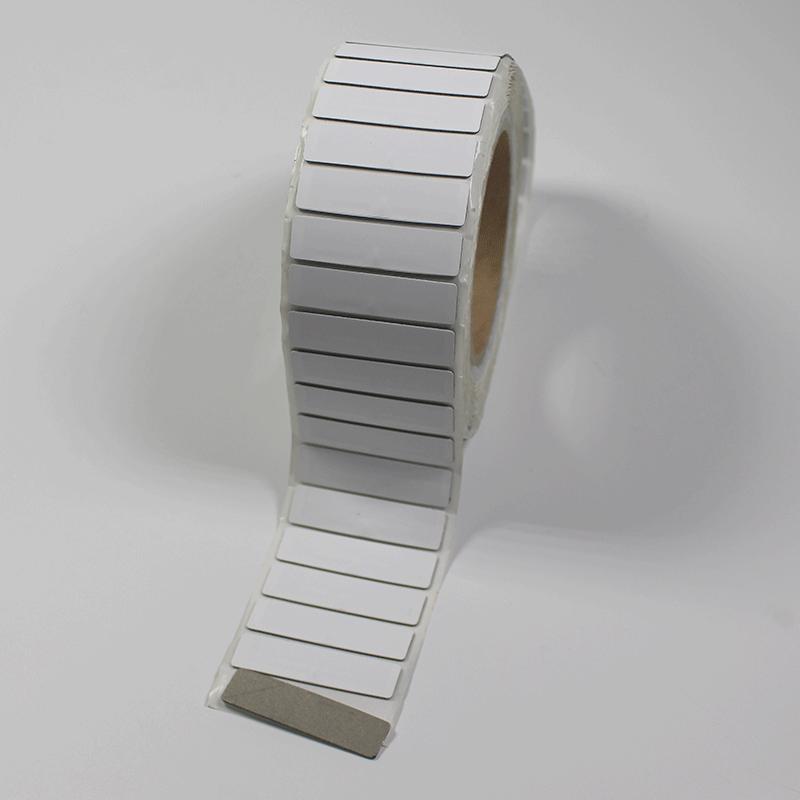

JT-5218 flexible printable on metal RFID label is compatible with the EPC C1G2(ISO18000-6C) standards. Suitable for metal and liquid-rich environment, it can be made into any kind of printed label, barcode, or graphic label. Its thin and light shape makes it easy to attach to curved surfaces such as cylinders, pipes, and metal containers and fixed assets. Widely used in product certification asset tracking, logistics tracking, anti-counterfeiting of valuables, and medical asset management, to improve the operational efficiency and inventory management for manufacturers and retailers.
Brand:
JTSPEEDWORKItem NO.:
JT-5218Product Origin:
China52x18MM Flexible Printable RFID UHF Anti-metalTag Advantage:
Mounted on a metal surface for stable operation;
100% tested by the European Union's label compliance test system;
100% passed the memory write test;
Material and design are tested for reliability;
Can be used to print on thermal printers
|
ISO |
EPC Class1 Gen2; ISO18000-6C |
|
frequency |
902-928MHz |
|
Chip |
Alien H3 |
|
memory |
EPC 96bits |
|
writable |
yes rewritable |
|
memory lead time |
fifty years |
|
Warranty |
1year |
|
Material |
Coated paper+Absorbing material |
|
Color |
white |
|
Size |
52x18MM thickness:1.1MM |
| Temperature |
-25C~ +85C |
|
Storage temperature |
-30 C~ +110 C |
|
Save humidity |
5%～95% |
| Adhesive |
white adhesive |
|
weight |
~1g |
|
package |
500pcs/roll |
|
Drop test |
Hih 1Meter /200times |
|
Alcohol test |
95%Concentration alcohol test passed |
|
Gasoline test |
NO. 92 test passed |
|
High and low temperature alternating test |
-40 degrees to +150 degrees 7 times high and low temperature alternating cycle, a total of 2 consecutive days passed the test |
|
RoHS |
yes |
|
IP degree |
IP65 |
| Fixed RFID reader on metal surface |
about 0-5 Meter test by JT-8290 |
|
Handheld reader on metal surface |
about 0-2CM ( JT-972 RFID handheld reader) |
|
Polarization direction |
Linear Polarization |
|
Text |
100% tested it before we send out |
Tool management;
IT facility chassis management;
Metal container management;
Management of office equipment and facilities with metal casings indoors and outdoors;
Personnel inspection management;
Fixed asset management
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
