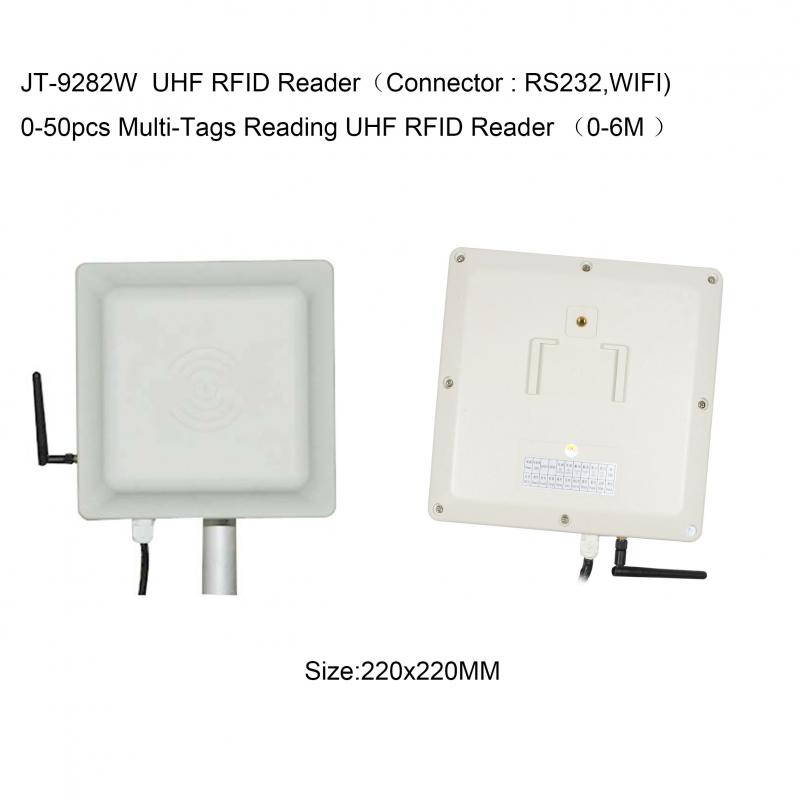

JT-9282 UHF RFID Reader has multi-protocol compatibility, fast reading speed and waterproof design to meet the demanding working environment.
Brand:
JTSPEEDWORKItem NO.:
JT-9282WProduct Origin:
ChinaLead Time：
Within 3-7 DaysDescription
JT-9282 adopts the clip of Impinj R2000, which could achieve high speed and rapid date processing operation. Full support ISO-18000-6C(EPC C1 GEN2) protocol.
JT-9282 is easier to install for small size and light weight.
There will be flashing and buzzer when read tag.

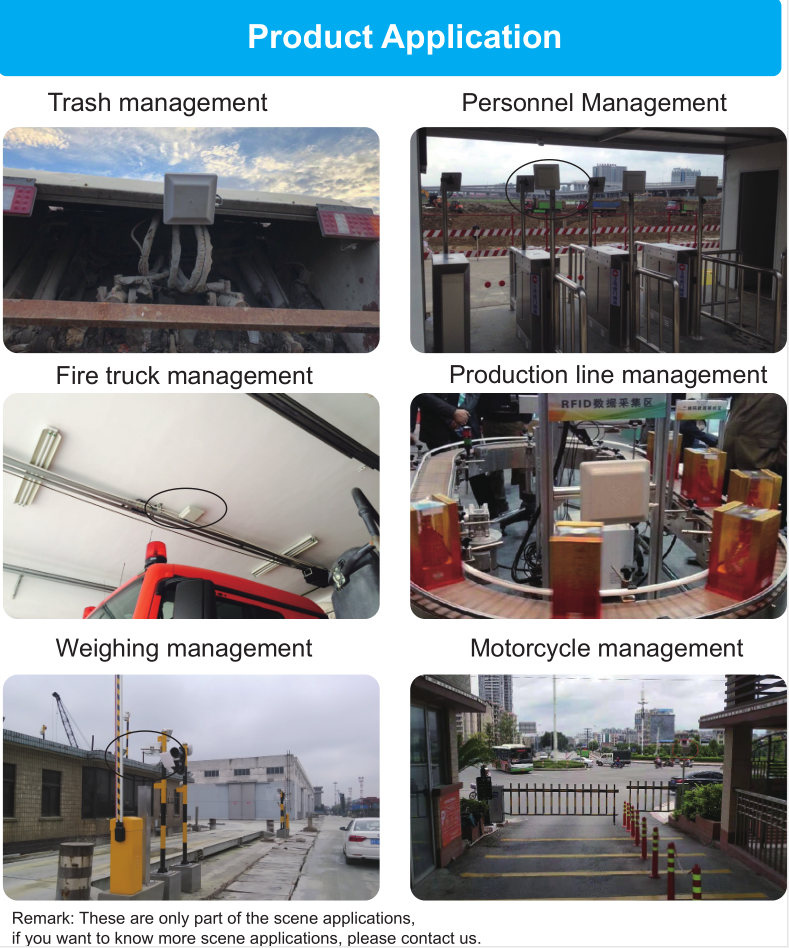

JT-9282 could be used in variation area, such as vehicle management, customer management, logistic management and production automatic management, etc.
Feature
◆ Built in the RFID module of R2000
◆ The stable reading distance could reach 8M
◆ Multiple tags reading ability
◆ High sensitivity to tag
◆ Support RSSI indication
◆ Waterproof and sunscreen
◆ Support SDK dynamic link libraries(DLL) and secondary development
Specification
|
Item No. |
|
|
JT-9282A |
RS232,RS485 |
|
JT-9282B |
RS232,TCP/IP |
|
JT-9282W |
RS232,WIFI |
|
JT-9282G |
RS232,GPRS (4G） |
|
Performance Parameters |
|
|
Working Frequency |
902~928 MHz or 865~868MHz |
|
Protocol |
ISO18000-6C(EPC C1 GEN2) |
|
Chip |
Impinj R2000 |
|
RF power |
0～30dBm(Adjustable) |
|
Software & SDK |
DEMO and C#, VC , Java |
|
Industrial lightning protection |
6000V |
|
Low temperature protection |
Northeast, Northwest extremely cold region, low temperature protection |
|
Reading range |
stable reading range 8M(Depends on tag & environment) |
|
Tag handling volume |
0-200 tags |
|
Storage space |
1M or 8M Flash save without power supply(customized) |
|
Real-time clock |
without power supply, real-time clock save and working(customized) |
|
Frequency modulation |
hopping or fixed frequency |
|
Input/output port |
Two-way relay output(customized), two-way I/O input(customized) |
|
RSSI |
RSSI numerical test |
|
Antenna gain |
8dBi circular polarization |
|
Working way |
Buzzer & LED |
|
Power |
12V/3A Adaptor |
|
Ethernet power supply |
POE(customized) |
|
Physical Parameters |
|
|
Item size |
220x220x50mm |
|
Package size |
410x270x110mm |
|
Net weight |
3KG |
|
Shell material |
ABS |
|
Working temperature |
-20℃~+65℃ |
|
Storage temperature |
-45℃~+95℃ |
