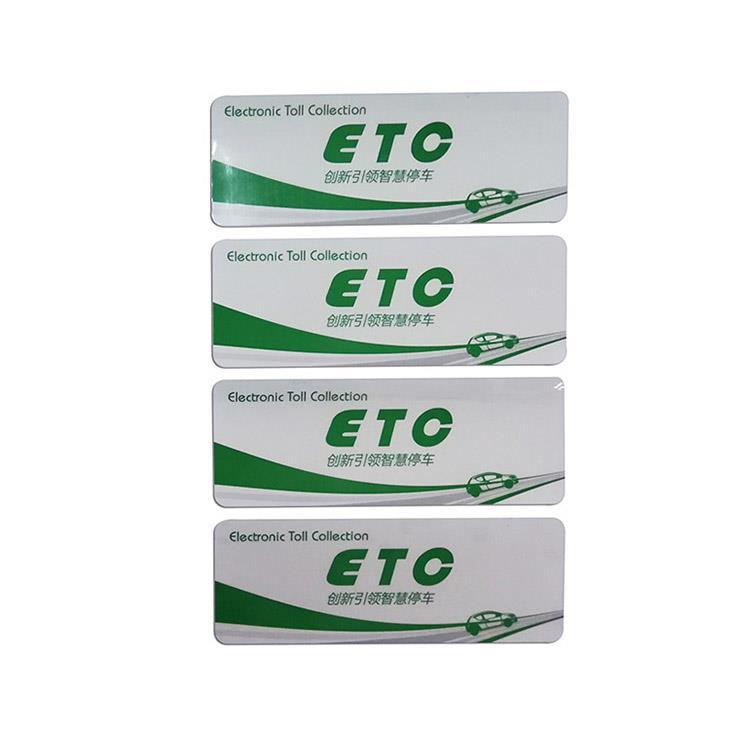

JT-306 with special substrate is a non-transferable tamper-proof label for vehicle windshields. for the purpose of vehicle identification and

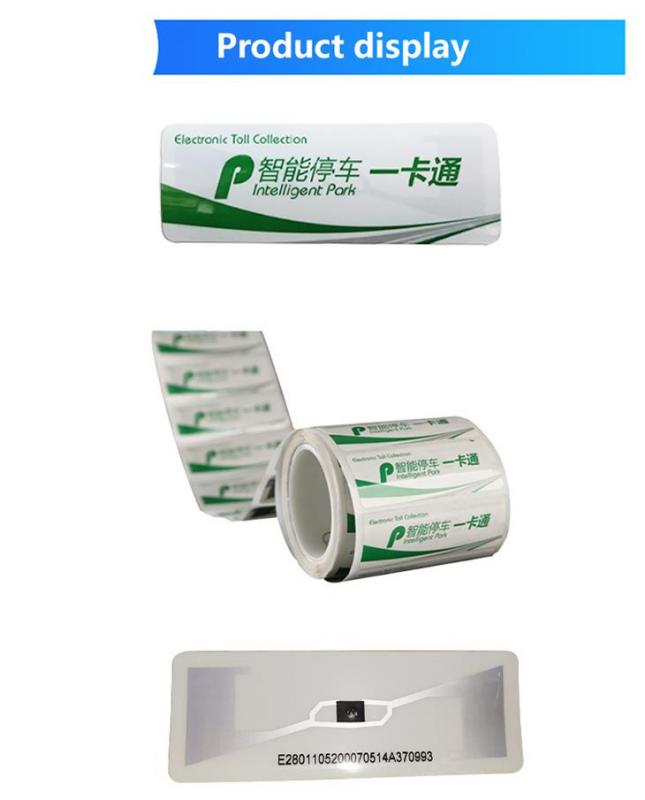

electronic toll collection. Supplied in roll form as finished label with pre defined encoding the tag allows additional data encoding as per requirements spec
with UV protection for normal sunlight exposure and ambient temperature of 45 Degree C.
Brand:
JTSPEEDWORKItem NO.:
JT-306-3Payment:
100% TT In AdvanceProduct Origin:
ChinaLead Time：
Within 3-7 Days
|
PERFSORMANCE PARAMETERS |
|
|
Working Frequency |
860~960MHz |
|
Dimension |
110x40x0.5mm |
|
Protocol |
ISO 18000-6C(GEN 2) |
|
Chip |
Aline H3 |
|
Storage Capacity |
EPC 96 bits, User memory 512bits |
|
Working temperature |
-40℃ ~ 70℃ |
|
Material |
PVC |
| Reading Range |
20m(with JT-8290), 5-8m(with JT-8280) |
| Life |
100,000 times, 10 years |
| Other |
Can be color printed on surface |
|
Tamper Proof RFID Label |
RFID Tamper Proof Label specially designed for tagging directly to windshield of an automobile. Any attempt to ripor tamper the tag should result in disabling the functionality of the tag and thus maintain a unique one to one relationship between the tag and the vehicle thereby preventing unauthorized tag removal and transfers. Tampering RFID label should result in following actions: • Destroy Damage the Antenna • Break the chip-antenna connection. The tags and should ensure reliable tamper indication even when sophisticated tamper methods of Mechanical attack (e.g. Razor Blades, Knives etc.), Chemical Attack (Corro- sives, solvents) and thermal attacks are employed |
