Brand:
JTSPEEDWORKItem NO.:
JT-Y2423Working frequency:
2.45GHzProtocol:
Private protocolJT-Y2423
| Item No. | JT-Y2423 | |||
| RFID parameters | User Environment | |||
| Frequency | Operating Temp. | -20 ℃ ~ 75 ℃ | ||
| 2.4GHz~2.45GHz | Storage Temp. | -40 ℃ ~ 85℃ | ||
| Protocol | Humidity | 5-90%non-condensing (+25°C) | ||
| ISO18000-4-2015 | ||||
| Antenna | Physical parameters | |||
| 14dBi | Shell material | ABS & aluminum alloy | ||

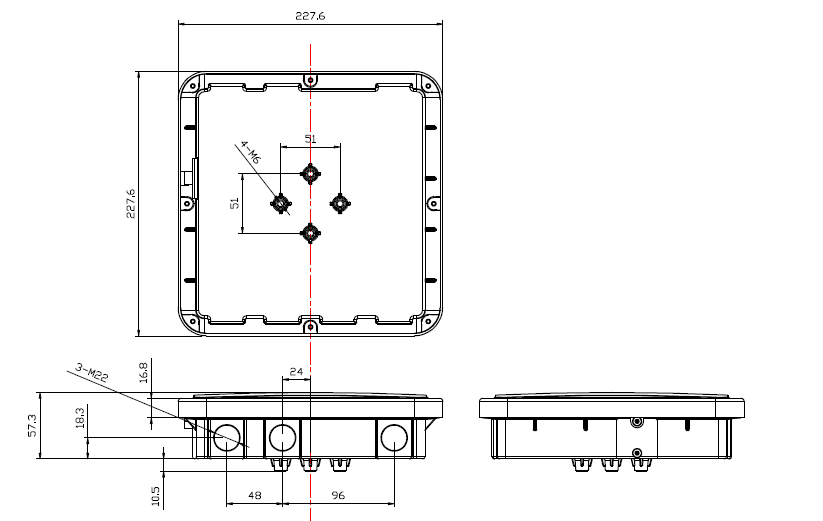

| Receivesen sitivity | Dimensions | 228(L)*228(W)*60(H)mm | ||
| -90dBm | Net weight | 3kg | ||
| Recognition speed | ||||
| 200km/h | RFID Performance Parameters | |||
| Communicate interface | Communication rate | 1Mbpsdefault;2Mbpsoptional | ||
| RS32,RS85,RJ5,WG6/32/34;4G,WIFI (optional) | Transmit power | 4dBm Max(adjustable) | ||
| Transmission error rate | Modulation | GFSK | ||
| BER « 1X10-7 | frequency deviation | ±170KHz@1Mbps Data Rate | ||
| Anti-electromagnetic interference | Transmit power accuracy | ±4dB | ||
| 10V/m DC-1000MHz | 1st Channel | -25dBc@1Mbps Data Rate | ||
| IP grade | Adjacent channel rejection ratio | |||
| IP 65 | 2nd Channel | -50dBc@1Mbps Data Rate | ||
| Working voltage | Receive sensitivity |
-90dBm (1Mbps Data Rate SPEEDWORK tag packet protocol length 10-bytes, BER <<1E-04) |
||
| 10~60V；PoE (optional) |
Receive carrier-to-noise ratio selectivity |
9dB （1Mbps Data Rate， Co-Channel Interference） | ||
| Working current | RSSI receiving accuracy | ±2dB | ||
| 0.15A@12V,25℃ | Effective range of RSSI reception | -90~-20dBm | ||
| I/O | RSSI resolution | ±1dB | ||
|
2-way trigger input, 2-way relay output (optional) |
Anti-collision tag reader |
»200 (In Co-Channel mode,RS232,RS485,RJ45,WiFi, 4G tag reader,test site: open and unobstructed area |
||
| Secure Encryption | Supporting AES-128b/192b/256b | |||
| SDK (download link) | Reading distance | Up to 150m (Test Conditions: | ||
| Demo&C++,C#,JAVA,Android SDK | 1. Test with JT-T2450A | |||
| Datasheet (download link) | 2. Test in an open field without obstacles | |||
