2.45GHz Active Reader

Home Active RFID 2.45GHz 2.45GHz Active Reader

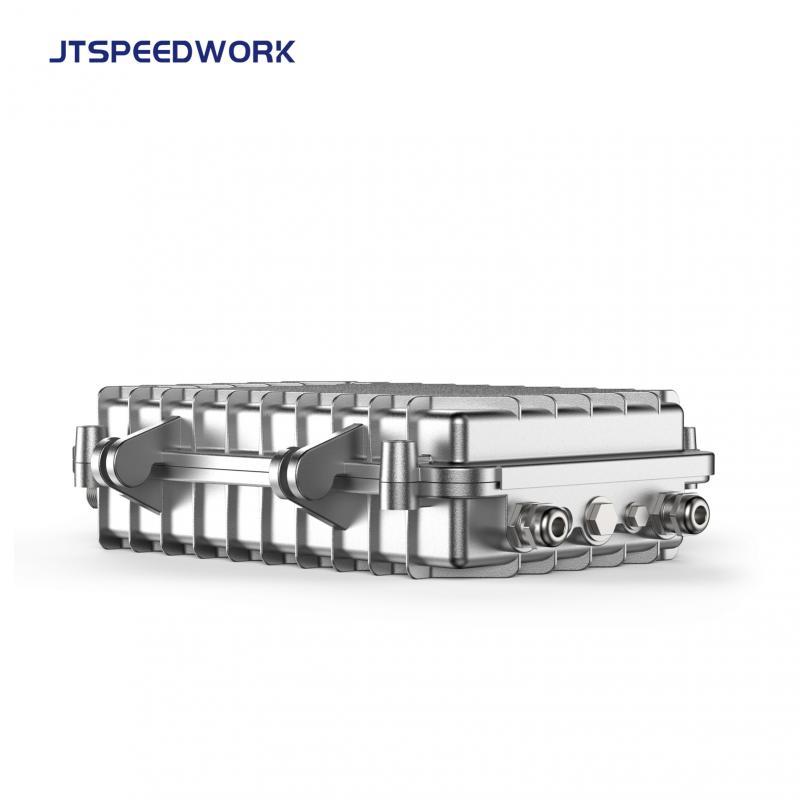

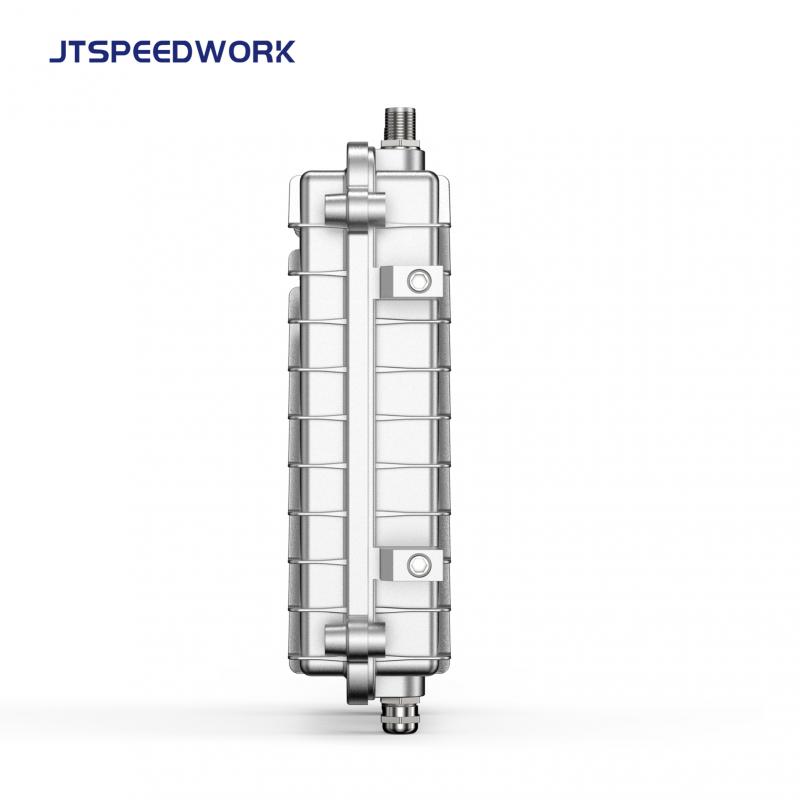

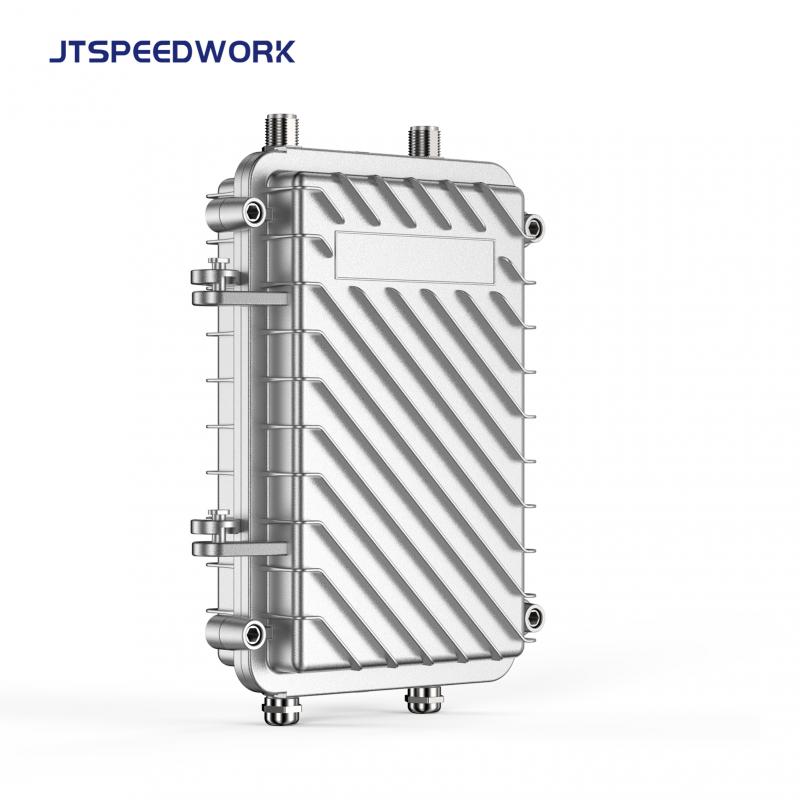

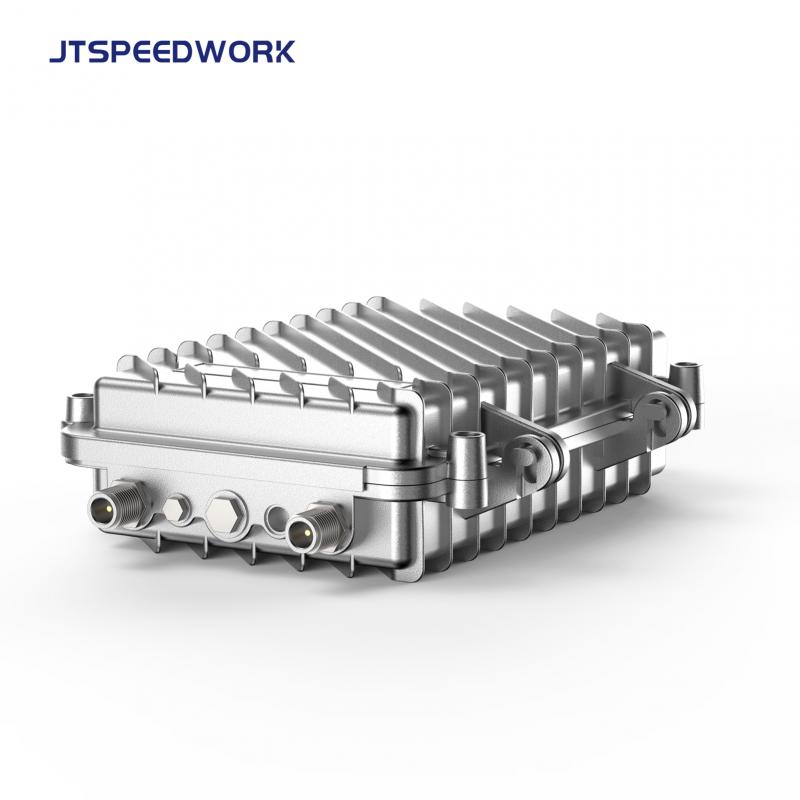

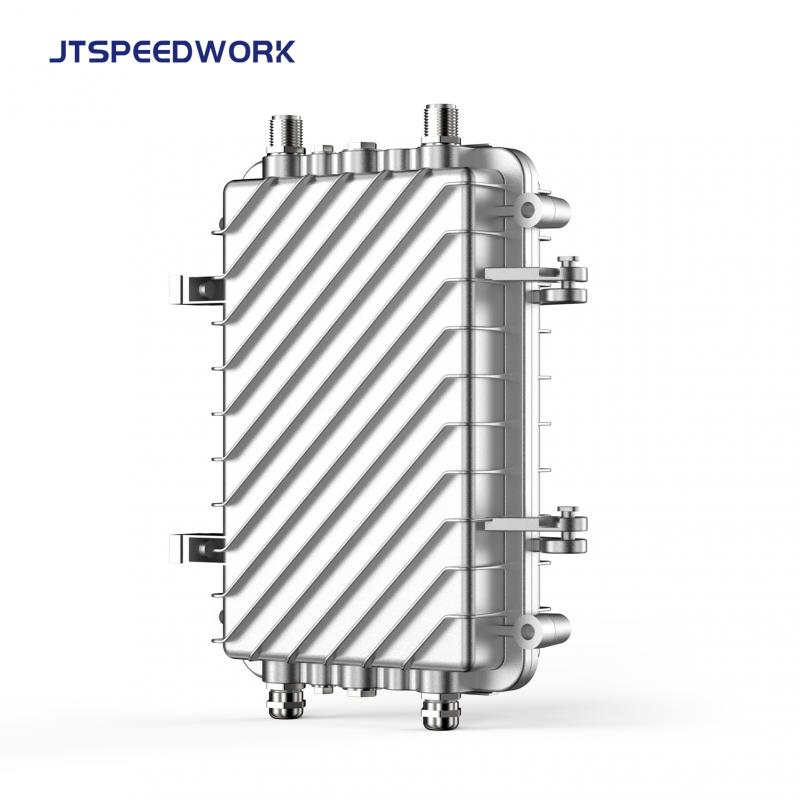

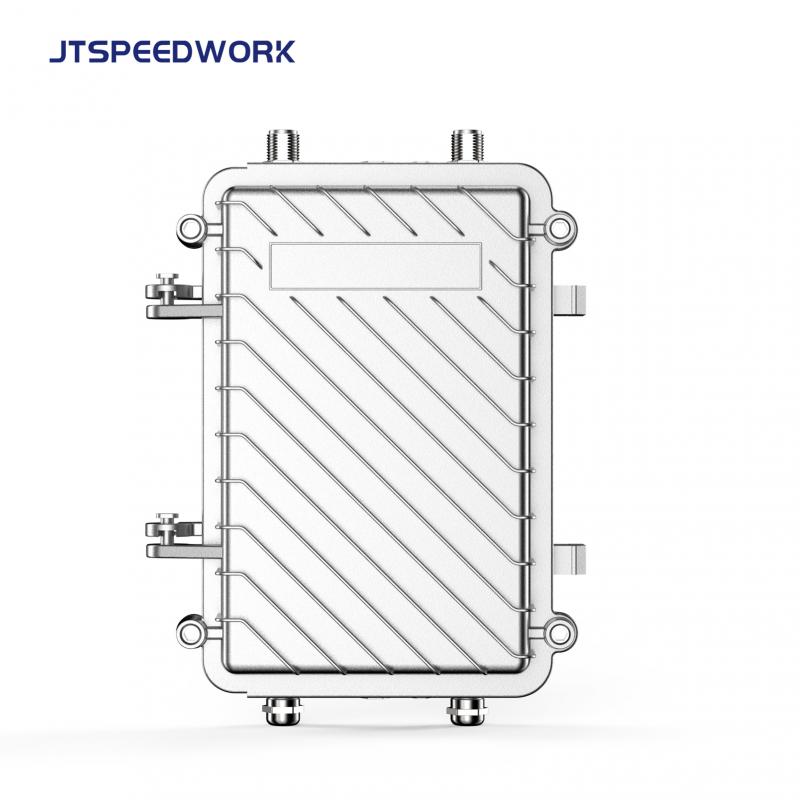

JT-R2430A 2.4GHz Active RFID Omnidirectional Reader Outdoor Waterproof

JT-R2430A is a self-developed high-performance 2.4G electronic tag fixed reader. With complete independent intellectual property rights, the reader's default working frequency band is 2.4GHz, with strong multi-tag recognition capabilities, long reading distance, high protection performance, and convenient installation and configuration.

Item No :
JT-R2430A
Color :
Silver
Communication Interface :
RS232,TCP/IP
Protocol :
Private
Working frequency :
2.45GHz

Inquire Now

JT-R2430A

2.4GHz RFID Outdoor Omnidirectional Active Reader

JT-R2430A is a self-developed high-performance 2.4G activetag fixed reader.Have a complete independent intellectual property rights, the default operating frequencyband of the reader is 2.45GHz,which has strong multi-tag recognition ability, the card reading distance is longer than other frequency bandthe protection grade uo to lP5,the installation and configuration are convenient.

Item No.	JT-R2430A
RFID parameters		RFID Performance Parameters
Frequency	2.4GHz~2.45GHz	Communication rate	1Mbps default;2Mbps optional
Protocol	ISO18000-4-2015	Transmit power	4dBm Max(adjustable)
Recognition speed	200km/h	Modulation	GFSK
Identify direction	Omni-directional	frequency deviation	士170KHz@1Mbps Data Rate
IP grade	IP 65	Transmit power accuracy	±4dB
Communicate interface	RS232/RS485/RJ45;4G/WiFi (optional)	1st Channel	-25dBc@1Mbps Data Rate
2.4G RFID antenna interface	50 ohm N-type (Female)	Adjacent channel rejection ratio
4G-LTE antenna interface	50 ohm N-type (Female)	2nd Channel	-50dBc@1Mbps Data Rate
GNSS antenna interface	50 ohm N-type (Female)	Receive sensitivity	-90dBm (1Mbps Data Rate SPEEDWORK tag packet protocol length 10-bytes, BER <<1E-04)
2.4G WiFi antenna interface	50ohm SMA	Receive carrier-to-noise ratio selectivity	9dB （1Mbps Data Rate， Co-Channel Interference）
Power supply	10~60V (Optional POE power supply)	RSSI receiving accuracy	±2dB
Working current	0.15A@12V,25℃	Effective range of RSSI reception	-90~-20dBm
I/O	2-way trigger input	RSSI resolution	±1dB
	2-way relay output (optional)	Anti-collision tag reader	»200 (In Co-Channel mode,RS232,RS485,RJ45,WiFi, 4G tag reader,test site: open and unobstructed area
		Secure Encryption	Supporting AES-128b/192b/256b
		Reading distance	Up to 150m (Test Conditions:
			1. External 6dBi omnidirectional glue stick antenna；
			2. Test with JT-T2450A
			3. Test in an open field without obstacles

GNSS		4G-LTE
GPS L1	1575.42±1.023MHz	LTE FDD	B1, B3, B5, B8
GLONASS	1597.5~1605.9MHz	LTE TDD	B34, B39, B40, B41
BDS	1559.1~1563.1MHz	GSM/GPRS	900/1800MHz
Capture sensitivity	-147dBm	GPRS	Max 85.6Kbps（DL）/Max 85.6K bps（UL）
Tracking sensitivity	-160dBm	LTE-FDD	Cat1，Max 10Mbps（DL）/Max 5Mbps（UL）
Positioning accuracy	<3m (open environment)	LTE-TDD	Cat1，Max 8.96Mbps（DL）/Max 2Mbps（UL）
Update frequency	<10Hz	GSM850	33dBm (Power Class 4)
Noise figure	3dB	EGSM900	33dBm (Power Class 4)
		DCS1800	30dBm (Power Class 1)
SDK		PCS1900	30dBm (Power Class 1)
Demo&C++,C#,JAVA,Android SDK		LTE	23dBm (Power Class 3)
