2.4GHz RFID reader. Data transmission module with integrity structure and full-function. It includes RF Module,central control unit, input/output ports, Ethernet module, serial communication interface, non-volatile memory modules and working status indication module and built-in antenna etc.
Brand:
JTSPEEDWORKItem NO.:
JT-R2420AOrder(MOQ):
1Payment:
100% TT in advanceProduct Origin:
ChinaColor:
whiteShipping Port:
Shenzhen,ChinaLead Time：
3 working daysJT-R2420A：

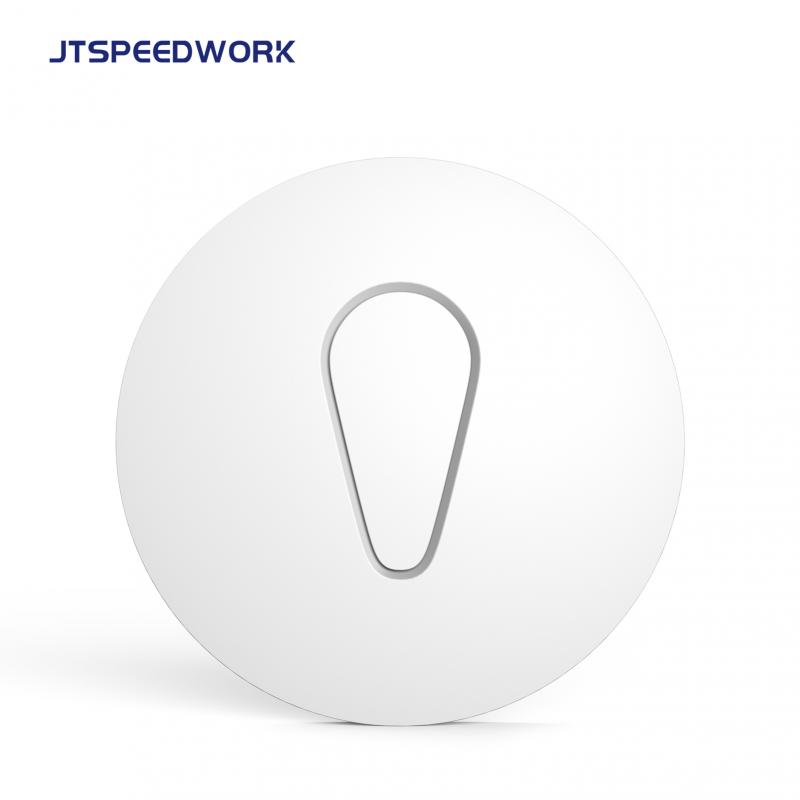

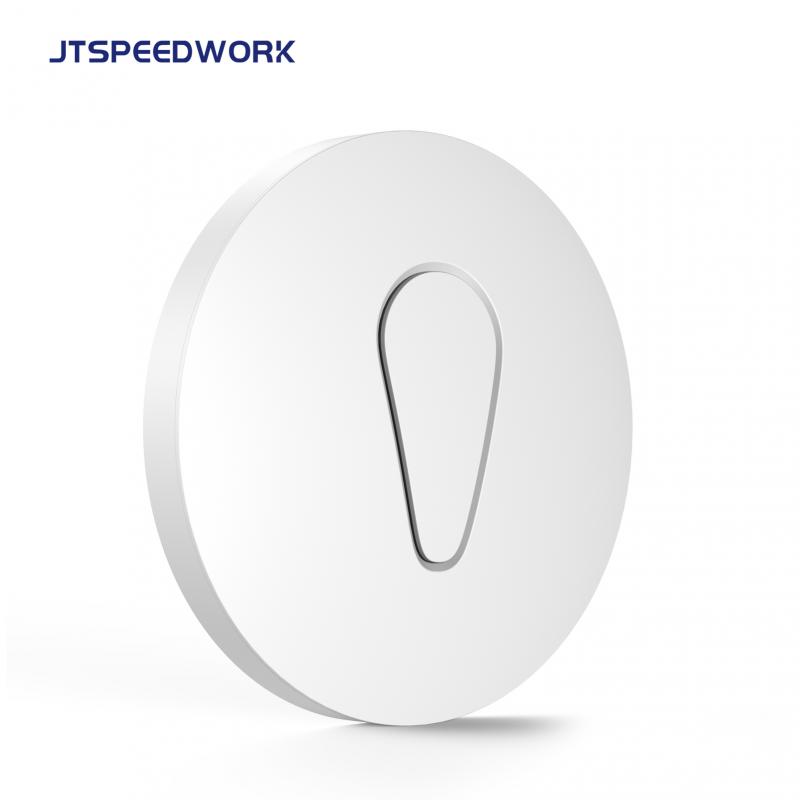

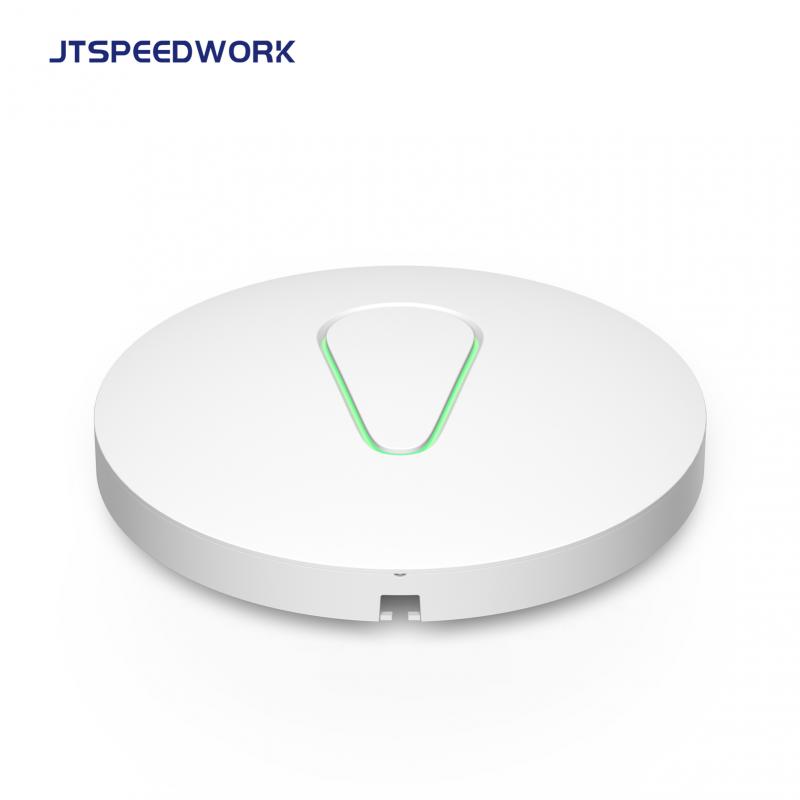

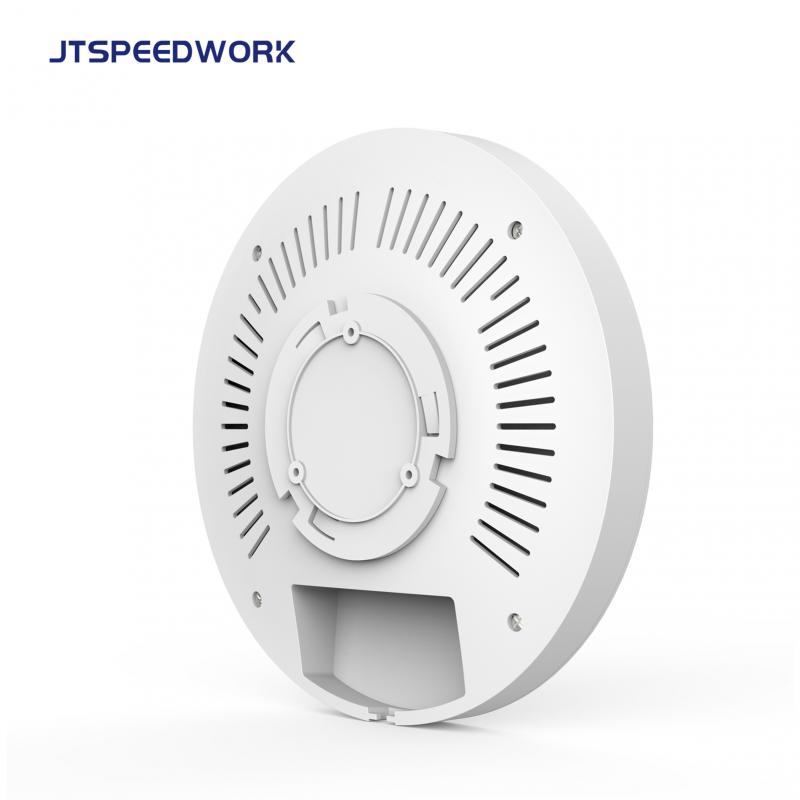

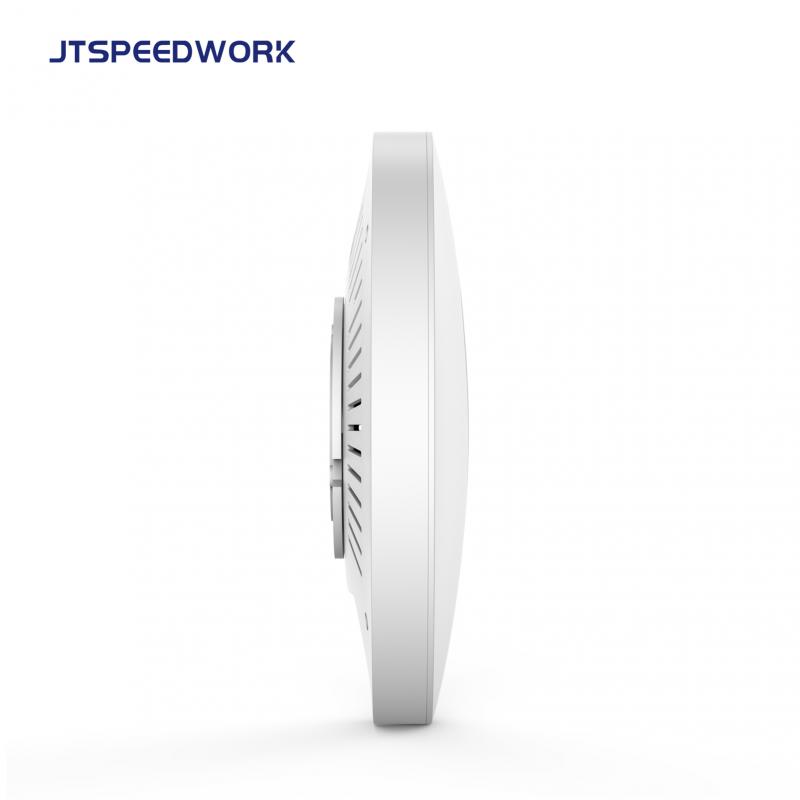

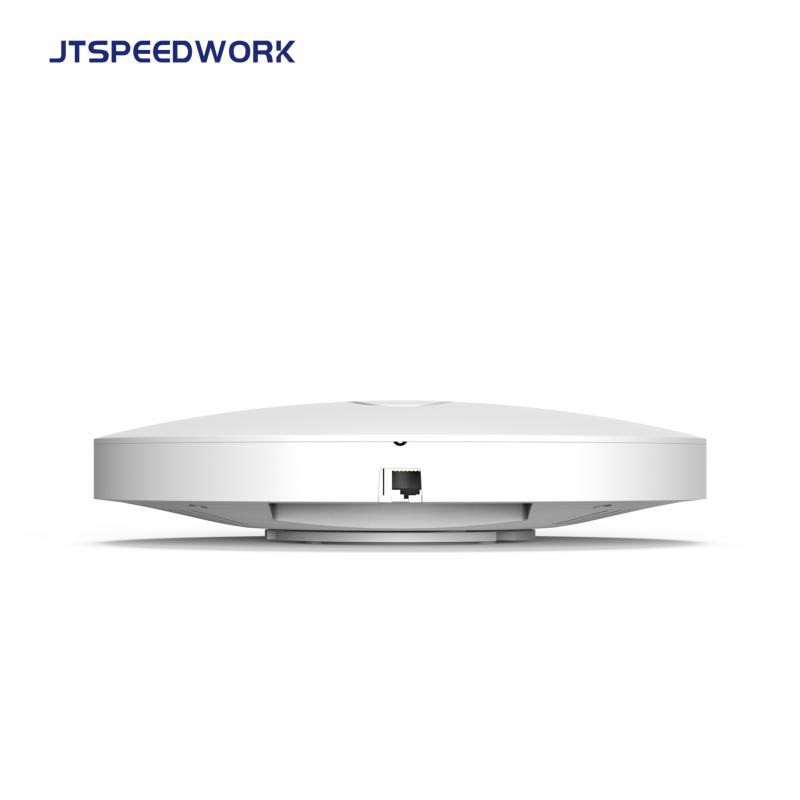

2.4GHZ Ceiling Indoor RFID Reader

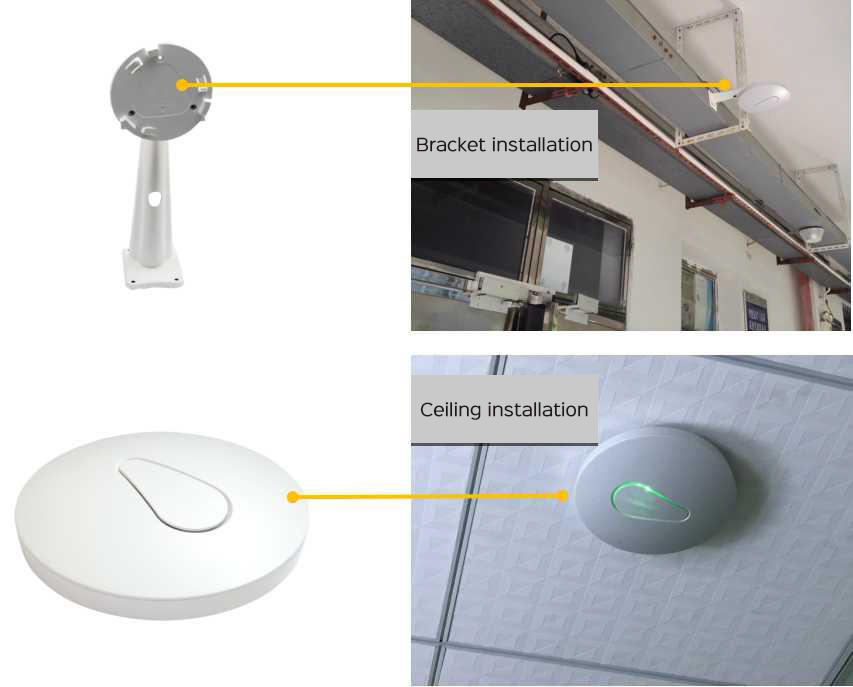

JT-R420A is a self-developed high performance 2.4G active tag fixed reader.Have a complete independent intellectual property rightsthe default operating frequency band of the reader is 2.45GHz which has strong multi-tagrec ognition ability,The card reading distance is longer than other frequency band,the protection grade uo to IP65,the installation and configuration are convenient
| Item No. | JT-R2420A | |||
| RFID parameters | Communication | |||
| Frequency | Signal modulation mode | GFSK | ||
| 2.4GHz~2.45GHz | Communication rate | 1Mbit s | ||
| Protocol | Communication Interface | RS232,RJ45; WiFi (optional) | ||
| ISO18000-4-2015 | IP grade | IP54 | ||
| Antenna | ||||
| 3dbi,dual polarization | Power Supply | |||
| Identify direction | Power supply | 7V~24V/3A; PoE (optional) | ||
| Omnidirectional | Working current | 0.15A@12V,25℃ | ||
| Anticollision capability | ||||
| >200 tags | User Environment | |||
| Receive sensitivity | Operating Temp. | -20 ℃ ~ 60 ℃ | ||
| -90dBm | Storage Temp. | -40 ℃ ~ 80℃ | ||
| Recognition speed | Humidity | 5-90%non-condensing (+25°C) | ||
| 200 Km/h | ||||
| Work mode | Physical parameters | |||
| Send and receive together | Shell material | ABS | ||

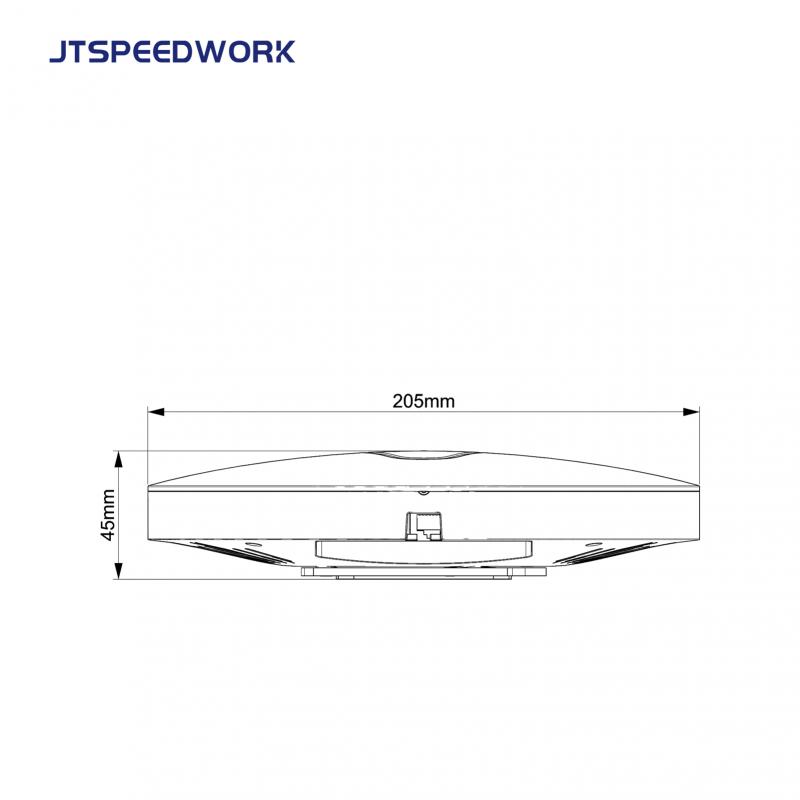

| Dimensions | 205(D)*45(T)mm | |||
| SDK (download link) | Net weight | 292g | ||
| Demo&C++,C#,JAVA,Android SDK | Pack size | 42*26*10cm | ||
| Datasheet (download link) | Pack weight | 1kg | ||
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
