Brand:
JTSPEEDWORKItem NO.:
JT-2510Communication Interface
Uart TTLWorking frequency:
860-960MHzProtocol:
ISO18000-6CRF chip:
TM200
1, Description

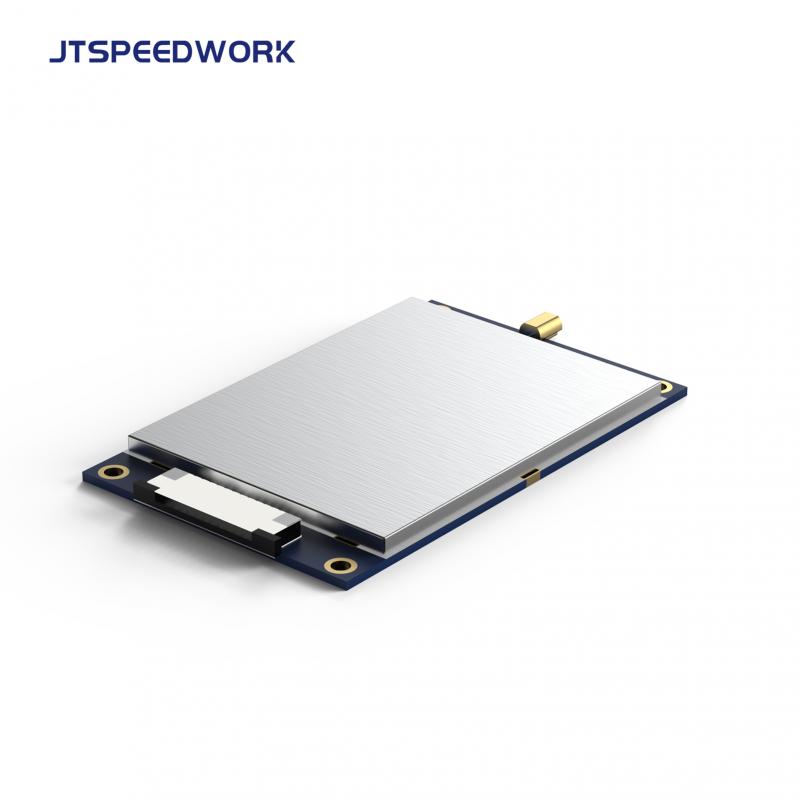

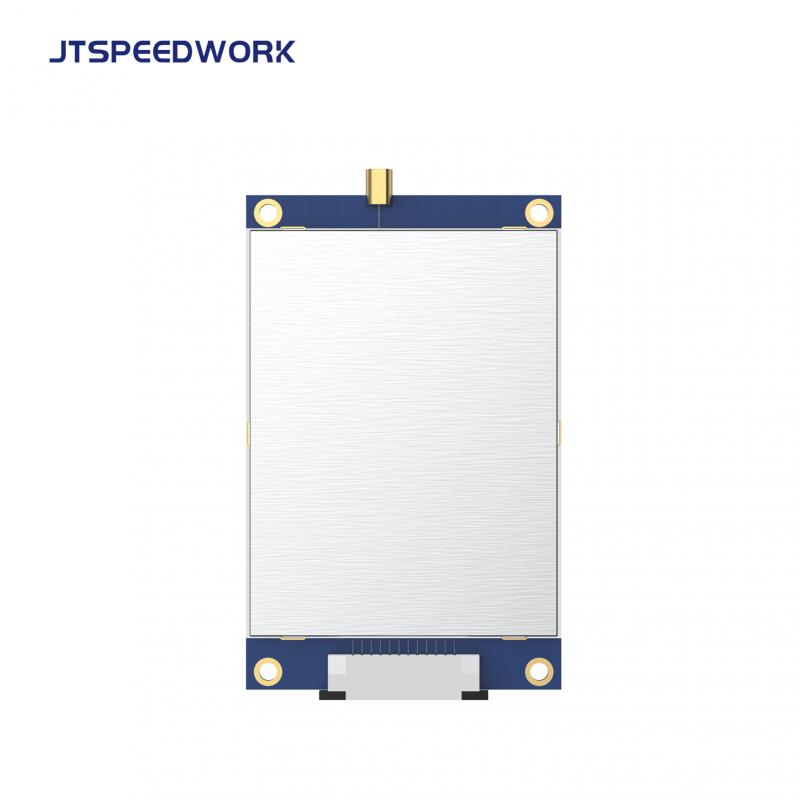

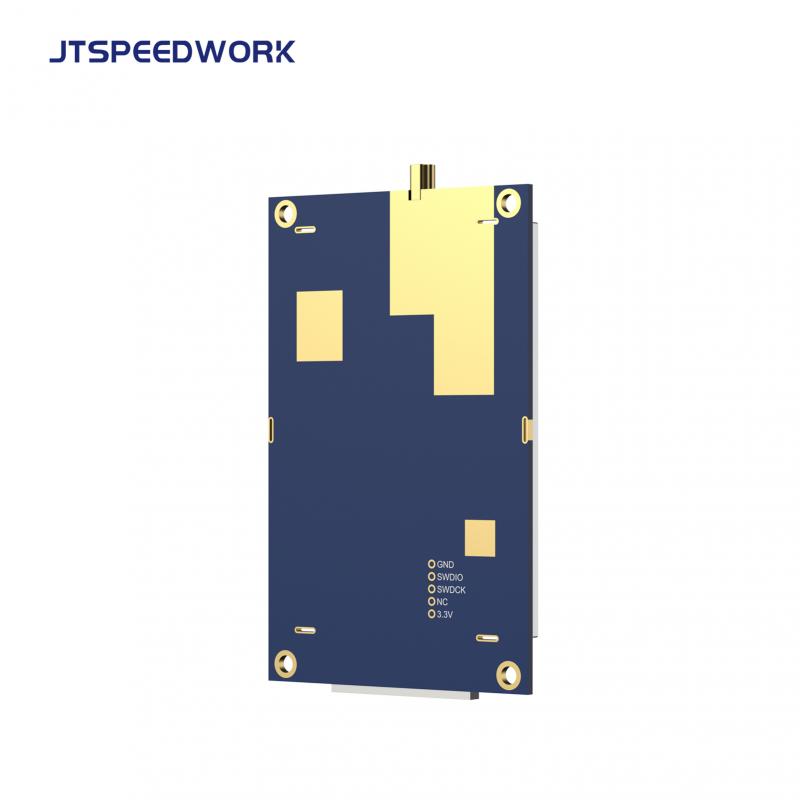

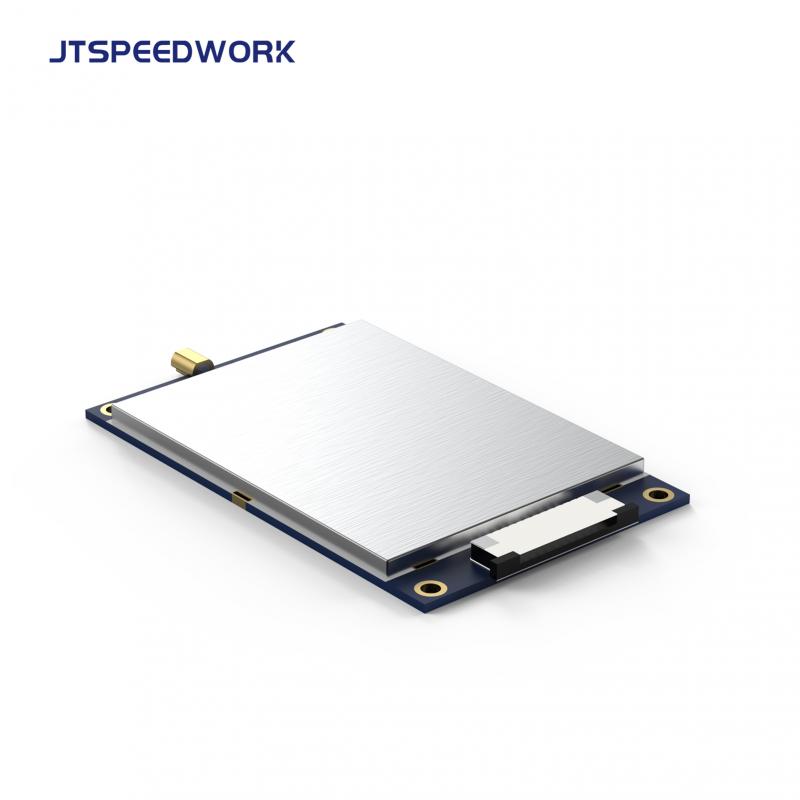

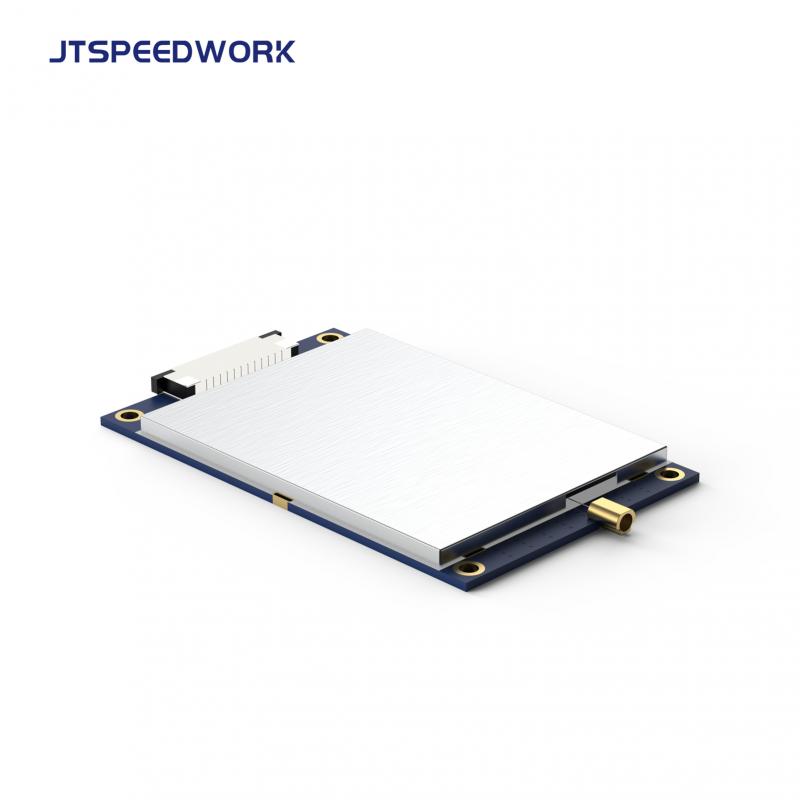

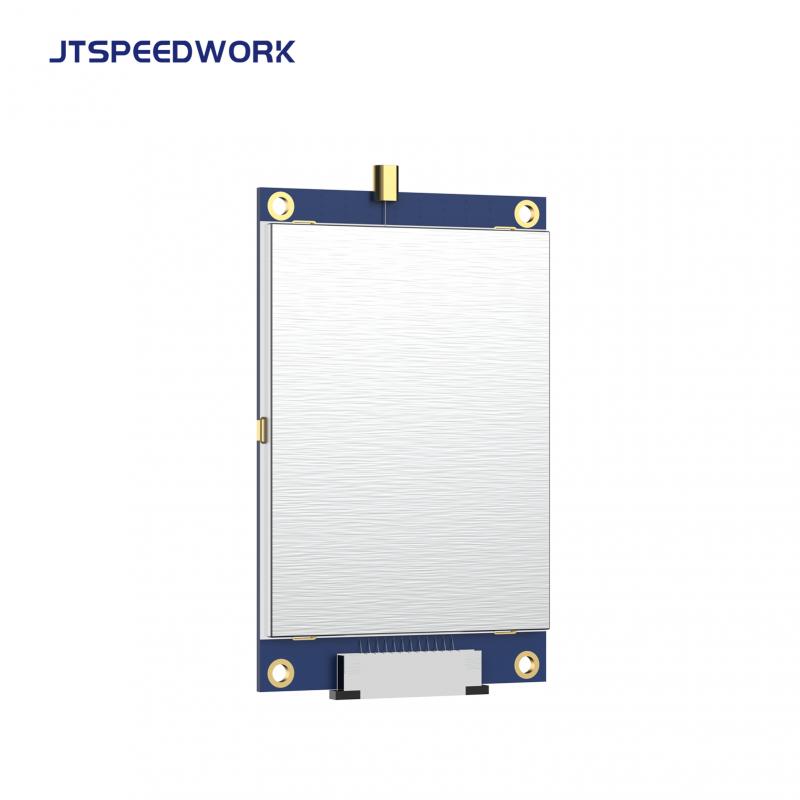

UHF long-distance reading and writing module JT-2510 is a professional-grade, high-performance UHF reading and writing module based on the domestic TM200 platform. With complete independent intellectual property rights, the default working frequency of this module is 902MHz～928MHz, supports ISO18000-6C (EPC C1 GEN2) protocol, has the characteristics of strong multi-tag recognition ability, long distance reading card, etc., in the standard 8dBi antenna and corresponding tags With cooperation, the reading distance can be more than 7 meters stable, and with simple power supply and interface circuits, a low-cost RFID identification system can be quickly built. It is suitable for warehouse logistics, material control, identification, access control and other fields.
2, Features
| Item NO. | JT-2510 | |||
| Specifications | Communication parameters | |||
| Working frequency | 902~928MHz； 865~868 MHz | Communication Interface | RS232 | |
| Support protocol | EPC C1 Gen2 /ISO18000-6C | RS232 | 115200 bps(default) | |
| RF power | 0~32dBm(Software adjustable) | |||
| Reading range | 7 meters (white card with 8dBi antenna test, the reading distance is related to tag type, transmitting power and application environment) | Power parameters | ||
| Reading rate | ＞200 times/second | Reader power supply | 5VDC | |
| Tag detection | Support RSSI value detection | Peak current | 1.3A | |
| Working mode | Fixed frequency / frequency hopping optional | |||
| Antenna detection | Support | |||
| RF connector | MMCX Connector | |||
| Physical parameter | Environmental parameters | |||
| Size | 55.8x33.6x4.1mm | Operating temperature | -20℃～55℃ | |
| Weight | About 44g | storage temperature | -30℃～80℃ | |
| Material | PCBA | Storage humidity | 5%～95%RH non-condensing | |
