Reading 0-200 tags/sec; Reading range can reach 0-5m(with JT-T075R antenna built-in handheld reader)
Brand:
JTSPEEDWORKItem NO.:
JT-2510Product Origin:
ChinaLead Time：
3 working days

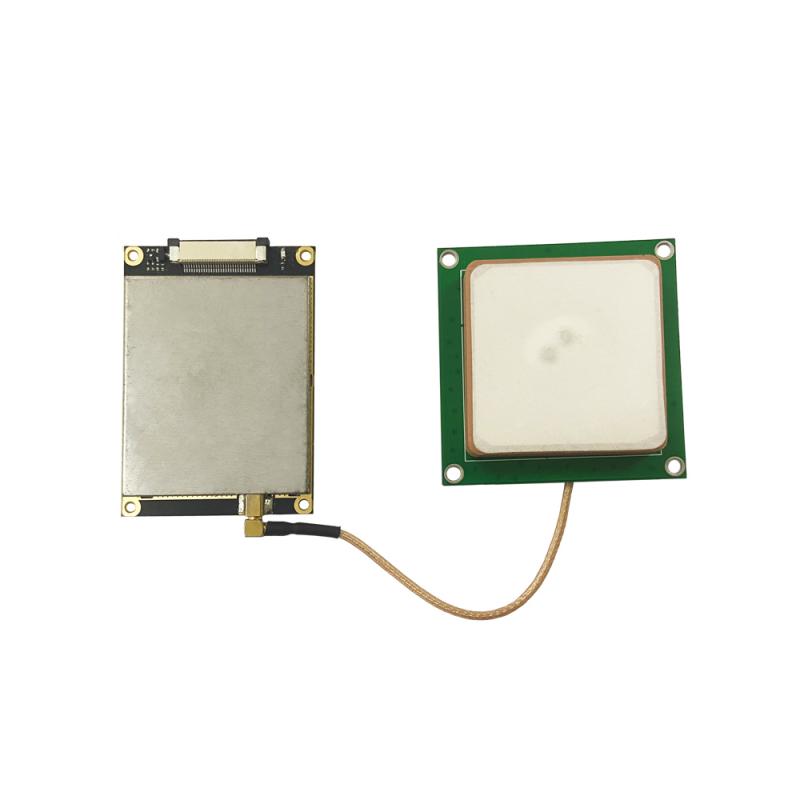

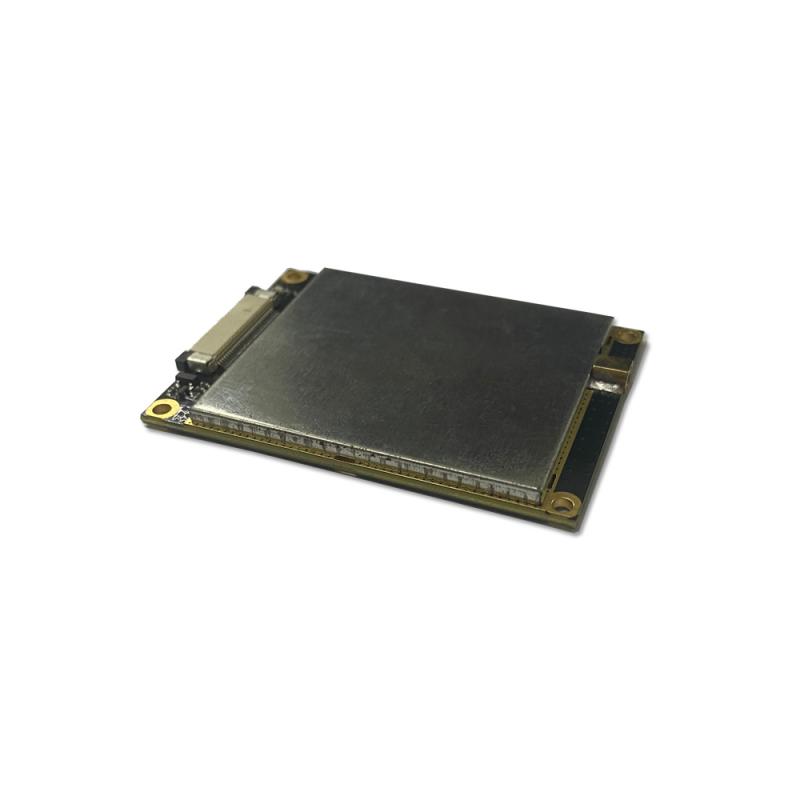

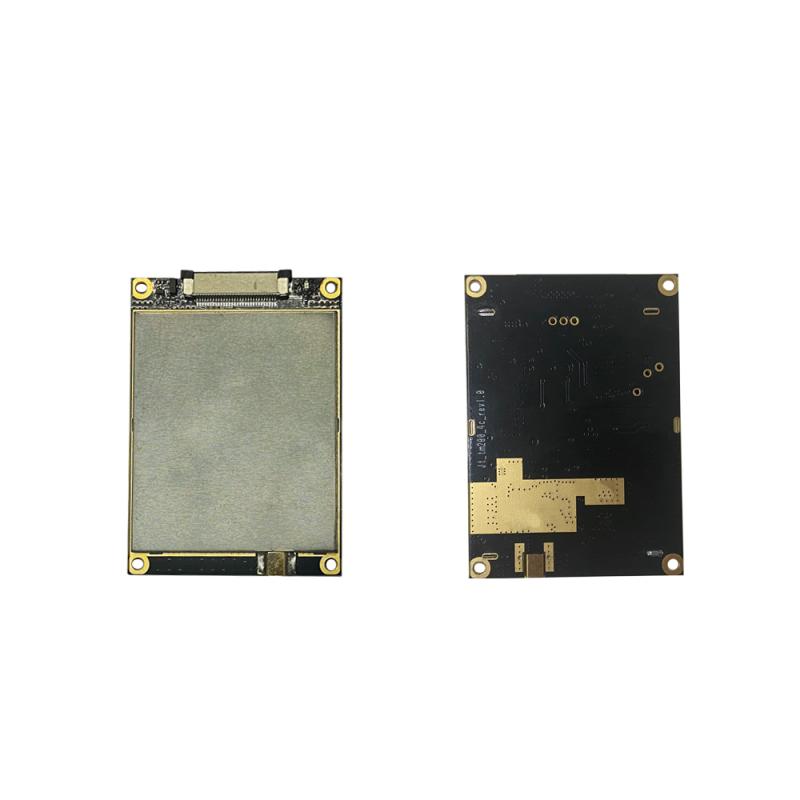

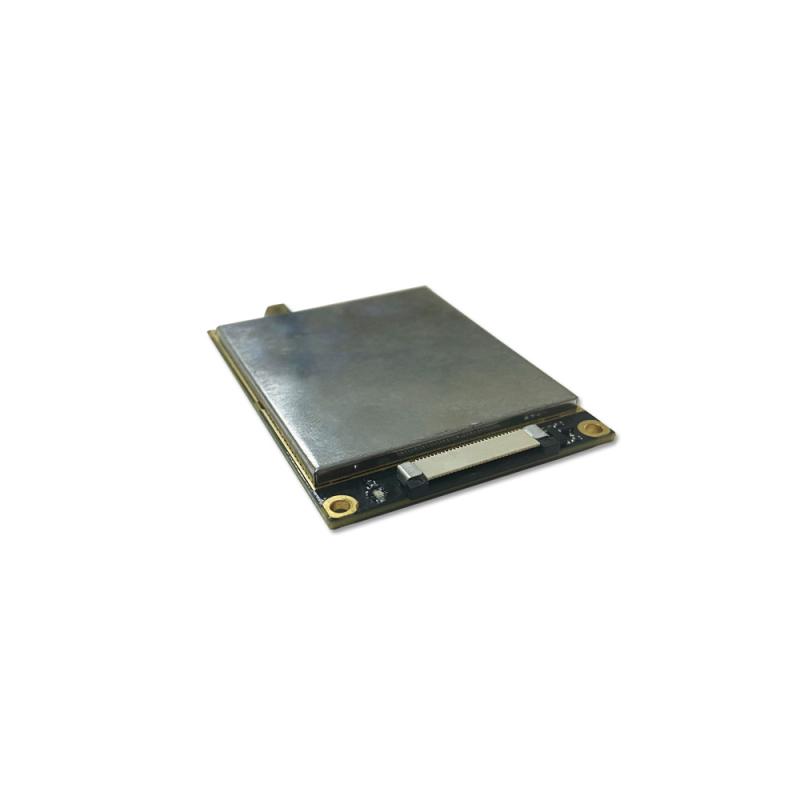

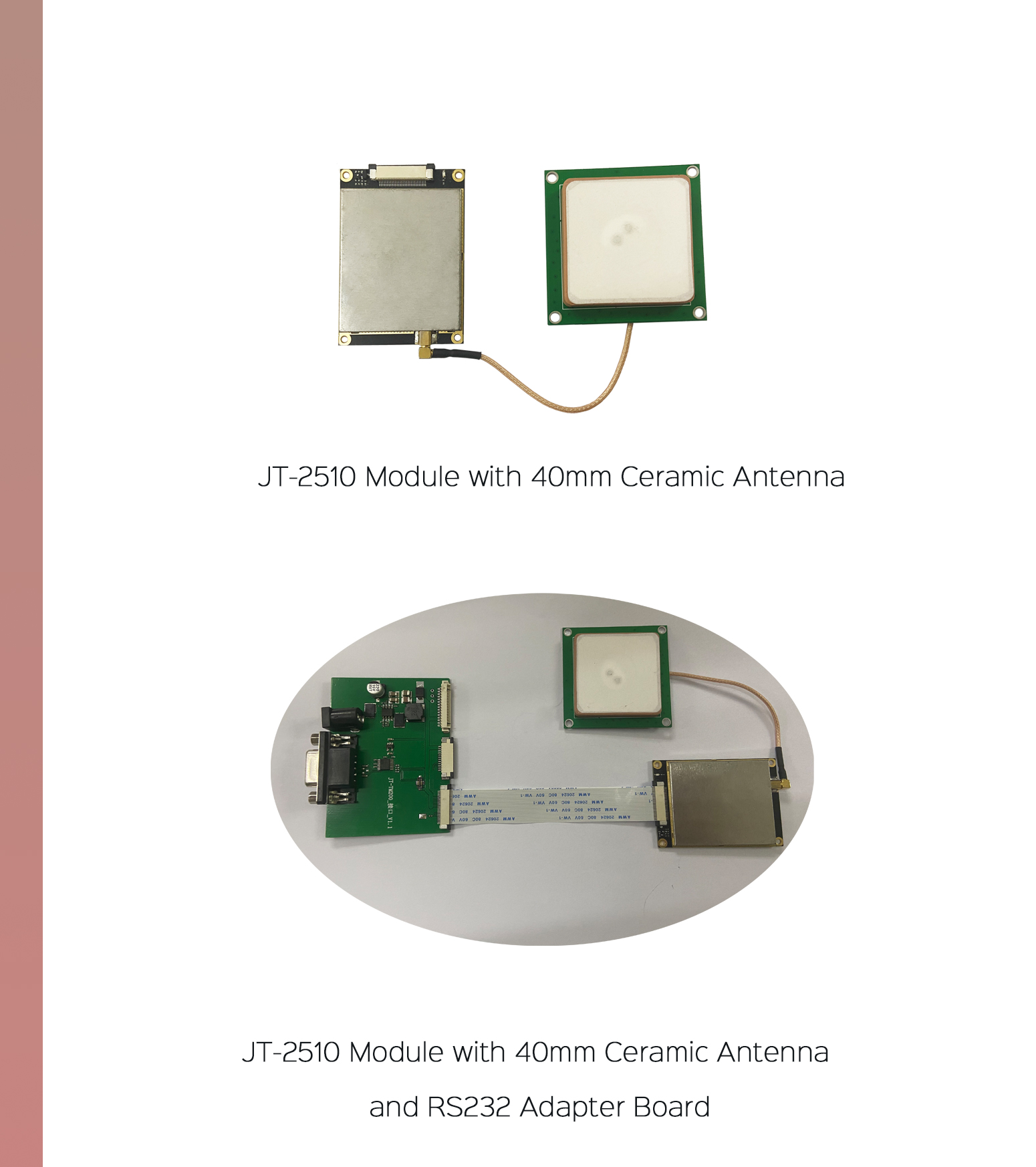

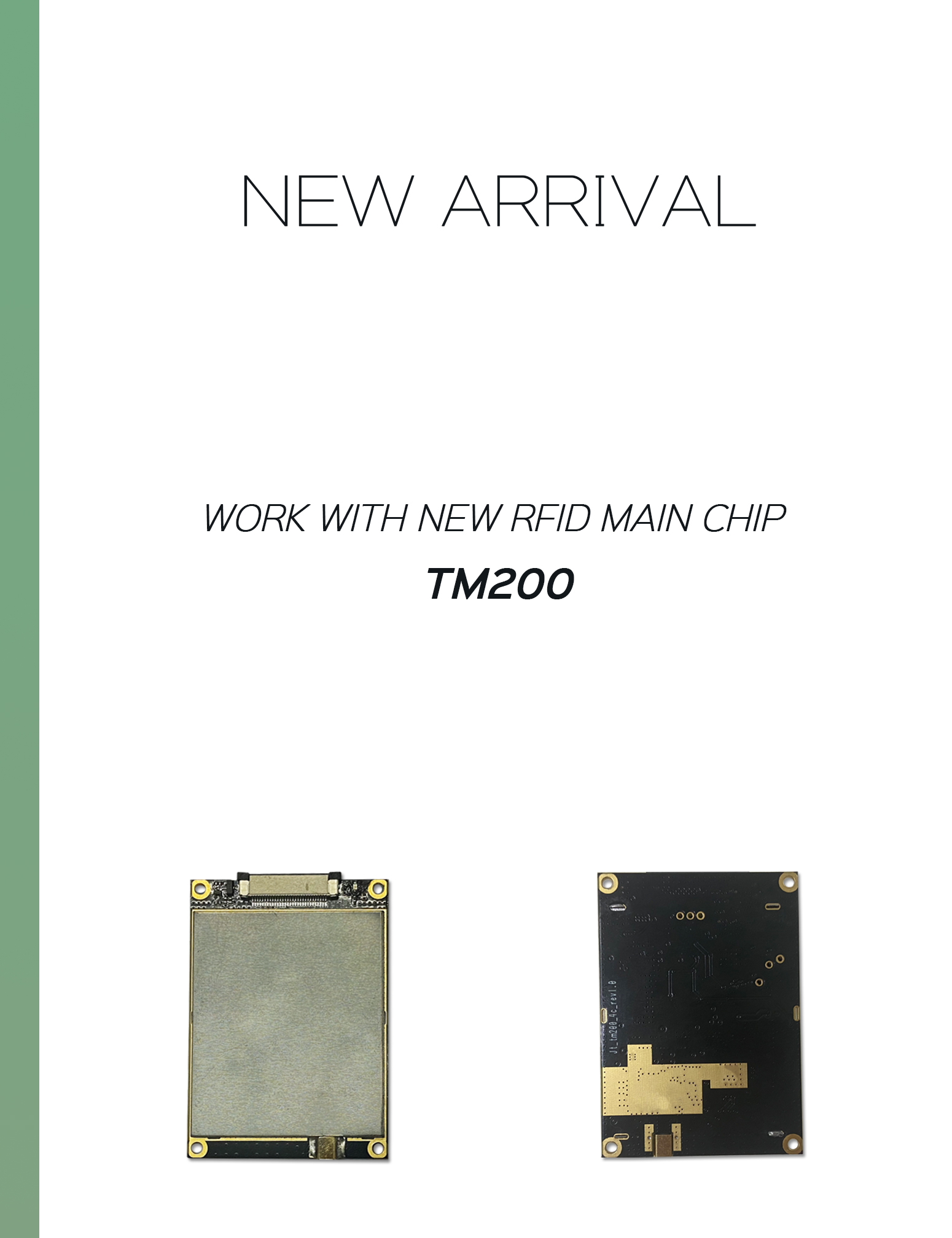

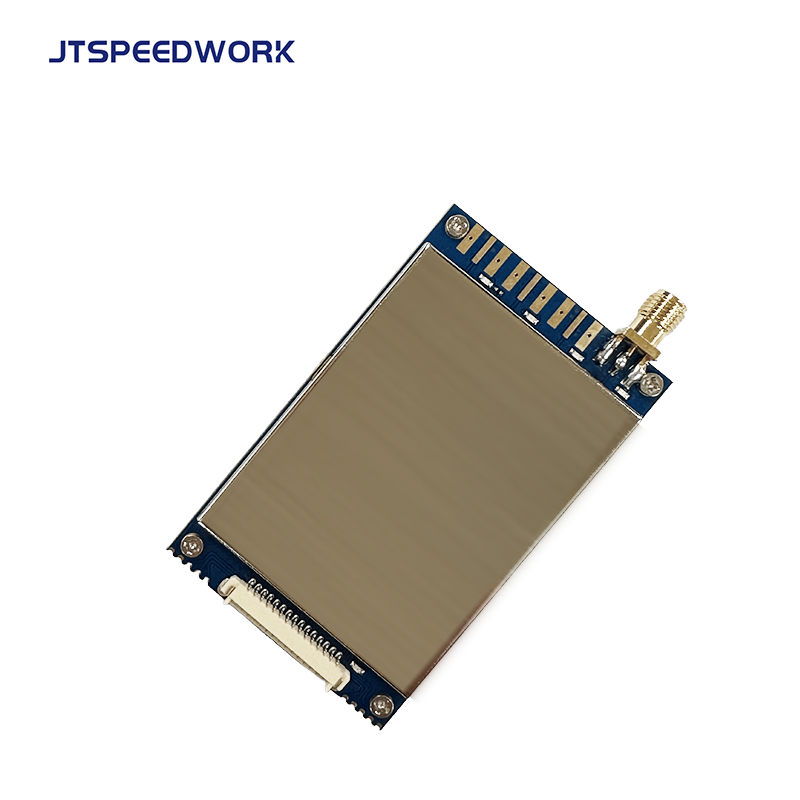

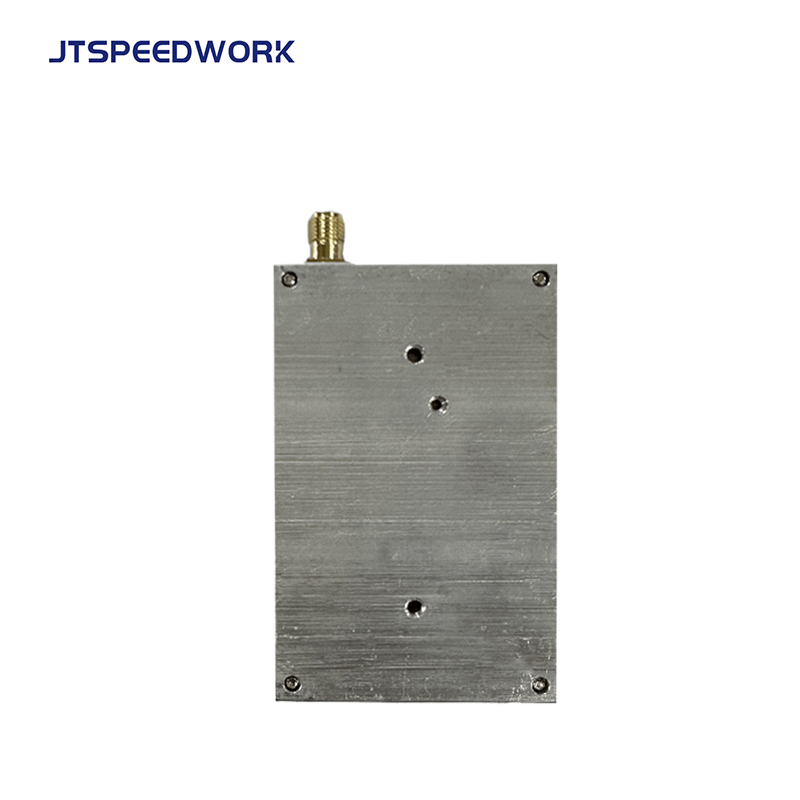

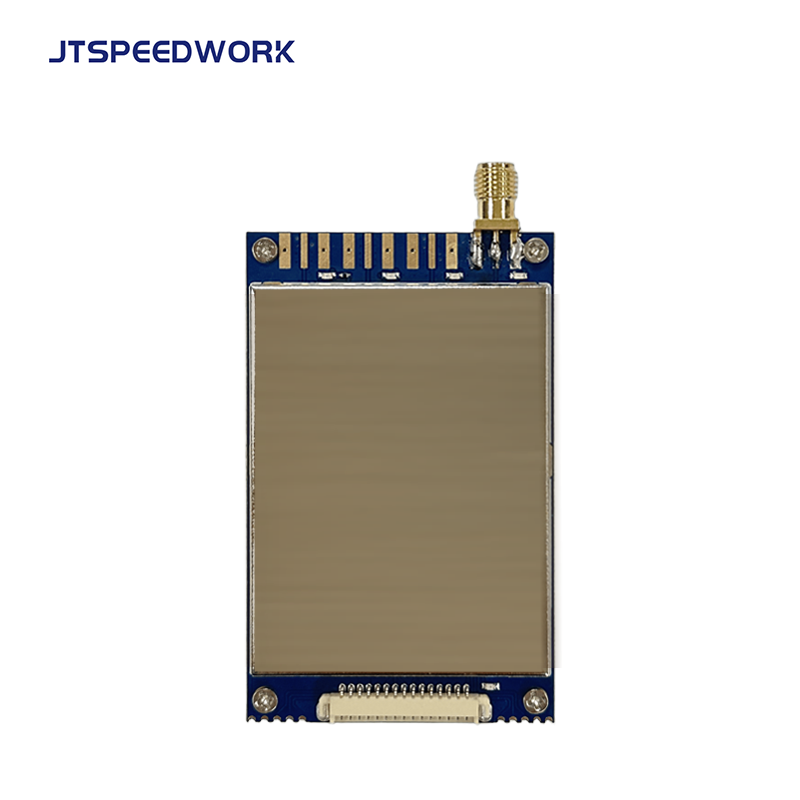

TM200 UHF RFID Reader Module JT-2510
UHF long-distance reading and writing module JT-2510 is a professional-grade, high-performance UHF reading and writing module based on the domestic TM200 platform. With complete independent intellectual property rights, the default working frequency of this module is 902MHz～928MHz, supports ISO18000-6C (EPC C1 GEN2) protocol, has the characteristics of strong multi-tag recognition ability, long distance reading card, etc., in the standard 8dBi antenna and corresponding tags With cooperation, the reading distance can be more than 7 meters stable, and with simple power supply and interface circuits, a low-cost RFID identification system can be quickly built. It is suitable for warehouse logistics, material control, identification, access control and other fields.
Features
|
Item No. |
JT-2510 |
|
Performance parameters |
|
|
Working Frequency |
865-865MHz(EU);902-925MHz(US) |
|
Protocol |
ISO18000-6C(EPC C1 GEN2) |
| Chip | TM200 |
|
Output power |
0-32dBm(Adjustable) |
|
Reading Range |
7 meters (white card with 8dBi antenna test,the reading distance is related to tag type, transmitting power and application environment) |
|
RF Antenna Connector |
MMCX Connector |
|
Module power supply |
5V DC |
|
Peak current |
1.3A
|
|
Working mode
|
Fixed frequency / frequency hopping optional
|
|
Tag detection
|
Support RSSI value detection
|
|
Communication interface |
TTL |
|
Read rate
|
>200 times/sec
|
|
Antenna detection
|
Support
|
|

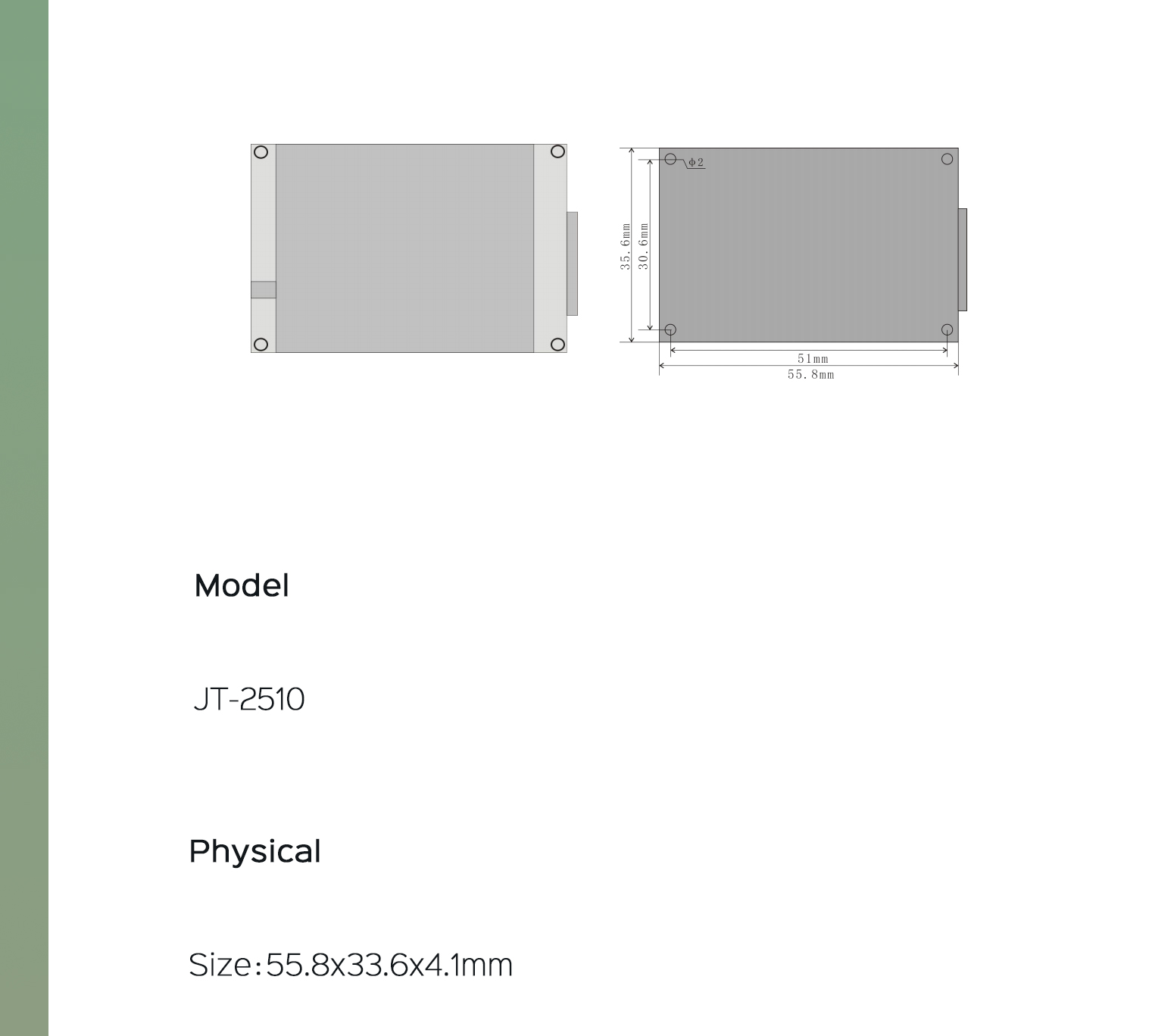

Interface diagram |
Name |
Dec |
|
|
RF connector |
mmcx connector |
|
|
PIN interface |
12 PIN,the detailed interface definition is as follows |

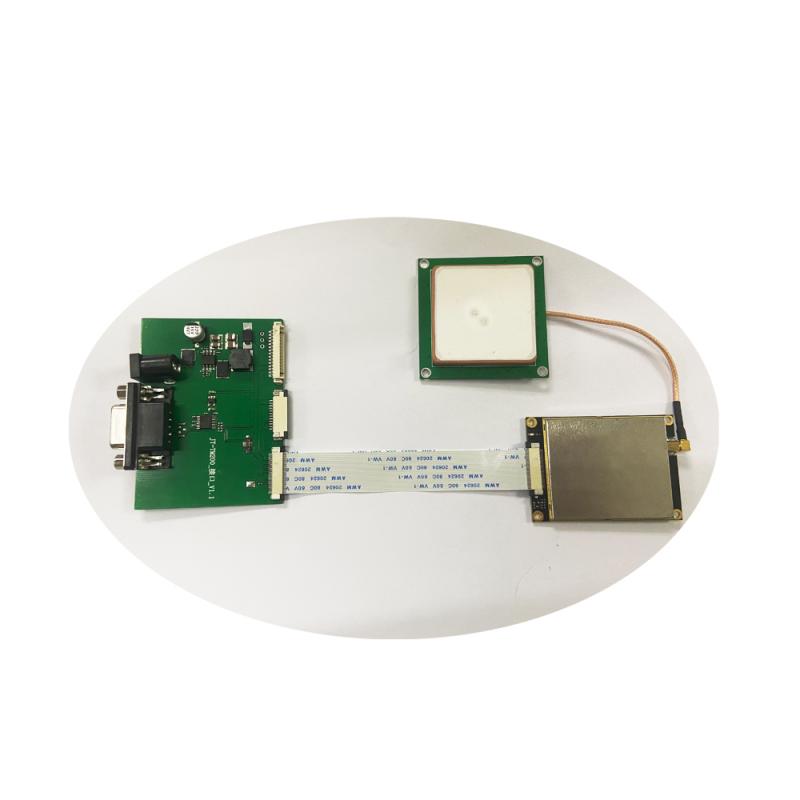

FPC 12pin interface
|
PIN |
Definition |
Instruction |
|
1 |
VDD_IN |
5.0 VDC |
|
2 |
VDD_IN |
5.0 VDC |
|
3 |
GND |
Power ground (signal ground) |
|
4 |
GND |
Power ground (signal ground) |
|
5 |
/ |
/ |
|
6 |
GPIO3 |
MODULE_GPIO3 |
|
7 |
GPIO1 |
MODULE_GPIO1 |
|
8 |
GPIO2 |
MODULE_GPIO2 |
|
9 |
RXD |
MODULE_RXD |
|
10 |
TXD |
MODULE_TXD |
|
11 |
MCU_RSTN |
MODULE MUC_RSTN |
|
12 |
/ |
/ |
