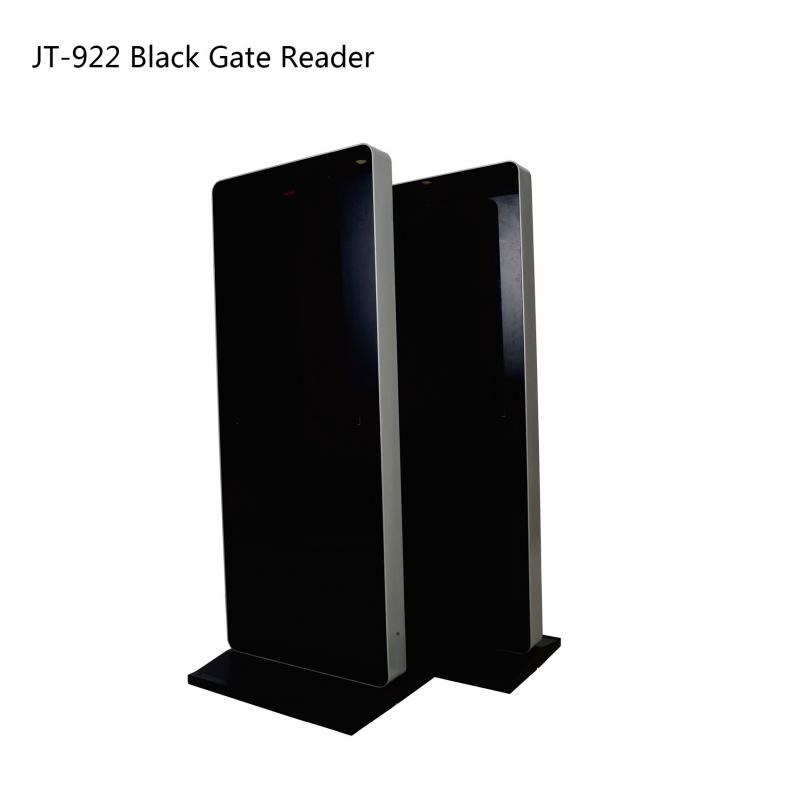

RFID Gate reader JT-922 is high performance UHF gate device, support EPC Gen2 ISO18000-6C protocol, has RS232, RJ45 communication interface. It is widely used in access control, attendance environment.
Brand:
JTSPEEDWORKItem NO.:
JT-922Product Origin:
ChinaColor:
BlackLead Time：
Within 3-7 DaysFeature:
|
Item No. |
JT-922 |
|
Performance parameters |
|
|
Working Frequency |
902~928 MHz or 865~868MHz |
|
Protocol |
ISO18000-6C(EPC C1 GEN2) |
|
Chip |
Impinj R2000 |
|
RF |
0～30dBm(Adjustable) |
|
Software & SDK |
DEMO and C#, VC, Java |
|
Communication port |
RS232,TCP/IP OR RS232,WIFI |
|
Reading range |
3M(Depends on antenna gain, tag & environment) |
|
Storage space |
1M or 8M Flash save without power supply(Customized) |
|
Real-time clock |
without power supply, real-time clock save and working(customized) |
|
Frequency modulation |
hopping or fixed frequency |
|
RSSI |
RSSI numerical test |
|
Antenna gain |
12dBi circular polarization |
|
Working way |
Buzzer & Red flashing |
|
Power |
12V/3A Adaptor |
|
Physical parameters: |
|
|
Item size |
Height:1500mm,Screen:1450x600x90mm,Base:600x400x50mm |
|
Net weight |
38KG(Single gate) |
|
Shell material |
Aluminum Alloy |
|
Working temperature |
-20℃~+65℃ |
|
Storage temperature |
-45℃~+95℃ |
