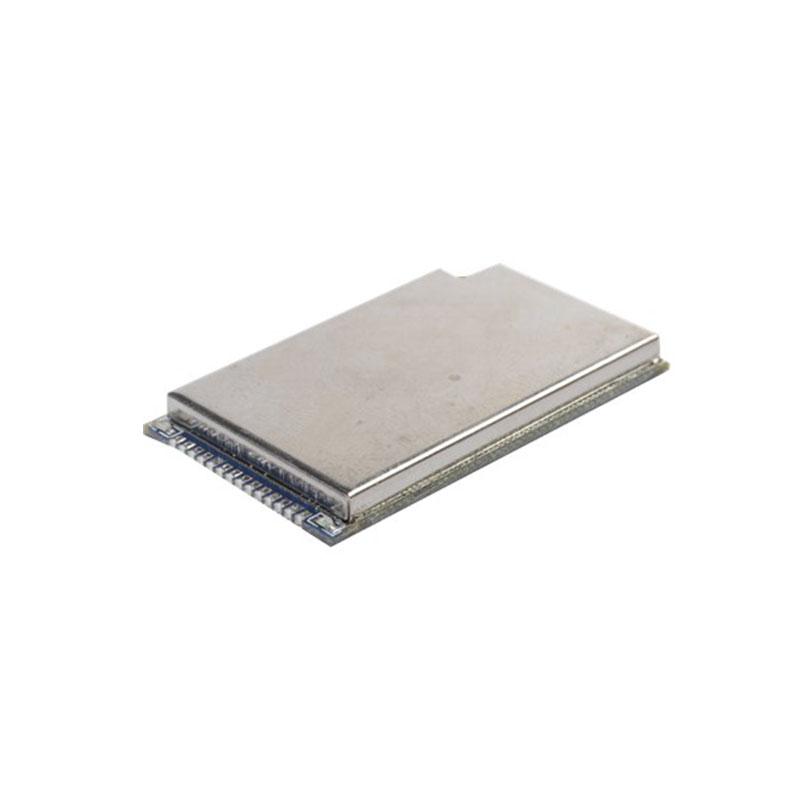

JT2850B is a low Power Single Tag RFID module ( 80CM reading distance ) small size,Support ISO18000-6C Gen 2 protocol,Low power output, less than 0.5W
Brand:
JTSPEEDWORKItem NO.:
JT2850BPayment:
100% TT In AdvancProduct Origin:
ChinaLead Time:
Within 3-7 DaysFeature:
◆Working voltage range DC 5V/1A;
◆Low power output, less than 0.5W;
◆Can support two-way UART communication: one for RS485, other for RS232 communication;
◆Can built-in handheld device, PDA;
◆Using for Asset management, Staff management, etc.
Item No. |
JT-2850B |
Performance parameters |
|
Working Frequency |
902~928 MHz or 865~868MHz |
Protocol |
ISO18000-6C(EPC C1 GEN2) |
Communication port |
Two-way UART communication, one-way RS485 output, one-way RS232 output |
Software & SDK |
DEMO and C#, VC, VB, Java, DELPH, etc., |
RF power |
17~20dBm |
Operating power |
+3.6V~+5.5V |
Operating Current |
Peak current 200mA |
Reading range |
Stable writing 80~100cm(With 40x40 Ceramic Antenna) |
Physical parameters: |
|
Item size |
41.5x25x3mm |
Antenna port |
IPEX |
Working temperature |
-20℃~+65℃ |
Storage temperature |
-45℃~+95℃ |
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
