UHF RFID reader module
0-100CM ISO18000 6C Small Size UHF RFID Module for PDA 41x25MM
  • Product Origin:

    China
  • Brand:

    SPEEDWORK
  • Item No.:

    JT-2850
  • Shipping Port:

    Shenzhen
  • Lead Time:

    3 working days
  • Payment:

    100% TT in advance
Inquiry
  • Product Details

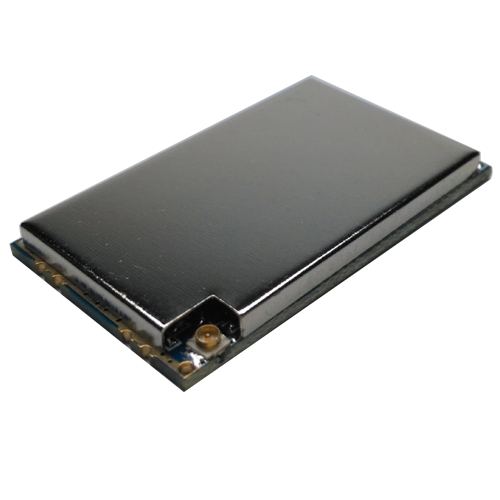

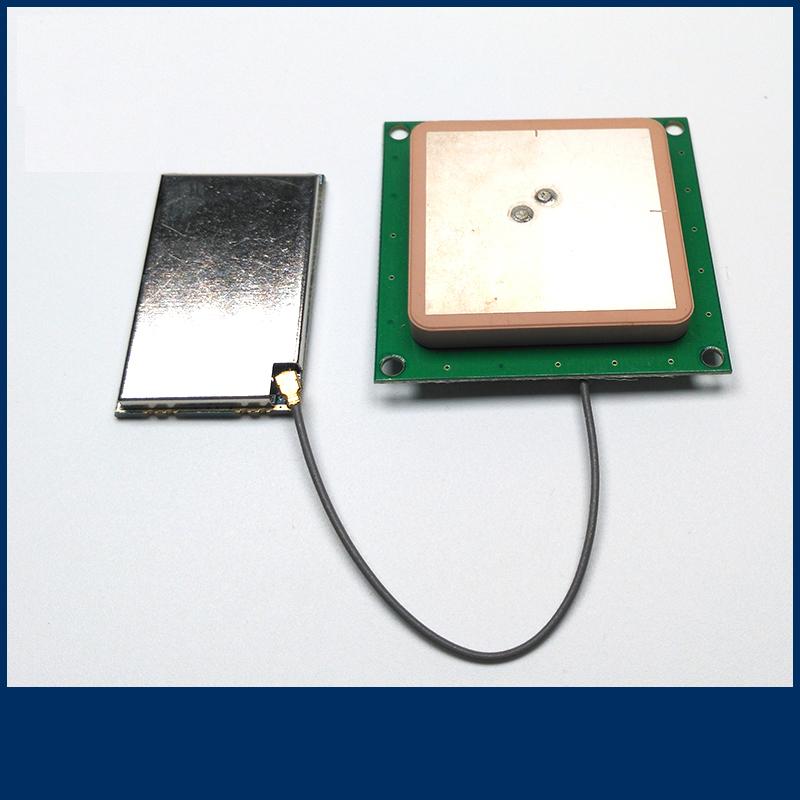

JT-2850 It is a small, ultra-low power, read/write module that supports the ISO 18000-6C protocol. It is compatible with a 40x40mm ceramic antenna and can read ordinary white cards. The measured value can reach 60~80cm.

It can be easily embedded into handheld terminals such as tablets and PDAs to realize the RFID expansion function of such devices, and is widely used in other fields such as logistics management, product quality inspection, personnel management and so on.

For distance: pls check our video: https://www.youtube.com/watch?v=0asVXPYLlQ4


Feature:

◆Working voltage range DC 5V/1A;

◆Low power output, less than 0.5W;

◆Can support two-way UART communication: one for RS485, other for RS232 communication;

◆Can built-in handheld device, PDA;

◆Using for Asset management, Staff management, etc.


Specification:

Item No.

JT-2850

Performance parameters


Working Frequency

902~928 MHz or 865~868MHz

Protocol

ISO18000-6C(EPC C1 GEN2)

Communication port

Two-way UART communication, one-way RS485 output, one-way RS232 output

Software & SDK

DEMO and C#, VC, VB, Java, DELPH, etc.,

RF power

17~20dBm

Operating power

+3.6V~+5.5V

Operating Current

Peak current 200mA

Reading range

Stable writing 80~100cm(With 40x40 Ceramic Antenna)

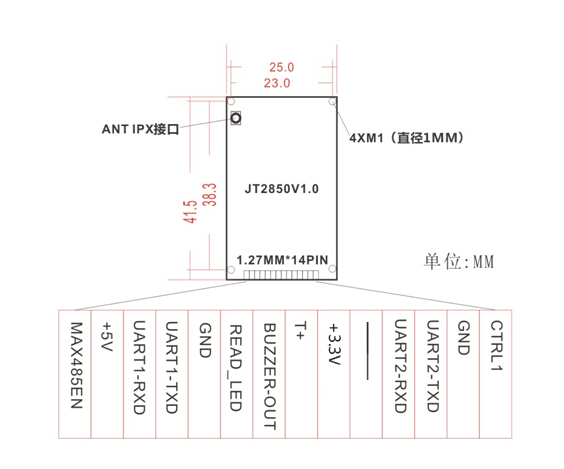

Physical parameters:


Item size

41.5x25x3mm

Antenna port

IPEX

Working temperature

-20℃~+65℃

Storage temperature

-45℃~+95℃
