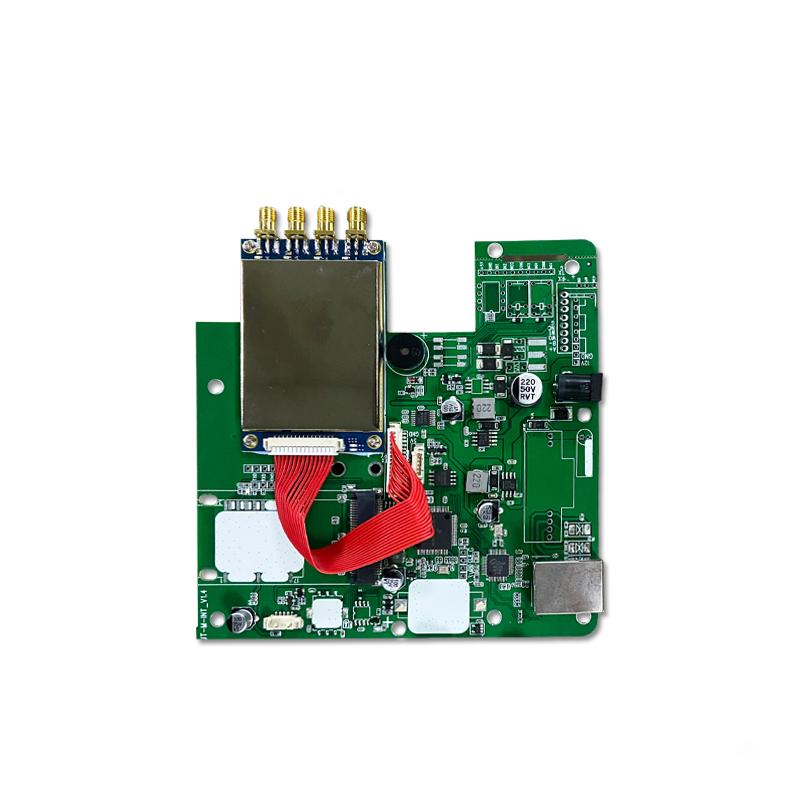

TM200 UHF RFID reader module , as a high efficiency and low cost,reading/writing module, has independent intellectual property rights.It works under the frequency from 860MHz-868MHz or 902MHz-928MHz. With 8dBi antenna,reading range can be reached 10m or longer. It is easy and fast to build an RFID system with simple power supply and interface.
Brand:
JTSPEEDWORKItem NO.:
JT-M2550Product Origin:
ChinaLead Time：
3 working daysFeature:
◆Support ISO18000-6C Gen 2 protocol;
◆Stable reading to 25m(with external 12dbi antenna, Alien H3 9662 tag)
◆Excellent ability of reading and writing, better to prevent collision;
◆Support multiple frequency standard
◆Good heat dissipation effect to ensure the stability of equipment
Up to 25m（with 12dBi antenna & JT-I9662 tag）
Item No.
JT-2540
Physical Parameters
Antenna
Module size
140*130*15.3mm
Antenna Ports
Weight
73g
4 SMA-K conntectors
Material
PCBA board
Power Supply
Input Voltage
DC 9V~24V
RFID Parameters
Power Consumption
6.36W(@max RF power 33dBm)
Air Protocol
EPC global Gen2(ISO18000-6C)
User Environment
RF Chip
Operating Temp.
-20 ℃ to 70 ℃
TM200
Storage Temp.
-30 ℃ to 80 ℃
Working frequency
Humidity
5% - 95% RH
865-868 / 920-925 / 902-928 MHz ( custom-design for frequency band )
RF power
Reading Performance
0~33 dBm(±1dBm) (adjustable)
Reading rate
Work mode
>700 times/sec
Fixed / hop frequency
Reading distance
Tag RSSI
Supported
SDK(download link)
Antenna Detector
C# , Java , C++
Supported
Comm Interface
RS232,RJ45
Baud Rate
115200bps
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
