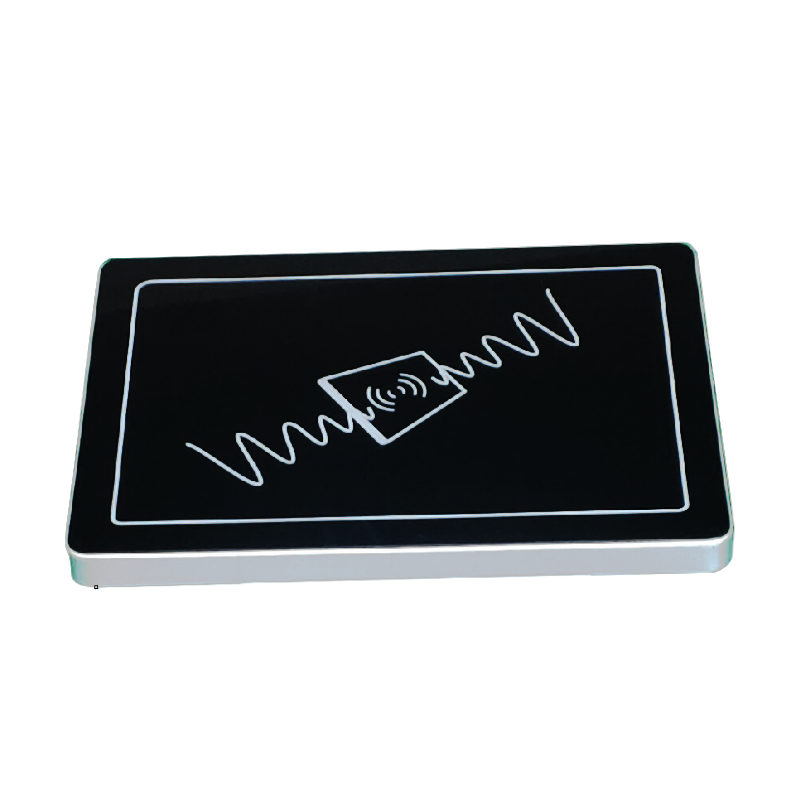

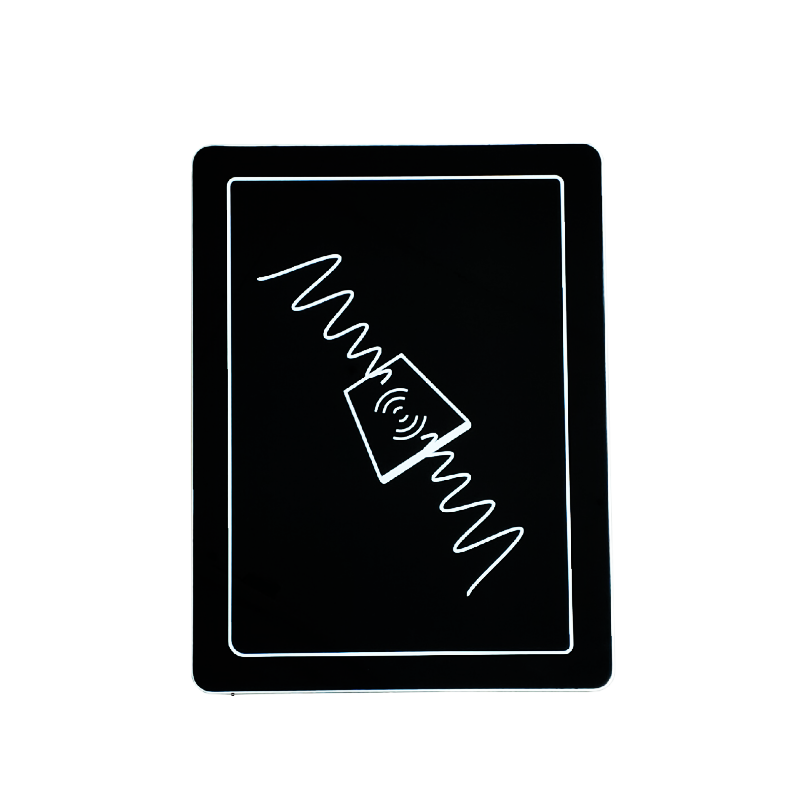

ISO15693 RFID/NFC Desktop Reader Library Reader

ISO15693 RFID/NFC Desktop Reader Library Reader


  • Brand:

    SPEEDWORK
  • Item NO.:

    JT-6250
  • Product Origin:

    China
  • Lead Time:

    Within 3-7 Days
product details

Specification

Independent intellectual property design;

High stability, 60 × 24 hours high temperature copy machine, uninterrupted and stable operation;

Support RJ45, RS232 and other communication modes;

Support iso18000-6c (EPC C1 Gen2) protocol electronic tags;

Adjustable RF output power;

Advanced tag collision processing algorithm, high reading rate;

The integrated RF chip makes the performance of the module more stable and more suitable for the harsh application environment with high requirements;

Excellent anti-interference performance and circuit lightning protection design;

Adopt standard API interface, provide demo and source code, support development routines such as C #, Java, VC, VB, etc

Easy to integrate with RFID software;

Suitable for application: Book / file management, jewelry inventory, drug management, store counter settlement, electronic dinner plate settlement

And so on.



Physical Parameters:

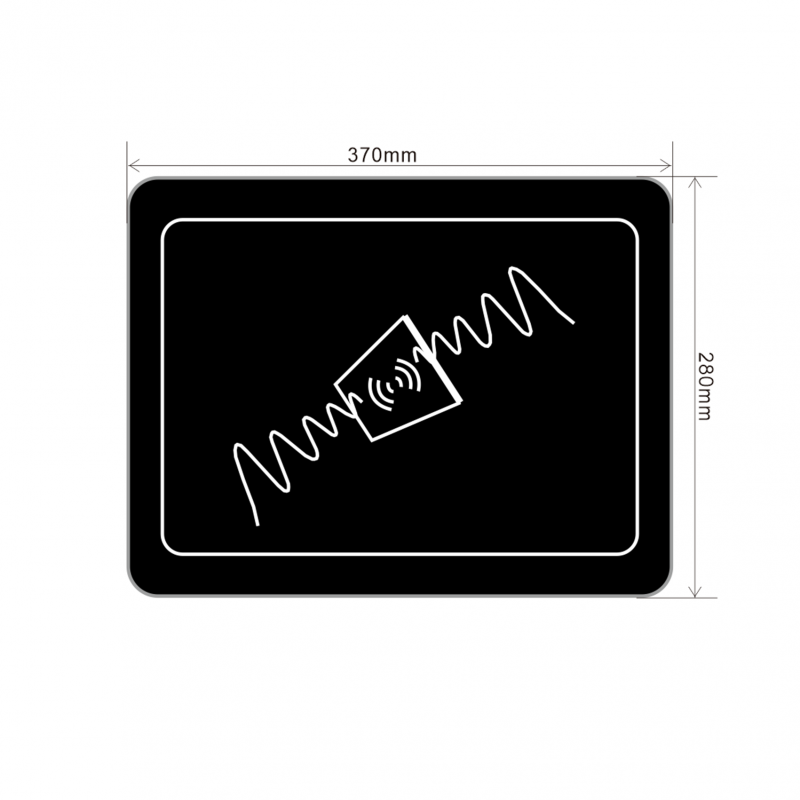

Size

 370X280X24mm

Weight

3kg

Material

ABS+metal

Antenna

Built-in

Performance parameters:

Working frequency

13.56Mhz

Supporting protocol

ISO15693

Material

Metal+ABS

Reading range

0 - 100cm

Writing range

0 - 10cm

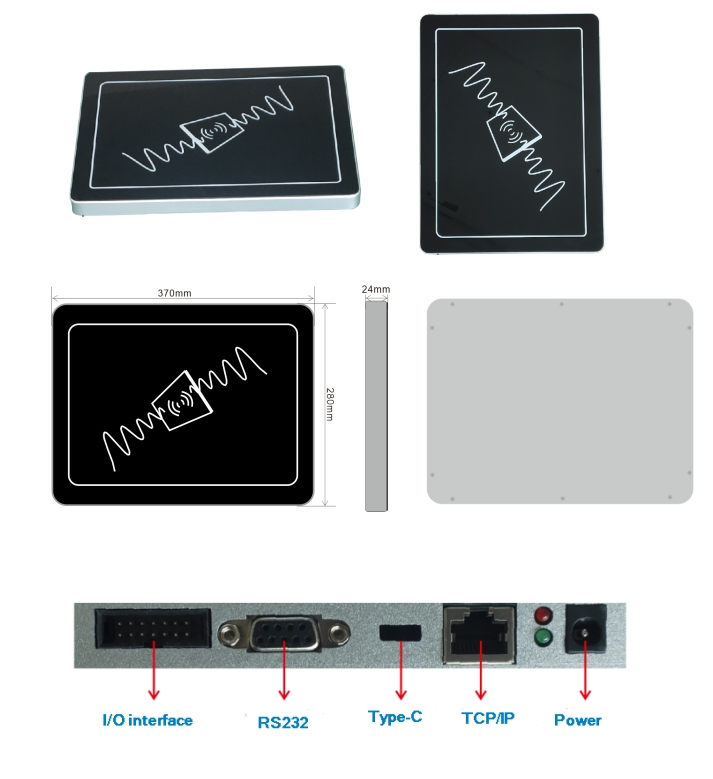

Communication interface

RS232,TCP/IP , Type C

Power supplier

12VDC / 3A

I/O

One trigger input or two relay outputs (customized)

Environment Parameters:

Working temperature

 - 20  ℃ - 55℃

Store temperature

- 20  ℃ - 55℃


RFID/NFC Desktop Reader Library Reader
