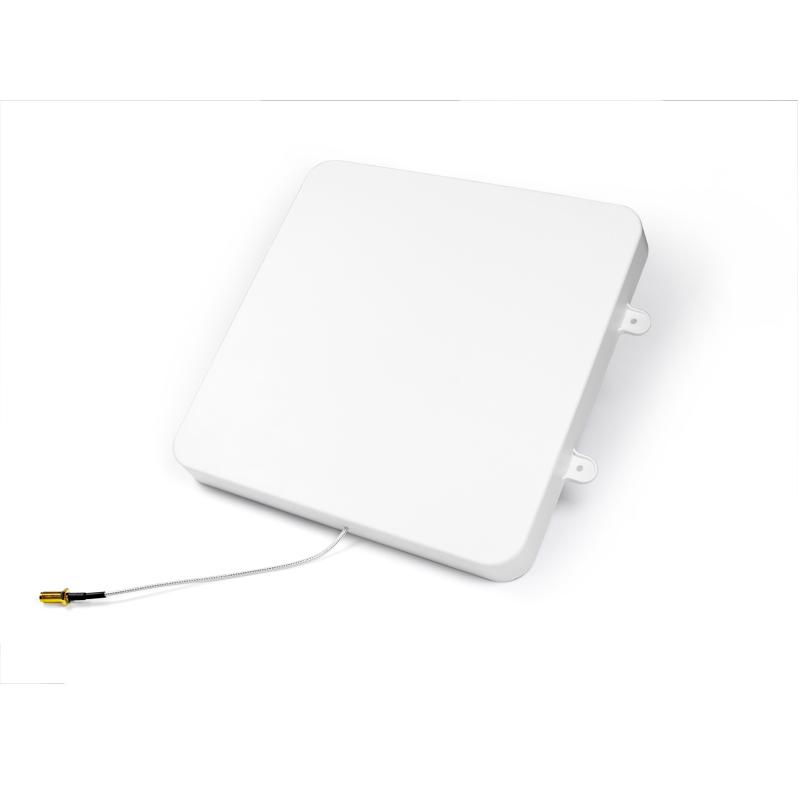

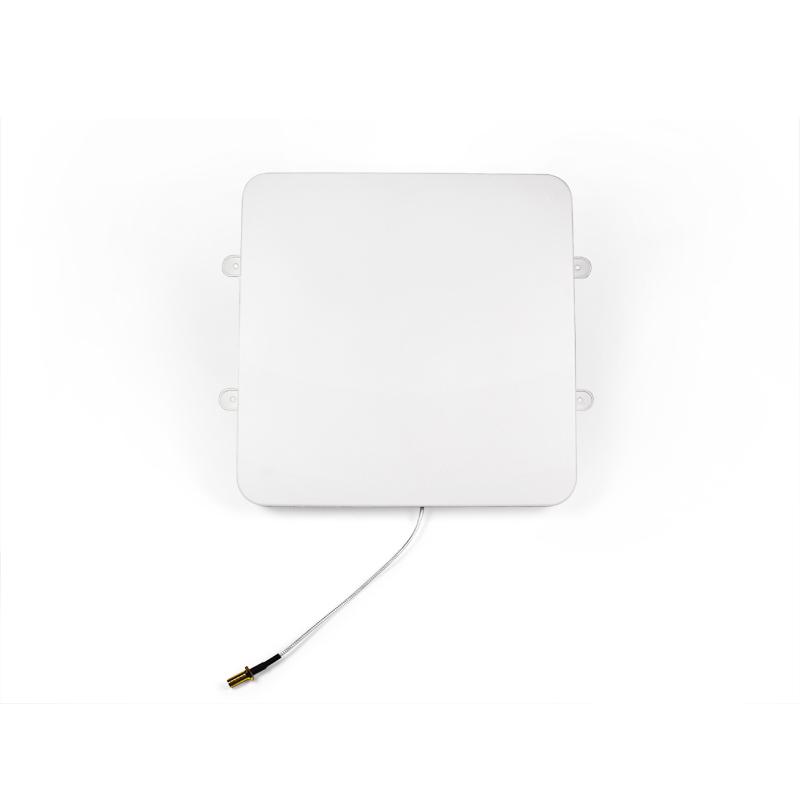

JT-T0220 new retail dedicated circularly polarized antenna (220) is a new retail antenna designed for unmanned retail and smart container applications. It has small size, thin thickness, high gain, wide wave speed, low standing wave and low axial ratio. Features. Can be easily applied to RFID applications in UHF bands such as warehousing, logistics, assets, unmanned retail, and intelligent containers.
Brand:
JTSPEEDWORKItem NO.:
JT-T0220Product Origin:
shenzhenLead Time：
3-5 days

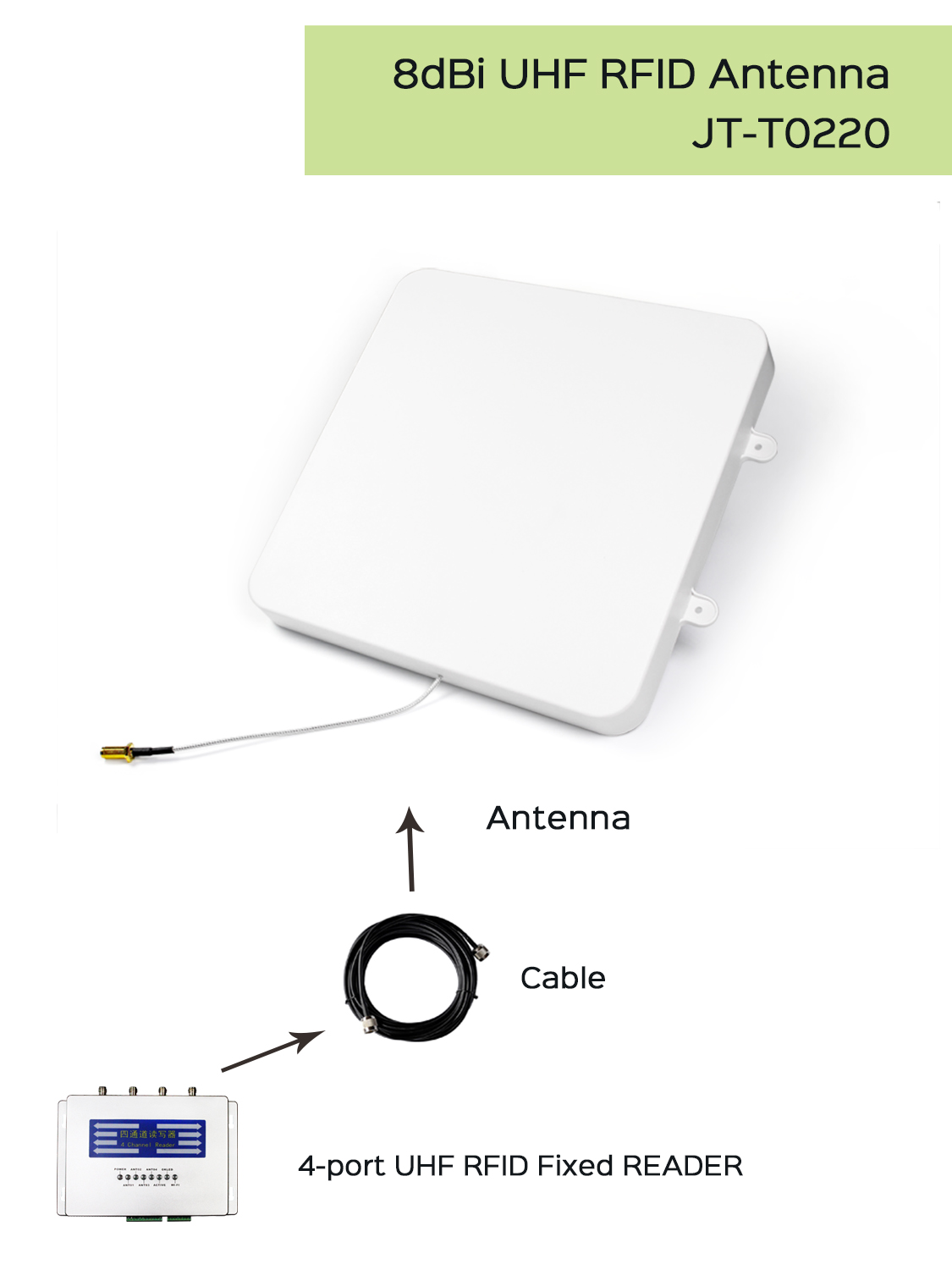

JT-T0220 is a high-performance, worldwide, circular-polarized antenna for use in demanding application. It can be used with all fixed Gen2 readers on the market. Application environments include warehouses, distribution centers, airports and hospitals, transit terminals, and conveyor belts.
|
Frequency(MHz) |
902MHz～928MHz or 865-868Mhz |
|
Polarization |
Circular |
|
Again(dBi) |
＞8dBi |
|
axial ratio(dB) |
＜3dB |
|
HSideHPBW |
68°C |
|
ESideHPBW |
68°C |
|
input resistance(Ω) |
50Ω |
|
Voltage standing wave ratio(VSWR) |
≤1.3:1 |
|
Connector |
External thread female or Customized |
|
The position of connector |
side |
|
Size(mm) |
220mm×220mm×24mm |
|
weight |
450g |
|
Material |
ABS |
|
Color |
White |
|
IP grade |
IP67 |
|
Install |

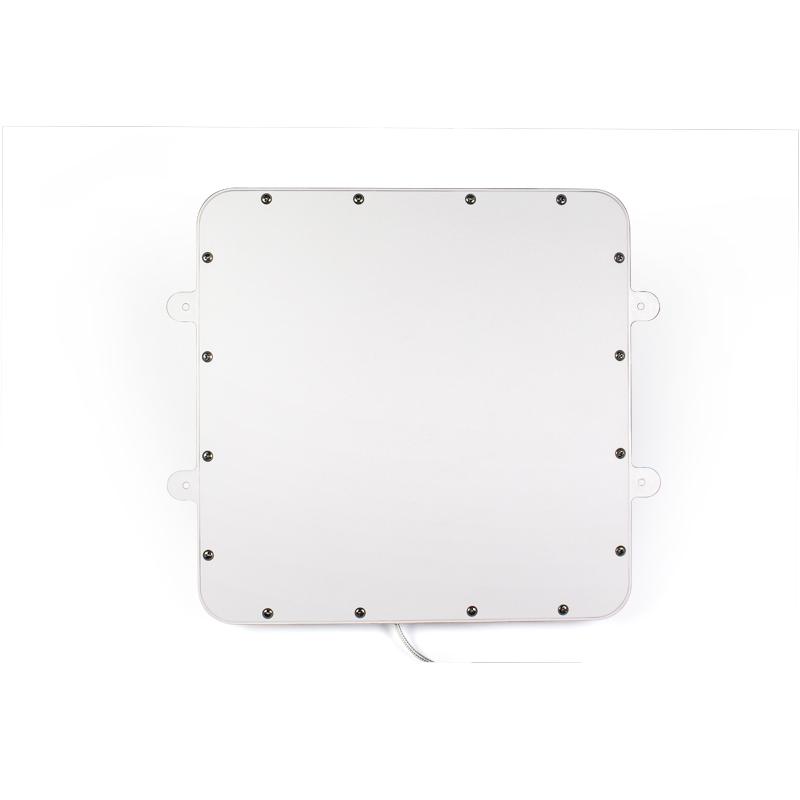

Two mounting holes on each side of the antenna (self-tapping) |
|
Temperature(°C) |
-40°C ～＋85°C |
1.Dark room measured antenna characteristic curve:
(1) Gain versus frequency curve
(2)Axis ratio versus frequency curve
(3) H-dimensional two-dimensional pattern (horizontal lobe pattern)
(4)E-dimensional two-dimensional pattern (vertical lobe pattern)
