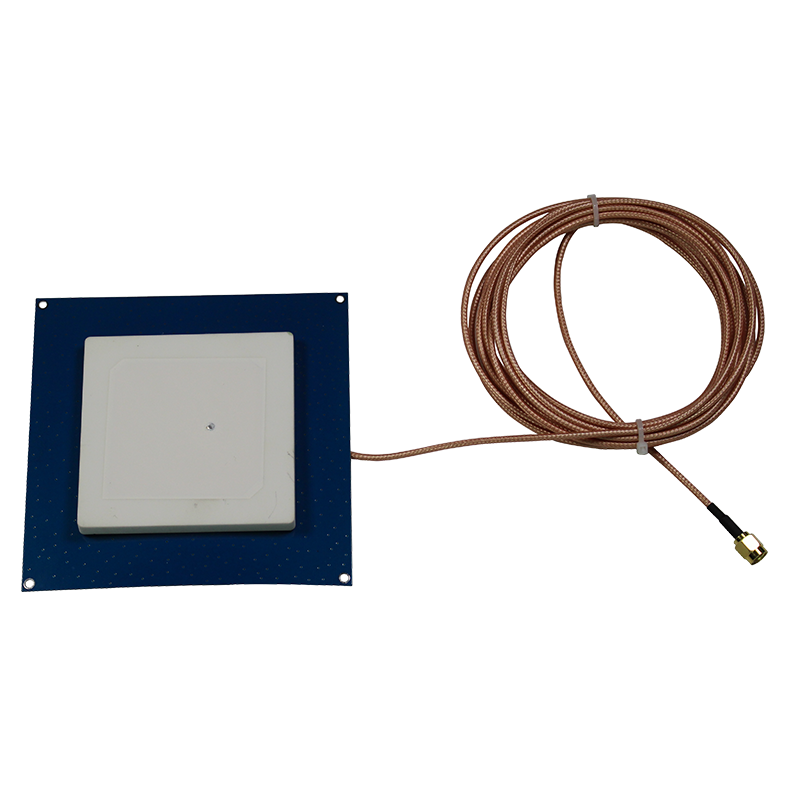

RFID Ceramic Antenna JT-T0080 is 5dBi ceramic antenna, small size, high sensitivity receive RFID antenna.Provide highly stabilized performance for Channel RFID reader
Brand:
JTSPEEDWORKItem NO.:
JT-T0080Order(MOQ):
1Product Origin:
ChinaLead Time：
3 working daysFeature:
◆Working frequency 865~868MHz/902~928MHz
◆RFIDceramic antenna
◆5dBi RHCP circular polarization
◆Small size,high sensitivity receive
◆Single feed RFID ceramic antenna
Specification:
| Performance parameters | |
| Working Frequency | 902~928 MHz or 865~868MHz |

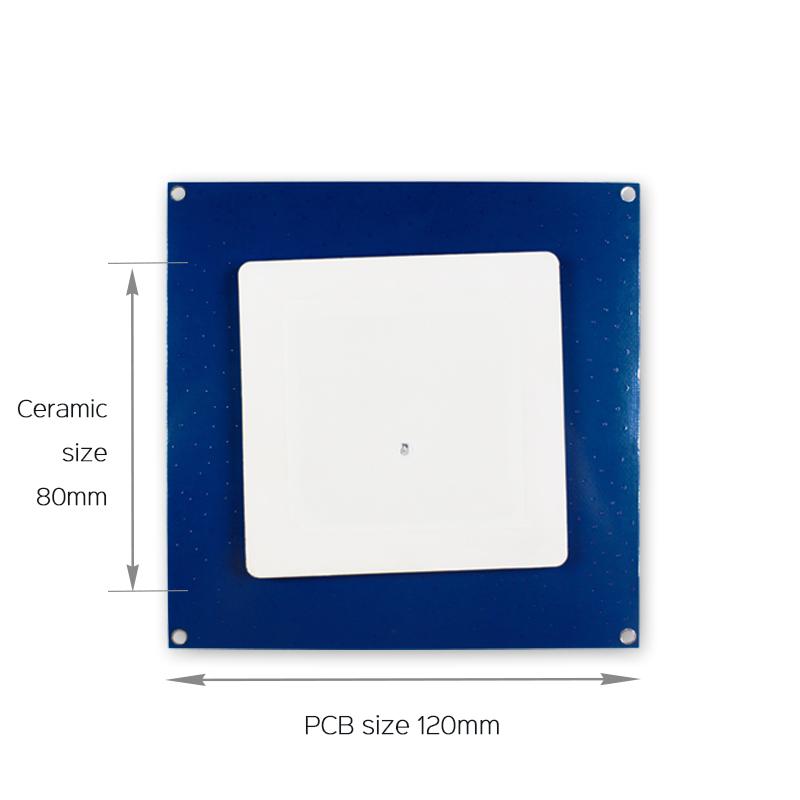

| Dimension | 80*80*4mm |
| Reflecting plate size | 120*120*1mm |
| Antenna gain | 5dBi |
| Polarization | RHCP Circular polarization |
| V.S.W.R | 1.5 |
| Impedance(Ω) | 50 |
| Connector | SMA、MMCX、TNC( customized) |
| working temperature | -30℃~+ 70℃ |
Previous:
4dBi UHF RFID Dual-feed Point Ceramic Antenna 860-960MHz JT-T0060Next:
0dBi UHF RFID Near Field Antenna 62*62mm 902-928MHz 865-868MHzIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
