RFID antenna JT-T130 is pleasing in appearance, environmental adaptability, easy installation.Used for terminals, parking lots, shopping malls, toll station,Warehouse management, inventory counting, meeting sign-in etc.
Brand:
JTSPEEDWORKItem NO.:
JT-T0130Working frequency:
860-960MHzProtocol:
ISO18000-6C
|
Model |
JT-T0130 |
|
Performance parameters: |
|
|
Working Frequency |
902~928 MHz or 865~868MHz |
|
Antenna gain |
5.5dBi |
|
Polarization |
Circular polarization |
|

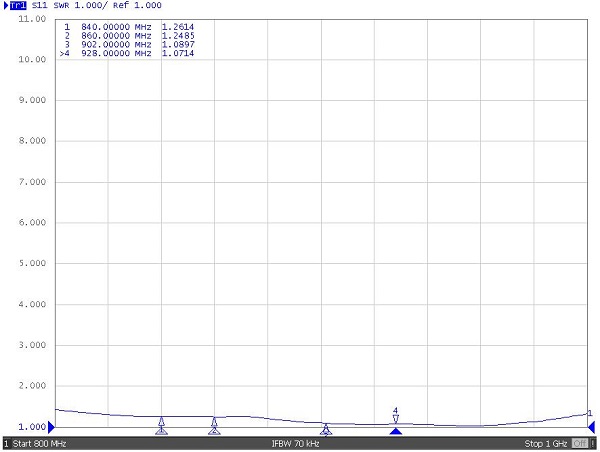

VSWR |
≤1.3 |
|

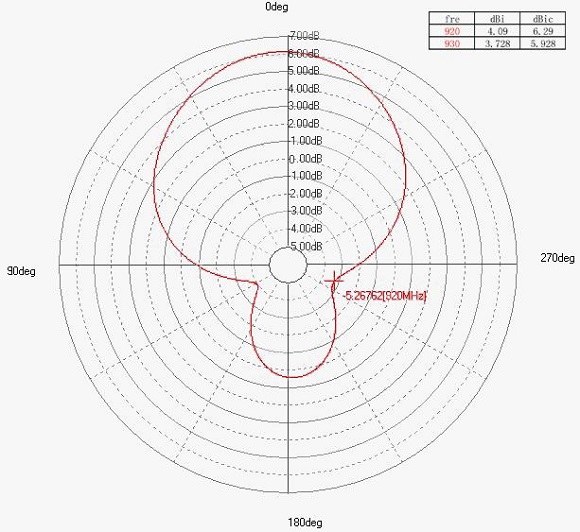

Beam Width H-Plane(°) |
70° |
|
Beam Width E-Plane(°) |
70° |
|
Impedance(Ω) |
50 |
|
Connector |
SMA Outer female connector |
|
Physical parameters: |
|
|
size |
128x128x38mm |
|
Package size |
180x180x50mm |
|
Net weight |
2Kg |
|
Material |
Aluminum |
|
Radome color |
White |
|
Radome material |
ABS |
|
Working temperature |
-40℃~+85℃ |
|
Storage temperature |
-45℃~+95℃ |
|
Protection class |
IP67 |
