Ceramic antenna JT-605 is 3dBi ceramic antenna, small size, high sensitivity receive rfid antenna.
Do you need help choosing the right RFID antenna for your project? We are happy to assist! Please contact us.
Brand:
JTSPEEDWORKItem NO.:
JT-605Product Origin:
ChinaLead Time:
3 working daysFeature:
◆Working frequency 902~928Mhz
◆RFID ceramic antenna

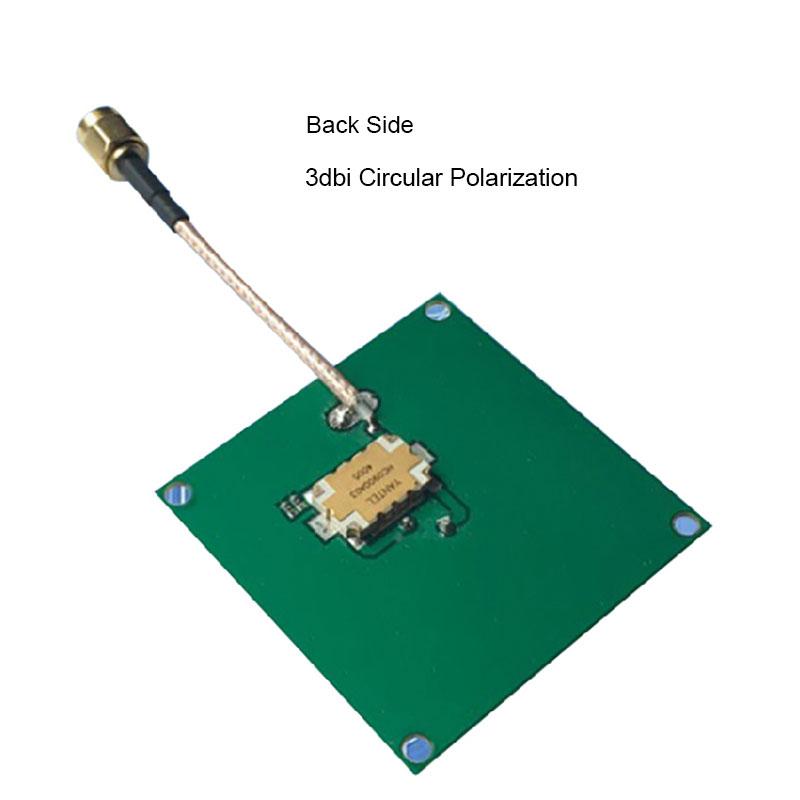

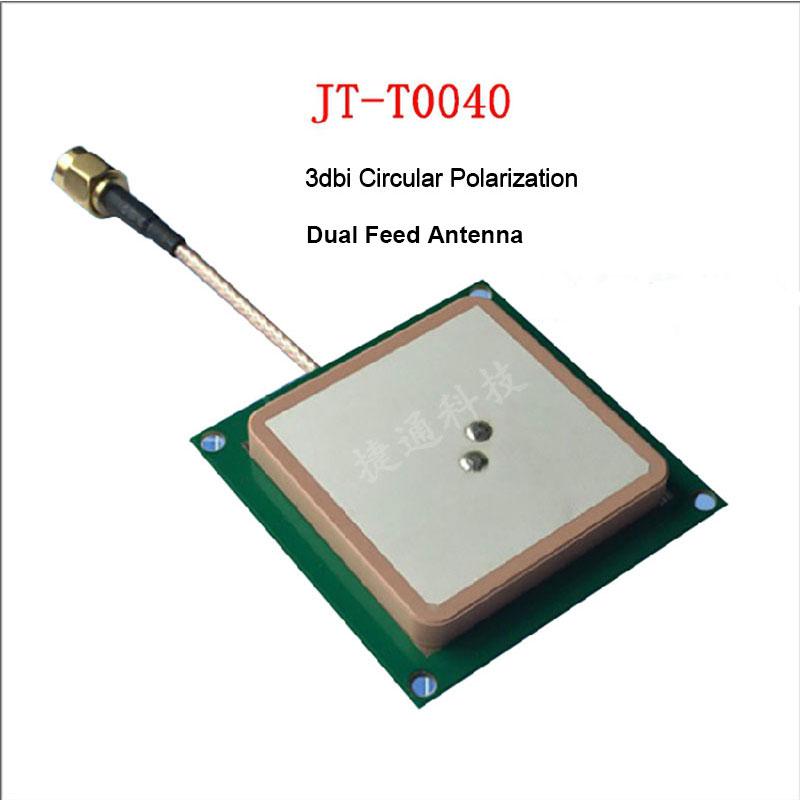

◆3dBi RHCP circular polarization
◆Size 40*40mm
◆It is widely embedded in PDA
Specification:
PERFORMANCE PARAMETERS: | |
Working Frequency | 920~925MHz |
Dimension | 40x40x4mm |
Reflecting plate size | 50x50x1mm |
Net weight | 50g |
Antenna gain | 3dBi |
Polarization | RHCP Circular polarization |

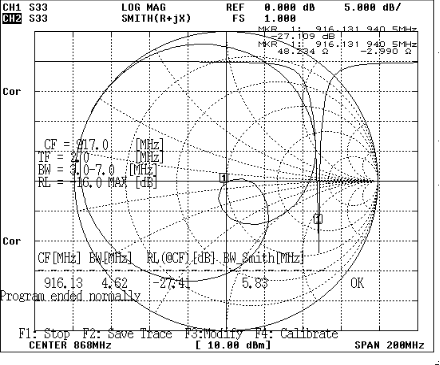

V.S.W.R | 1.5 |
Impedance(Ω) | 50 |
working temperature | -30℃~+ 70℃ |

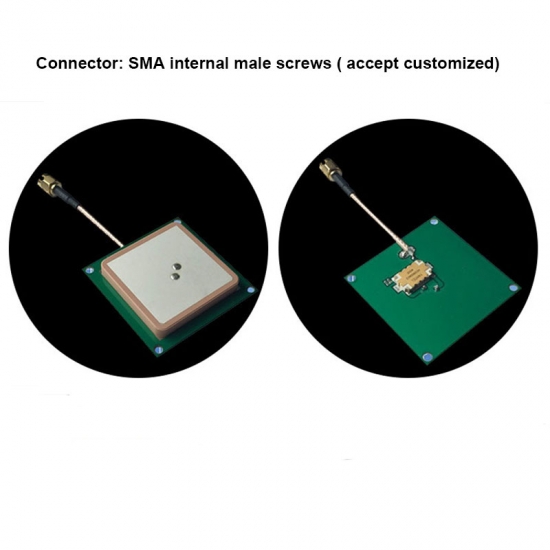

Connector | SMA internal male screws(accept customized) |
