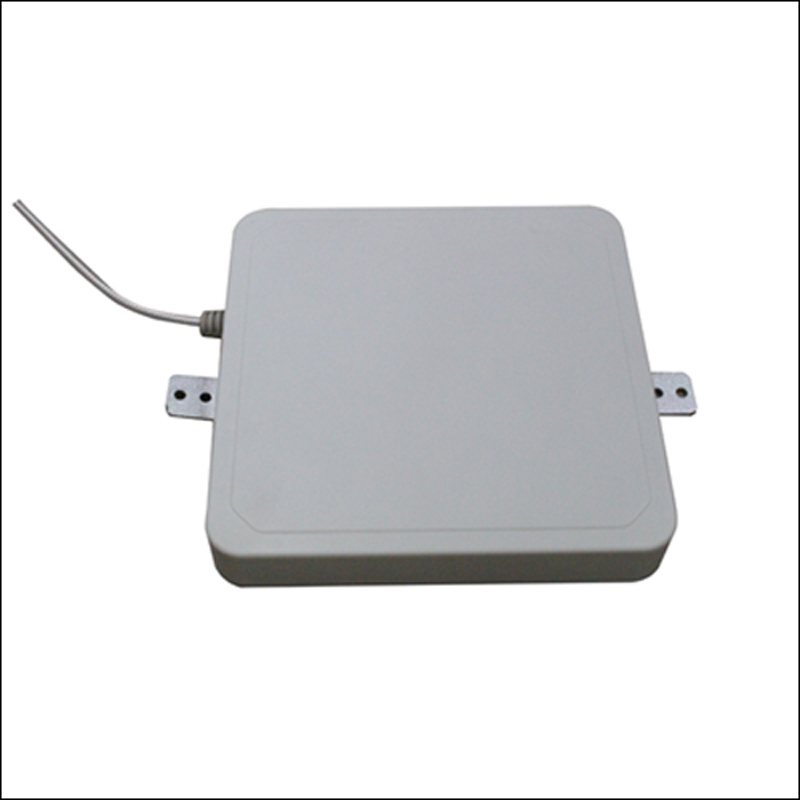

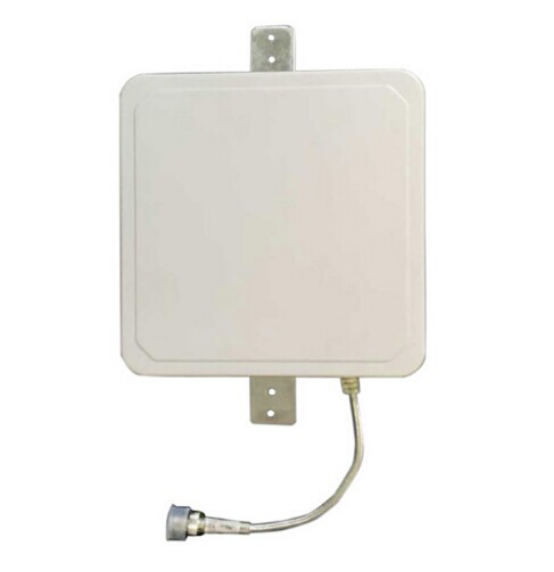

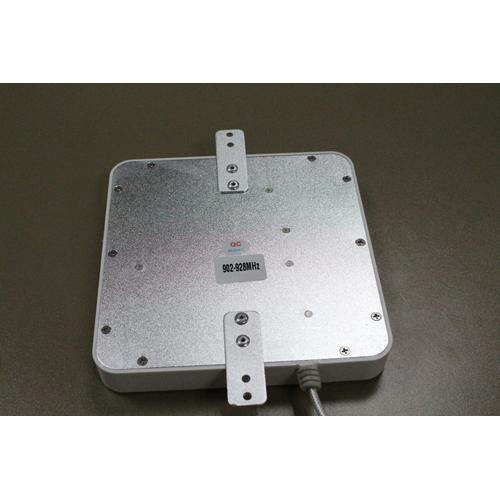

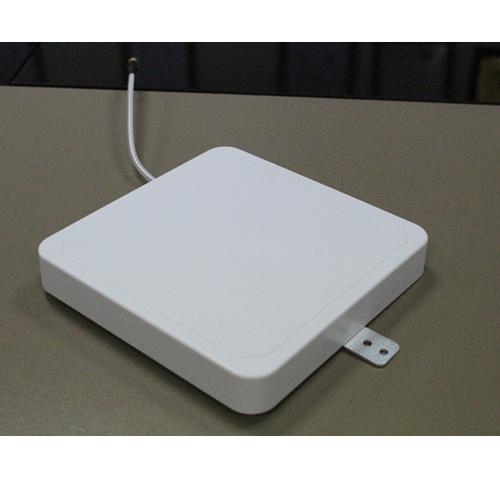

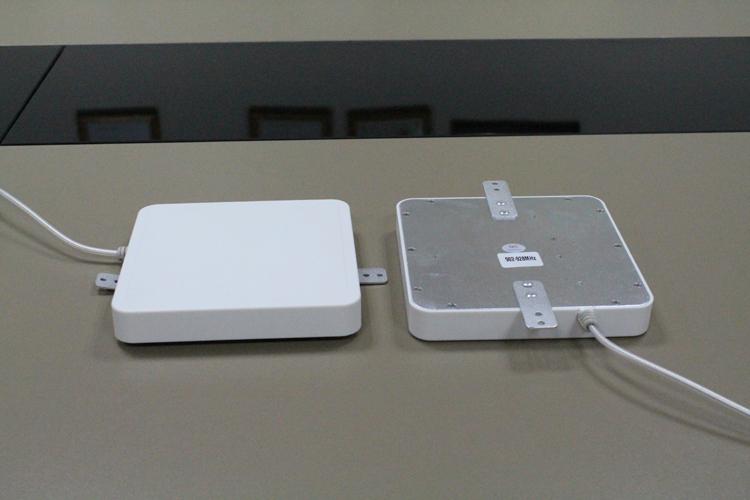

JT-629B is a Panel RFID antenna: mainly for smart library,shelf ,warehouse , Door control system ,Logistic & supply chain asset management etc.and options for indoor or outdoor use.
Do you need help choosing the right RFID antenna for your project? We are happy to assist! Please contact us.
Brand:
JTSPEEDWORKItem NO.:
JT-629BProduct Origin:
Shenzhen ChinaLead Time：
3 working days
|
Electrical Specifications |
|
|
Type |
JT-629 |
|
Frequency |
902-928MHZ 865-868MHZ |
|
Gain |
4dBi |
|

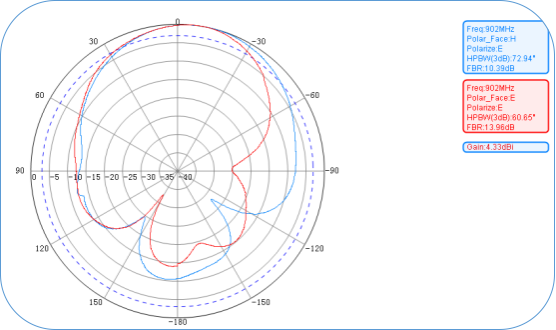

Beam width |
Hor：60° Ver：60° |
|
Polarization |
Circular |
|
VSWR |
≤1.4 |
|
F/B Ratio |
≥20 |
|
Impedance |
50Ω |
|
Maximum power |
50W |
|
Lightning protection |
DC Ground |
|
Connector |
N-Female |
|
Mechanical Specifications |
|
|
Dimension |
165*165*20mm |
|
Net weight |
0.30kg |
|
Packing size |
25*6*19cm |
|
Gross weight |
1.35kg |
|
Radome material |
ABS |
|
Radome colour |
White |
|
Operating temperature |
-40-70℃ |
Protect your JTSPEEDWORK devices for constant peak performance with these recommended maintenance plans. Device uptime, confidence, and savings — that's what you get with JTSPEEDWORK maintenance plans. You protect business-critical devices and eliminate disruptions and unplanned repair expenses.
Previous:
UHF RFID 5dBi AntennaNext:
UHF RFID 12dBi AntennaIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
