RFID Technology in Smart Parking Systems

1. Technical Principles

RFID (Radio Frequency Identification) parking systems utilize wireless radio frequency identification to enable non-contact data communication via electromagnetic fields. The core workflow includes:

1. Tag Identification: Each vehicle is equipped with a passive/active RFID tag containing a unique EPC (Electronic Product Code) code.

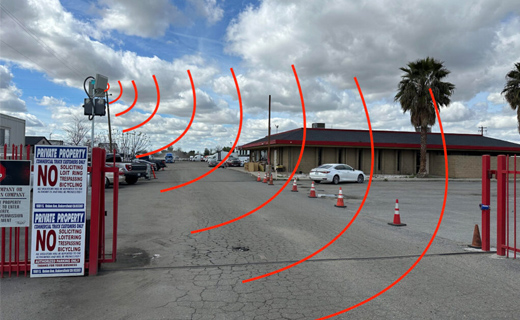

2. RF Interaction: RFID readers at entry/exit points emit electromagnetic waves (e.g., 860–960 MHz UHF band) to power and activate the tags.
3. Data Transmission: Tags backscatter modulated signals to transmit vehicle ID data, achieving a read range of 3–12 meters.
4. Dynamic Verification: The backend system validates permissions in real-time against a database and triggers gate control signals.

2. Hardware Architecture

    2.1 Core Components

    2.2 Auxiliary Devices

•


  Infrared vehicle separators: Prevent tailgating. LED displays: Show parking availability/payment info. EMI shielding modules: Mitigate metal interference.




• 3. Software Framework

     3.1 Middleware Platform

Multi-protocol support: Compatible with ISO 18000-6C, EPCglobal standards.
Data filtering: Sliding window algorithm eliminates duplicate reads.
Event logging: Flags anomalies (e.g., unauthorized access).

•     3.2 Management System

• Dynamic billing: Supports time-based, subscription, and pay-per-use models.
  Parking guidance: Real-time slot updates via LoRaWAN/IoT networks.
  Analytics dashboard: Tracks occupancy rates, turnover efficiency, etc.

      3.3 Security Protocols

• AES-128 encrypted communication.
  Dual authentication (RFID + license plate recognition).
  Real-time blacklist/whitelist updates.

•


• 4. Advantages

1.

2. 1.Operational Efficiency         Throughput: ≤3 seconds per vehicle (4x faster than manual systems).         Supports hands-free access at speeds up to 60 km/h.     2.Management Enhancements Automated recognition of registered vehicles. Granular traffic analytics for peak-hour optimization.     3.Cost Savings Reduces labor costs by >60%. Hardware durability: 10-year lifespan (tags support 100,000 rewrites).




5. Challenges and Limitations

1.
2.     Physical Constraints

• Signal attenuation from metallic surfaces (requires tag placement optimization).
  Multipath interference causing blind zones (improved via phased-array antennas).

1.     Security Risks

   • Tag cloning vulnerabilities (mitigated by TID locking and dynamic encryption).
     DDoS attacks on readers (requires network traffic monitoring).

   •     Cost Considerations
   •         High initial deployment costs (e.g., 120,000–180,000 for a 500-slot system).

6. Use Cases

1.


2. Commercial complexes: VIP vehicle prioritization and guidance.
   Corporate campuses: Frictionless access for employees.
   Municipal parking: Integration with ETC (Electronic Toll Collection) systems.

3.


4. 7. Future Trends

1.

2.     5G + V2X integration: Enables centimeter-level vehicle positioning.

3.     Blockchain: Enhances data transparency for parking transactions.

4.     Energy-harvesting tags: Solar-powered RFID for eco-friendly operations.

5.


This article outlines how RFID technology achieves >98% accuracy in modern parking systems. With emerging hybrid solutions (e.g., RFID + Bluetooth Low Energy), the industry is advancing toward smarter, more resilient urban mobility ecosystems.
