RFID UHF Tire Patch Tag

The RFID tag has been developed to be embedded within the tire during the manufacturing process, where it will last the lifetime of the tire. It is designed to track finished tire, such as bus tire, truck tire, trailer tire, etc

  • Brand:

    JTSPEEDWORK
  • Item NO.:

    JT-9020-1
  • Order(MOQ):

    1
  • Payment:

    100% TT in advance
  • Product Origin:

    China
  • Shipping Port:

    ShenZhen
  • Lead Time:

    5 days
product details

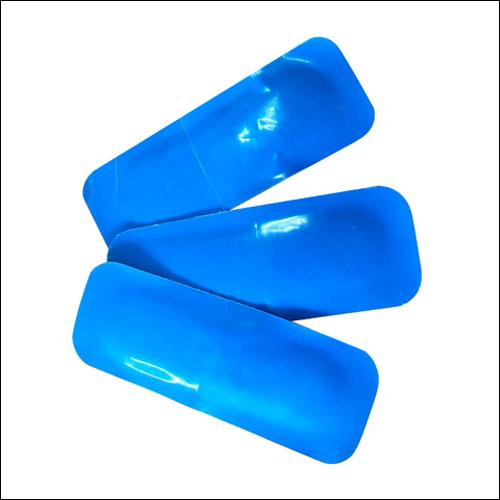

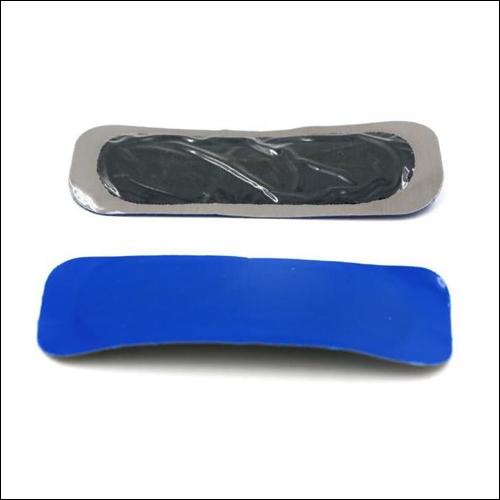

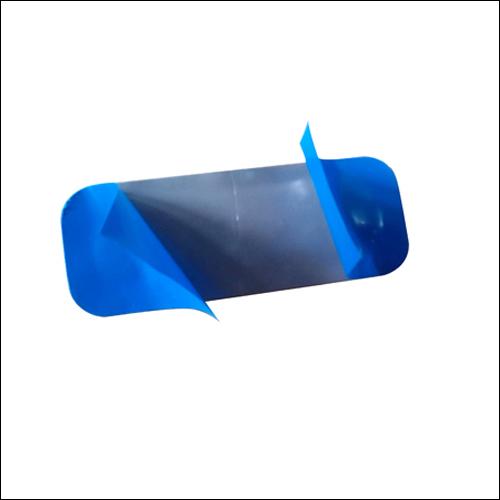

RFID UHF Tire Patch Tag (for installing inside of tire)

Description:

The RFID tag has been developed to be embedded within the tire during the manufacturing process, where it will last the lifetime of the tire. It is designed to track finished tire, such as bus tire, truck tire, trailer tire, etc

The tag provides a unique identification number which can be tracked to prevent tire theft and cloning, in addition to the conventional asset tracking benefits inherent to RFID.


Features:

Physical Features:

Model

JT-9020-1

Name

UHF Tire Patch Tag

Material

Rubber

Dimensions

95*35*2mm

Working Temp

-40℃~+230℃

Storage Temp

-40℃~+230℃

RFID Features:

RFID Standard

EPC C1G2 (ISO18000-6C)

Frequency

860~960MHz

Chip Type

Alien Higgs-3

EPC Memory

96 bits to 480 bits

User Memory

512 bits

Read Range

902-928 MHz

0.5-2.0m

865-868 MHz

0.5-2.0m

Other Features:

Data Storage

> 10 years

Re-write

100,000 times

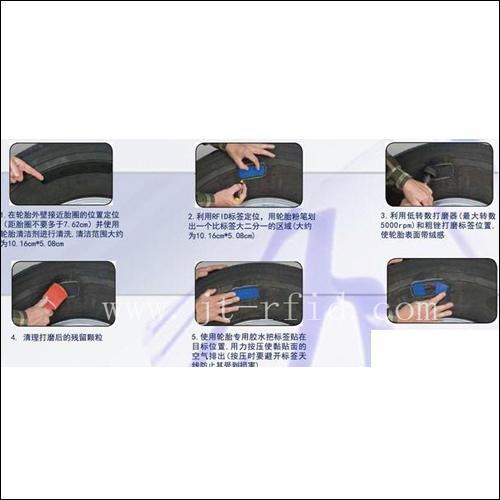

Installation

Stick by vulcanizing agent (the same as tire repair)



Application

· Bus tire tracking,

· Truck tire tracking,

· Automobile factory tire control,

· Logistics vehicle Management,etc
