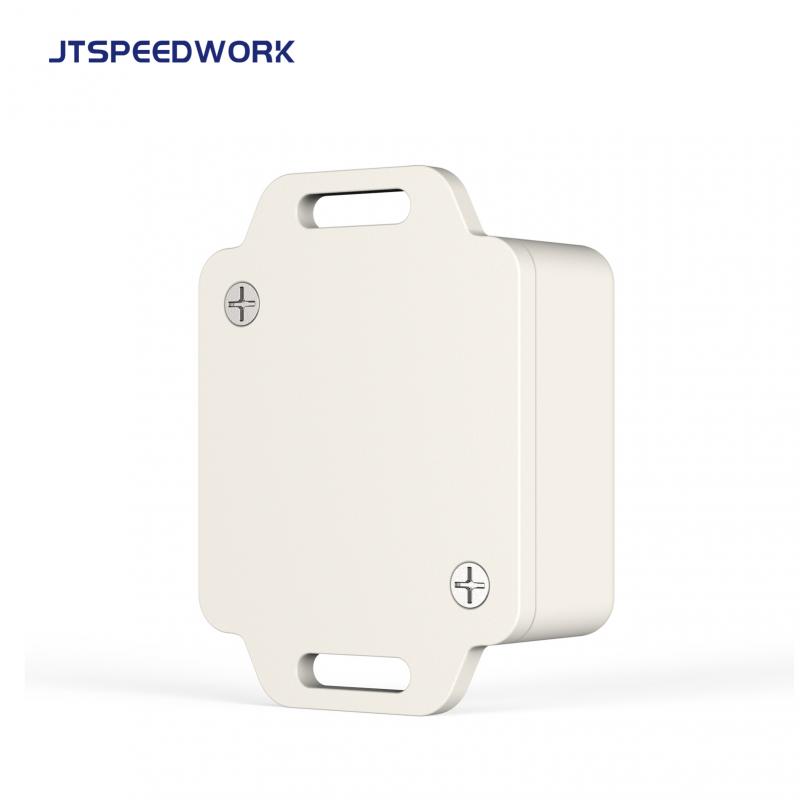

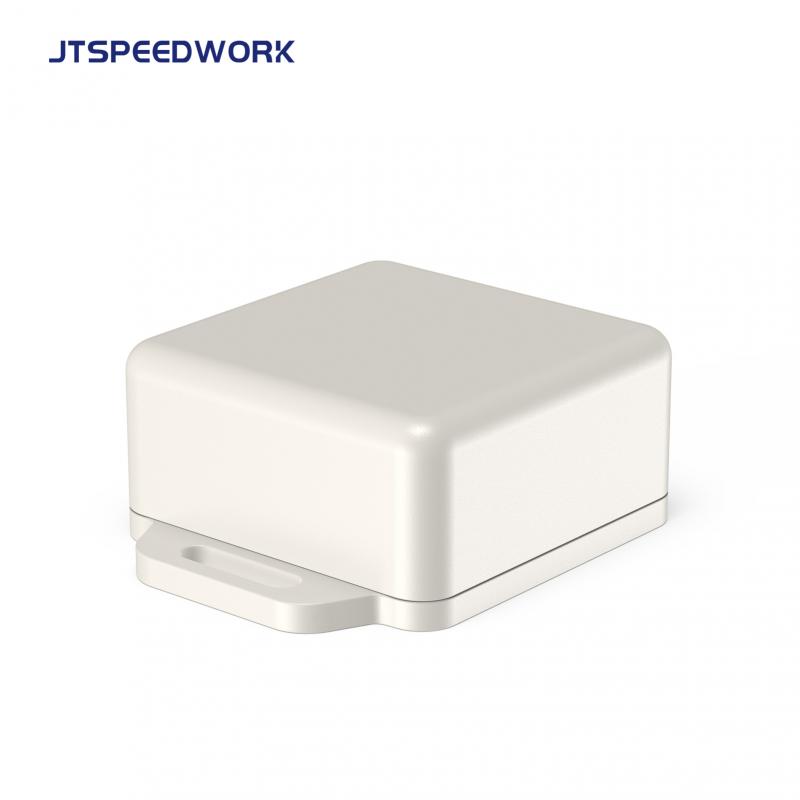

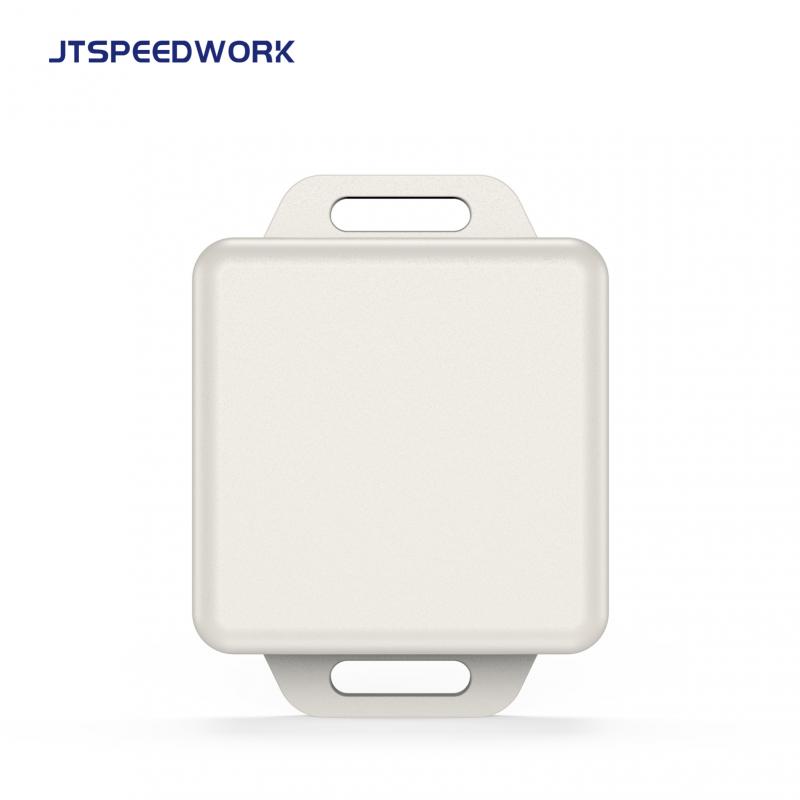

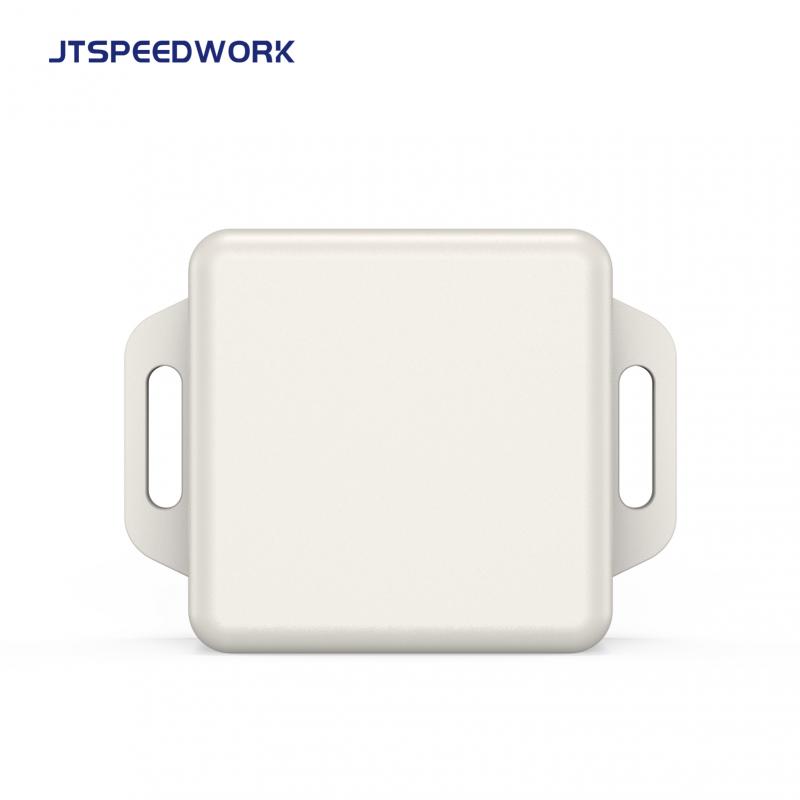

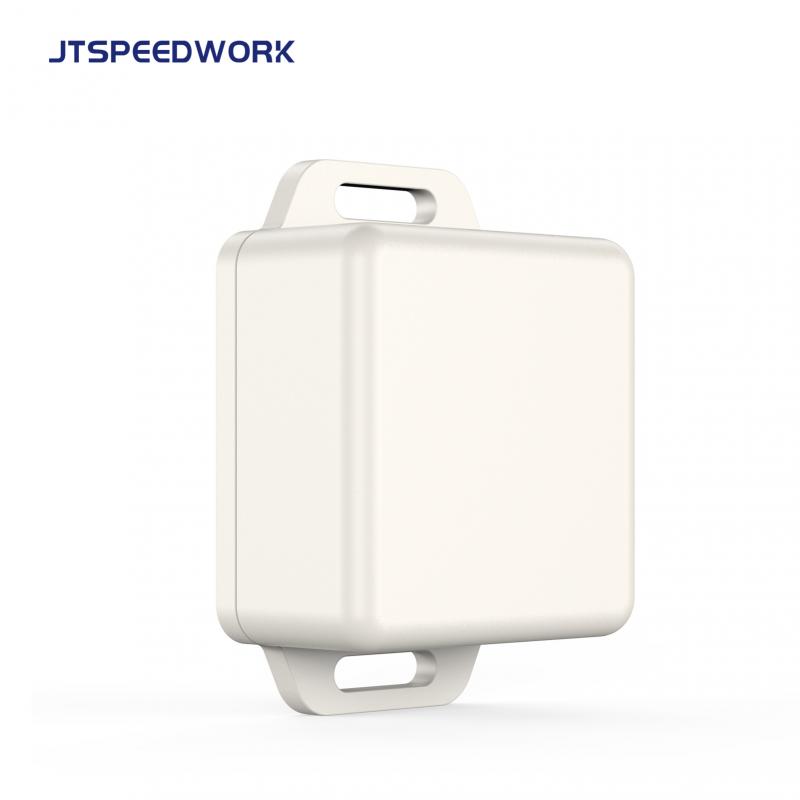

JT-T2460 2.4GHz Active RFID Tag For Asset Management

JT-T2460 2.4GHz Active RFID Tag For Asset Management

Reading distance: 0-30 meters (adjustable);



  • Brand:

    JTSPEEDWORK
  • Item NO.:

    JT-T2460
  • Payment:

    100% TT in advance
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
product details


Physical Parameters
Item No.
JT-T2460

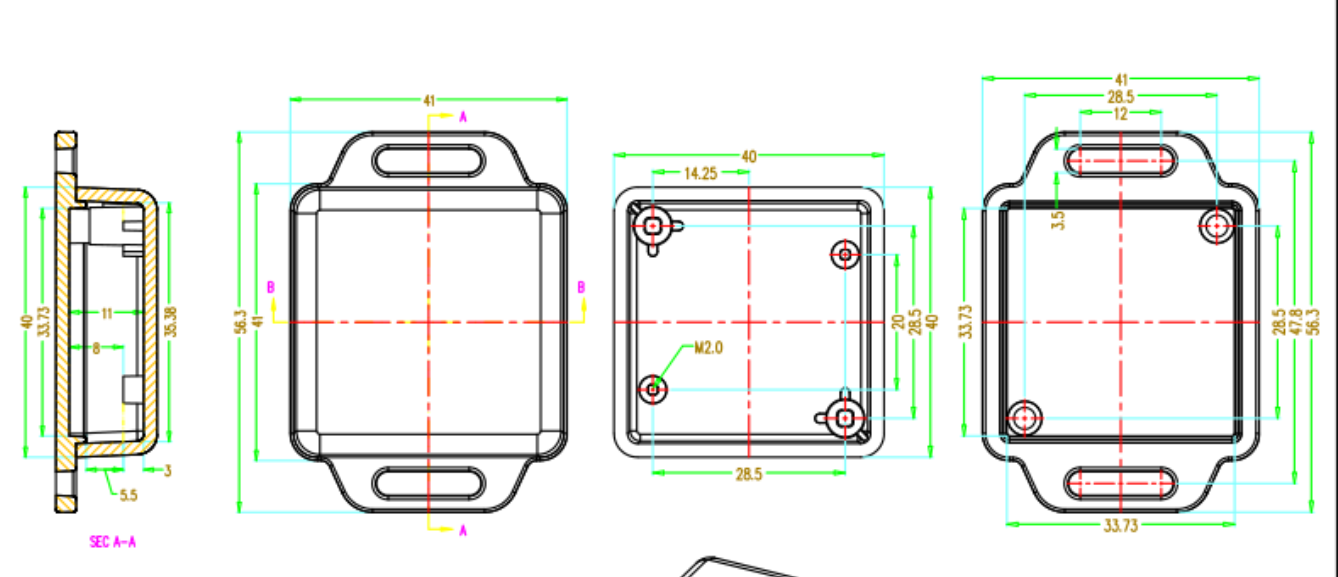

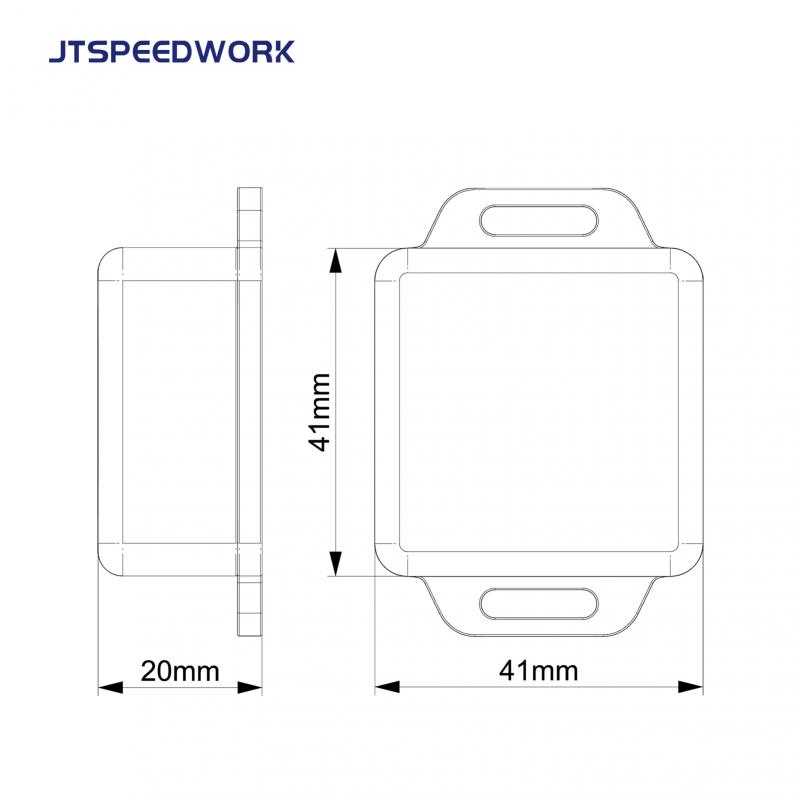

Item size
41*41*20mm
Net weight
13.9g
Material
ABS
Performance Parameters
Working frequency
2.4G ISM (2.4 GHz ~ 2.4835 GHz)
Operating mode
Single shot
RF modulation mode
GFSK
Transmit power
Default 0dBm. -20dBm ~ +12dBm (customizable)
Data communication rate
1Mbps (default); 250Kbps/1Mbps/2Mbps configurable
Tag data protocol
Jietong standard 2.4G active label protocol
Data encryption mode
Jietong standard 2.4G active tag encryption algorithm
Transmission time interval
The default is 3 seconds/time. Can be customized within 20ms-20s/time
Reading distance
0~50 meters adjustable (with JT-R2420A)
Mobile read rate
200 km/h
Reading tag recognition
direction

Omnidirectional 360 degree reading
High security anti-
jamming technology

Jietong encryption algorithm and authentication, Jietong 2.4G channel anti- interference technology to ensure data security and prevent link eavesdropping and data cracking
Operating Voltage
3V/600mAh. CR2450 button battery (not replaceable)
Working current
≤18µA (The actual working life is limited to the customized transmission power and tag transmission time period)
Sleep current
≤1uA (The actual working life is limited to the customized transmission power and tag transmission time period)
Battery life
More than 3 years (the actual working life is limited to the customized transmission power size and tag transmission time period)
IP protection level
IP54 (waterproof, dustproof) not immersed in water
Operating temperature
-40℃~+85℃
Storage temperature

-40℃~+125℃
