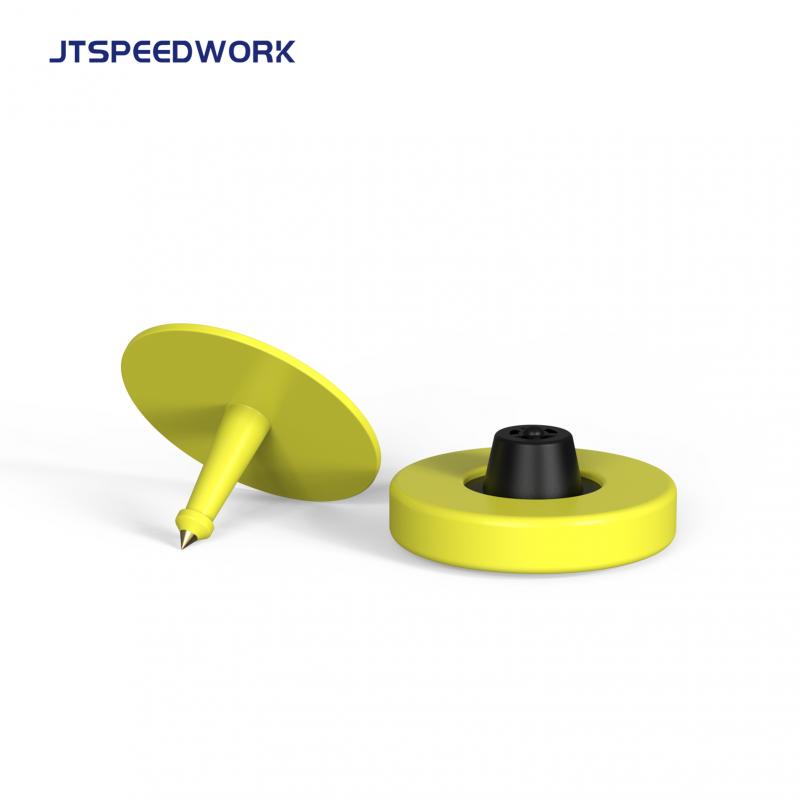

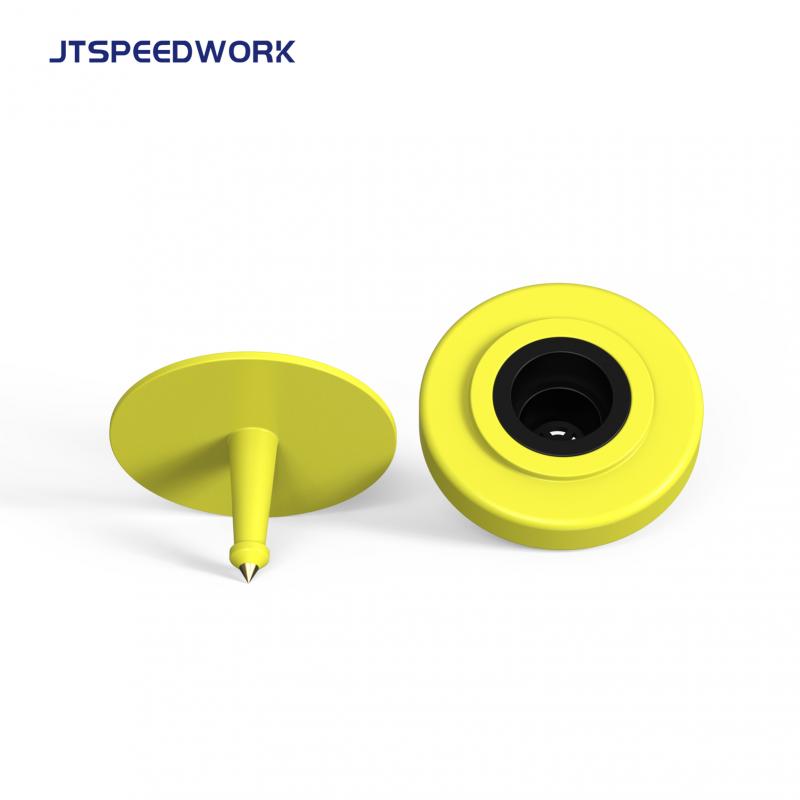

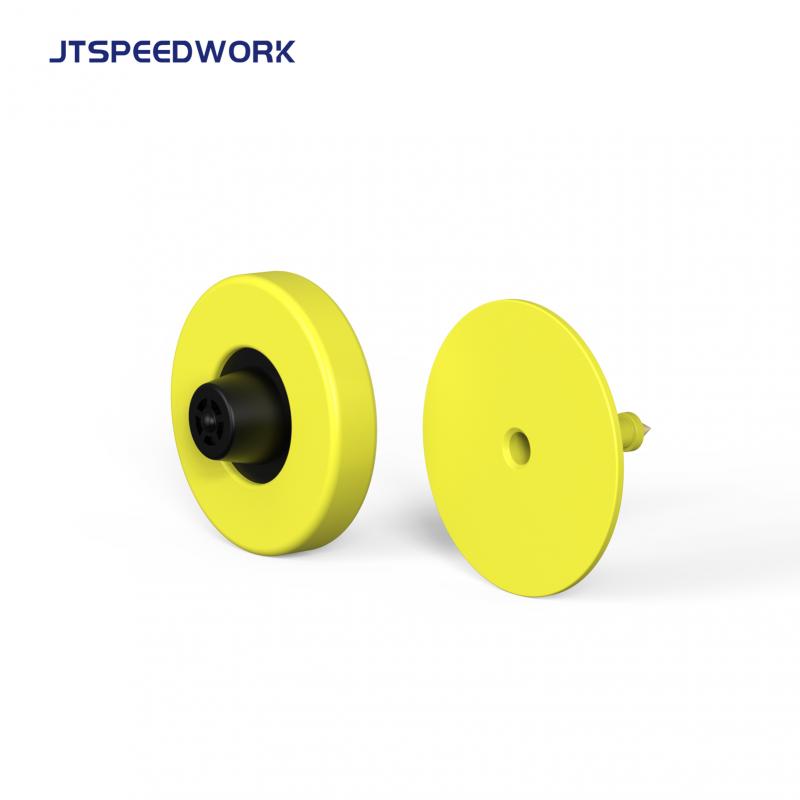

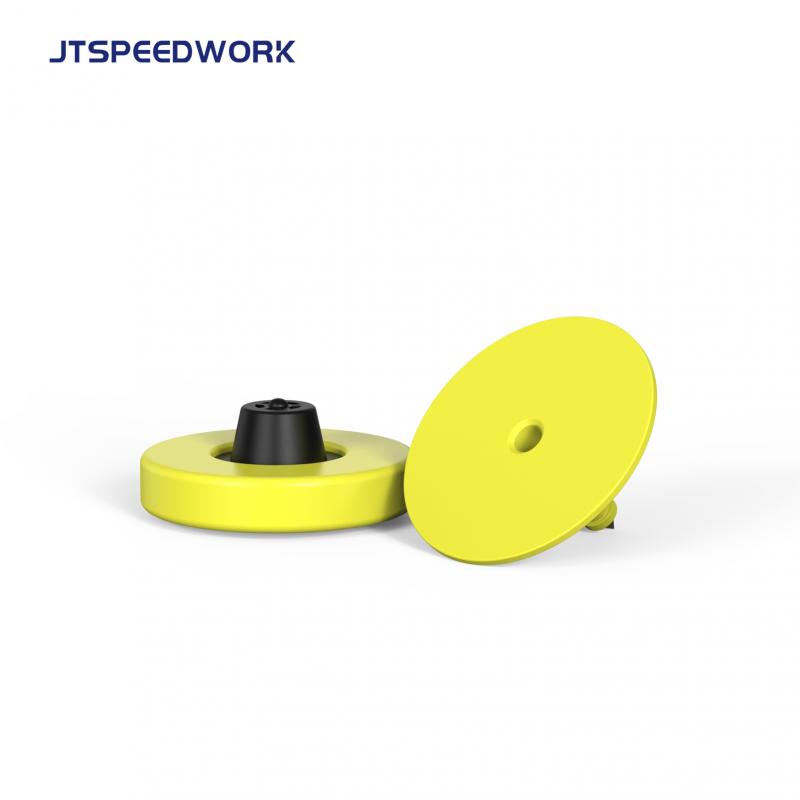

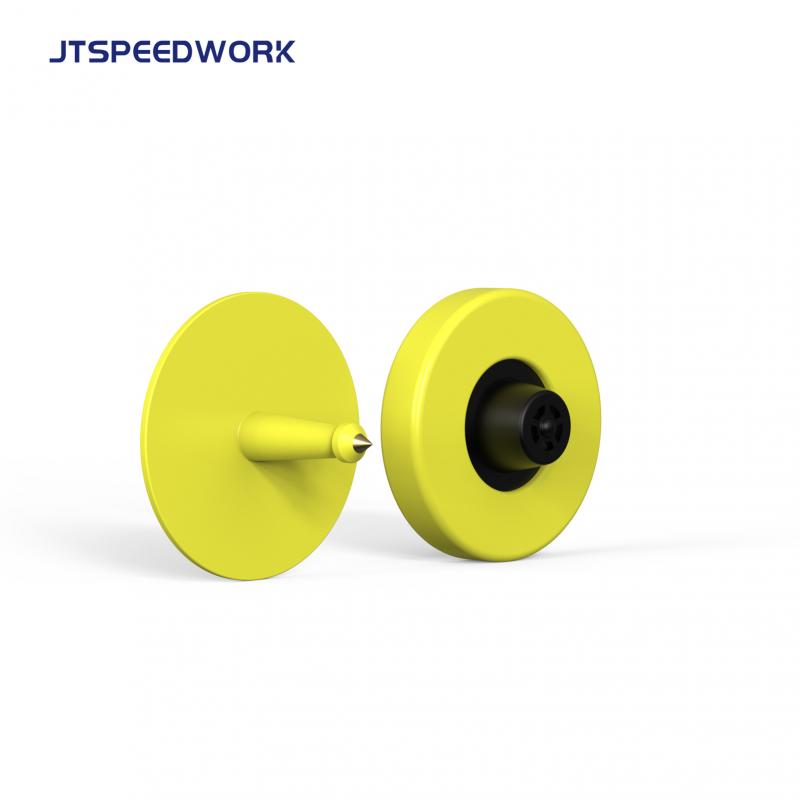

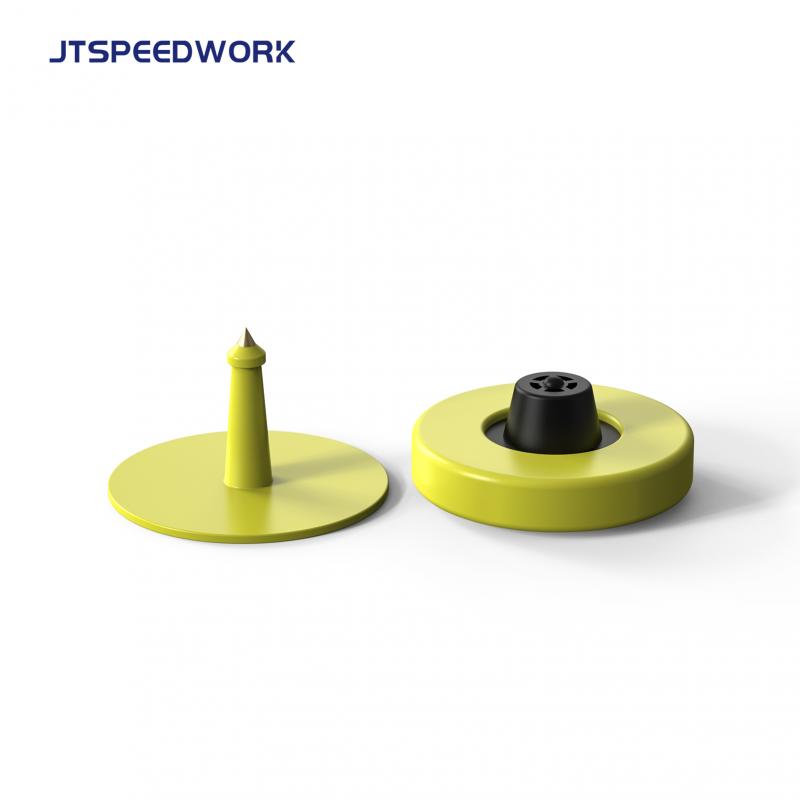

JT-E001 LF RFID Animal Ear Tag 134.2KHz FDX EM4305

JT-E001 LF RFID Animal Ear Tag 134.2KHz FDX EM4305

  • Item NO.:

    JT-E001
  • Working frequency:

    134.2KHz
  • Protocol:

    ISO11784/85
product details

>> Product Parameters

Basic model

JT-E001- FDX

Chip type

EM4305 (EM Marin)

Function

readable and writable

Memory Capacity

EEPROM 512bit

USER DATA 288 bit

ID number

1 5 -digit ID code

Working frequency

134.2KHZ ± 1KHZ _

Protocol

ISO 11784/85 (FDX-B)

Data retention time

> 10 years at 55°C (131°F)

Number of data rewrites

>100,000 times at 25°C (77°F)

Power supply

passive (no battery)

Recognition distance

1 to 55 cm (centimeters)


EEPROM storage structure:

512 bit EEPROM is made up of 16 32bit .

EEPROM Words are numbered from 0 to 15.

Word 0 : Assigned to the factory pre-written information.

Word 1 : It is a 32-bit unique identification code (UID) written by the factory.

Word 2 : Contains a 32-bit password. The password value can only be changed after a successful login command.

Word 3 : User data storage area, which can store user-specific information.

Word 4 : Used to define configuration words - operating modes and options.

Word 4 – Word13 : User data storage area, which can store user-specific information, a total of 2 88 bits space

Word 14 – Word 15 for word protection 0 to 13 use the Write Word command to modify
