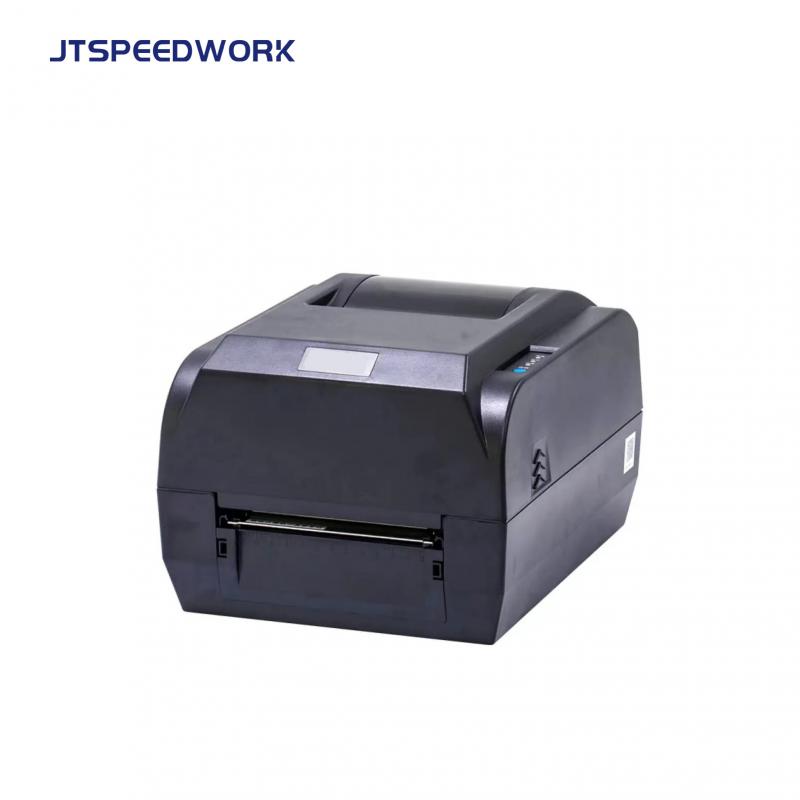

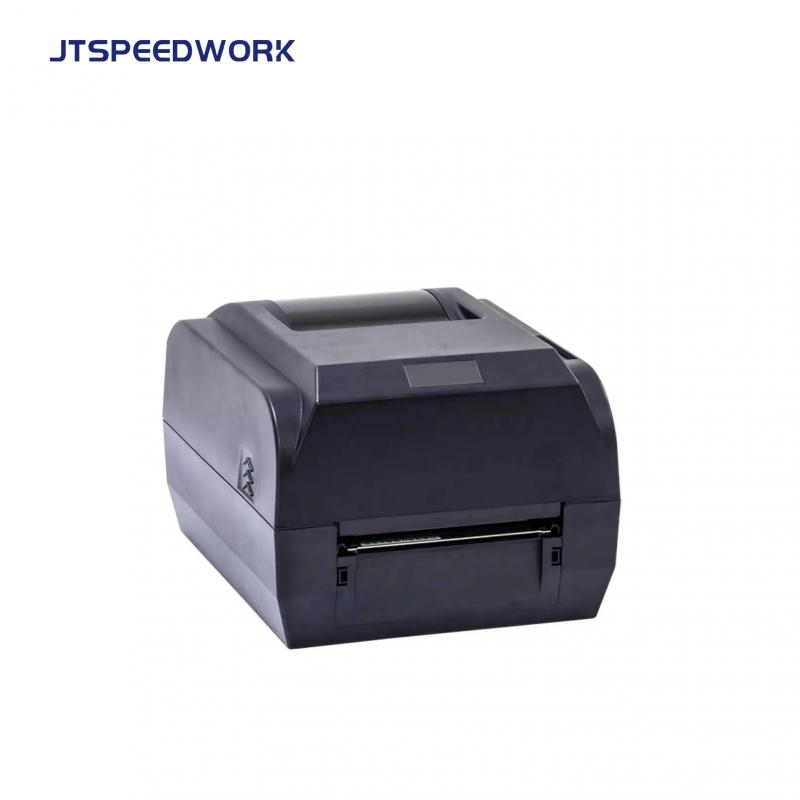

JT-DL128 Barcode RFID Printer 203DPI

JT-DL128 Barcode RFID Printer 203DPI

  • Brand:

    JTSPEEDWORK
  • Item NO.:

    JT-DL128
  • Product Origin:

    China
product details

RFID automatic calibration
The RFID automatic calibration function can automatically drive the power of the antenna according to tags of different specifications and chips, easily set the reading and writing conditions of RFID tags, and greatly reduce the time of manual debugging of printer parameters. (Press the "Power On" button twice to automatically calibrate the RFID power)

Automatic labeling function for waste labels
The automatic marking function of discarded labels means that when a defective or damaged label is found during the label reading and writing process, the printer can automatically detect and print the word "obsolete" on the surface of the label, which facilitates customers to sort out defective labels as soon as possible and avoid the mixing of defective labels.

Reliable tag data writing
The workflow of printing first and then reading and writing the label IC can support the printing, reading and writing of large batches of labels at one time, while ensuring a 100% defective label detection rate and ensuring the accuracy of subsequent business operations.

Labels are widely applicable
It can support printing and reading and writing verification of ordinary anti-metal labels and flexible anti-metal labels (≦1.25mm) at the same time. The labels are widely applicable. The three-position penetrating sensor structure design can meet the label positioning needs of different positioning methods, meet the use of different labels, and the label has a wider application range.

Humanized parameter settings
Provides an intelligent assistant setting function that can manually adjust the printer's RFID power and antenna position, providing the most suitable application settings for RFID.


Item No. JT-DL218
Print parameters Interface
Printing method Thermal/thermal transfer printer Standard USB interface (2.0 full speed)
Printing width (loading paper width) 118mm Optional RS-232 serial port (DB25)
Effective printing width 108mm Parallel Centronics(IEEE-1284)
Printing speed 150mm/s(203dpi) Ethernet port:10M/100M
Thermal head Point spacing 0.125mm Wi-Fi interface (802.11b/g/n)
Resolution 203DPIx203DPI Bluetooth interface: SPP
Barcode RFID
1D code Code 39,UPC-A,UPC-E,Matrix 25, Industrial 2 of 5, Interleaved 2 of 5, Post 2 of 5(China),Code 128, EAN-13, EAN-8, HBIC(Code 39),codabar, UPC2,UPC5, Code93,UCC/EAN Code RFID tag writing method Print first and then write, which can support printing and writing to EPC at the same time, only reading and writing EPC, printing only, and reading label TID, etc.
QR code PDF417,MaxiCode,QR Code,Data Matrix Support RFID standards 920.5-924.5MHz; support ISO18000-6C, EPC Gen2
Supported label types Supports ordinary self-adhesive RFID and flexible anti-metal tags below 1.25mm *Special tags depend on the specific chip
Physical properties Ribbon specifications
Dimensions 230(width) ×290(Deep) ×176(high)mm Inner diameter 25.4mm
Color Black White Outer diameter 68mm
Weight About 3kg Length 300 meters
Working environment Temperature: 5~40 Width 33~110mm
Humidity: 20%~95%RH (no condensation)
Storage environment Temperature: -20~60
Humidity: ≤95%RH (40, no condensation)
Control Panel Detection function
Button One key (paper feed) Standard sensor Black mark detection, label detection, mechanism detection, ribbon detection
Indicator light Three lights (power, fault, status (no paper/ribbon)) Optional sensor Label peel detection
Paper handling Character
Paper specifications Paper thickness: 0.06~0.18mm Character set Chinese characterGB18030 Chinese character large font library 24*24 latticeCommonly used single-byte fonts(ZPL):FontAarriveFontV
Paper width: 25~118mm Custom fonts can be downloaded to FLASH, SDRAM
Paper length: 8.9~400mm Code page PC437; PC850; PC860; PC863; PC865; PC858; PC852; PC866;PC720.
Outer diameter: 127mm(MAX) Zoom/Rotate It can be enlarged in steps of 1 to 8 times both horizontally and vertically; rotation printing (0° ,90° ,180° ,270°)
Inner diameter: 25.4/38.1mm
Comes with paper tearing knife Supports top tear-off and bottom tear-off
Safety Function
Safety standard GB4943.1-2011 With double dial transmission technology, with thermal head positioning structure technology and with paper tearing structure technology;The above technologies need to provide relevant supporting documents or certificates from national technical appraisal institutions;
Radio Interference (EMC) Class B
Certification 3C certification
Memory Power parameters
SDRAM 8MB Input 100~240VAC;Frequency range: 50~60Hz
FLASH 8MB Output 24VDC; 2.15A
Software Cutter life
Driver (Windows32bit/64bit, Linux), Barcode Pass BarEasy,SDK system Options 0.2mm 300,000 times, 0.15mm 500,000 times,0.06mm 1 million times
Emulation language Graphics
Simulated zebra, simulated EPSON ZPL, EPL, ESC/POS Graphics processing Monochrome PCX, BMP and other image data can be downloaded to FLASH, SDRAM
Options
The cutter (stripper) and paper are almost empty.
Reliability and warranty
Lifespan 150KM(Calculated based on the use of designated thermal paper and a printing rate of 12.5%)
Print head warranty: 6 months or 30KM whichever comes first
Machine warranty: one year
Background acquisition status
Paper jam error, paper out of paper error, cutter error, device busy, buffer is not empty, ribbon error, print head lift, paper type, print mode, cutter status, power reset, print head overheating, paper almost out (can select)
