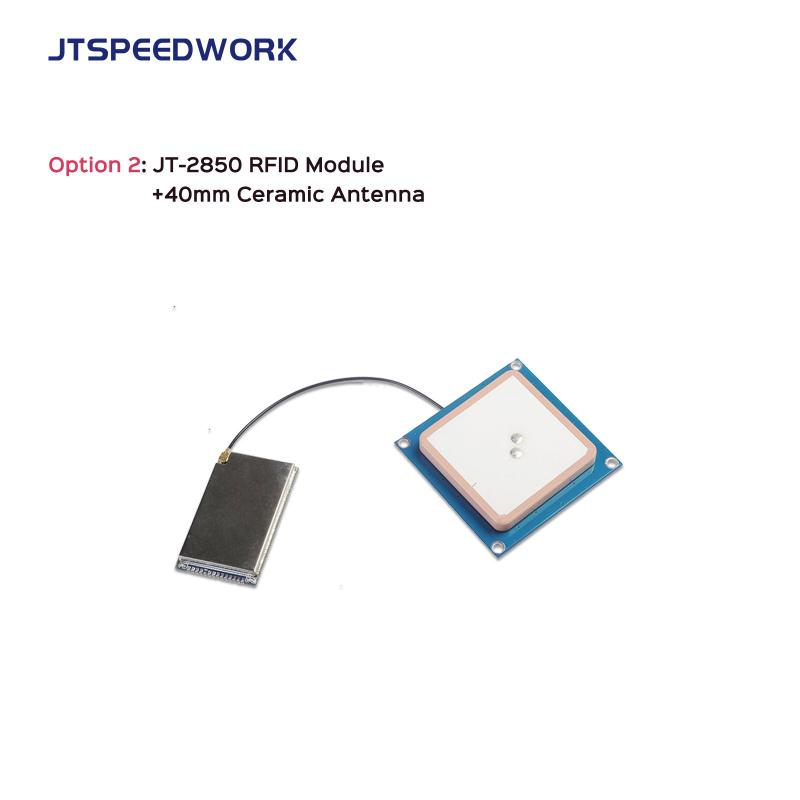

Reading 1 tag at a time; Reading range 0-1m (with JT-T0040 ceramic antenna & JT-A8554 RFID card)
Item NO.:

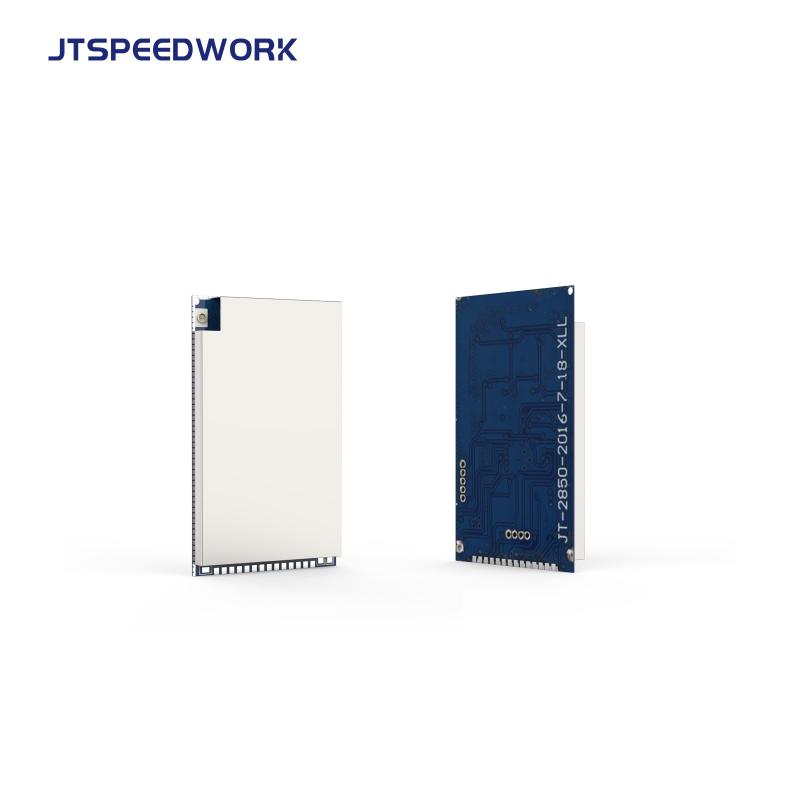

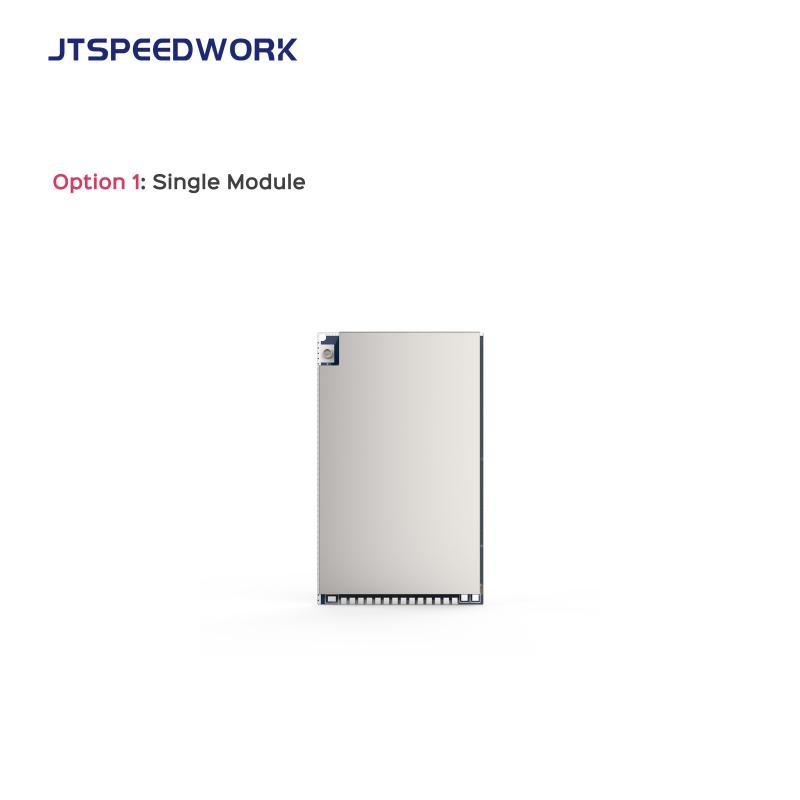

JT-2850Communication Interface
Uart TTLWorking frequency:
860-960MHzProtocol:
ISO18000-6CFeature:
◆ Working voltage range DC 5V/1A;
◆ Low power output, less than 0.5W;

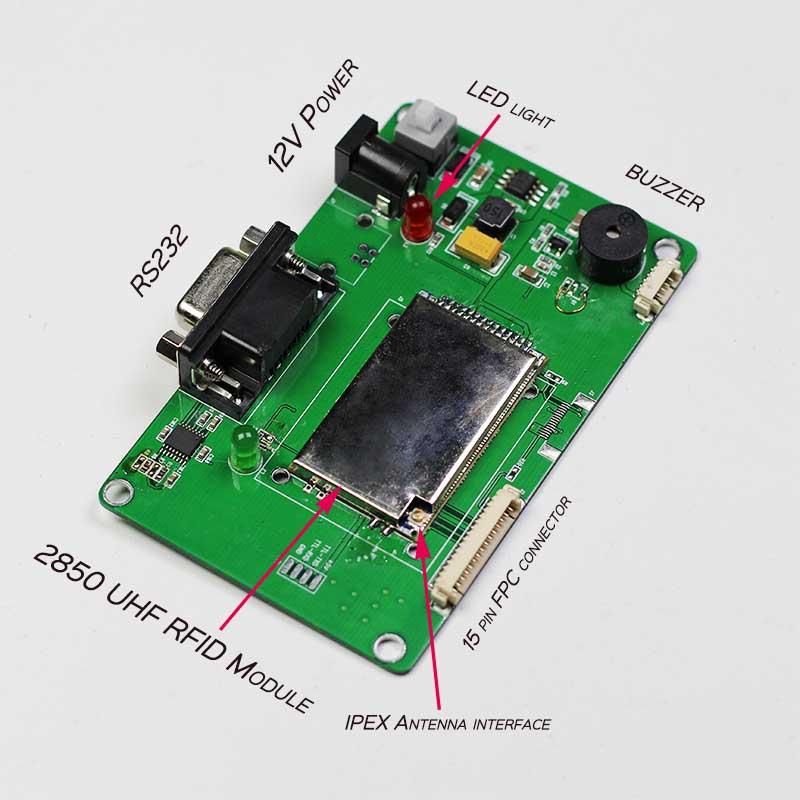

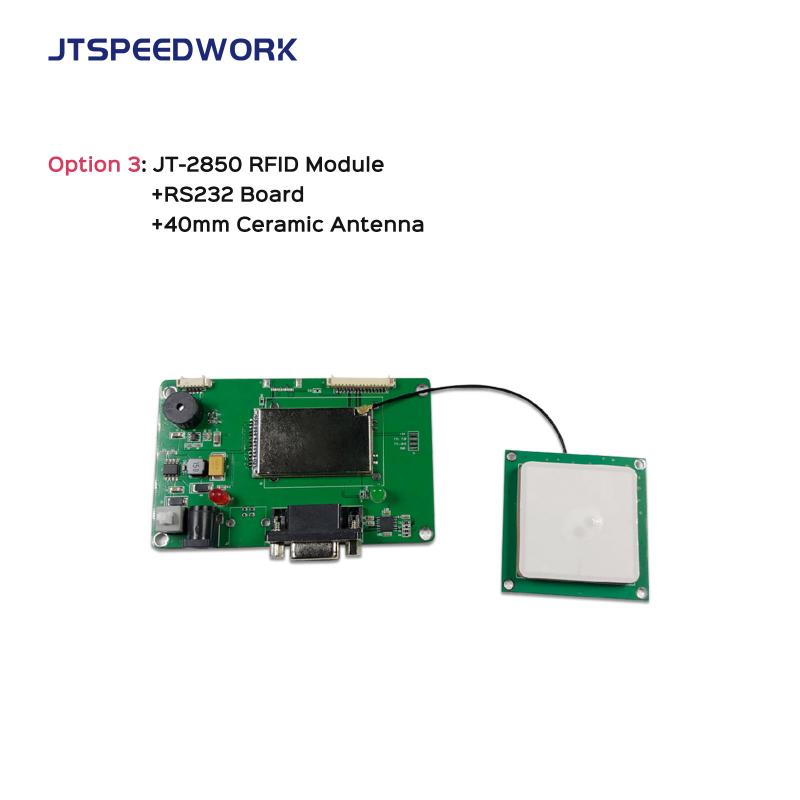

◆ Can support two-way UART communication: one for RS485, other for RS232 communication;
◆ Can built-in handheld device, PDA;
◆ Using for Asset management, Staff management, etc.
| Item No. | JT-2850 | |||
| Physical parameters | Power Supply | |||
| Dimensions | 41.5(L)*25(W)*3(H) mm | Power supply | +5V | |
| Peak current | 60mA(DC12V) | |||
| RFID parameters | ||||
| Air Protocol | User Environment | |||
| EPC global Gen2(ISO18000-6C) | Operating Temp. | -45 ℃ to 90 ℃ | ||
| Working frequency | Storage Temp. | -45 ℃ to 90 ℃ | ||
| 865-868 / 920-925 / 902-928 MHz ( custom-design for frequency band ) | Humidity | 5-90% non-condensing (+25° C ) | ||
| RF power | ||||
| 0~18 dBm(±1dBm) (adjustable) | Reading Performance | |||
| Antenna interface | Reading distance | |||

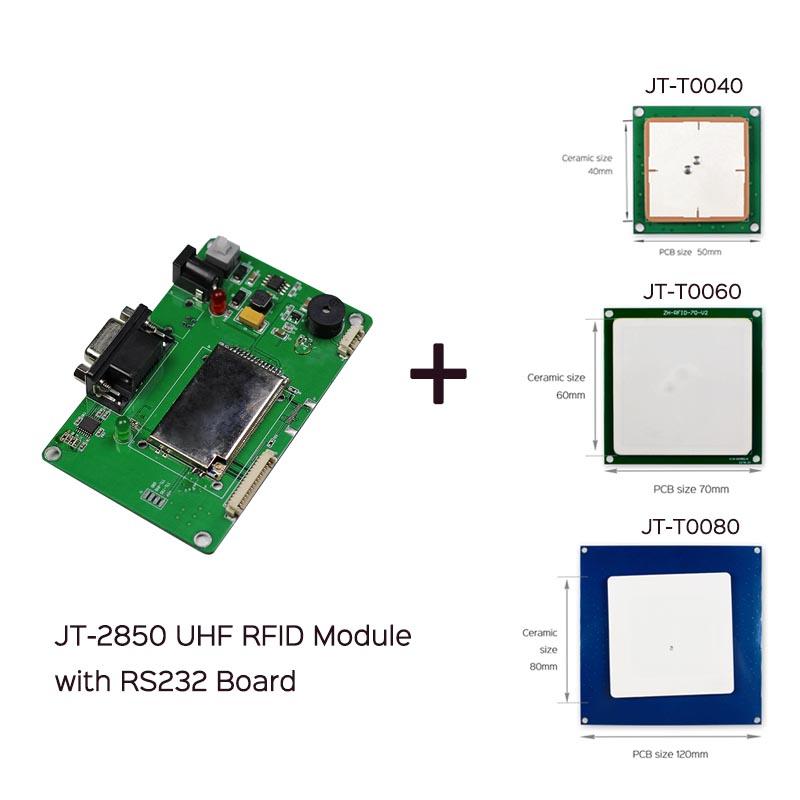

| 1 way IPEX | Up to 1m(with JT-T0040 ceramic antenna and JT-I9662 tag) | |||
| Communication interface | Write range | |||
| Uart(TTL) | 0-30cm | |||
| UART communication | ||||
| 2 way (1 way for RS232, 1 way for RS485) | Datasheet | |||
| FM mode | ||||
| Hopping / Fixed | SDK(download link) | |||
| C# , Java , C++ | ||||
