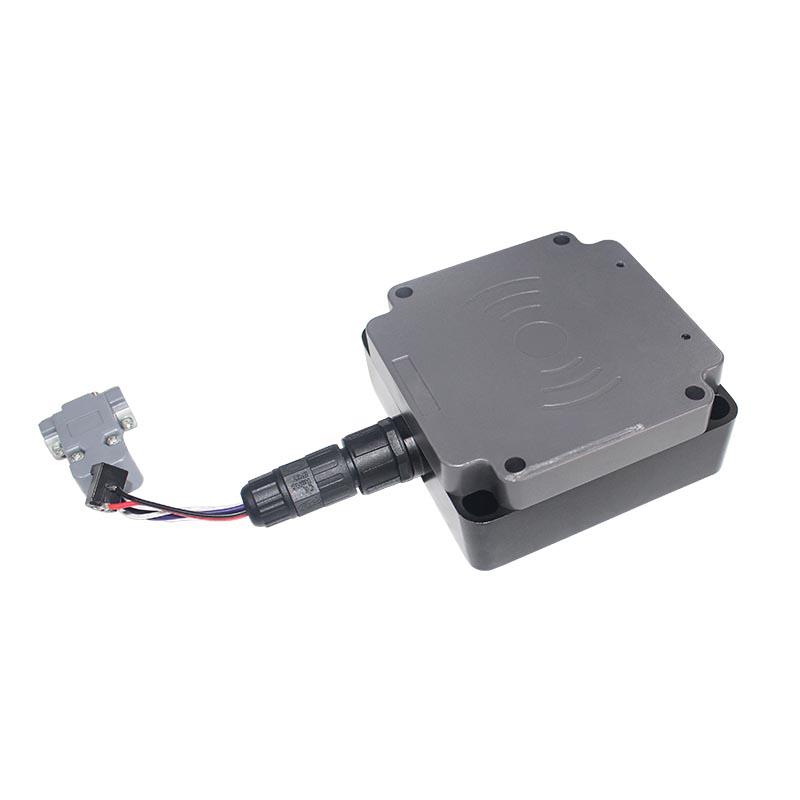

JT-7100 is industrial design, sturdy and durable, in line with the harsh industrial production lineenvironment, the protection level reaches IP66.RFuses proprietary intellectual property research and development chips with high-performance label recognition algorithm
Software intelligent monitoring of the working state, 24 hours X 365 days of operation does not crash.
The bottom cover is designed to install iron pieces, which is convenient for industrial production line environment installation and reader installation.Small size and light weight, easy to integrate industrial production line equipment. Support EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C RFID tag.
Brand:
JTSPEEDWORKItem NO.:
JT-7100Product Origin:
ChinaLead Time:
Within 3-7 Days
Technical Parameters |
|
Frequency |
902-928MHz or 865-868Mhz |
Frequency modulation method |
Broad spectrum frequency modulation (FHSS) or fixed frequency, software settings |
RF output |
20-26dBm adjustable;50 ohm load |
Built-in antenna |
Dual feed 40x40 ceramic antenna |
Antenna |
3dBi |
Communication port |
RS232or RS485 |
Communication rate |
Rate 9600~115200bps, |
Reliable firmware upgrade |
Scalable upgrade mechanism |
SDK |
C#,Java,Android |
Working status display mode |
LED indicator (blue, red), buzzer |
Rewrite and Read |
|
Read distance |
0-3M |
Write distance |
0-30CM |
Protocol |
EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
Maxreceiving sensitivity |
-65 dBm |
Performance |
|
Size |
95*95*40mm |
Equipment power supply |
Industrial grade wide voltage design, 9-36V DC |
LED indicator |
Blue: card reading indicator; red: power indicator |
Weight |
450g |
Protection level |
IP66 |
Connector form |
Round waterproof M5 pin socket connector |
Connector pin definition |
1:GND; 2:TXD; 3:RXD; 4:DC; 5:GND |
Operating temperature |
-20ºC ~60ºC |
storage temperature |
-20 ºC~85 ºC |
Working humidity |
5%~95%RH, Non-condensing |
