 Low Power UHF RFID Module
3M Reading Range Low Power UHF RFID Module with Multi-tags reading
  • Product Origin:

    China
  • Brand:

    SPEEDWORK
  • Item No.:

    JT-2320
  • Shipping Port:

    Shenzhen
  • Lead Time:

    3 working days
  • Payment:

    100% TT in advance
Inquiry
  • Product Details

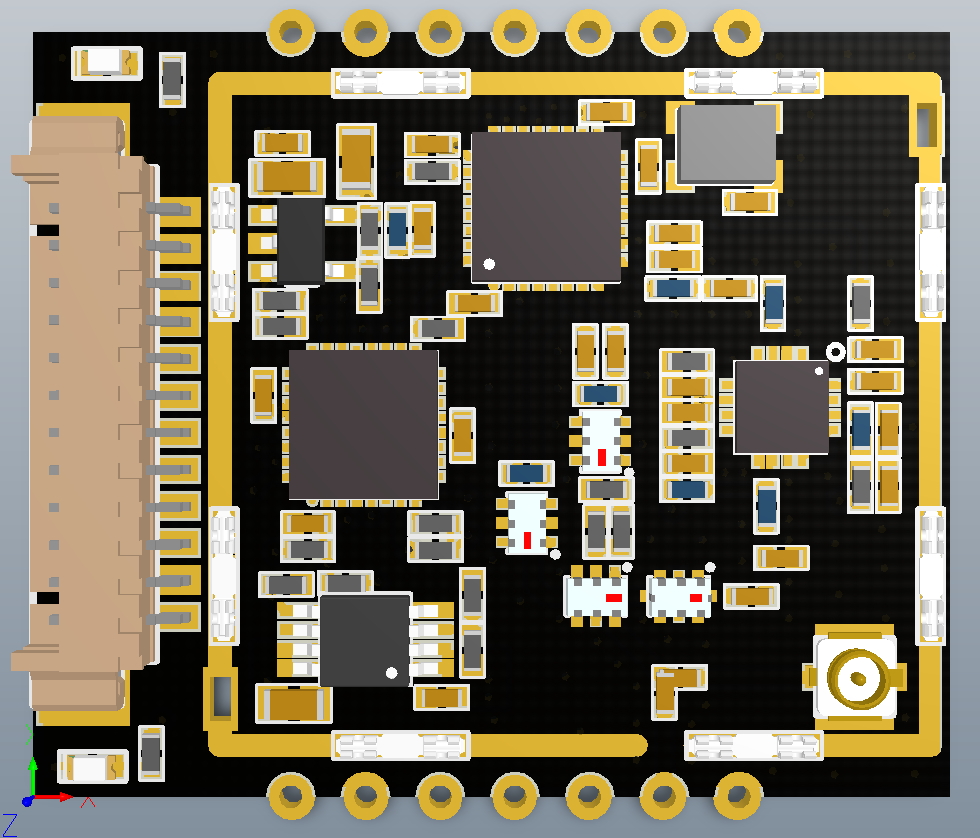

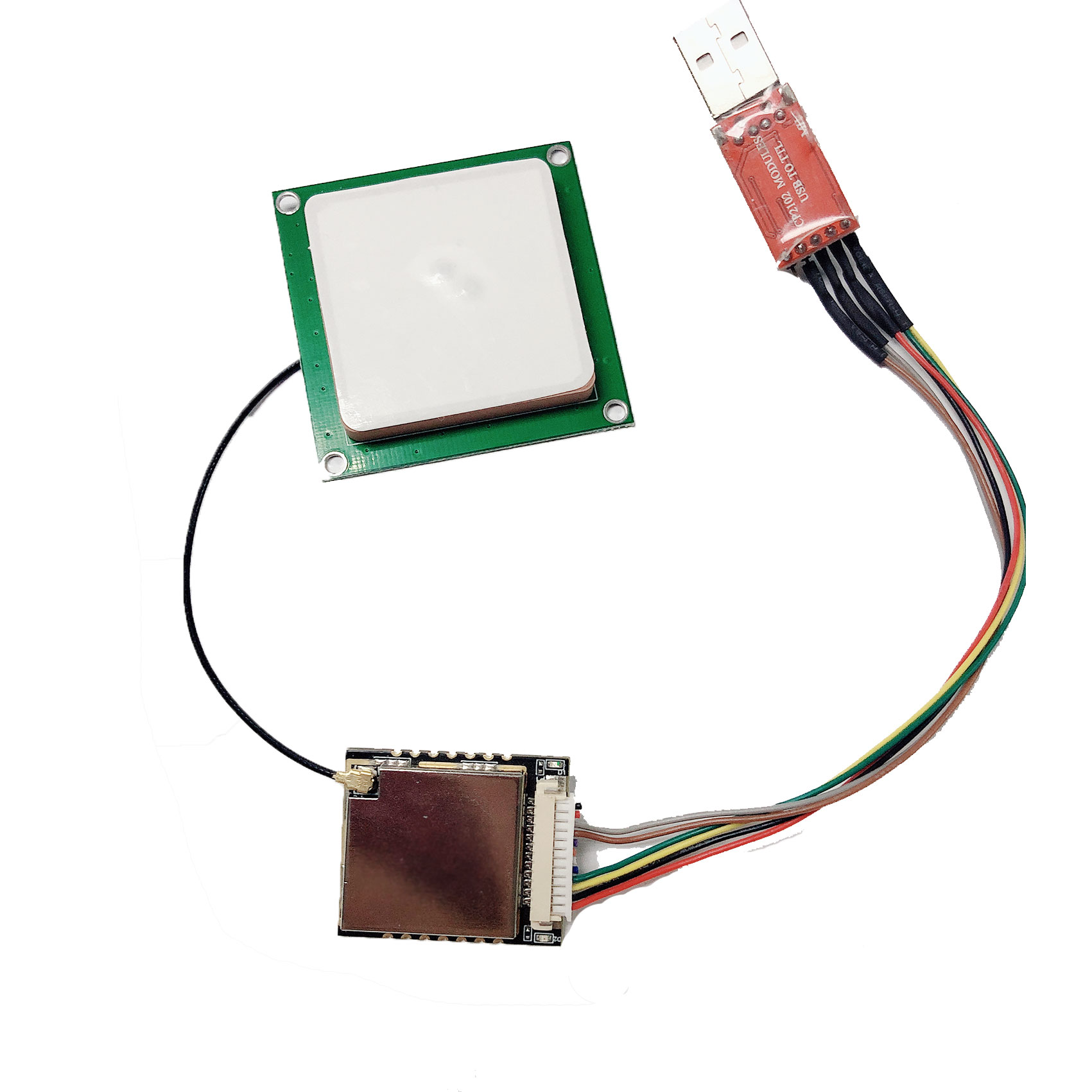

The JT-M2320 (M100+) read/write module is a small, ultra-low power read/write module based on the MagicRF M100 platform. With complete independent intellectual property rights, the reader's default operating frequency band is 902MHz ~ 928MHz, supporting ISO18000-6C (EPC C1 GEN2) protocol. It can be easily embedded into handheld terminals such as tablets and PDAs to realize the RFID expansion function of such devices, and is widely used in other fields such as logistics management, product quality inspection, personnel management and so on.



Features

Patent design, independent intellectual property rights

Sensitivity -10dBm -65dBm under local blocking, 1% false rate

Based on MagicRF M100 platform

Support LBT and FHSS FM mode

Support TTL serial communication

Performance parameter

Technical Parameters

Working frequency

902~928MHz865~868 MHz

Protocol

EPC C1 Gen2 ISO18000-6C

RF power

0~26dBmadjustable

Reading distance

0~20m (depend on antenna and environment )

Read rate

300times/second

Operating mode

Fixed frequency / frequency hopping optional

Antenna detection

Support RSSI value detection

Power parameter

Equipment power supply

5VDC

Working power consumption

2W

Environmental parameters

Operating temperature

-2055

storage temperature

-3080

Storage humidity

5%95%RH No condensation

I/O Interface definition

Interface Type

Interface serial No

Interface name

Interface definition

LCC

1

GND

ground

2

BEEP

Buzzer control foot

3

IO4

GPIO interface

4

IO3

GPIO interface

5

EN

Power enable pin

6

GND

Ground

7

+5V

Power input

8

+5V

Power input

9

GND

Ground

10

TXD

TTL Serial port transmission

11

RXD

TTL Serial port reception

12

LED-OUT

LED Status display pin

13

ANT

Antenna interface

14

GND

Ground

WF type P1 interface

1

GND

Ground

2

GND

Ground

3

+5V

Power input

4

+5V

Power input

5

EN

Power enable pin

6

IO3

GPIO interface

7

IO4

GPIO interface

8

BEEP

Buzzer control foot

9

RXD

TTL Serial port reception

10

TXD

TTL Serial port transmission

11

GND

Ground

12

LED-OUT

LED Status display pin
